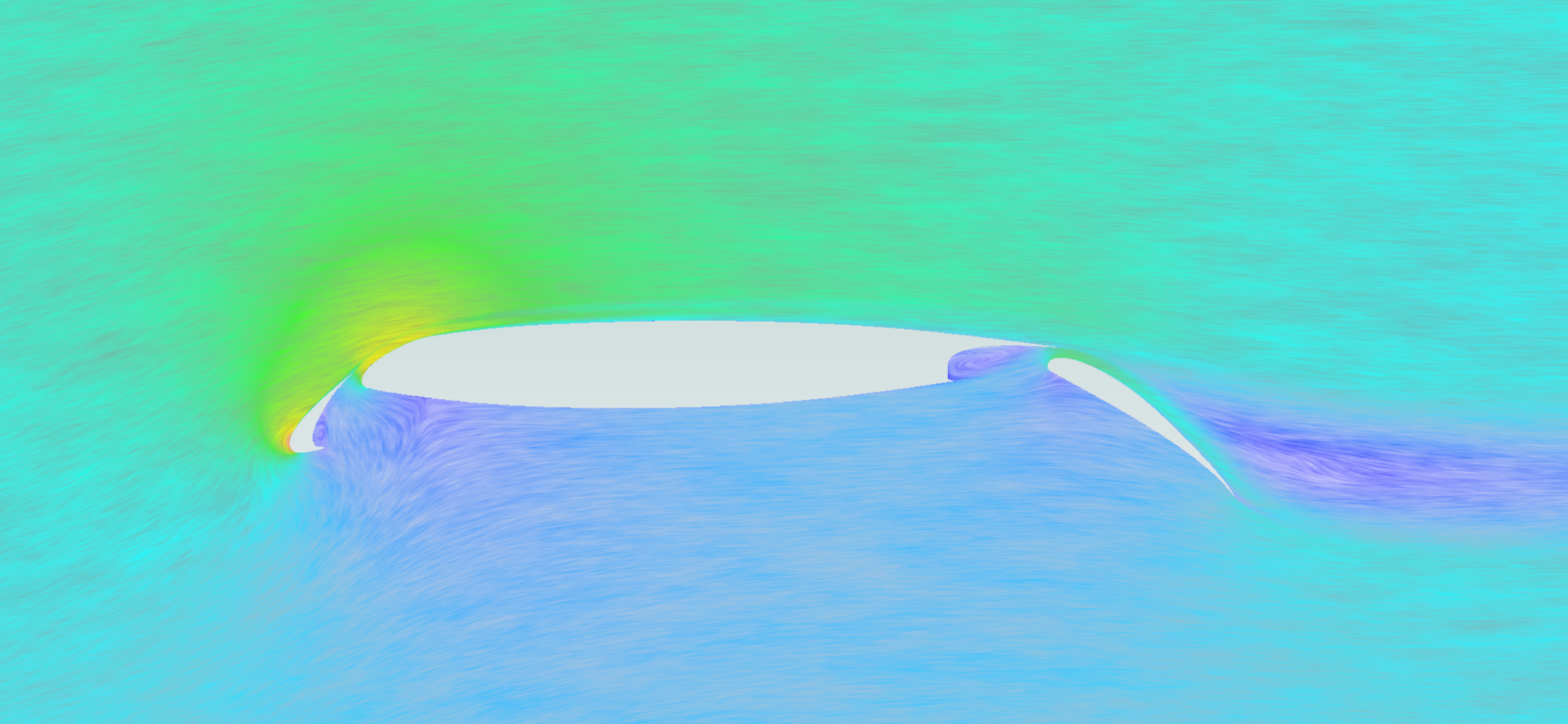

2D CRM High-Lift. Multi Element Airfoil Validation
The multi-element 2D CRM airfoil is a benchmark for validating high-lift RANS predictions on a slat-main-flap configuration. This case verifies Flow360 against the NASA Turbulence Modeling Resource high-lift reference data. The setup uses the Spalart-Allmaras turbulence model on the L7 workshop mesh at Mach 0.2, Reynolds number 5 × 10⁶, and alpha = 16° with translational periodic boundaries. Surface Cp and Cf is compared against FUN3D reference data from the NASA website. It also compares three x/c profile cuts against three sets of FUN3D data with different grid families / turbulence discretization. More details are present on the NASA TMR page.
External reference data
NASA Turbulence Modeling Resource, Multi-Element Verification Case.
turbmodels.larc.nasa.gov/multielementverif.html
turbmodels.larc.nasa.gov/multielementverif.html
Validation plots
Comparison of Flow360 predictions against reference data. Click an image to expand.

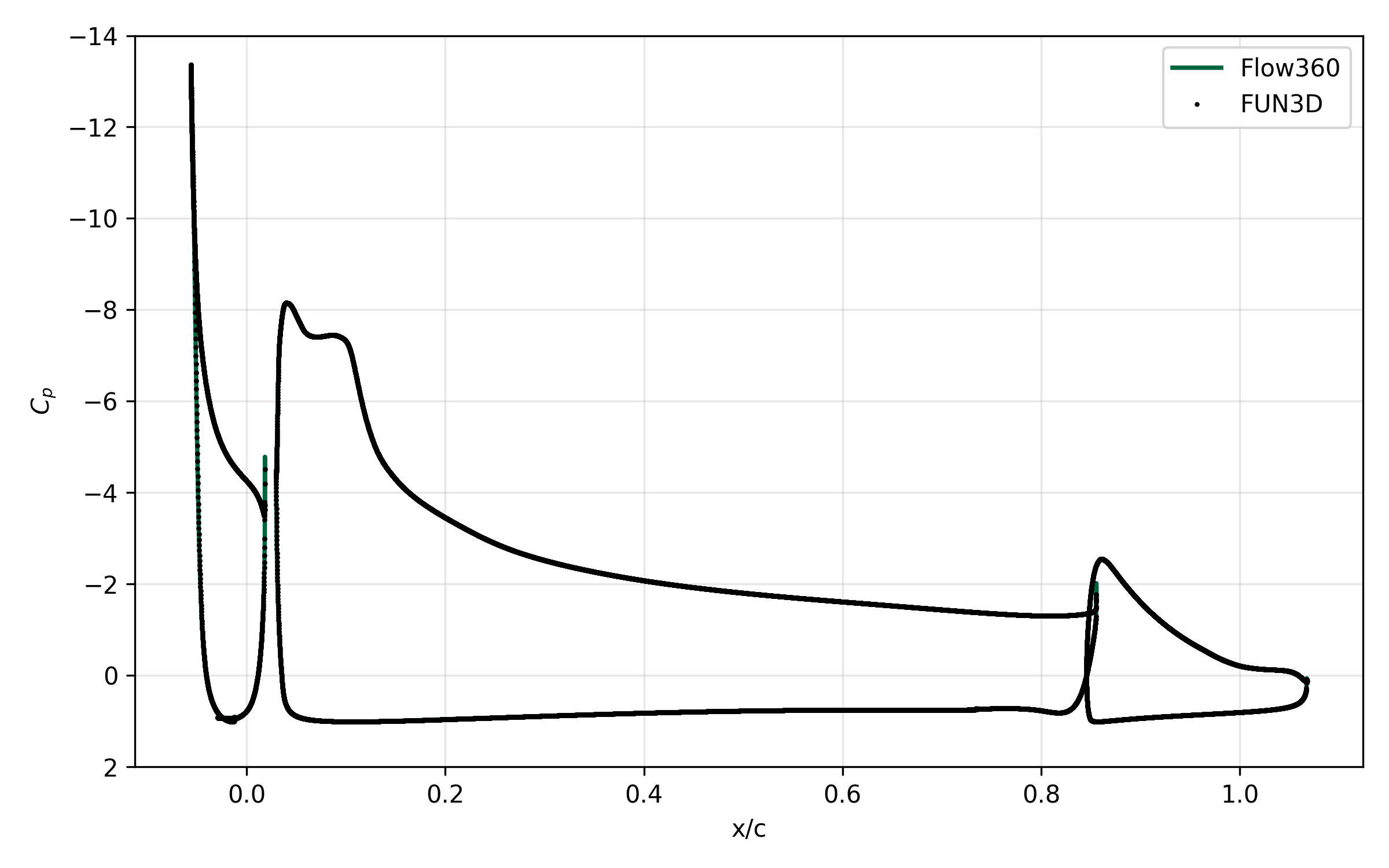

Surface pressure coefficient

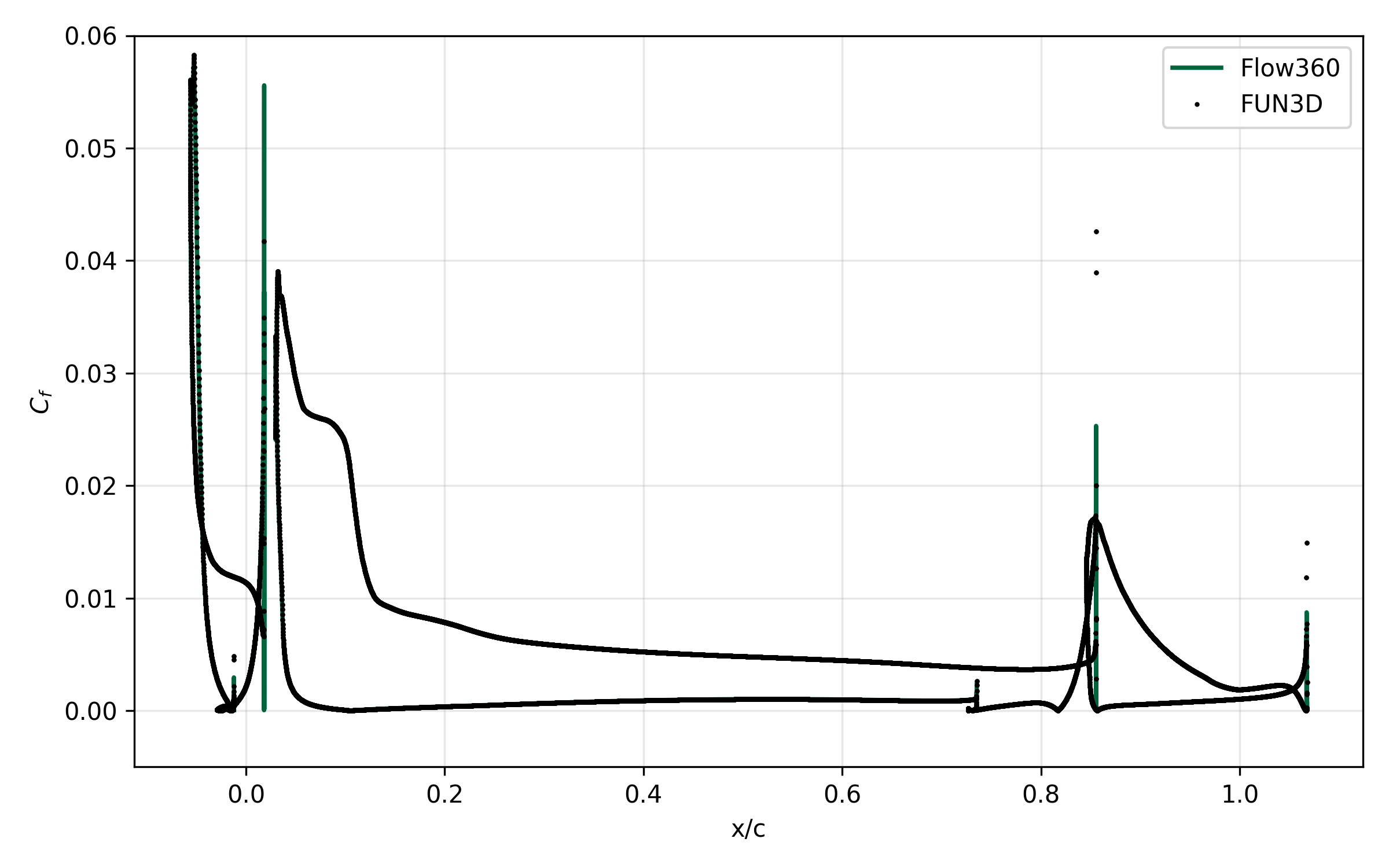

Surface skin-friction coefficient

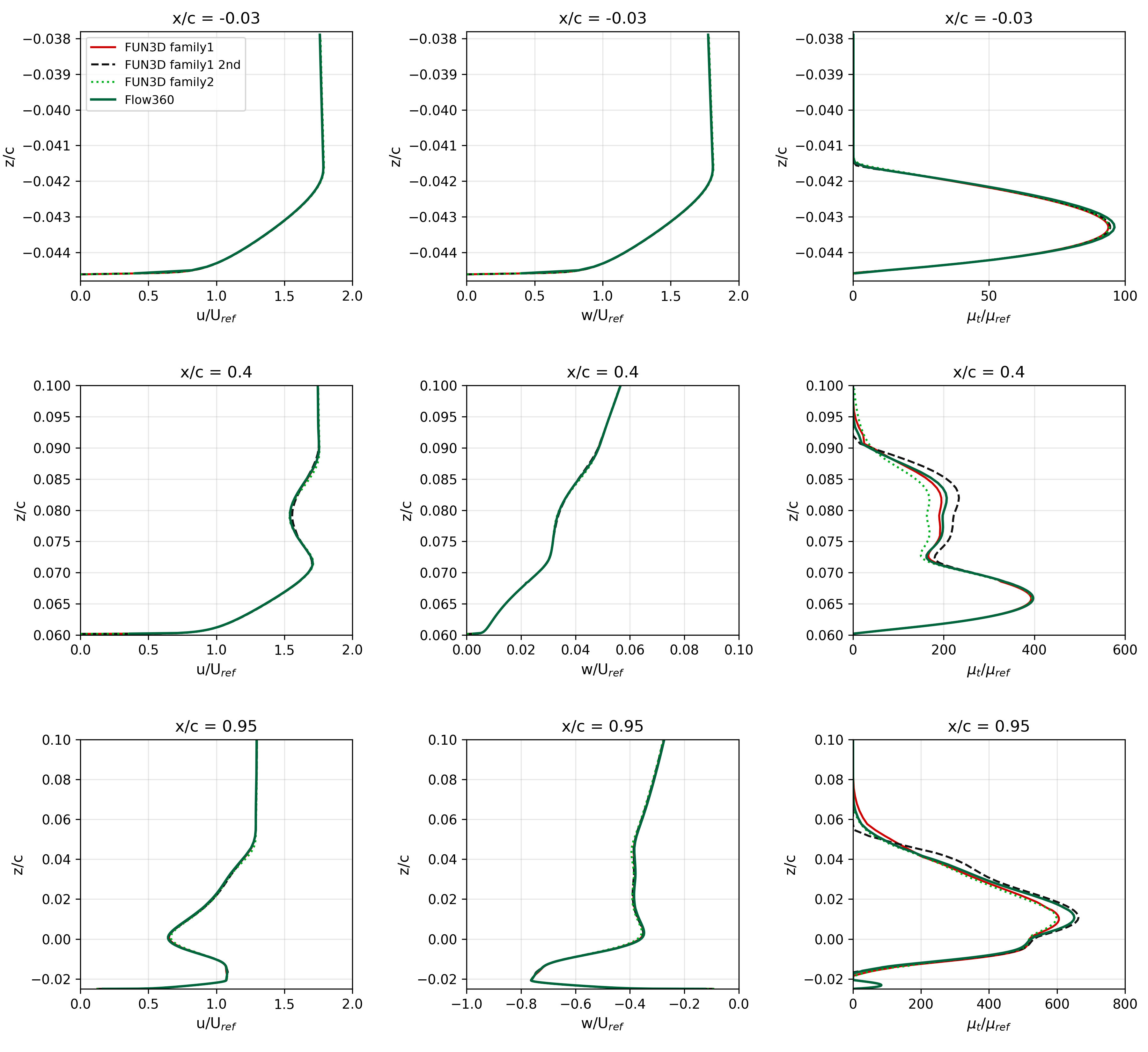

Velocity profiles at three x/c stations
