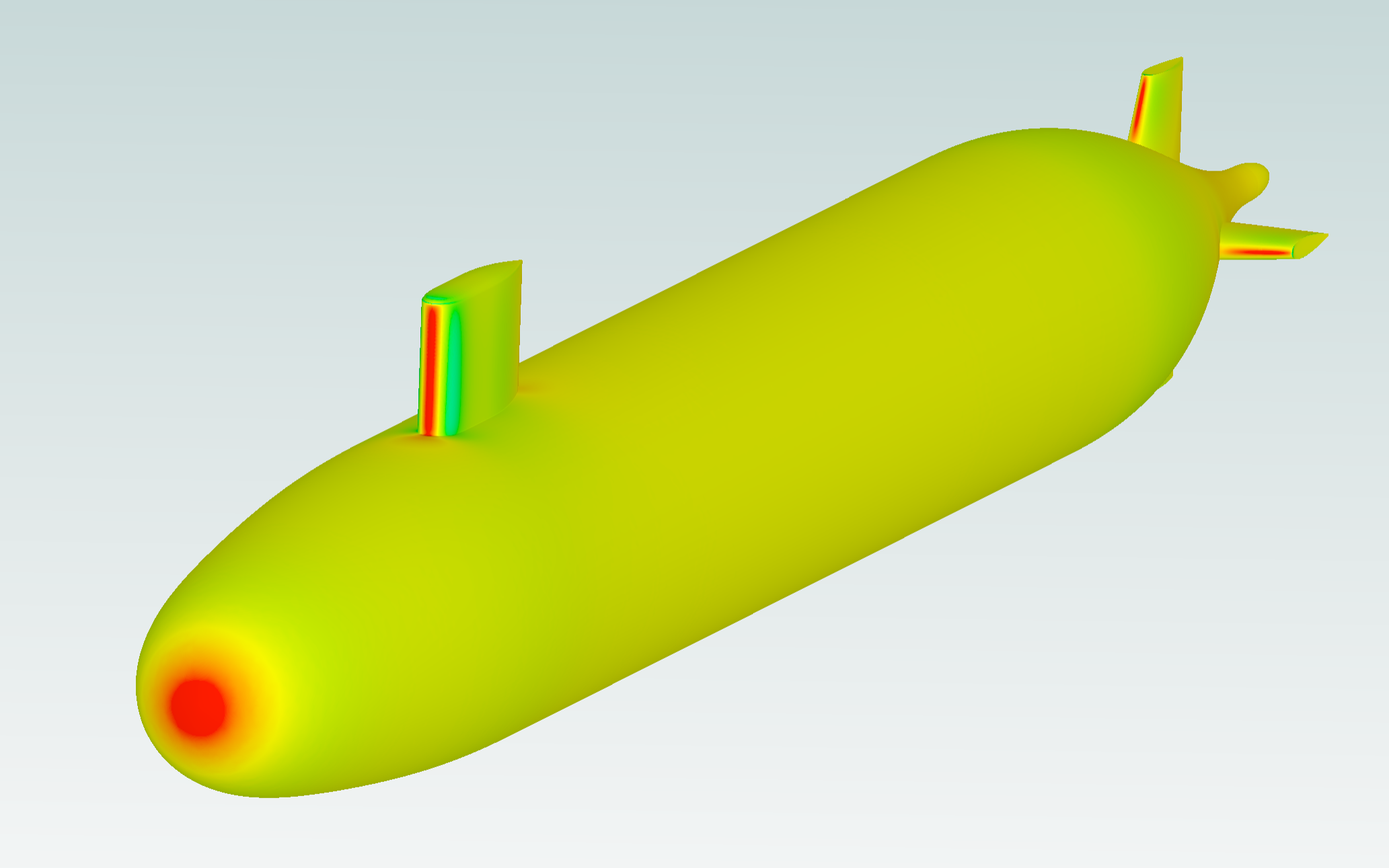

DARPA SUBOFF. Validation of Liquid Operating Condition for Submarine Resistance
DARPA's DTRC 5470 is a standard marine CFD benchmark with high-quality towing-tank data and is widely used for CFD calibration. This case uses it to benchmark the liquid operating condition in Flow360 on an external-flow problem where total resistance can be compared directly against experimental data. The benchmark covers a six-speed sweep from 5.93 to 17.79 knots. Steady Spalart-Allmaras RANS and SA-DDES results are shown showcasing how Flow360 accurately predicts the trends and magnitude of the measured resistance.
External reference data
Roddy, R. F. (1990, September 1). Investigation of the stability and control characteristics of several configurations of the DARPA SUBOFF model (DTRC Model 5470) from captive-model experiments (ADA227715). David Taylor Research Center, Ship Hydromechanics Dept
apps.dtic.mil/sti/citations/ADA227715
apps.dtic.mil/sti/citations/ADA227715
Validation plots
Comparison of Flow360 predictions against reference data. Click an image to expand.

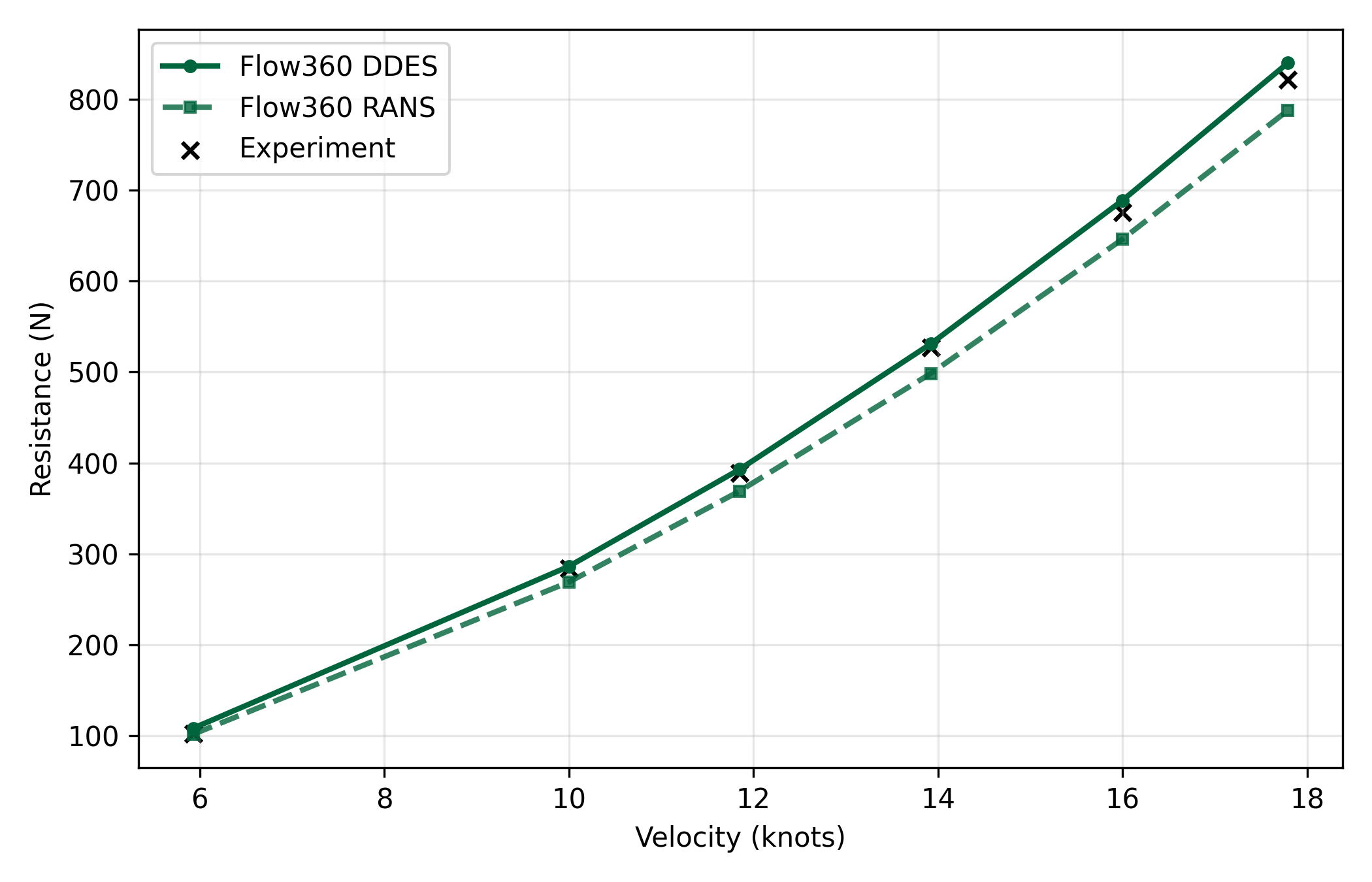

Total resistance vs speed
Solver performance
