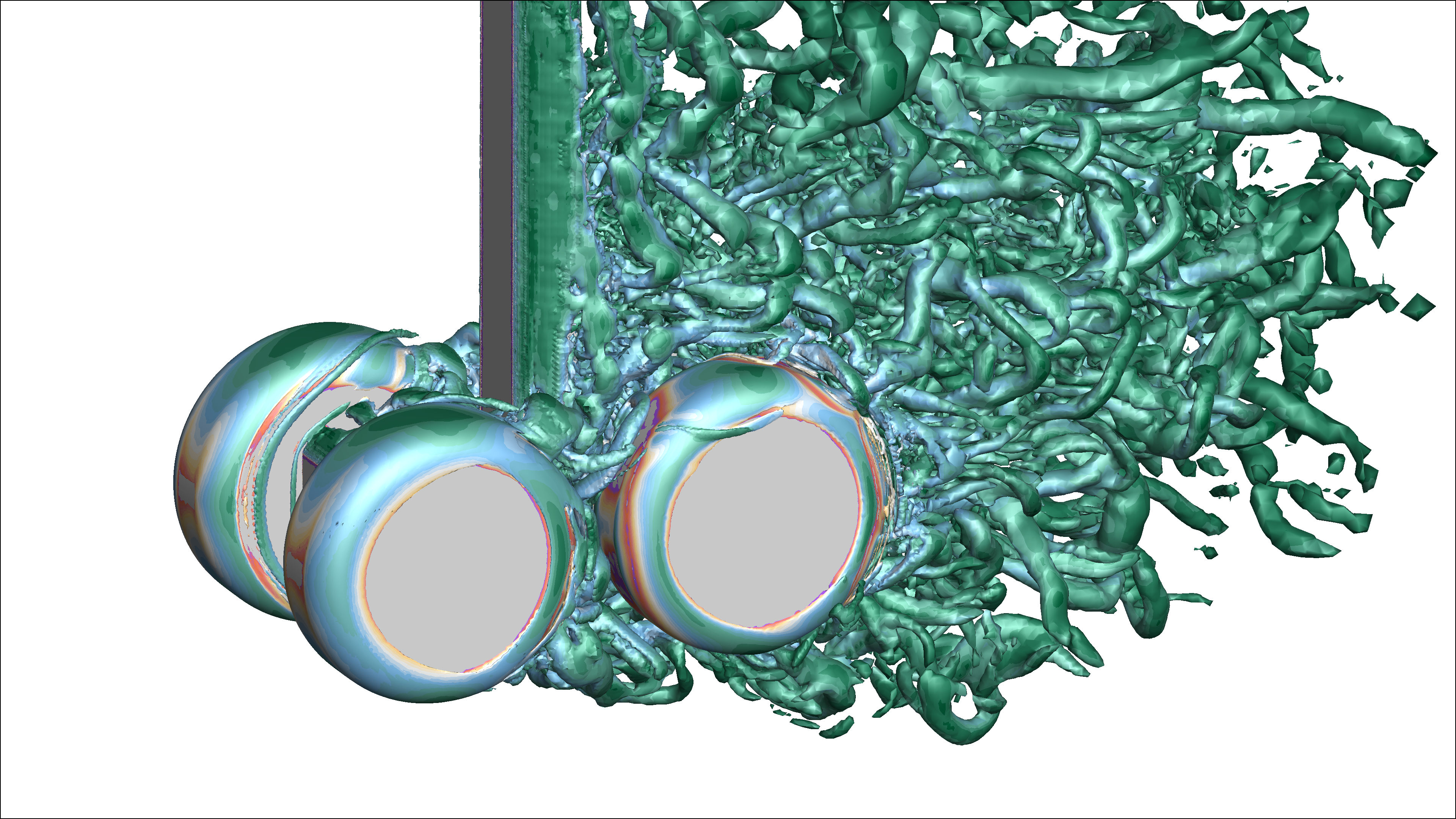

Rudimentary Landing Gear. Unsteady wheel surface pressure vs DLR experiment
The Boeing Rudimentary Landing Gear (BRLG) is a standard four-wheel configuration, which can be used as a benchmark for validating unsteady CFD methods. This benchmark targets prediction of circumferential Cp on the front and rear wheels. Flow360 Cp distributions on the front and rear wheels are compared against DLR BRLG revA wind-tunnel pressure port data. The results show great agreement with the experimental data serving this as a validation case for Flow360's DDES simulation capabilities.
External reference data
Hartmann et al. DLR BRLG revA experimental Cp (Miquel et al.)
doi.org/10.1007/978-3-030-62048-6_14;
doi.org/10.1007/978-3-030-62048-6_14;
Validation plots
Comparison of Flow360 predictions against reference data. Click an image to expand.

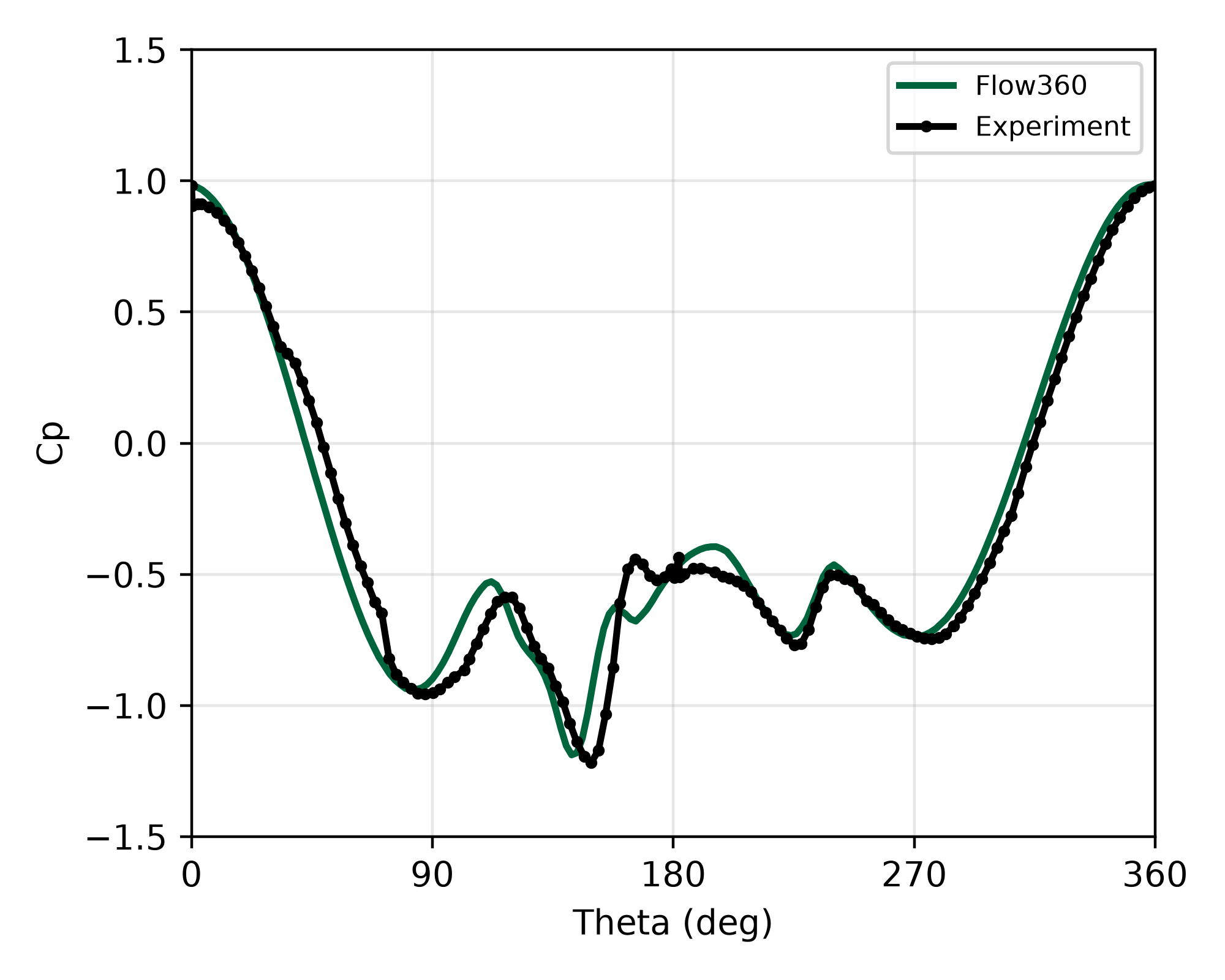

Front-wheel Cp vs θ

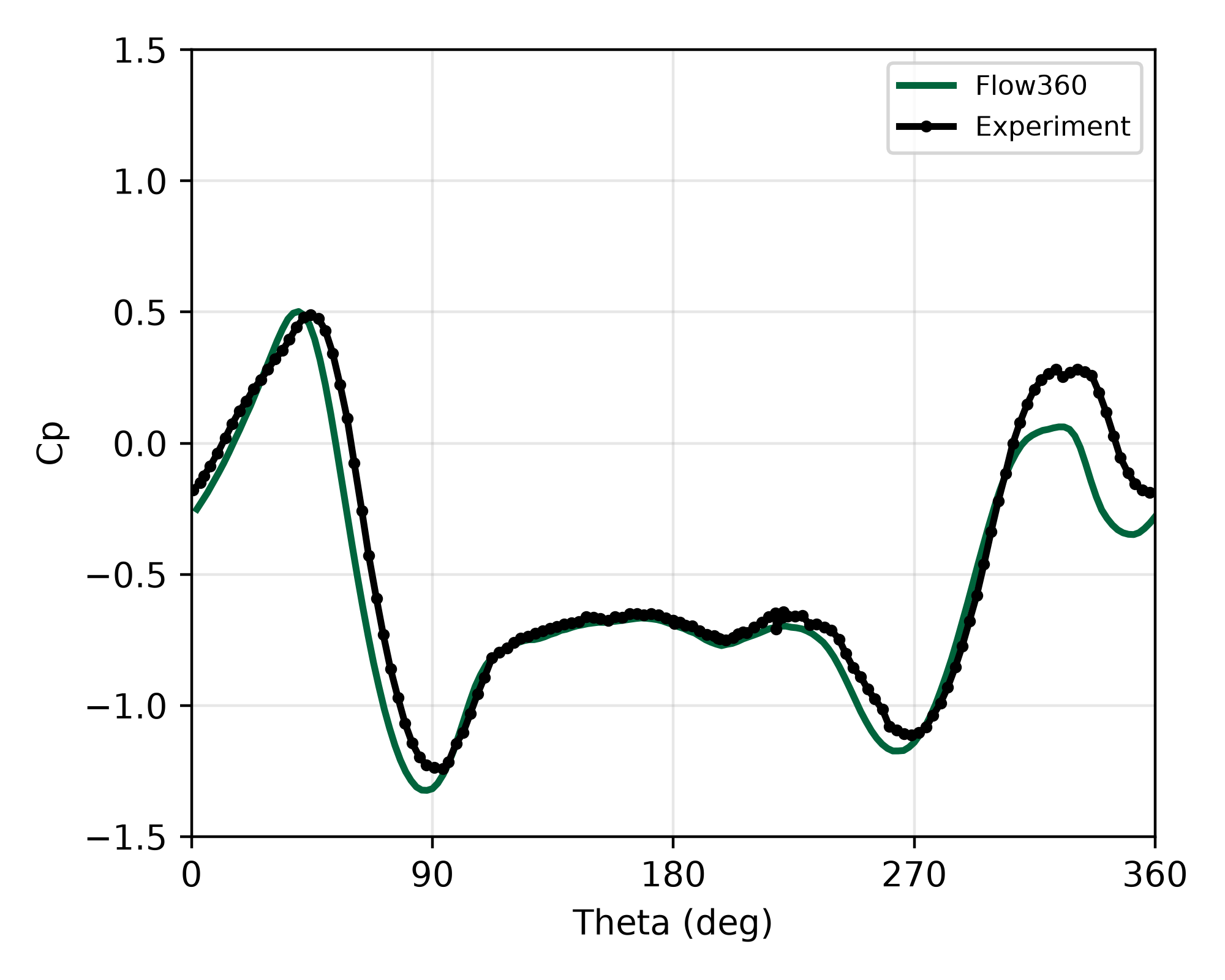

Rear-wheel Cp vs θ
