TIDY3D
LEARNING CENTER
Example Library
How to refine a topology-optimized wavelength demultiplexer in Tidy3D¶
Topology optimization evolves grayscale device permittivity at the pixel scale and can explore a very large design space with relatively weak assumptions about the final geometry. That flexibility is especially useful for compact devices such as wavelength-division demultiplexer devices, where a good shape parameterization is hard to guess in advance. The downside is that even after binarization the resulting device is still constrained to stair-step pixel edges, which is awkward for fabrication oriented layout checks and can lose performance when converted to smooth contours.
Shape-based inverse design works in the opposite regime: it optimizes explicit contours that are easier to export to GDS and easier to constrain for fabrication, but it benefits from a strong initial seed. In this notebook we combine both approaches sequentially. We start from the saved topology optimized design from our reference notebook, convert it into a contour representation, quantify the loss introduced by that conversion, and then fine-tune the contour to recover performance.

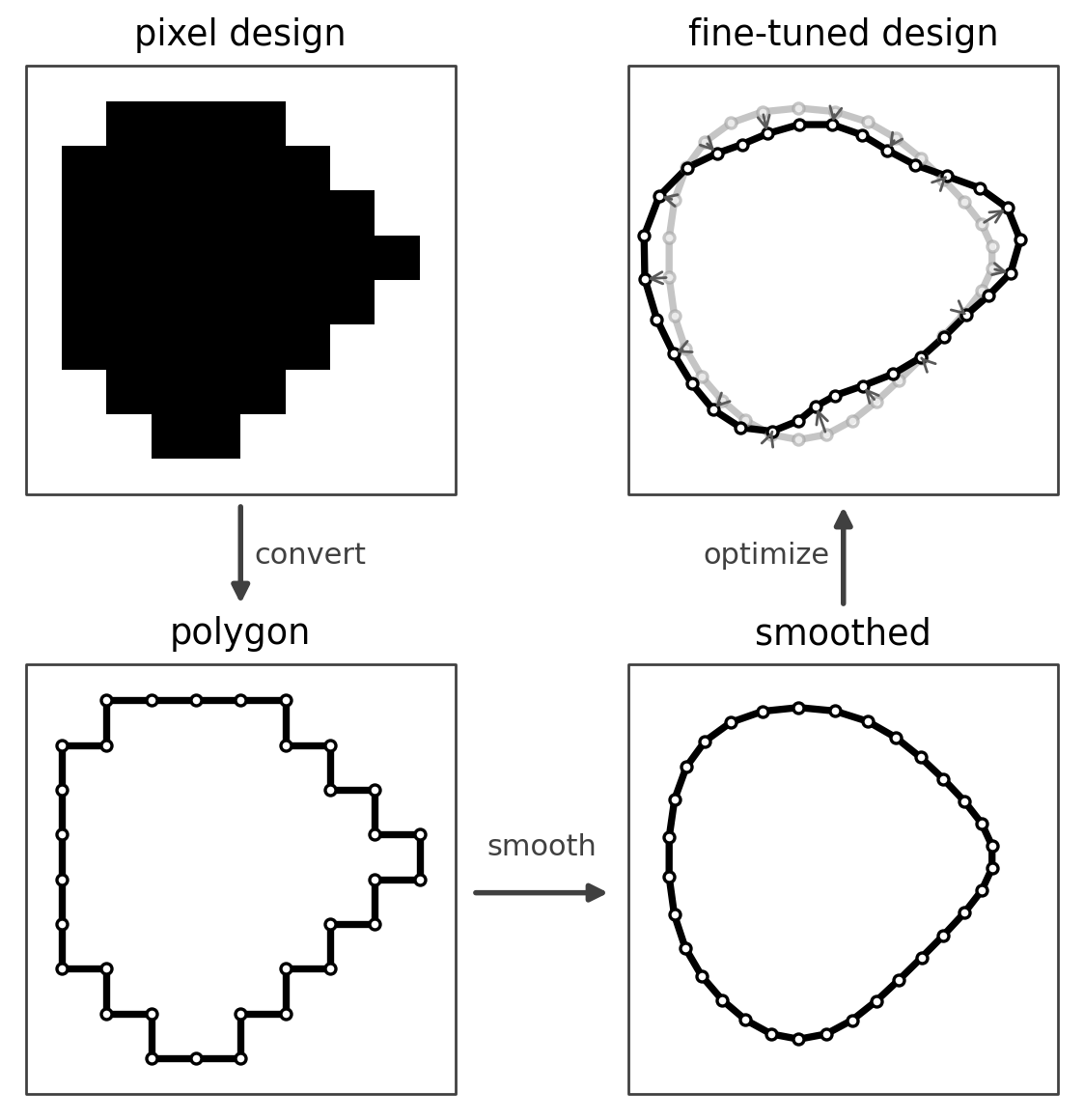

The contour fine-tuning workflow has four stages. First we threshold the saved pixel density into a binary mask. Next PolySlabSet.from_custom_medium(...) extracts polygon rings, meaning closed boundary loops for the outer device contour and any interior holes. We then smooth those rings with PolySlabSet.smooth(...) to reduce stair-step artifacts, and finally optimize the contour vertices directly while safe_update(...) keeps each accepted contour valid and free of self intersections.
First, we import all required packages for this demo.
Setup
First we set up our basic simulation like in our reference notebook. We have an input waveguide connected to a square design region, which has n=4 output waveguides.
The square design region is a CustomMedium with a pixelated permittivity grid that we wish to optimize such that input light of different wavelengths get directed to different output ports.
As this is a SOI device, we typically define the design region and waveguides as Silicon sitting on an SiO2 substrate. For this demo, we make a 2D simulation, but it can be extended to 3D by giving the structures a finite thickness through Lz, adding a z extent to the permittivity data, and including the substrate stack.
# material information
n_si = 3.49
n_sio2 = 1.45 # not used in 2D
n_air = 1
nm = 1000.0 # unit conversion used in wavelength plots
eps_si = n_si**2
# channel wavelengths
wvls_design = np.array([1.270, 1.290, 1.310, 1.330])
freqs_design = td.C_0 / wvls_design
freqs_design_monitor = np.sort(freqs_design)
num_freqs_design = len(freqs_design)
freq_max = np.max(freqs_design)
freq_min = np.min(freqs_design)
keys = [str(i) for i in range(num_freqs_design)]
df_design = abs(np.mean(np.diff(freqs_design)))
# forward source
freq0 = np.mean(freqs_design)
wvl0 = td.C_0 / freq0
fwidth = freq_max - freq_min
run_time = 200 / fwidth
# we average the metrics over the channels with some frequency width
channel_fwidth = df_design / 2.0
channel_bounds = [(f - channel_fwidth / 2, f + channel_fwidth / 2) for f in freqs_design]
num_freqs_channel = 5
channel_freqs = []
for fmin, fmax in channel_bounds:
sub_freqs = np.linspace(fmin, fmax, num_freqs_channel)
channel_freqs += sub_freqs.tolist()
# Monitor frequency coordinates must be strictly monotone for interpolation.
channel_freqs = np.sort(np.asarray(channel_freqs, dtype=float))
# size of design region
lx = 4.5
ly = 4.5
ly_single = ly / num_freqs_design
lz = td.inf
# size of waveguides
wg_width = 0.3
wg_length = 1.5
wg_spacing = 0.8
# spacing between design region and PML in y
buffer = 1.5
# size of simulation
Lx = lx + wg_length * 2
Ly = ly + buffer * 2
Lz = 0.0
# resolution information
min_steps_per_wvl = 18
dl_design_region = 0.015
nx = int(lx / dl_design_region)
ny = int(ly / dl_design_region)
# design region and threshold settings
design_region_geo = td.Box(size=(lx, ly, lz), center=(0, 0, 0))
design_region_geometry = design_region_geo
slab_bounds = (-float("inf"), float("inf"))
permittivity_threshold = float((eps_si + 1.0) / 2.0)
core_medium = td.Medium(permittivity=eps_si)
background_medium = td.Medium(permittivity=n_air**2)Static Simulation
First, we’ll define the simulation without any design region using the “static” components that don’t change over the optimization.
We use mode_index=0 for the source and the mode monitors, following the mode identification in our reference notebook.
# define the waveguide ports
wg_in = td.Structure(
geometry=td.Box(
center=(-Lx / 2, 0, 0),
size=(wg_length * 2, wg_width, lz),
),
medium=td.Medium(permittivity=n_si**2),
)
centers_y = np.linspace(-ly / 2.0 + ly_single / 2.0, +ly / 2.0 - ly_single / 2.0, num_freqs_design)
mode_size = (0, 0.9 * ly_single, td.inf)
mode_spec = td.ModeSpec()
wgs_out = []
for center_y in centers_y:
wg_out = td.Structure(
geometry=td.Box(
center=(+Lx / 2, center_y, 0),
size=(wg_length * 2, wg_width, lz),
),
medium=td.Medium(permittivity=n_si**2),
)
wgs_out.append(wg_out)
# measure the mode amplitudes at each of the output ports
mnts_mode = []
for key, center_y in zip(keys, centers_y):
mnt_mode = td.ModeMonitor(
center=(Lx / 2 - wg_length / 2, center_y, 0),
size=mode_size,
freqs=channel_freqs,
mode_spec=td.ModeSpec(),
name=f"mode_{key}",
)
mnts_mode.append(mnt_mode)
# measures the flux at each of the output ports
mnts_flux = []
for key, center_y in zip(keys, centers_y):
mnt_flux = td.FluxMonitor(
center=(Lx / 2 - wg_length / 2, center_y, 0),
size=mode_size,
freqs=channel_freqs,
name=f"flux_{key}",
)
mnts_flux.append(mnt_flux)
# and a field monitor that measures fields on the z=0 plane at the design freqs
fld_mnt = td.FieldMonitor(
center=(0, 0, 0),
size=(td.inf, td.inf, 0),
freqs=freqs_design_monitor,
name="field",
)
# inject the fundamental mode into the input waveguide
mode_src = td.ModeSource(
center=(-Lx / 2 + wg_length / 2, 0, 0),
size=mode_size,
source_time=td.GaussianPulse(
freq0=freq0,
fwidth=fwidth,
),
direction="+",
mode_index=0,
)
sim_static = td.Simulation(
size=(Lx, Ly, Lz),
grid_spec=td.GridSpec.auto(
min_steps_per_wvl=min_steps_per_wvl,
wavelength=np.min(wvls_design),
),
structures=[wg_in, *wgs_out],
sources=[mode_src],
monitors=[*mnts_mode, *mnts_flux, fld_mnt],
boundary_spec=td.BoundarySpec.pml(x=True, y=True, z=True if Lz else False),
run_time=run_time,

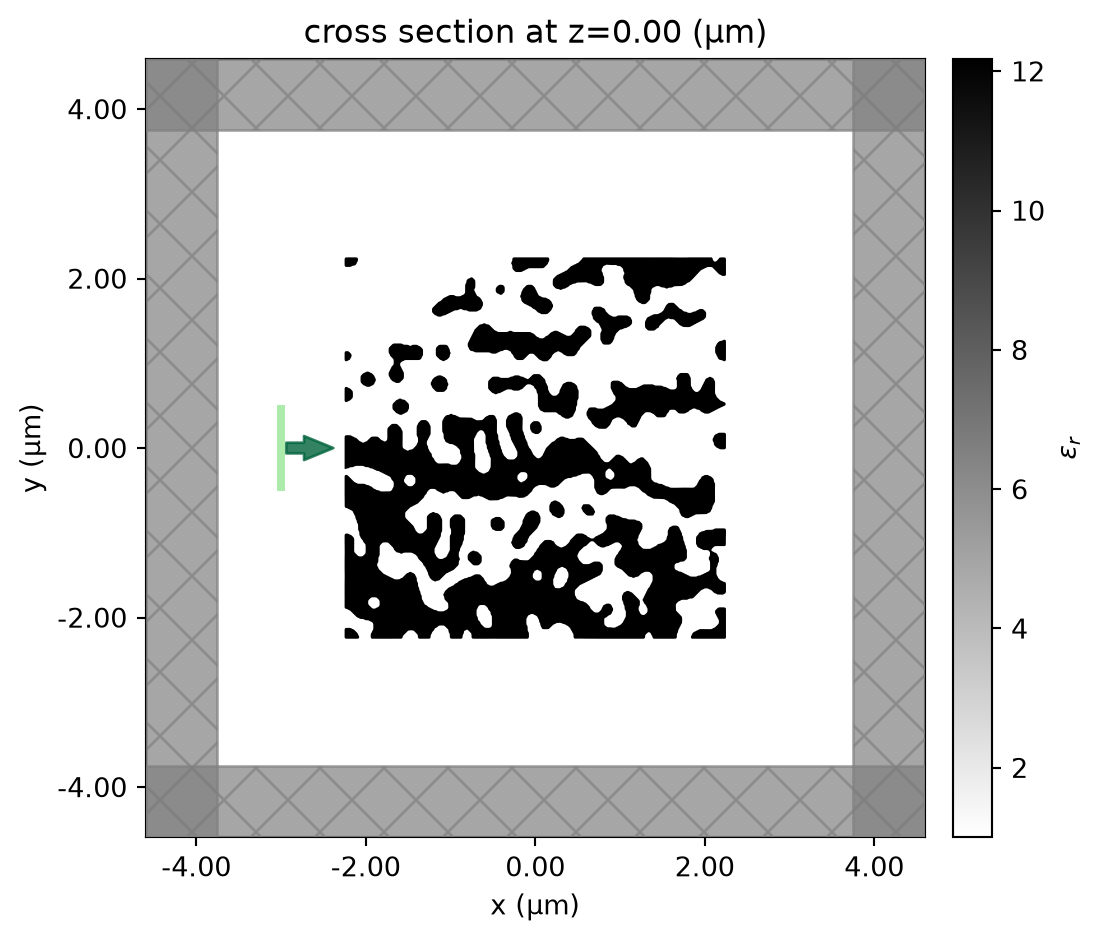

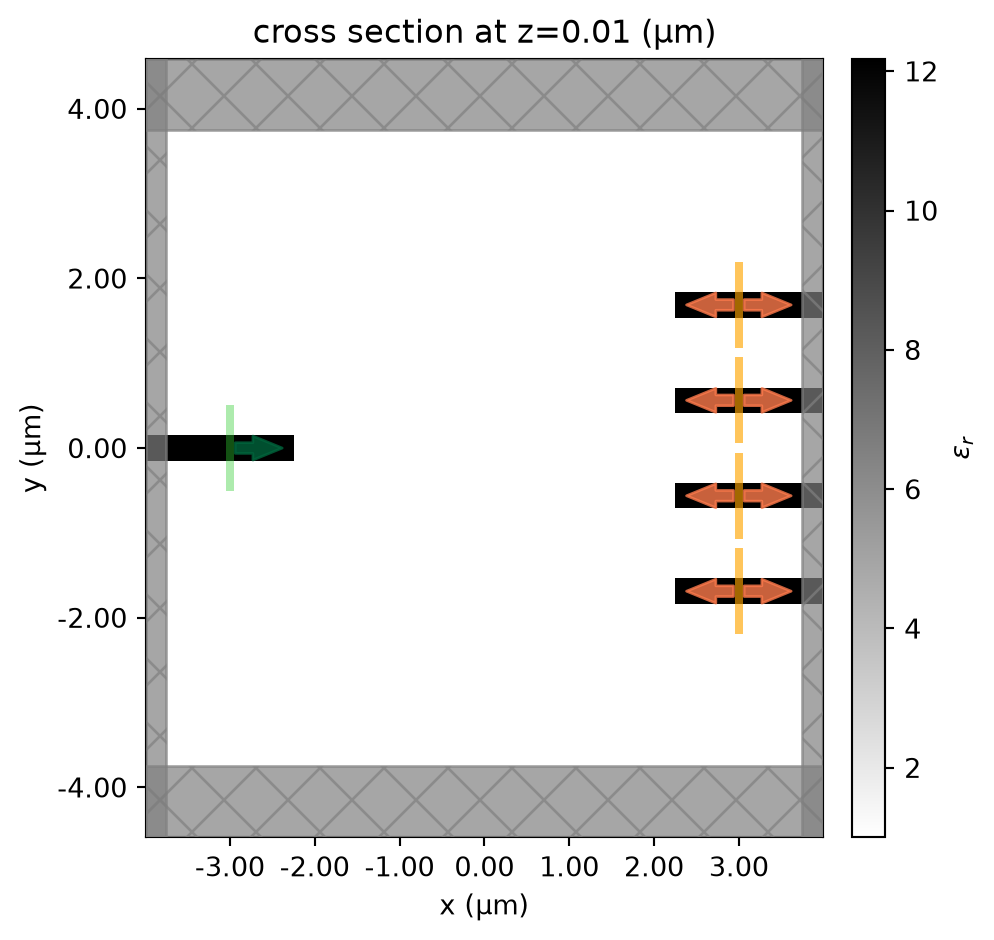

)ax = sim_static.plot_eps(z=0.01)
ax.set_aspect("equal")
Baseline Helpers
The next few cells define helper functions used throughout the baseline comparisons and the contour optimization. They rebuild the current design representation, reuse the common simulation setup, and evaluate the shared transmission metric.
Build Design Structures
These two helpers are used whenever we switch representation (pixel, GDS export/import, contour). They keep the simulation assembly cell clean by returning ready-to-attach structures.
def make_custom_design_structure(density, name):
density_arr = np.asarray(density, dtype=float).squeeze()
if density_arr.ndim != 2:
raise ValueError(
f"Expected a 2D density array after squeeze, got shape {density_arr.shape}."
)
eps_data = (1.0 + (eps_si - 1.0) * density_arr)[:, :, np.newaxis]
xs = np.linspace(-lx / 2, lx / 2, density_arr.shape[0])
ys = np.linspace(-ly / 2, ly / 2, density_arr.shape[1])
eps_arr = td.SpatialDataArray(
data=eps_data,
coords={"x": xs, "y": ys, "z": [0.0]},
)
medium = td.CustomMedium(permittivity=eps_arr)
return td.Structure(geometry=design_region_geo, medium=medium, name=name)Build Simulations for the Current Design
With the static simulation fully defined, we can write a small function that swaps in the current design representation and chooses the monitor set we need for the next computation. This keeps all later comparisons on the same simulation footprint and design region mesh.
def make_sim_with_design(design_region, freqs_mode_flux, include_field):
mnts_mode = [
td.ModeMonitor(
center=(Lx / 2 - wg_length / 2, float(center_y), 0.0),
size=mode_size,
freqs=freqs_mode_flux,
mode_spec=mode_spec,
name=f"mode_{key}",
)
for key, center_y in zip(keys, centers_y)
]
mnts_flux = [
td.FluxMonitor(
center=(Lx / 2 - wg_length / 2, float(center_y), 0.0),
size=mode_size,
freqs=freqs_mode_flux,
name=f"flux_{key}",
)
for key, center_y in zip(keys, centers_y)
]
monitors = [*mnts_mode, *mnts_flux]
if include_field:
monitors.append(
td.FieldMonitor(
center=(0.0, 0.0, 0.0),
size=(td.inf, td.inf, 0),
freqs=freqs_design_monitor,
name="field",
)
)
design_structs = (
(design_region,) if isinstance(design_region, td.Structure) else tuple(design_region)
)
design_override = td.MeshOverrideStructure(
geometry=design_region_geo,
dl=[dl_design_region, dl_design_region, dl_design_region],
)
grid_spec = sim_static.grid_spec.updated_copy(
override_structures=[*sim_static.grid_spec.override_structures, design_override]
)
return sim_static.updated_copy(
structures=[*sim_static.structures, *design_structs],
grid_spec=grid_spec,
monitors=tuple(monitors),
)Defining the Transmission Metric
With our simulation fully defined as a function of the inserted design, we can compare pixel, GDS, and contour representations with a common scalar metric. For each output waveguide, we average the source normalized fundamental mode power across the frequencies inside that channel band. The channel score is the desired power within the band at that output minus the average power from the other design channels that leaks into the same port, so high transmission and low cross talk are rewarded at the same time. The final transmission metric is the smooth minimum of the four channel scores, which makes the weakest channel primarily control the loss function and the later contour update. The metric itself is computed from linear power.
def average_over_channel(spectrum, fmin, fmax):
freqs = spectrum.f
freqs_in_channel = np.logical_and(freqs >= fmin, freqs <= fmax).values
num_freqs = np.sum(freqs_in_channel)
return spectrum.values @ freqs_in_channel / num_freqs
def get_power(sim_data, mnt_index, freq_index):
mnt_data = sim_data[f"mode_{mnt_index}"]
amp = mnt_data.amps.sel(direction="+", mode_index=0)
power_spectrum = anp.abs(amp) ** 2
return average_over_channel(
spectrum=power_spectrum,
fmin=channel_bounds[freq_index][0],
fmax=channel_bounds[freq_index][1],
)
def get_metric(sim_data, mnt_index):
power_all = [
get_power(sim_data=sim_data, mnt_index=mnt_index, freq_index=j)
for j in range(num_freqs_design)
]
power_transmitted = power_all[mnt_index]
power_leaked = sum(power_all) - power_transmitted
avg_power_leaked = power_leaked / float(num_freqs_design - 1)
return power_transmitted - avg_power_leaked
def transmission_from_data(sim_data):
metrics = [get_metric(sim_data=sim_data, mnt_index=i) for i in range(num_freqs_design)]
return smooth_min(anp.array(metrics))
def get_transmission(design_region, task_name):
sim = make_sim_with_design(
design_region=design_region,
freqs_mode_flux=channel_freqs,
include_field=False,
)
data = web.run(sim, task_name=task_name, verbose=False)
return transmission_from_data(data)Export to GDS and Load It Back

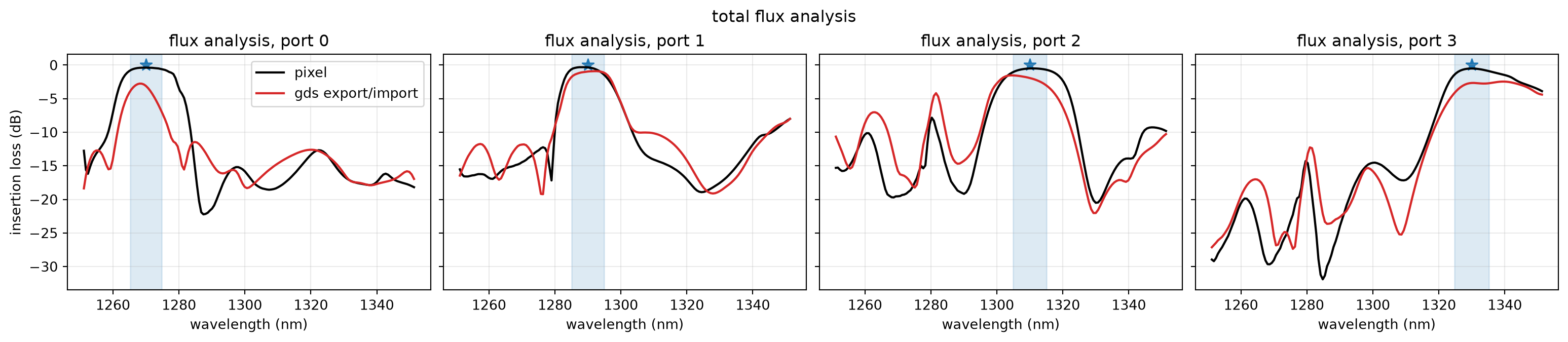

We next set up a reusable helper that exports the topology optimized binarized design to GDS, loads the polygons back into Tidy3D, and returns the re-imported geometry. Later in the notebook we use that same round-trip to quantify how much of the baseline performance change comes from the GDS conversion itself.
gds_precision_um = 1e-6
gds_core_layer = 1
gds_core_dtype = 2
gds_output_dir = Path("data")
gds_output_dir.mkdir(parents=True, exist_ok=True)
# Explicit contour holes are exported as background-medium structures, so both media must
# resolve to the same GDS layer for a correct single-layer roundtrip.
gds_core_layer_map = {
core_medium: (gds_core_layer, gds_core_dtype),
background_medium: (gds_core_layer, gds_core_dtype),
}
def gds_export_import(design_region):
gds_path = gds_output_dir / "wdm_gds_export_import_pixel_exact.gds"
design_region.to_gds_file(
fname=str(gds_path),
z=0.0,
permittivity_threshold=permittivity_threshold,
frequency=freq0,
pixel_exact=True,
gds_layer=gds_core_layer,
gds_dtype=gds_core_dtype,
gds_precision=gds_precision_um,
)
lib = gdstk.read_gds(str(gds_path))
geometry = td.Geometry.from_gds(
gds_cell=lib.cells[0],
axis=2,
slab_bounds=slab_bounds,
gds_layer=gds_core_layer,
gds_dtype=gds_core_dtype,
merge_adjacent=True,
)
return td.Structure(
geometry=geometry, medium=core_medium, name="wdm_gds_export_import_pixel_exact"
)Dense Spectral Evaluation Helpers
The next helper reruns the current design with a denser wavelength sampling than the optimization sweep so we can inspect the port resolved flux and fundamental mode power curves in more detail. It still evaluates the same transmission objective defined above, but on a denser wavelength grid, so small shifts relative to the earlier coarse baseline metric come from the denser sampling rather than from a changed loss definition. The plotting helper below then reuses that dense sweep for the later GDS, smoothed contour, and optimized contour comparisons.
num_freqs_measure = 151 # dense wavelength samples for the port resolved flux and power plots
def run_dense_eval(design_region, task_name, include_field=False):
freqs_measure = np.linspace(freq_min - df_design, freq_max + df_design, num_freqs_measure)
sim = make_sim_with_design(
design_region=design_region,
freqs_mode_flux=freqs_measure,
include_field=include_field,
)
sim_data = web.run(sim, task_name=task_name, verbose=False)
wavelength_nm = None
flux_db = []
power_db = []
for idx in range(num_freqs_design):
flux_da = sim_data[f"flux_{idx}"].flux
flux_vals = np.asarray(flux_da.values, dtype=float)
freqs_vals = np.asarray(flux_da.f.values, dtype=float)
wavelength_nm = (td.C_0 / freqs_vals) * nm
flux_db.append(10.0 * np.log10(np.maximum(flux_vals, 1e-20)))
amps = sim_data[f"mode_{idx}"].amps.sel(direction="+", mode_index=0)
powers = np.abs(np.asarray(amps.values)) ** 2
power_db.append(10.0 * np.log10(np.maximum(powers, 1e-20)))
return {
"sim": sim,
"sim_data": sim_data,
"wavelength_nm": np.asarray(wavelength_nm, dtype=float),
"flux_db": np.asarray(flux_db, dtype=float),
"power_db": np.asarray(power_db, dtype=float),
"transmission": transmission_from_data(sim_data),
}

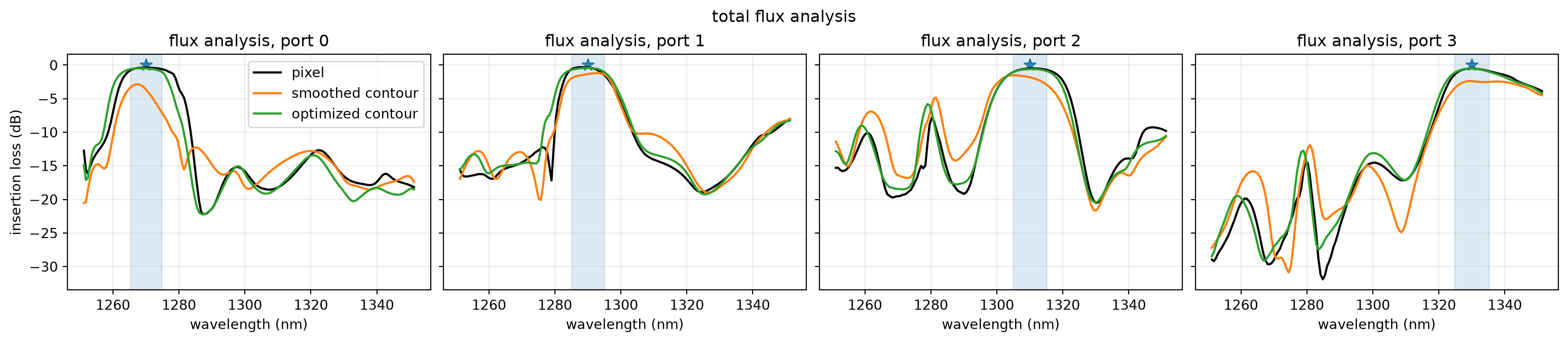

def plot_dense_spectral_analysis(eval_map, flux_suptitle, power_suptitle, colors=None):
names = list(eval_map.keys())
datasets = list(eval_map.values())
if colors is None:
colors = ["black", "tab:red", "tab:orange", "tab:green", "tab:purple"][: len(datasets)]
fig_flux, axes_flux = plt.subplots(
1,
num_freqs_design,
figsize=(4.0 * num_freqs_design, 3.4),
sharey=True,
constrained_layout=True,
)
for port, ax in enumerate(axes_flux):
fmin, fmax = channel_bounds[port]
wvl_min = (td.C_0 / fmax) * nm
wvl_max = (td.C_0 / fmin) * nm
target_wvl = (td.C_0 / freqs_design[port]) * nm
ax.axvspan(wvl_min, wvl_max, color="tab:blue", alpha=0.15)
for name, color, ds in zip(names, colors, datasets):
ax.plot(
ds["wavelength_nm"], ds["flux_db"][port], color=color, linewidth=1.6, label=name
)
ax.scatter([target_wvl], [0.0], marker="*", s=80, color="tab:blue")
ax.set_title(f"flux analysis, port {port}")
ax.set_xlabel("wavelength (nm)")
ax.grid(alpha=0.25)
if port == 0:
ax.set_ylabel("insertion loss (dB)")
ax.legend(loc="best")
fig_flux.suptitle(flux_suptitle)
plt.show()
fig_power, axes_power = plt.subplots(
1,
num_freqs_design,
figsize=(4.0 * num_freqs_design, 3.4),
sharey=True,
constrained_layout=True,
)
for port, ax in enumerate(axes_power):
fmin, fmax = channel_bounds[port]
wvl_min = (td.C_0 / fmax) * nm
wvl_max = (td.C_0 / fmin) * nm
target_wvl = (td.C_0 / freqs_design[port]) * nm
ax.axvspan(wvl_min, wvl_max, color="tab:blue", alpha=0.15)
for name, color, ds in zip(names, colors, datasets):
ax.plot(
ds["wavelength_nm"], ds["power_db"][port], color=color, linewidth=1.6, label=name
)
ax.scatter([target_wvl], [0.0], marker="*", s=80, color="tab:blue")
ax.set_title(f"mode power analysis, port {port}")
ax.set_xlabel("wavelength (nm)")
ax.grid(alpha=0.25)
if port == 0:
ax.set_ylabel("insertion loss (dB)")
ax.legend(loc="best")
fig_power.suptitle(power_suptitle)
plt.show()Load Saved Pixel Design and Evaluate Baselines
We first load the saved pixel density array exported from the reference topology optimization, threshold it to the pixel mask, and rebuild the corresponding CustomMedium.
pixel_npy_path = Path("misc/wdm_contour_only_pixel_density.npy")
pixel_density = (np.asarray(np.load(pixel_npy_path), dtype=float) >= 0.5).astype(float)
pixel_design = make_custom_design_structure(pixel_density, name="pixel_design")
pixel_tx = get_transmission(pixel_design, task_name="wdm_pixel_baseline")
print("\n[baseline transmission metric]")
print(f"pixel_metric={pixel_tx:.3f}")

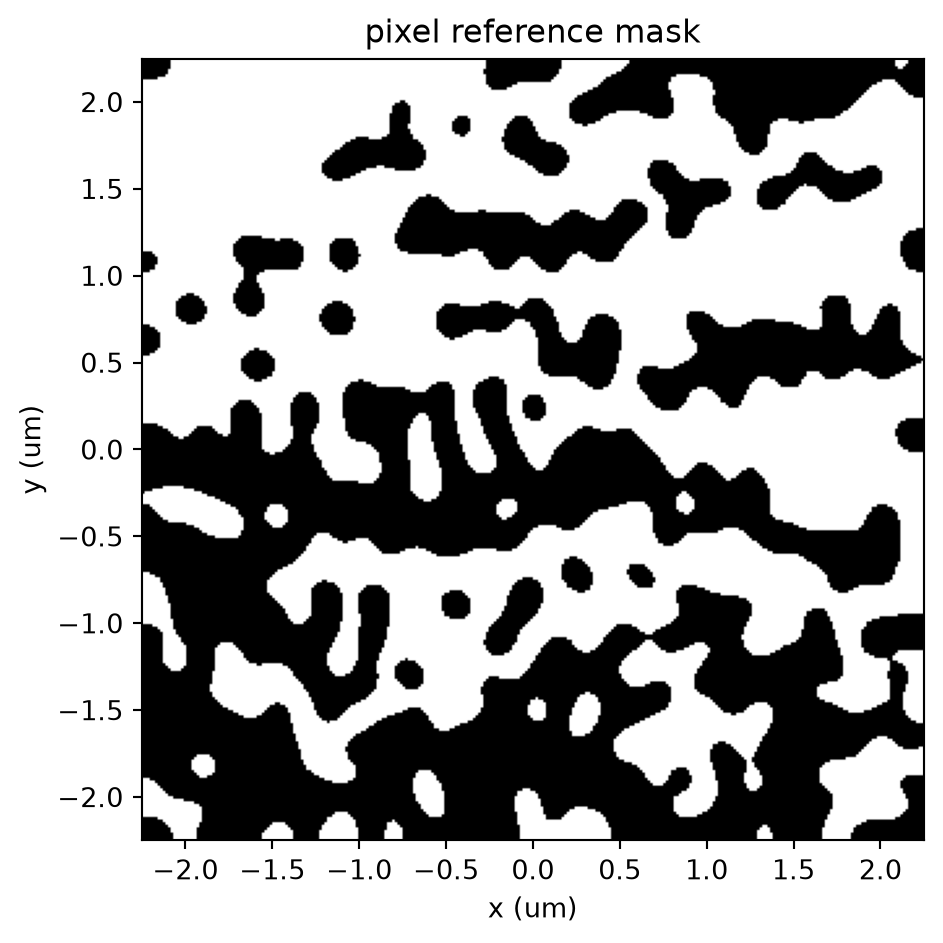

fig_pixel, ax_pixel = plt.subplots(figsize=(5.4, 4.8), constrained_layout=True)
ax_pixel.imshow(
pixel_density.T,
origin="lower",
extent=(-lx / 2, lx / 2, -ly / 2, ly / 2),
cmap="binary",
)
ax_pixel.set_title("pixel reference mask")
ax_pixel.set_aspect("equal")
ax_pixel.set_xlim(-2.25, 2.25)
ax_pixel.set_ylim(-2.25, 2.25)
ax_pixel.set_xlabel("x (um)")
ax_pixel.set_ylabel("y (um)")
plt.show()
[baseline transmission metric]
pixel_metric=-0.554
GDS Export / Import Comparison
We now take the binarized mask, export it to GDS with pixel_exact=True, load the polygons back, and simulate that geometry again. This shows the extra loss caused by the export/import conversion itself.
The scalar metric is useful as a compact summary, but it mixes all channels together. The dense comparison below makes the change easier to interpret port by port.
gds_design = gds_export_import(pixel_design)
gds_tx = get_transmission(gds_design, task_name="wdm_gds_export_import_pixel_exact")
print("\n[gds export/import transmission]")
print(f"transmission after gds conversion: {gds_tx:.3f}")
print(f"loss compared to pixel reference: {pixel_tx - gds_tx:.3f}")
[gds export/import transmission]
transmission after gds conversion: -0.868
loss compared to pixel reference: 0.314Port Resolved Spectral Comparison
To see whether the GDS conversion perturbs all outputs similarly or mainly harms one channel, we now run the same dense wavelength sweep on the pixel reference and the re-imported GDS geometry and compare the port resolved spectra directly.
eval_pixel = run_dense_eval(pixel_design, task_name="wdm_eval_pixel")
eval_gds = run_dense_eval(gds_design, task_name="wdm_eval_gds_export_import_pixel_exact")
print("\n[dense baseline transmission metric]")
print(f"pixel={eval_pixel['transmission']:.3f}")
print(f"gds export/import={eval_gds['transmission']:.3f}")

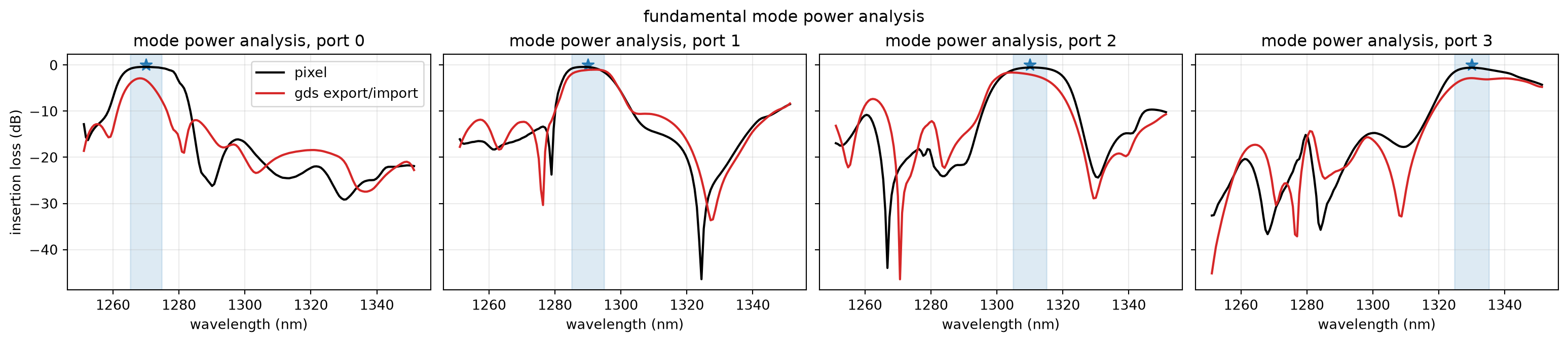

plot_dense_spectral_analysis(
{
"pixel": eval_pixel,
"gds export/import": eval_gds,
},
flux_suptitle="total flux analysis",
power_suptitle="fundamental mode power analysis",
colors=["black", "tab:red"],
)
[dense baseline transmission metric]
pixel=-0.534
gds export/import=-0.850
Pixel to Contour Conversion
Here we call PolySlabSet.from_custom_medium(...) to extract contour rings from the binarized design. Each ring is a closed loop that represents either an outer boundary or an interior hole.
The raw stair step contour follows the pixel grid too closely to be a realistic fabrication target, so we also smooth the rings before simulation. This improves fabricability by reducing stair step edges while still keeping the contour close to the binarized mask.
In return, we observe some additional loss that the contour optimization will try to recover.
contour_smooth_sigma = 2.0 # smoothing strength in vertex index space
contour_raw_set = PolySlabSet.from_custom_medium(
pixel_design.medium,
slab_bounds=slab_bounds,
axis=2,
threshold=permittivity_threshold,
pixel_exact=True,
)
contour_smooth_set = contour_raw_set.smooth(contour_smooth_sigma)
contour_raw_structures = contour_raw_set.to_structures(
foreground_medium=core_medium,
background_medium=background_medium,
name_prefix="contour_raw",
)
contour_smooth_structures = contour_smooth_set.to_structures(
foreground_medium=core_medium,
background_medium=background_medium,
name_prefix="contour_smooth",
)
contour_raw_tx = get_transmission(contour_raw_structures, task_name="wdm_contour_raw")
contour_smooth_tx = get_transmission(contour_smooth_structures, task_name="wdm_contour_smooth")
print("\n[contour conversion transmission]")
print(f"raw contour transmission: {contour_raw_tx:.3f}")
print(f"loss compared to pixel reference: {pixel_tx - contour_raw_tx:.3f}")
print(f"smooth contour transmission: {contour_smooth_tx:.3f}")
print(f"loss compared to pixel reference: {pixel_tx - contour_smooth_tx:.3f}")
[contour conversion transmission]
raw contour transmission: -0.851
loss compared to pixel reference: 0.297
smooth contour transmission: -0.870
loss compared to pixel reference: 0.316Geometry Check: Raw vs. Smoothed Contour

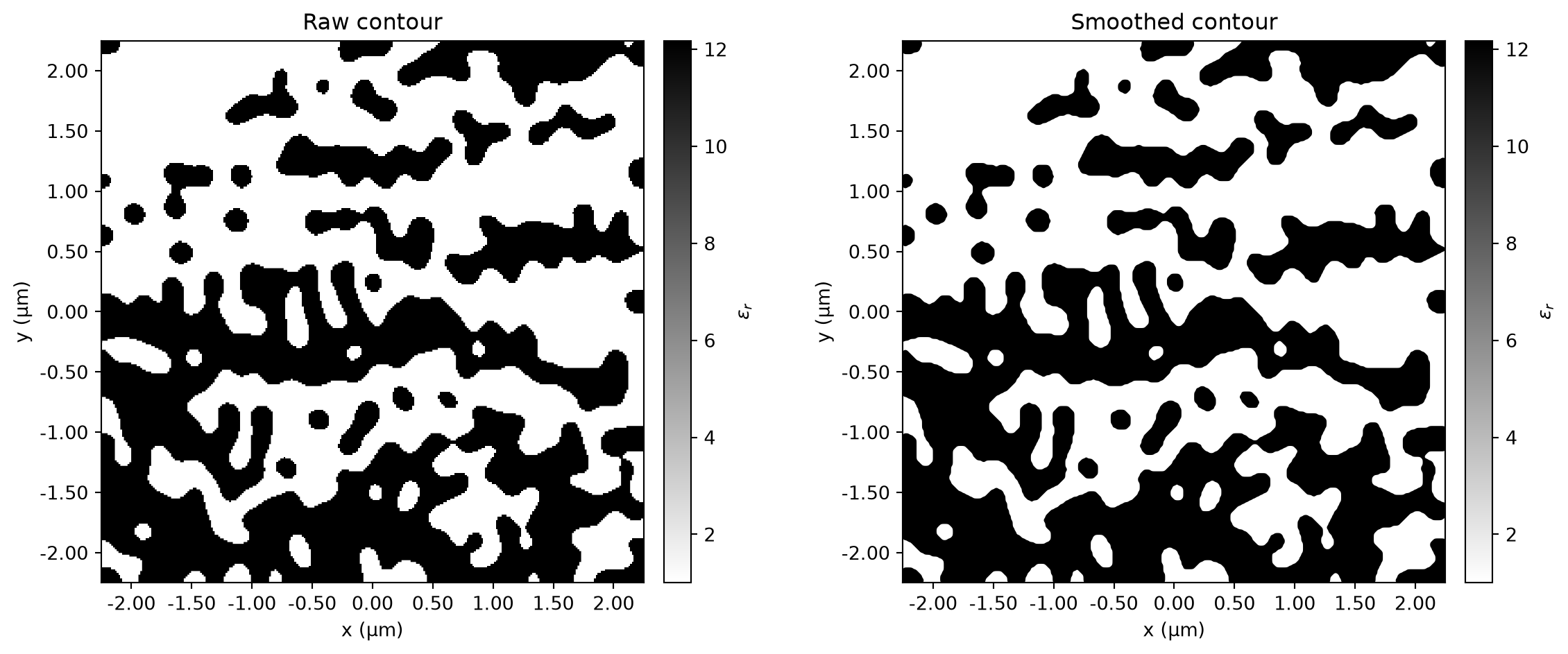

Before running the contour optimization, we visually inspect the raw and smoothed contours to make sure they look as expected.
On the left, we plot the directly extracted contour rings from PolySlabSet.from_custom_medium(...). On the right, we plot the same rings after Gaussian smoothing.
We zoom to the design frame (x,y in [-2.25, 2.25]) to focus on the relevant region.
fig, axes = plt.subplots(1, 2, figsize=(12, 4.8), constrained_layout=True)
sim_raw_plot = sim_static.updated_copy(
structures=[*sim_static.structures, *contour_raw_structures], monitors=[]
)
sim_smooth_plot = sim_static.updated_copy(
structures=[*sim_static.structures, *contour_smooth_structures], monitors=[]
)
sim_raw_plot.plot_eps(z=0.0, monitor_alpha=0.0, source_alpha=0.0, ax=axes[0])
axes[0].set_title("Raw contour")
axes[0].set_xlim(-2.25, 2.25)
axes[0].set_ylim(-2.25, 2.25)
axes[0].set_aspect("equal")
sim_smooth_plot.plot_eps(z=0.0, monitor_alpha=0.0, source_alpha=0.0, ax=axes[1])
axes[1].set_title("Smoothed contour")
axes[1].set_xlim(-2.25, 2.25)
axes[1].set_ylim(-2.25, 2.25)
axes[1].set_aspect("equal")
plt.show()
Defining Objective Function
With the contour representation defined, we are ready to construct the objective used for the shape optimization stage.
In this variant, the objective is just the same transmission metric defined above, still measured from the four output waveguides.
Map Optimizer Parameters to Valid Contours
The contour optimizer works directly in flattened vertex coordinates. In this experimental variant we still clip candidate vertex coordinates back into the allowed design window if a step pushes them outside it, but we do not freeze the outer frame vertices. That lets the contour move more freely while still keeping the update inside the design region.
We evaluate gradients on the current accepted contour, then use safe_update(...) only when proposing the next accepted state. That update stage enforces the bounds rules again and rejects self intersecting candidates before they become the new contour.
Contour Optimization
We are now ready to optimize the contour geometry. We optimize the smoothed contour directly in flattened vertex coordinates and keep the last accepted contour set as the optimizer state. Each iteration evaluates the full objective and gradient on that state, takes a plain gradient-descent style update, and then passes the candidate through the acceptance update. That acceptance step reapplies the bounds constraints and rejects self-intersecting candidates before they become the next contour.
contour_opt_steps = 25 # number of contour optimization steps
contour_opt_lr = 0.004 # optimizer learning rate
contour_current_set = contour_smooth_set
flat_reference = np.asarray(contour_current_set.flatten_ring_vertices(), dtype=float)
flat_params = flat_reference.copy()
transmission_history = []
contour_sets_over_steps = [contour_current_set]
flat_params_over_steps = [np.asarray(flat_params, dtype=float).copy()]
contour_structures_over_steps = [
contour_current_set.to_structures(
foreground_medium=core_medium,
background_medium=background_medium,
name_prefix="contour_state_0",
)
]
def make_objective(contour_set_template):
def objective(values):
contour_set = contour_set_template.with_flat_ring_vertices(values)
design_region = contour_set.to_structures(
foreground_medium=core_medium,
background_medium=background_medium,
name_prefix="contour_opt",
)
return get_transmission(design_region=design_region, task_name="wdm_contour_opt")
return objective
for step in range(contour_opt_steps):
objective = make_objective(contour_current_set)
value_grad_fn = value_and_grad(objective)
value, gradient = value_grad_fn(flat_params)
gradient = np.asarray(gradient, dtype=float)
tx_current = float(value)
transmission_history.append(tx_current)
candidate = flat_params + contour_opt_lr * gradient
candidate_set, _ = contour_current_set.safe_update(
candidate,
freeze_boundary=False,
respect_bounds=True,
)
contour_current_set = candidate_set
flat_params = np.asarray(contour_current_set.flatten_ring_vertices(), dtype=float)
contour_sets_over_steps.append(contour_current_set)
flat_params_over_steps.append(np.asarray(flat_params, dtype=float).copy())
contour_structures_over_steps.append(
contour_current_set.to_structures(
foreground_medium=core_medium,
background_medium=background_medium,
name_prefix=f"contour_state_{step + 1}",
)
)
print(
f"[shape] contour_state={step:02d}, "
f"tx={tx_current:.3f}, "
f"grad_norm={np.linalg.norm(gradient):.3f}"
)
contour_opt_set = contour_current_set
contour_opt_structures = contour_opt_set.to_structures(
foreground_medium=core_medium,
background_medium=background_medium,
name_prefix="contour_opt_final",
)
contour_opt_tx = get_transmission(contour_opt_structures, task_name="wdm_contour_opt_final")
transmission_history.append(float(contour_opt_tx))
print(f"\noptimized contour transmission={contour_opt_tx:.3f}")[shape] contour_state=00, tx=-0.870, grad_norm=5.750
[shape] contour_state=01, tx=-0.761, grad_norm=4.349
[shape] contour_state=02, tx=-0.706, grad_norm=3.139
[shape] contour_state=03, tx=-0.677, grad_norm=2.586
[shape] contour_state=04, tx=-0.659, grad_norm=2.306
[shape] contour_state=05, tx=-0.644, grad_norm=2.091
[shape] contour_state=06, tx=-0.632, grad_norm=1.908
[shape] contour_state=07, tx=-0.621, grad_norm=1.742
[shape] contour_state=08, tx=-0.613, grad_norm=1.599
[shape] contour_state=09, tx=-0.606, grad_norm=1.474
[shape] contour_state=10, tx=-0.601, grad_norm=1.360
[shape] contour_state=11, tx=-0.595, grad_norm=1.256
[shape] contour_state=12, tx=-0.591, grad_norm=1.160
[shape] contour_state=13, tx=-0.587, grad_norm=1.080
[shape] contour_state=14, tx=-0.584, grad_norm=1.007
[shape] contour_state=15, tx=-0.581, grad_norm=0.946
[shape] contour_state=16, tx=-0.578, grad_norm=0.892
[shape] contour_state=17, tx=-0.576, grad_norm=0.842
[shape] contour_state=18, tx=-0.574, grad_norm=0.794
[shape] contour_state=19, tx=-0.572, grad_norm=0.750
[shape] contour_state=20, tx=-0.570, grad_norm=0.714
[shape] contour_state=21, tx=-0.569, grad_norm=0.678
[shape] contour_state=22, tx=-0.567, grad_norm=0.645
[shape] contour_state=23, tx=-0.566, grad_norm=0.617
[shape] contour_state=24, tx=-0.565, grad_norm=0.591

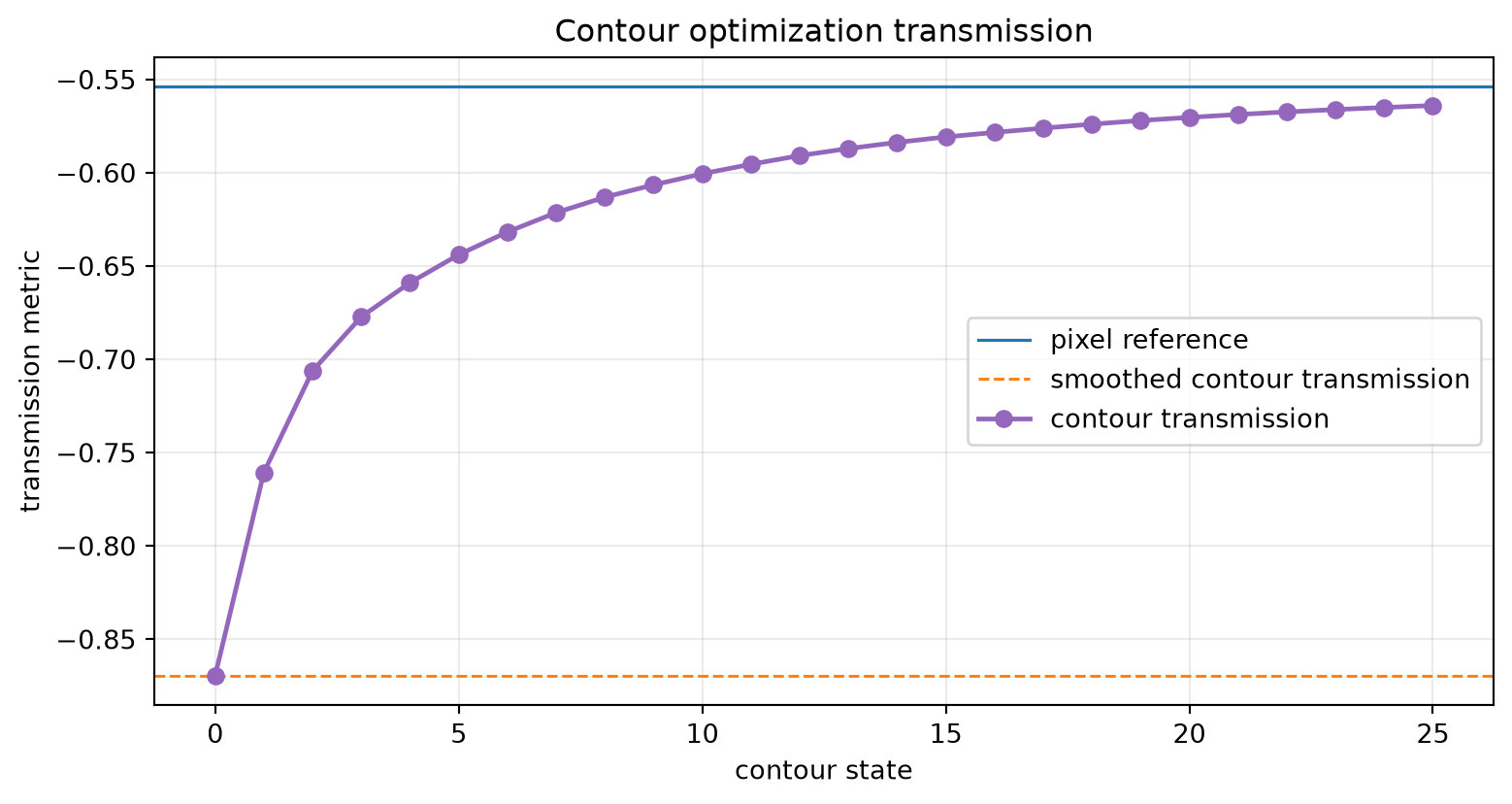

optimized contour transmission=-0.564Visualize Results

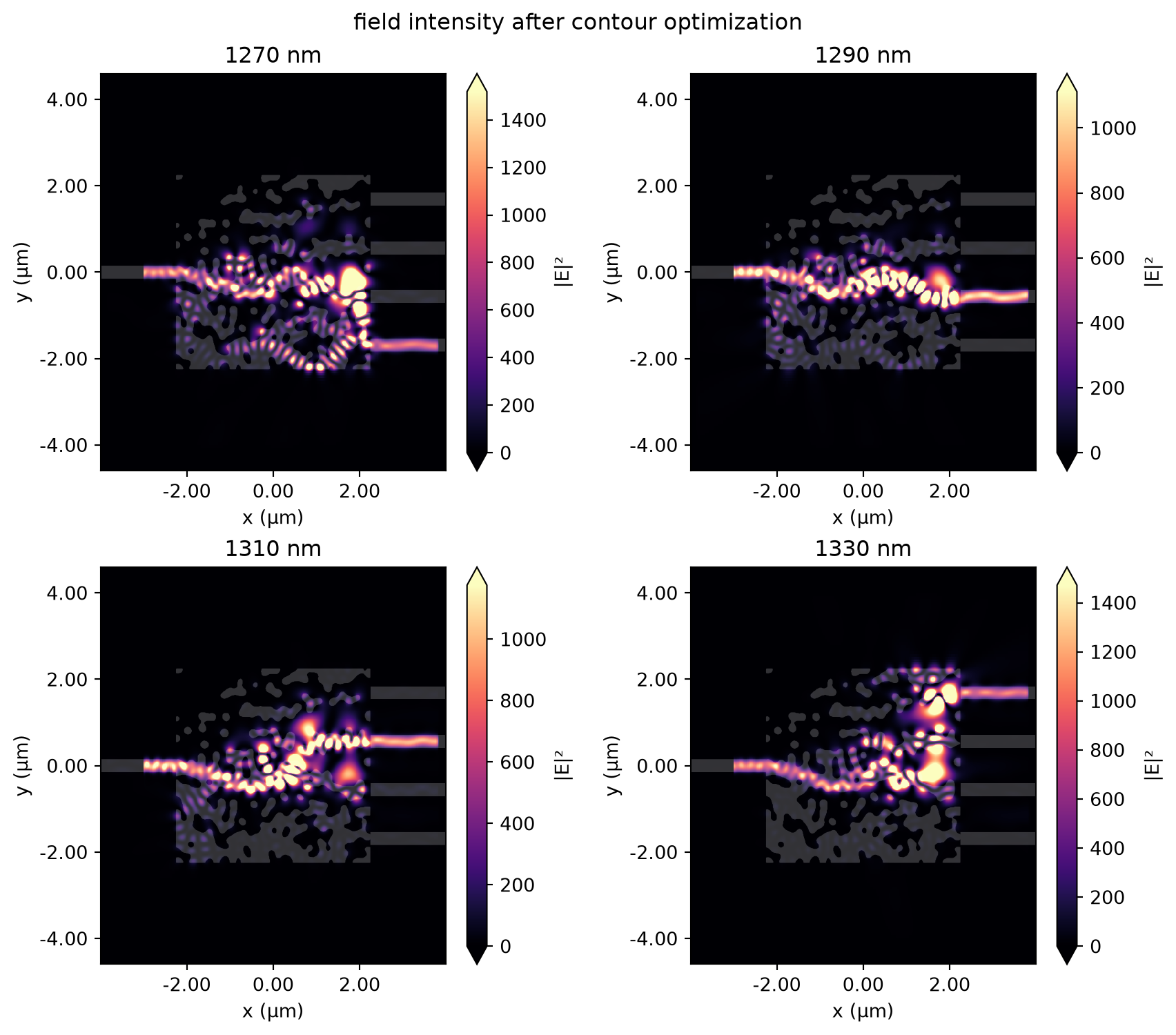

Let’s now inspect how the contour geometry and the optical response changed during the shape optimization stage. On the full device scale the geometric differences are barely visible, so we first show the global before/after view and then zoom into a few local ring segments where the contour motion is largest.
Structure Evolution

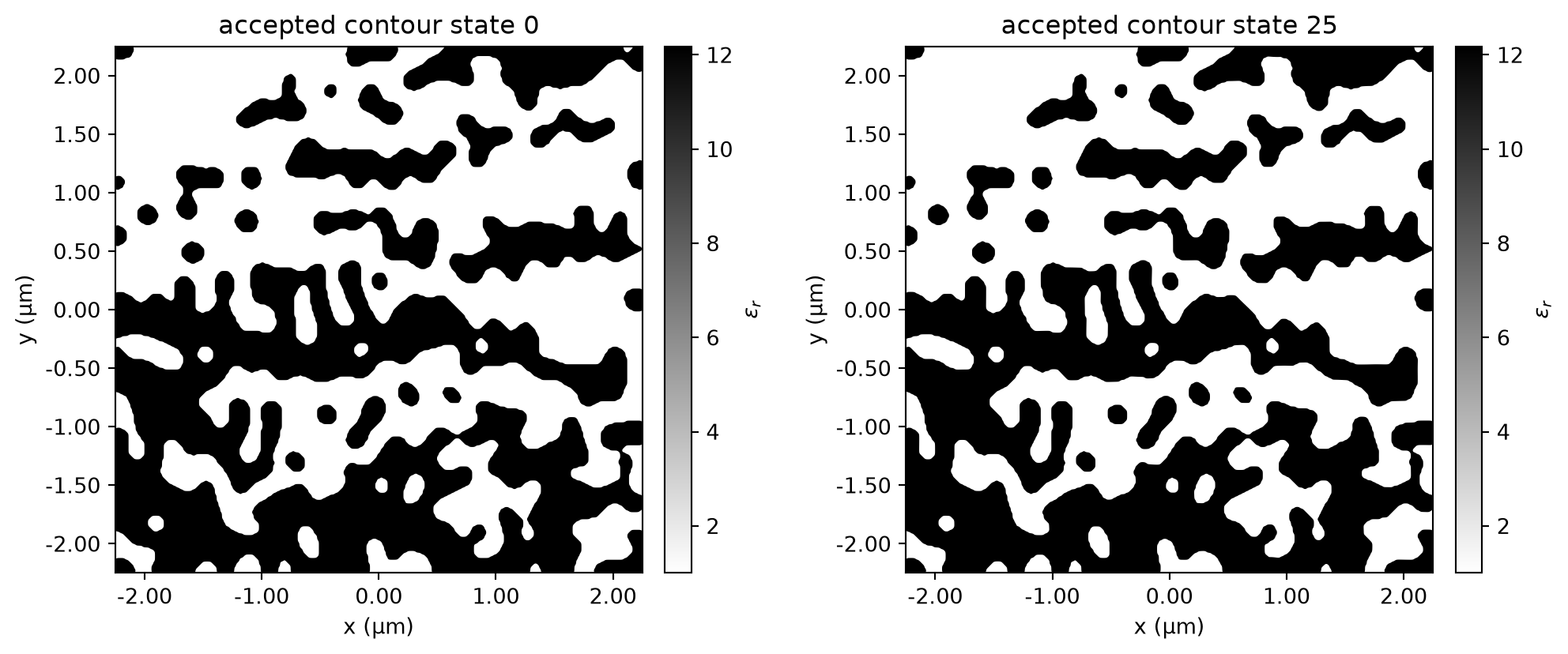

Instead of relying on live redraw, we render selected snapshots after optimization: the initial contour state and the final contour state. Because the contour is represented as a set of polygon rings, this global comparison keeps the full device context in view before the local zoom panels isolate the ring segments that moved the most.
idx_samples = [0, len(contour_structures_over_steps) - 1]
fig_steps, axes_steps = plt.subplots(
1, len(idx_samples), figsize=(5.2 * len(idx_samples), 4.2), constrained_layout=True
)
for ax, idx in zip(axes_steps, idx_samples):
state_num = idx
sim_step = sim_static.updated_copy(
structures=[*sim_static.structures, *contour_structures_over_steps[idx]],
monitors=[],
)
sim_step.plot_eps(z=0.0, monitor_alpha=0.0, source_alpha=0.0, ax=ax)
ax.set_title(f"accepted contour state {state_num}")
ax.set_aspect("equal")
ax.set_xlim(-2.25, 2.25)
ax.set_ylim(-2.25, 2.25)
plt.show()
Contour Difference

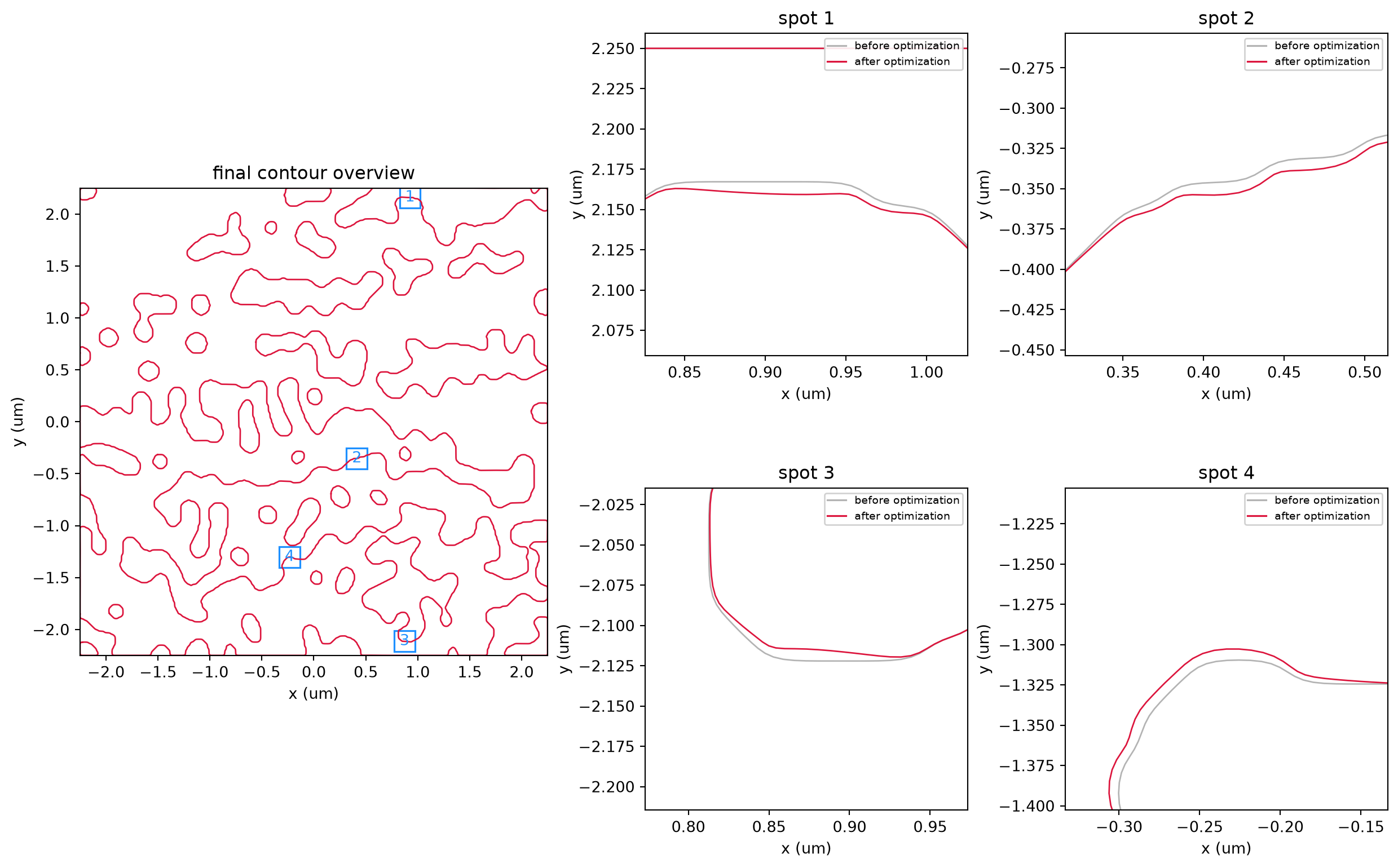

The contour differences are small on the full device scale, so we show the final contour overview first and then zoom into four local comparison regions where the displacement is largest.
from matplotlib.lines import Line2D
from matplotlib.patches import Rectangle
flat_params_over_steps_arr = np.asarray(flat_params_over_steps, dtype=float)
vertex_xy_over_steps = flat_params_over_steps_arr.reshape(
flat_params_over_steps_arr.shape[0], -1, 2
)
vertex_total_delta = np.linalg.norm(vertex_xy_over_steps[-1] - vertex_xy_over_steps[0], axis=1)
final_vertex_xy = vertex_xy_over_steps[-1]
zoom_half_width = 0.1
zoom_half_height = 0.1
n_focus_spots = 4
focus_spots = []
excluded_vertices = np.zeros(vertex_total_delta.shape, dtype=bool)
for _ in range(n_focus_spots):
available_delta = np.where(excluded_vertices, -np.inf, vertex_total_delta)
focus_vertex_idx = int(np.argmax(available_delta))
focus_x = float(final_vertex_xy[focus_vertex_idx, 0])
focus_y = float(final_vertex_xy[focus_vertex_idx, 1])
focus_delta = float(vertex_total_delta[focus_vertex_idx])
focus_spots.append((focus_vertex_idx, focus_x, focus_y, focus_delta))
in_cutout = (np.abs(final_vertex_xy[:, 0] - focus_x) <= zoom_half_width) & (
np.abs(final_vertex_xy[:, 1] - focus_y) <= zoom_half_height
)
excluded_vertices |= in_cutout
zoom_legend_handles = [
Line2D([0], [0], color="0.7", lw=1.2, label="before optimization"),
Line2D([0], [0], color="crimson", lw=1.2, label="after optimization"),
]
fig_diff = plt.figure(figsize=(12.8, 8.4), constrained_layout=True)
grid = fig_diff.add_gridspec(2, 3, width_ratios=(1.45, 1.0, 1.0))
ax_diff = fig_diff.add_subplot(grid[:, 0])
ax_zooms = [
fig_diff.add_subplot(grid[0, 1]),
fig_diff.add_subplot(grid[0, 2]),
fig_diff.add_subplot(grid[1, 1]),
fig_diff.add_subplot(grid[1, 2]),
]
for structure in contour_structures_over_steps[0]:
xy = np.asarray(structure.geometry.vertices, dtype=float)
xy_closed = np.vstack([xy, xy[0]])
for ax_zoom in ax_zooms:
ax_zoom.plot(xy_closed[:, 0], xy_closed[:, 1], color="0.7", lw=1.0)
for structure in contour_structures_over_steps[-1]:
xy = np.asarray(structure.geometry.vertices, dtype=float)
xy_closed = np.vstack([xy, xy[0]])
ax_diff.plot(xy_closed[:, 0], xy_closed[:, 1], color="crimson", lw=1.0)
for ax_zoom in ax_zooms:
ax_zoom.plot(xy_closed[:, 0], xy_closed[:, 1], color="crimson", lw=1.0)
ax_diff.set_title("final contour overview")
for spot_num, (_, focus_x, focus_y, _) in enumerate(focus_spots, start=1):
rect = Rectangle(
(focus_x - zoom_half_width, focus_y - zoom_half_height),
2 * zoom_half_width,
2 * zoom_half_height,
fill=False,
edgecolor="dodgerblue",
linewidth=1.2,
)
ax_diff.add_patch(rect)
ax_diff.text(
focus_x,
focus_y,
f"{spot_num}",
color="dodgerblue",
ha="center",
va="center",
)
ax_diff.set_aspect("equal")
ax_diff.set_xlim(-lx / 2, lx / 2)
ax_diff.set_ylim(-ly / 2, ly / 2)
ax_diff.set_xlabel("x (um)")
ax_diff.set_ylabel("y (um)")
for spot_num, (ax_zoom, (_, focus_x, focus_y, focus_delta)) in enumerate(
zip(ax_zooms, focus_spots),
start=1,
):
ax_zoom.set_title(f"spot {spot_num}")
ax_zoom.set_aspect("equal")
ax_zoom.set_xlim(focus_x - zoom_half_width, focus_x + zoom_half_width)
ax_zoom.set_ylim(focus_y - zoom_half_height, focus_y + zoom_half_height)
ax_zoom.set_xlabel("x (um)")
ax_zoom.set_ylabel("y (um)")
ax_zoom.legend(
handles=zoom_legend_handles,
loc="upper right",
fontsize=7,
framealpha=0.9,
borderpad=0.25,
handlelength=1.8,
)
plt.show()
Transmission vs Iteration
We now track the transmission metric for the contour states during optimization.
We keep the pixel baseline and the smoothed reference contour as references.
fig_tx, ax_tx = plt.subplots(figsize=(8.0, 4.2), constrained_layout=True)
ax_tx.axhline(
y=float(pixel_tx), color="tab:blue", linestyle="-", linewidth=1.2, label="pixel reference"
)
ax_tx.axhline(
y=float(contour_smooth_tx),
color="tab:orange",
linestyle="--",
linewidth=1.1,
label="smoothed contour transmission",
)
ax_tx.plot(
np.arange(len(transmission_history)),
transmission_history,
marker="o",
color="tab:purple",
linewidth=1.8,
label="contour transmission",
)
ax_tx.set_xlabel("contour state")
ax_tx.set_ylabel("transmission metric")
ax_tx.set_title("Contour optimization transmission")
ax_tx.grid(alpha=0.25)
ax_tx.legend(loc="best")
plt.show()
Final Simulation
After the optimization is complete, we switch back to dense wavelength sampling so the pixel baseline, the smoothed contour conversion, and the optimized contour can be compared in more detail.
eval_contour_smooth = run_dense_eval(
contour_smooth_structures,
task_name="wdm_eval_contour_smooth",
)
eval_contour_opt = run_dense_eval(
contour_opt_structures,
task_name="wdm_eval_contour_opt",
include_field=True,
)Dense Spectral Analysis

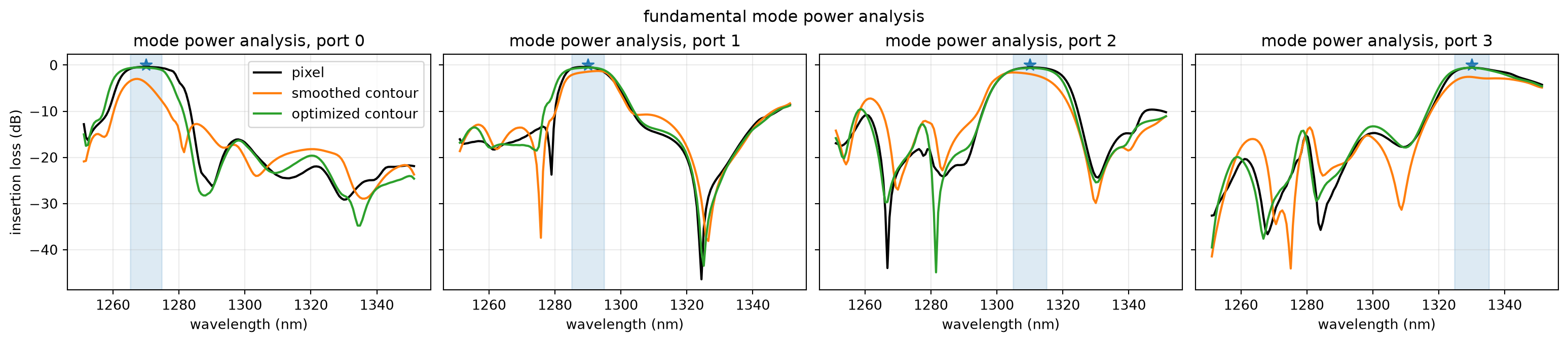

We now reuse the same dense wavelength sweep and compare the pixel reference, the smoothed contour conversion, and the optimized contour. The printed scalar values below are therefore the same transmission metric as before, evaluated again on this denser wavelength grid. For each output port we plot total flux and the power in the fundamental output mode around all channels. These spectra are shown in dB for readability, while the optimization metric itself remains defined in linear power.
print("\n[dense transmission metric]")
print(f"pixel={eval_pixel['transmission']:.3f}")
print(f"smoothed contour={eval_contour_smooth['transmission']:.3f}")
print(f"optimized contour={eval_contour_opt['transmission']:.3f}")
plot_dense_spectral_analysis(
{
"pixel": eval_pixel,
"smoothed contour": eval_contour_smooth,
"optimized contour": eval_contour_opt,
},
flux_suptitle="total flux analysis",
power_suptitle="fundamental mode power analysis",
colors=["black", "tab:orange", "tab:green"],
)
[dense transmission metric]
pixel=-0.534
smoothed contour=-0.855
optimized contour=-0.548
Field Analysis
Finally, we inspect the field intensity patterns at the four design wavelengths for the optimized contour geometry.
fig_fields, axes_fields = plt.subplots(2, 2, figsize=(8.9, 7.7), constrained_layout=True)
for freq, ax in zip(freqs_design, axes_fields.flat):
eval_contour_opt["sim_data"].plot_field("field", "E", "abs^2", f=float(freq), ax=ax)
wvl_nm = (td.C_0 / float(freq)) * nm
ax.set_title(f"{round(wvl_nm)} nm")
fig_fields.suptitle("field intensity after contour optimization")
plt.show()
Export Optimized Contour to GDS
Finally, we export the optimized contour geometry to GDS so it can be inspected or passed to downstream layout checks. As a final consistency check, we then reload that same single-layer GDS back into Tidy3D and evaluate the same transmission metric on the reimported geometry.
contour_opt_gds_path = gds_output_dir / "wdm_contour_optimized.gds"
contour_opt_gds_sim = sim_static.updated_copy(structures=contour_opt_structures, monitors=[])
contour_opt_gds_sim.to_gds_file(
fname=str(contour_opt_gds_path),
z=0.0,
permittivity_threshold=permittivity_threshold,
frequency=freq0,
gds_layer_dtype_map=gds_core_layer_map,
gds_precision=gds_precision_um,
)
print(f"exported optimized contour GDS to {contour_opt_gds_path}")
contour_opt_gds_sim.plot_eps(z=0)exported optimized contour GDS to data/wdm_contour_optimized.gds
Validate the Final GDS Round-Trip
To confirm that the exported optimized contour remains consistent with the simulated geometry, we load that exported GDS back into Tidy3D and rerun the same dense wavelength sweep on the reimported structure. Any remaining small loss here comes from the finite GDS coordinate precision used during export, which slightly quantizes the final contour vertices.
lib = gdstk.read_gds(str(contour_opt_gds_path))
contour_opt_gds_geometry = td.Geometry.from_gds(
gds_cell=lib.top_level()[0],
axis=2,
slab_bounds=slab_bounds,
gds_layer=gds_core_layer,
gds_dtype=gds_core_dtype,
merge_adjacent=True,
)
contour_opt_gds_structure = td.Structure(
geometry=contour_opt_gds_geometry,
medium=core_medium,
name="wdm_contour_optimized_gds_roundtrip",
)
eval_contour_opt_gds = run_dense_eval(
contour_opt_gds_structure,
task_name="wdm_eval_contour_optimized_gds_roundtrip",
)
print("\n[optimized contour gds roundtrip transmission]")
print(f"optimized contour={eval_contour_opt['transmission']:.3f}")
print(f"reloaded gds contour={eval_contour_opt_gds['transmission']:.3f}")
print(
"roundtrip loss="
f"{eval_contour_opt['transmission'] - eval_contour_opt_gds['transmission']:.3f}"
)
[optimized contour gds roundtrip transmission]
optimized contour=-0.548
reloaded gds contour=-0.547
roundtrip loss=-0.000Conclusion
This notebook shows a practical way to extend topology optimization in Tidy3D with a fabrication oriented contour stage. A saved topology optimized pixel design provides a strong initial seed, the GDS and contour conversion steps move the representation closer to a layout workflow, and the final contour optimization recovers part of the performance lost during smoothing while preserving a valid polygon parameterization.
The final GDS round-trip check closes that loop by verifying that the exported layout can be loaded back into Tidy3D without introducing an additional transmission change beyond the contour optimization result itself.
More broadly, the workflow highlights how the inverse design plugins can be combined: CustomMedium stores the pixel result, PolySlabSet.from_custom_medium(...) converts it into rings, smooth(...) regularizes the geometry, safe_update(...) keeps accepted contours valid, and to_gds_file(...) exports the final layout. That makes this a practical bridge between high-performance topology optimization and downstream fabrication oriented design checks.
TERMS & CONDITIONS
How the process works:
Try this real URL to see an example:
