This notebook demonstrates how to use local subpixel averaging in Tidy3D to obtain a more accurate permittivity profile, and more accurate results when running a ModeSimulation locally.
For more information about subpixel averaging, refer to this lecture.
The local subpixel averaging feature requires Tidy3D extras. You can install it with:
pip install "tidy3d[extras]"
The notebook builds a three-layer dielectric stack and evaluates the local permittivity along a vertical line using Simulation.epsilon(). The result is then compared against a full FDTD run using a PermittivityMonitor.
Key concepts:
- Without subpixel averaging, each interface is represented as a staircase on the Yee grid.
- With subpixel averaging, the local effective permittivity near a dielectric interface is smoothed to better represent the true filling fraction inside each cell.
- The largest difference between the two approaches appears near the waveguide boundaries; deep inside homogeneous regions both methods agree closely.
import matplotlib.pyplot as plt
import numpy as np
import tidy3d as td
import tidy3d.web as web
td.config.logging_level = "ERROR"
Geometry and Physical Parameters¶
A three-layer dielectric stack is embedded in a silica-like background (Medium with n = 1.44). The stack is oriented along z with three 100 nm layers of increasing refractive index (n = 2, 3, 4). The line probe runs along z through the stack center and is used to query the local permittivity.
# Central wavelength and frequency used for all epsilon queries and monitors
wavelength = 1.55
freq0 = td.C_0 / wavelength
# Background medium
cladding_medium = td.Medium(permittivity=1.44**2)
# Layer media defined by refractive index
bottom_layer_medium = td.Medium(permittivity=2.0**2)
middle_layer_medium = td.Medium(permittivity=3.0**2)
top_layer_medium = td.Medium(permittivity=4.0**2)
# Lateral dimensions in micrometers
waveguide_width = 0.50
waveguide_length = 1e3
# Vertical stack definition in micrometers
layer_thickness = 0.10
stack_thickness = 3 * layer_thickness
# Simulation region dimensions in micrometers
sim_size_x = 4.0
sim_size_y = 2.0
sim_size_z = 4.0
# Mesh target
min_steps_per_wvl = 10
# Three stacked layers along z
bottom_layer_box = td.Box(
center=(0.0, 0.0, -layer_thickness),
size=(waveguide_length, waveguide_width, layer_thickness),
)
middle_layer_box = td.Box(
center=(0.0, 0.0, 0.0),
size=(waveguide_length, waveguide_width, layer_thickness),
)
top_layer_box = td.Box(
center=(0.0, 0.0, layer_thickness),
size=(waveguide_length, waveguide_width, layer_thickness),
)
bottom_layer = td.Structure(
geometry=bottom_layer_box,
medium=bottom_layer_medium,
name="bottom_layer_n2",
)
middle_layer = td.Structure(
geometry=middle_layer_box,
medium=middle_layer_medium,
name="middle_layer_n3",
)
top_layer = td.Structure(
geometry=top_layer_box,
medium=top_layer_medium,
name="top_layer_n4",
)
stack_structures = [bottom_layer, middle_layer, top_layer]
# Box used for the local epsilon extraction.
# It is a line along z located at x=0 and y=0, crossing the stack vertically.
line_box = td.Box(
center=(0.0, 0.0, 0.0),
size=(0.0, 0.0, 1.0),
)
layer_boundaries = np.array(
[
-stack_thickness / 2,
-stack_thickness / 2 + layer_thickness,
-stack_thickness / 2 + 2 * layer_thickness,
stack_thickness / 2,
]
)
Helper to Build Simulations¶
The helper function keeps the geometry fixed and only toggles the subpixel flag and td.config.simulation.use_local_subpixel. When include_source_and_monitor=True, a dummy PlaneWave source and a PermittivityMonitor are added to enable the FDTD run in Section 4.
def make_simulation(include_source_and_monitor=False):
monitors = []
sources = []
if include_source_and_monitor:
source_time = td.GaussianPulse(
freq0=freq0,
fwidth=0.2 * freq0,
)
plane_wave = td.PlaneWave(
center=(0.0, 0.0, -0.6),
size=(sim_size_x, sim_size_y, 0.0),
source_time=source_time,
direction="+",
)
permittivity_monitor = td.PermittivityMonitor(
center=line_box.center,
size=line_box.size,
freqs=[freq0],
name="eps_line_monitor",
)
sources = [plane_wave]
monitors = [permittivity_monitor]
sim = td.Simulation(
size=(sim_size_x, sim_size_y, sim_size_z),
center=(0.0, 0.0, 0.0),
medium=cladding_medium,
structures=stack_structures,
sources=sources,
monitors=monitors,
grid_spec=td.GridSpec.auto(
wavelength=wavelength,
min_steps_per_wvl=min_steps_per_wvl,
),
run_time=1e-14,
boundary_spec=td.BoundarySpec.all_sides(td.PML()),
)
return sim
Local Epsilon without and with Local Subpixel Averaging¶
Two Simulation objects are created, with and without local subpixel.
coord_key options:
-
"centers"— samples at cell centers; returns the average of the diagonal permittivity components. -
"Ex","Ey","Ez"— samples at the corresponding Yee-grid field locations; returnseps_xx,eps_yy,eps_zz, respectively.
Here coord_key="Ex" is used so the local epsilon query is sampled at the same Yee-grid location as PermittivityMonitor.eps_xx, enabling a direct comparison in Section 4.
# Local epsilon without local subpixel averaging
td.config.simulation.use_local_subpixel = False
sim_no_subpixel = make_simulation(include_source_and_monitor=False)
eps_line_no_subpixel = sim_no_subpixel.epsilon(
box=line_box,
coord_key="Ex",
freq=freq0,
)
# Local epsilon with local subpixel averaging
td.config.simulation.use_local_subpixel = True
sim_with_subpixel = make_simulation(include_source_and_monitor=False)
eps_line_with_subpixel = sim_with_subpixel.epsilon(
box=line_box,
coord_key="Ex",
freq=freq0,
)
def extract_line_profile(eps_data):
# For a line box, keep the non-singleton spatial axis.
# The returned object can carry tensor components such as eps_xx, eps_yy, eps_zz.
if hasattr(eps_data, "eps_xx"):
data = eps_data.eps_xx
else:
data = eps_data
squeezed = data.squeeze(drop=True)
for axis_name in ("x", "y", "z"):
if axis_name in squeezed.coords and squeezed.coords[axis_name].size > 1:
coord = squeezed.coords[axis_name].values
values = np.real(squeezed.values)
return axis_name, coord, values
raise RuntimeError("Could not identify the varying spatial coordinate in the epsilon data.")
axis_no_subpixel, coord_no_subpixel, values_no_subpixel = extract_line_profile(eps_line_no_subpixel)
axis_with_subpixel, coord_with_subpixel, values_with_subpixel = extract_line_profile(
eps_line_with_subpixel
)
fig, ax = plt.subplots(figsize=(8, 5))
ax.plot(coord_no_subpixel, values_no_subpixel, "o-", label="epsilon(box), no subpixel")
ax.plot(
coord_with_subpixel,
values_with_subpixel,
"o-",
label="epsilon(box), with subpixel",
)
for boundary_index, boundary_position in enumerate(layer_boundaries):
label = "layer boundary" if boundary_index == 0 else None
ax.axvline(boundary_position, linestyle=":", alpha=0.5, label=label)
ax.set_xlabel(f"{axis_no_subpixel} (µm)")
ax.set_ylabel("Local permittivity")
ax.set_title("Local permittivity across the three-layer stack")
ax.legend()
ax.set_xlim(-0.2, 0.2)
plt.show()

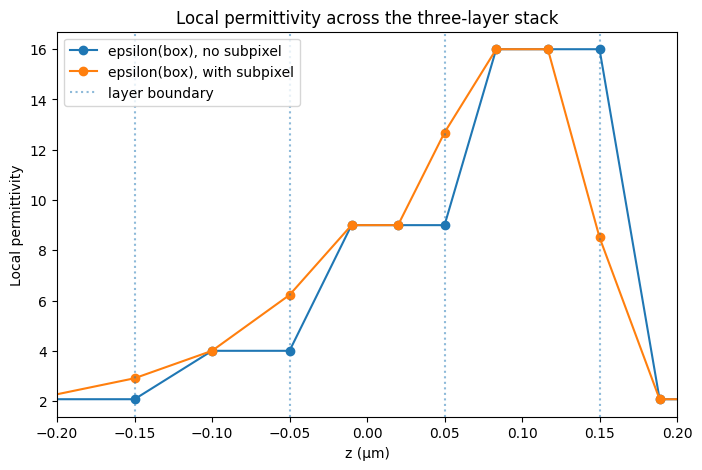

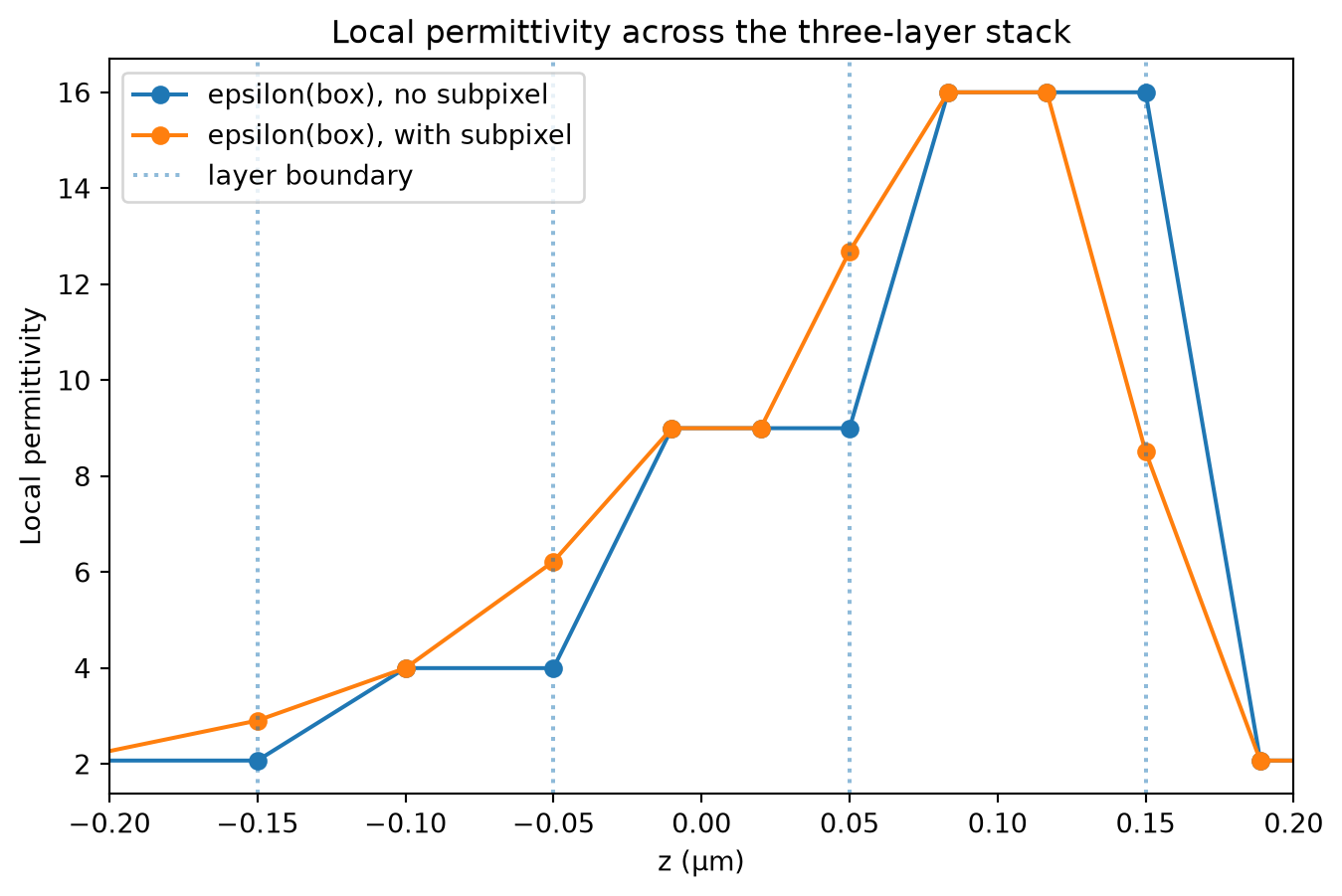

The curves agree inside each homogeneous layer and differ mainly at the dielectric boundaries.
- The non-subpixel result transitions abruptly — each interface maps directly onto the nearest Yee cell edge.
- The subpixel result transitions smoothly — it approximates the effective filling fraction at each interface.
- The three 100 nm layers allow multiple interface transitions to be inspected in a single profile.
FDTD Run with PermittivityMonitor¶
A minimal FDTD job (run_time = 1e-14 s) is run to sample the permittivity via a PermittivityMonitor. The result is compared against the local epsilon computed in Section 3.
The very short
run_timeis intentional — only the discretized permittivity is needed, not converged field data. A field-decay warning is expected.
sim_monitor = make_simulation(include_source_and_monitor=True)
sim_data = web.run(
sim_monitor,
task_name="subpixel_local_epsilon_dummy_monitor",
)
10:40:04 -03 Loading simulation from local cache. View cached task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId=fdve-183ffa2a-eb1 d-4ec0-a767-419517e0af7d'.
# Grab the monitored permittivity directly along the z line.
monitor_eps_xx = sim_data["eps_line_monitor"].eps_xx.squeeze(drop=True)
monitor_coord = monitor_eps_xx.coords["z"].values
monitor_values = np.real(monitor_eps_xx.values)
fig, ax = plt.subplots(figsize=(8, 5))
ax.plot(
coord_with_subpixel,
values_with_subpixel,
"o-",
label="local epsilon with subpixel",
)
ax.plot(monitor_coord, monitor_values, "s--", label="PermittivityMonitor")
for boundary_index, boundary_position in enumerate(layer_boundaries):
label = "layer boundary" if boundary_index == 0 else None
ax.axvline(boundary_position, linestyle=":", alpha=0.5, label=label)
ax.set_xlabel("z (µm)")
ax.set_ylabel("Permittivity")
ax.set_title("Local epsilon vs PermittivityMonitor for the three-layer stack")
ax.legend()
plt.show()

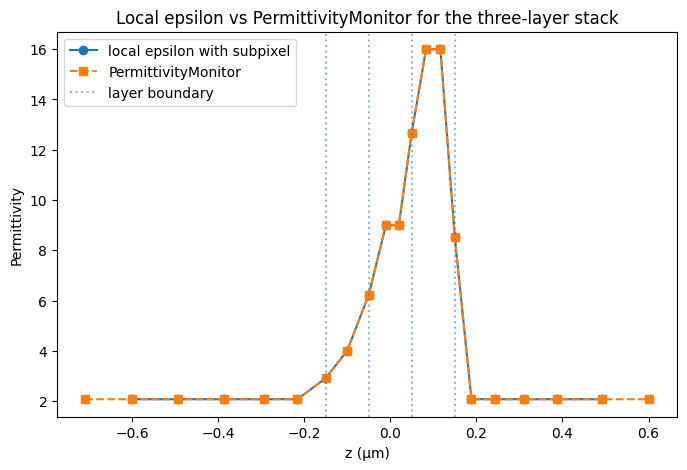

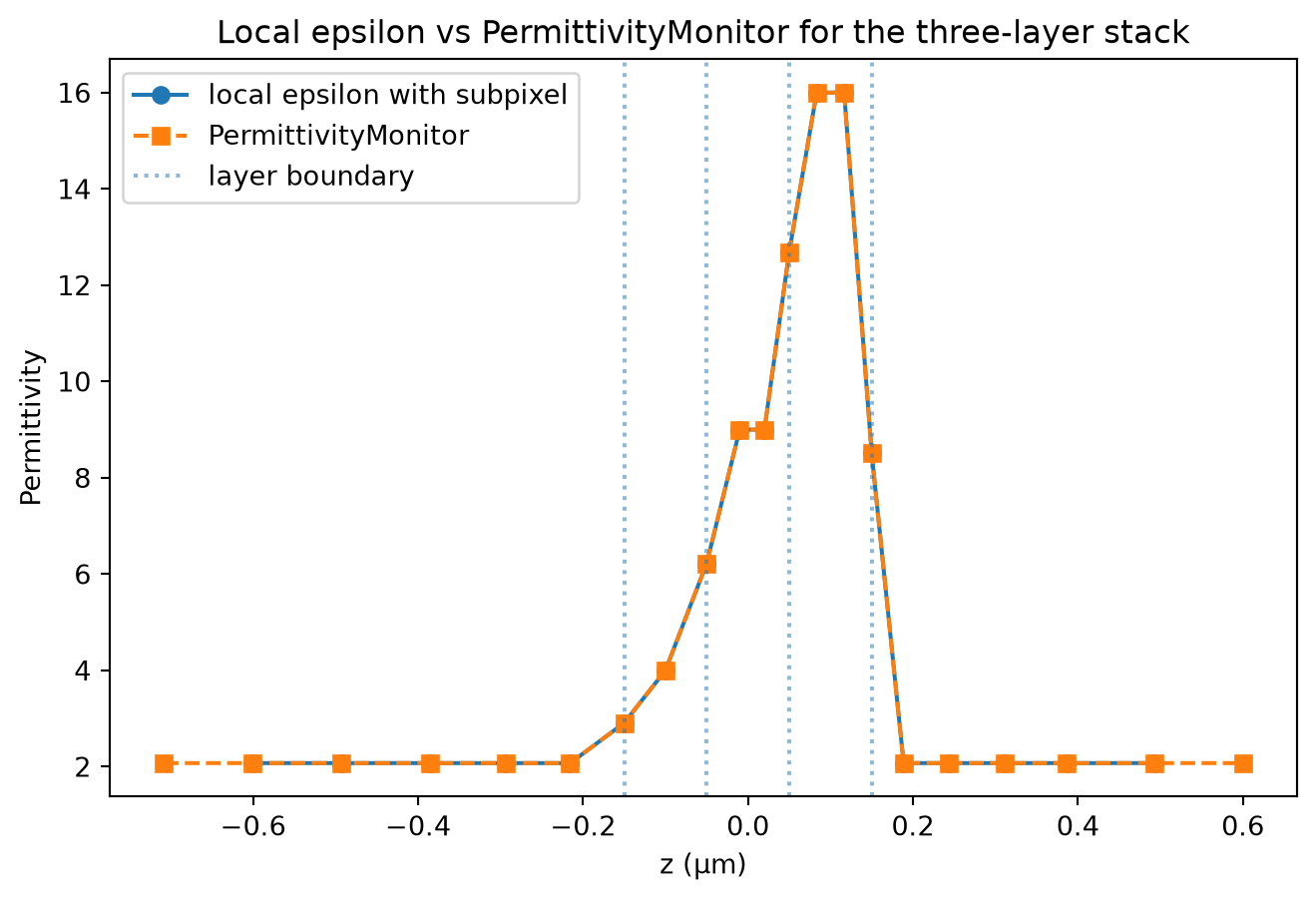

As we can see, the local subpixel matches exactly the grid used in cloud computation.
