Skywalker X8. Reconstructing a watertight surface mesh from a scanned UAV

Aerospace Geometry RepairHalf BodyDrone
Skywalker X8 — GeometryAI validation

GeometryAI reconstructs a watertight outer mold line from a scanned Skywalker X8. The case focuses on defects that prevent reliable surface meshing: open holes, disconnected panel gaps, and overlapping scan patches.

Geometry metrics

At a glance

A snapshot of the input geometry, what GeometryAI cleaned up, and the final surface mesh.

Input STL
Bodies 1
Faces 3
GeometryAI cleanup
Baffle triangles 28
Hidden area removed 32.4%
Gaps closed 4
Final surface mesh
Nodes 225,658
Triangles 451,320
Meshing time 1 min 58 s
Scan defects

Where the scan breaks down

The scan contains holes, overlapping patches, and gaps between panels that must be resolved before a dependable surface mesh can be made.

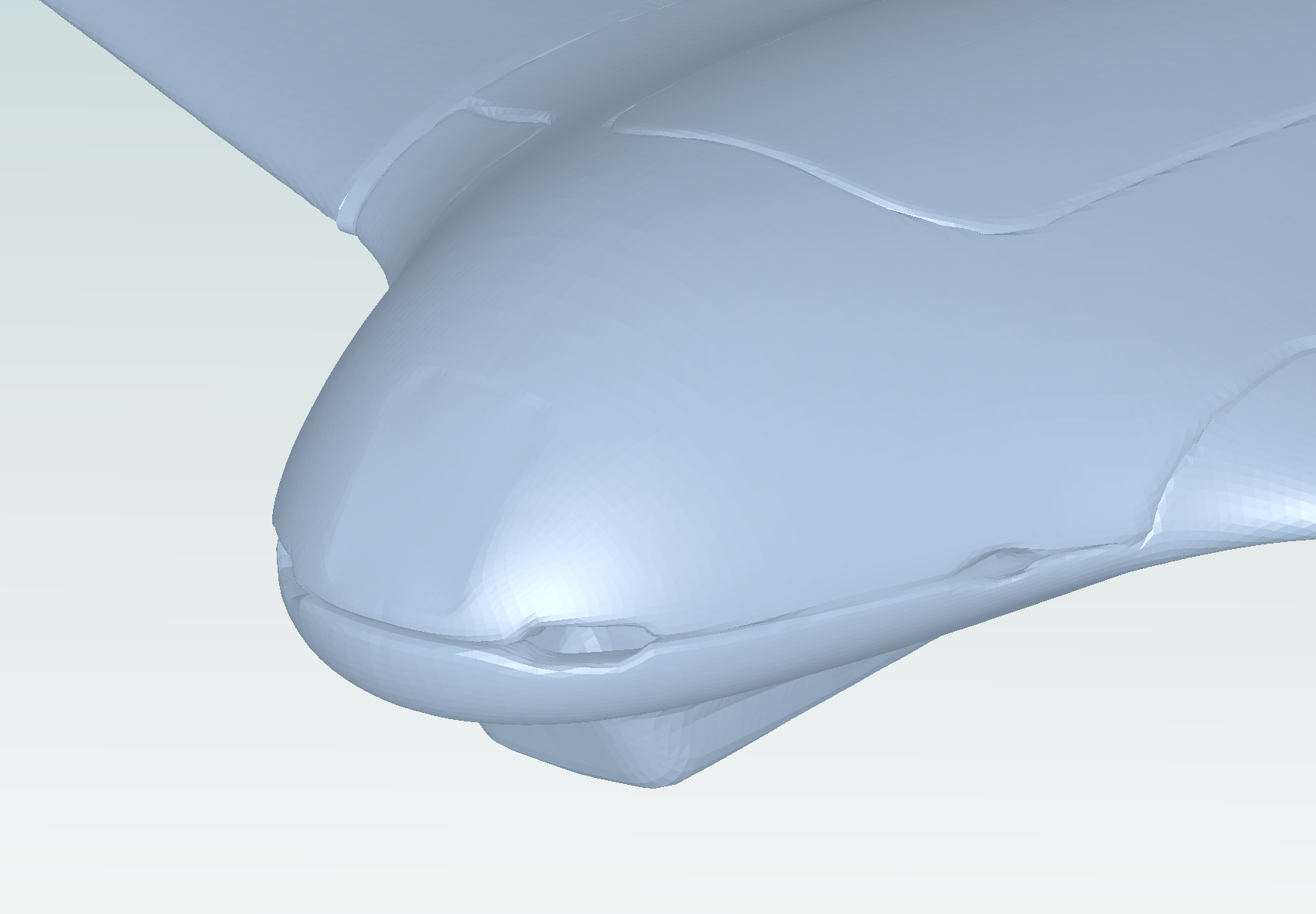

Hole at the scanned nose
Open nose

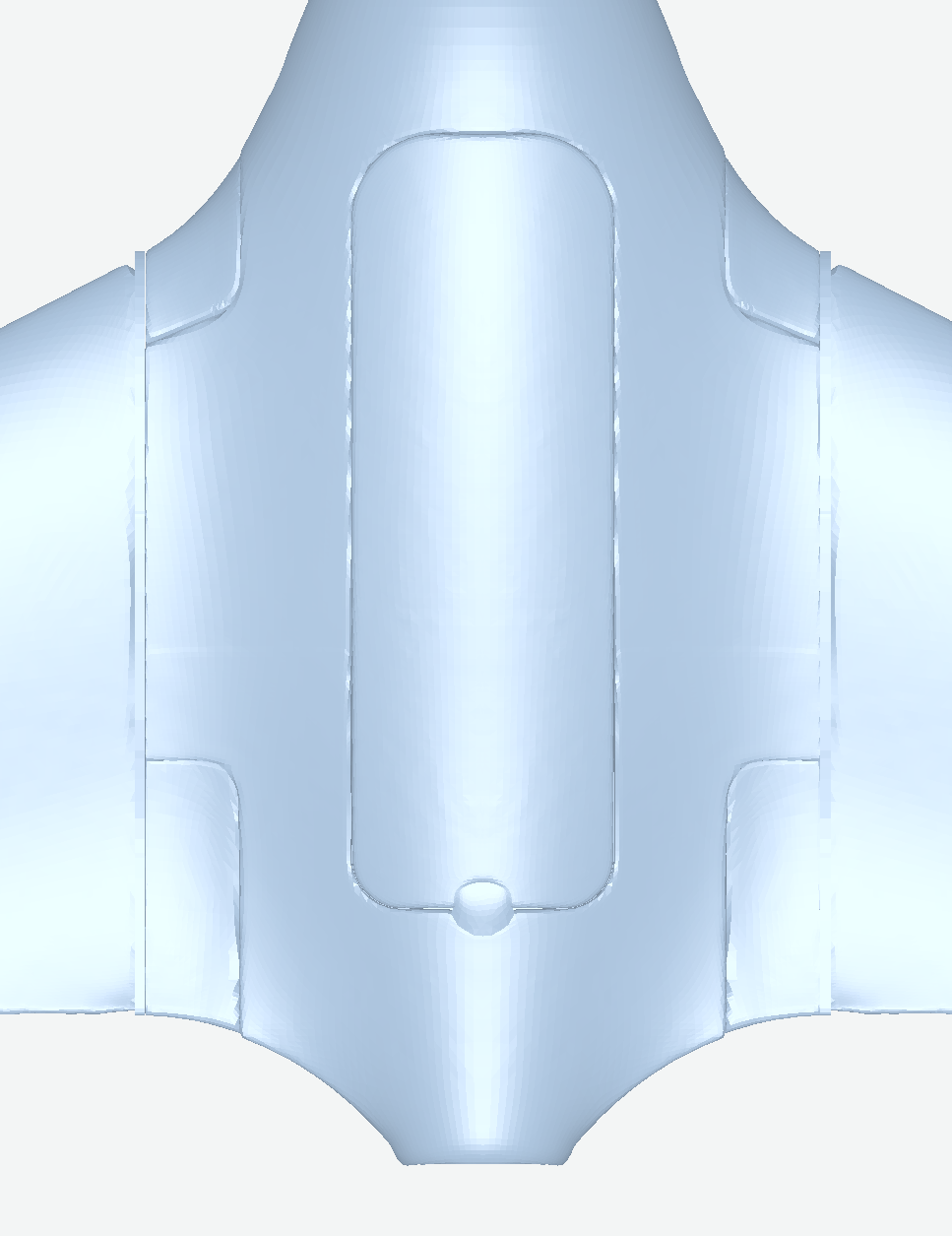

Gaps between scanned panels
Disconnected panels
Streamwise section through the wing trailing edge and flap, where the flap panel cuts into the wing panel
Flap-wing intersecting bodies
Feature versus defect

Recovered from user intent

GeometryAI classifies design geometry and scan noise before reconstructing the requested outer mold line as a half-body domain.

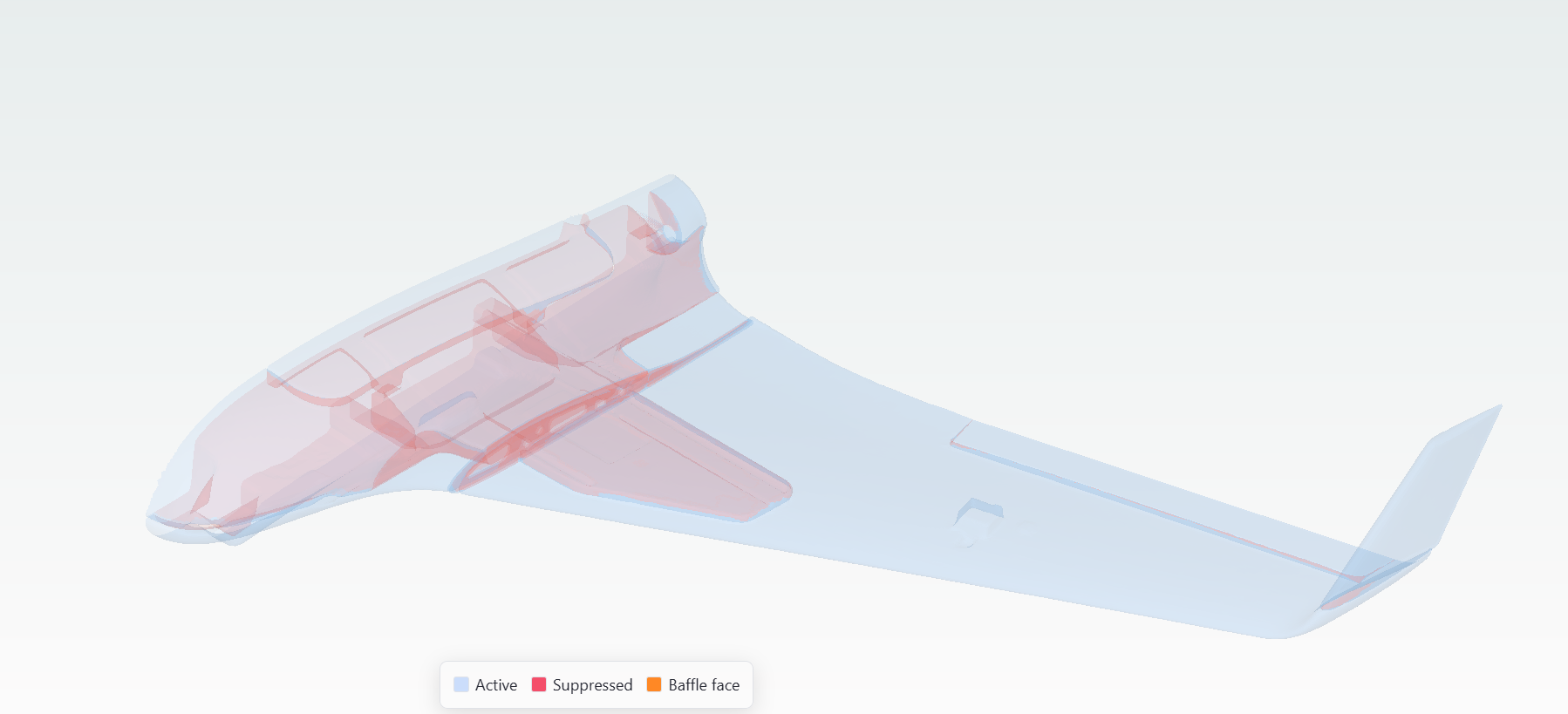

GeometryAI classification overlay
Classification before reconstruction
Recovered geometry

The same defects, fixed

Nose

The opening into the hollow interior is closed in the reconstructed surface mesh.

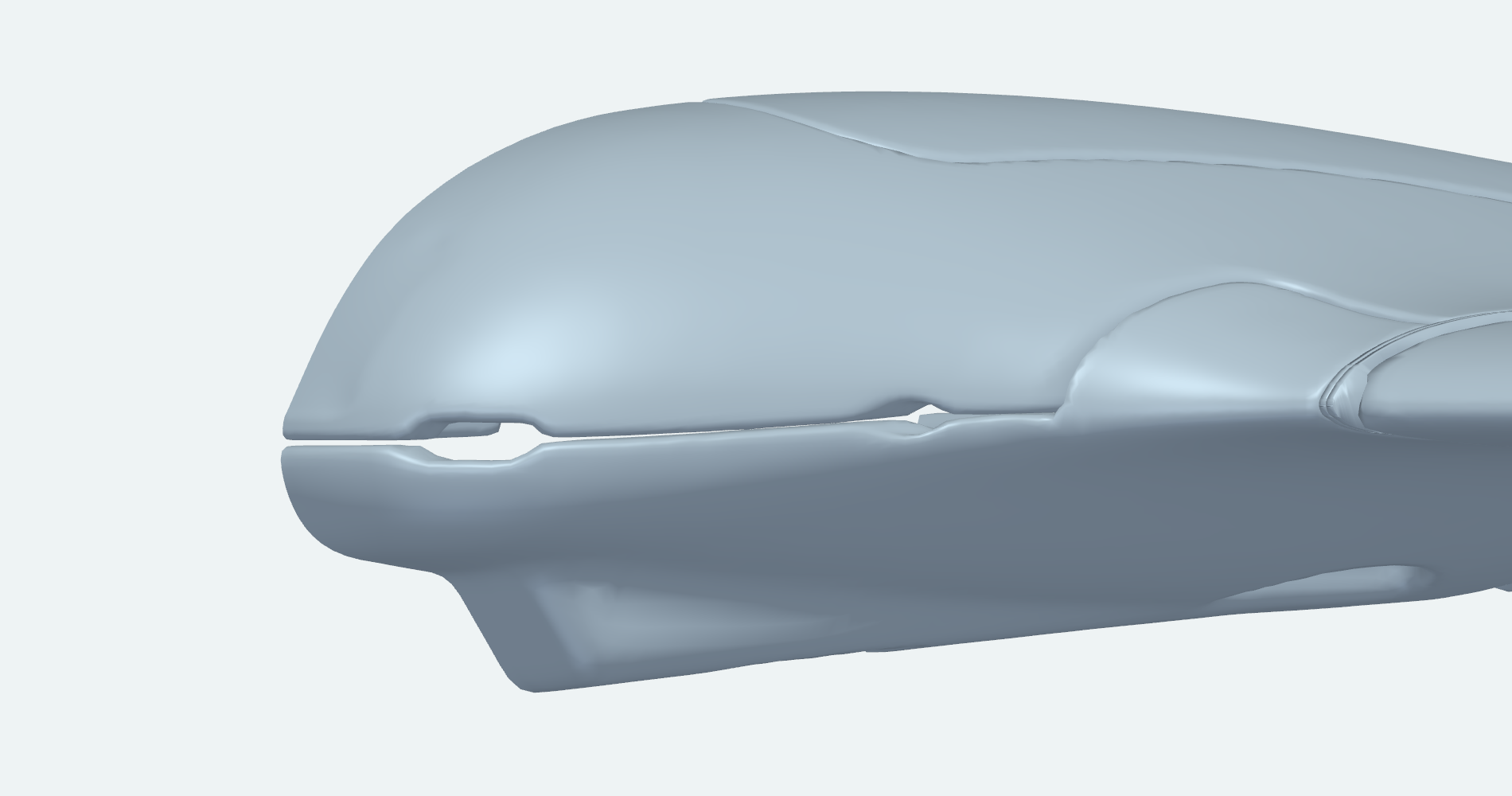

Original scan at the nose
Original scan

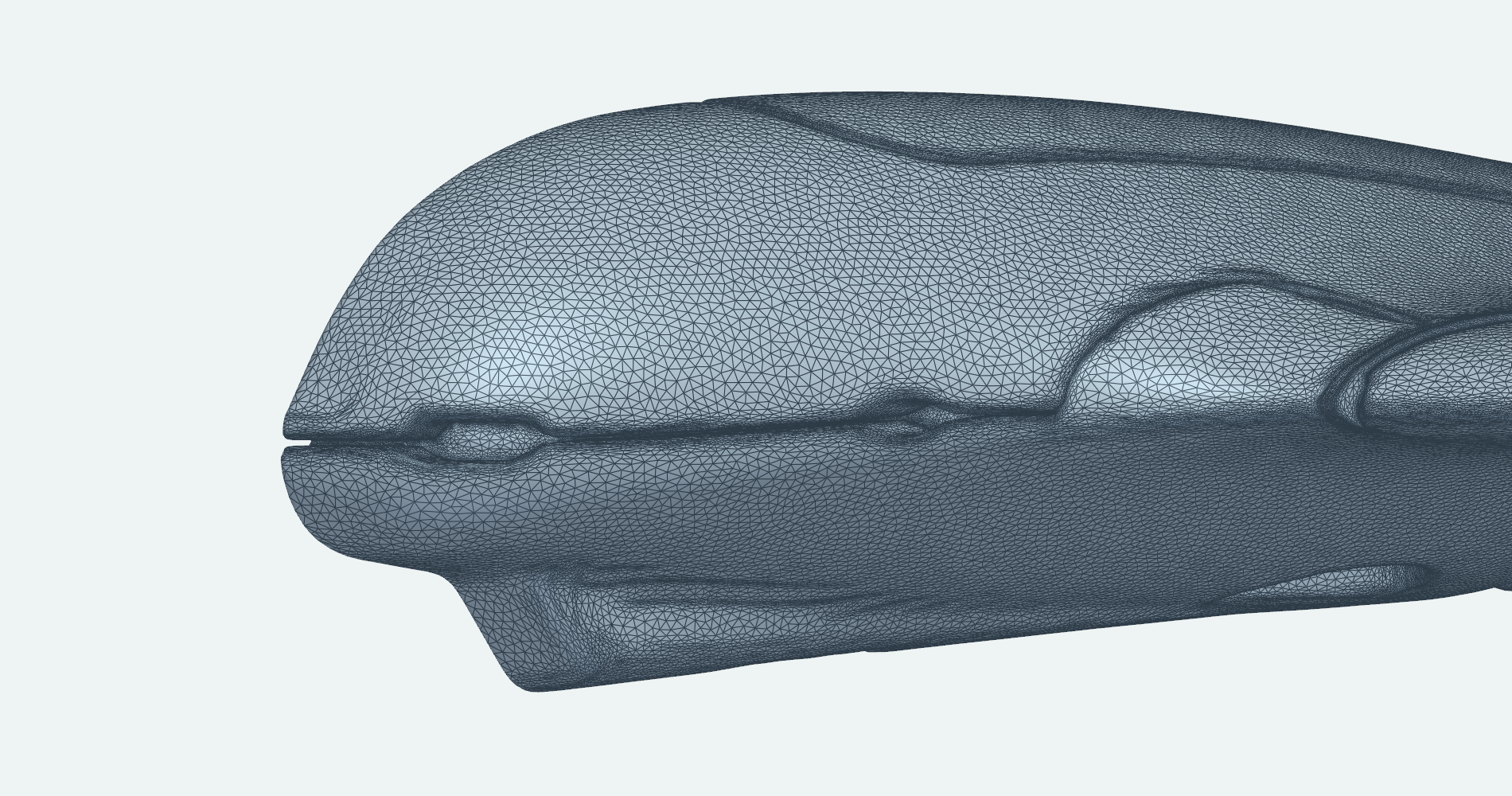

Reconstructed mesh at the nose
Mesh

Sealed gaps

Panel boundaries are stitched into a continuous surface.

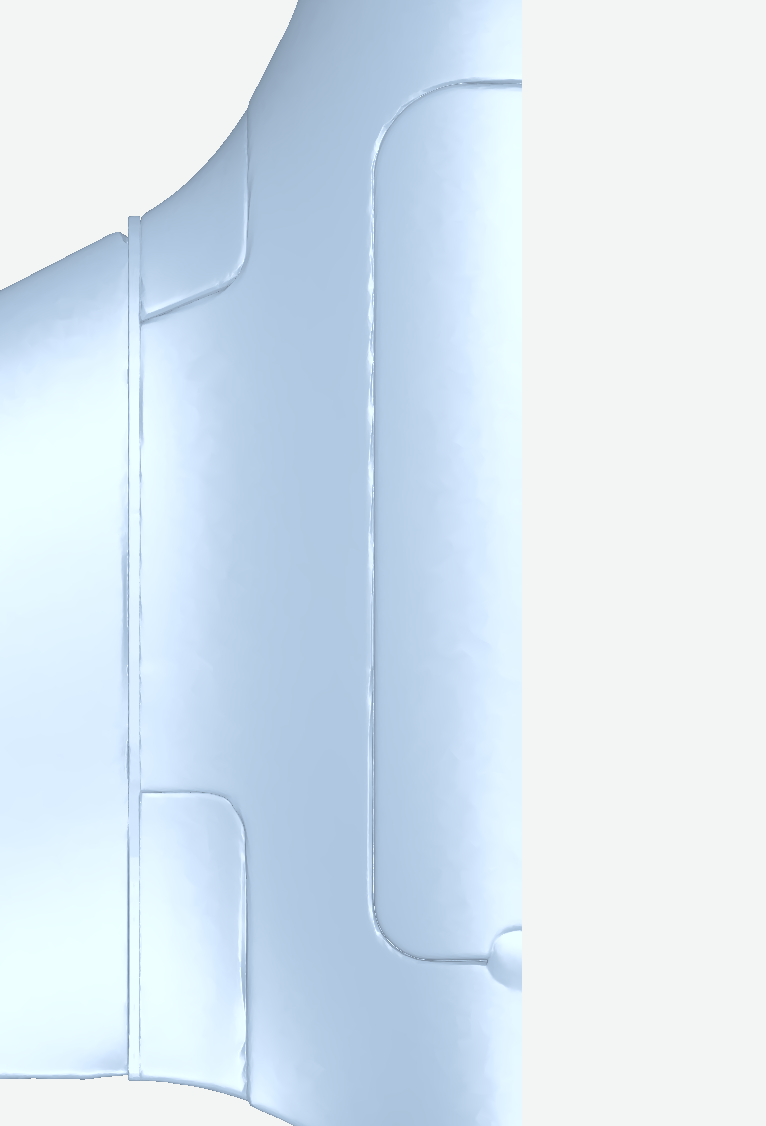

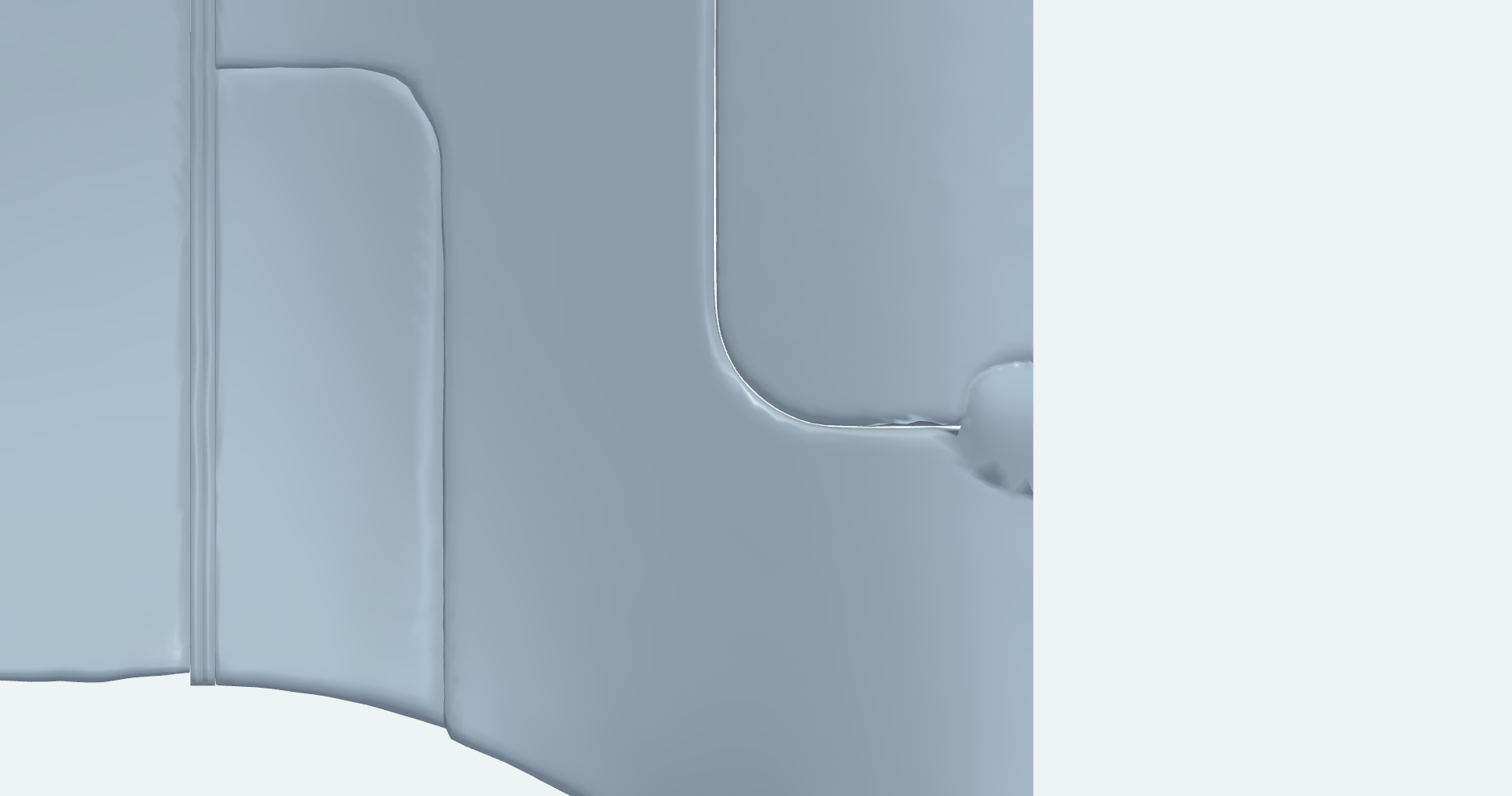

Original scan at the tail panel gap with the upper shell isolated near the centerline
Original scan, showing gaps between panels

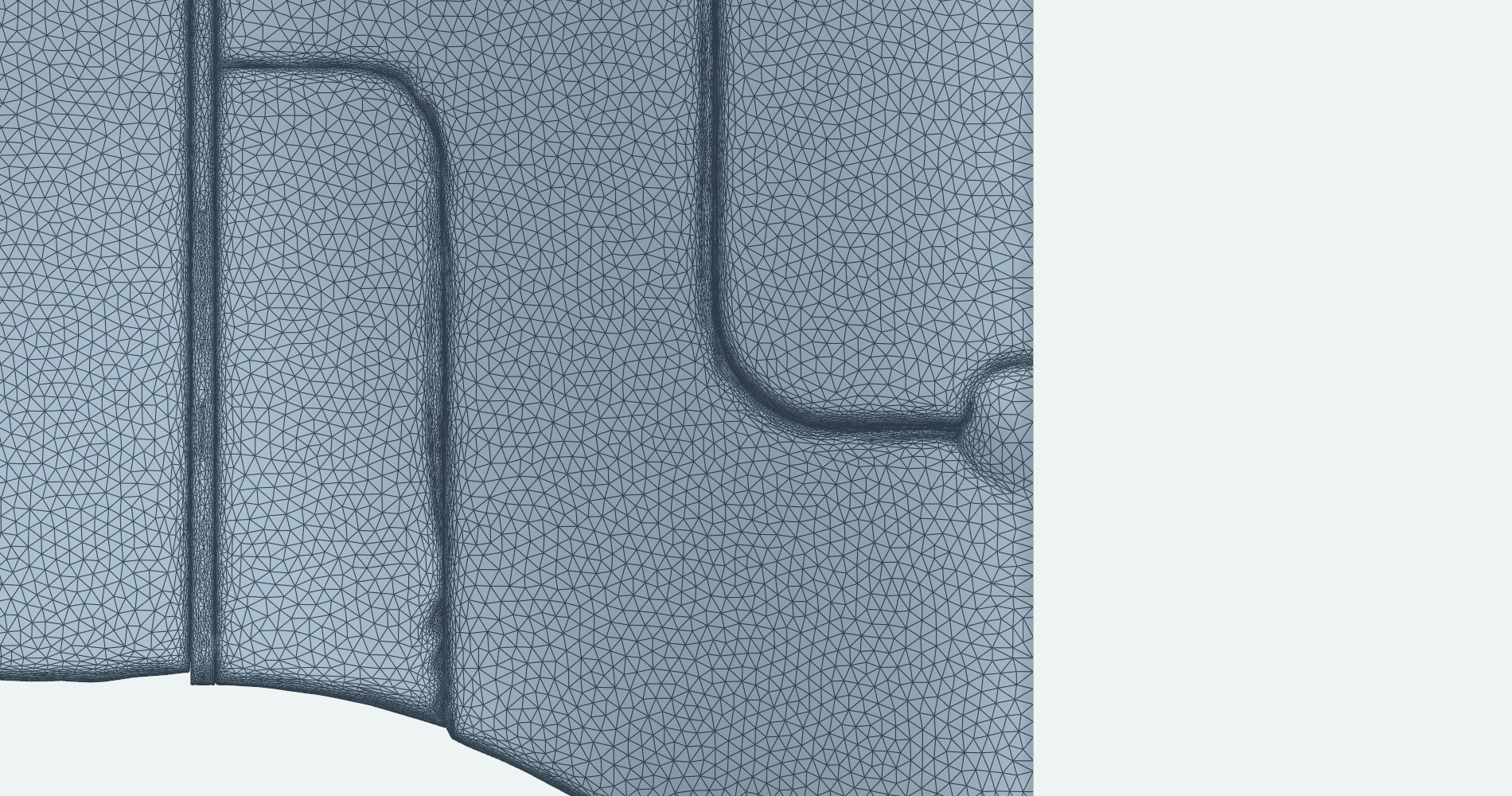

Reconstructed surface mesh at the tail panel gap
Mesh

Overlapping patches

The flap-gap overlap is merged into one continuous surface.

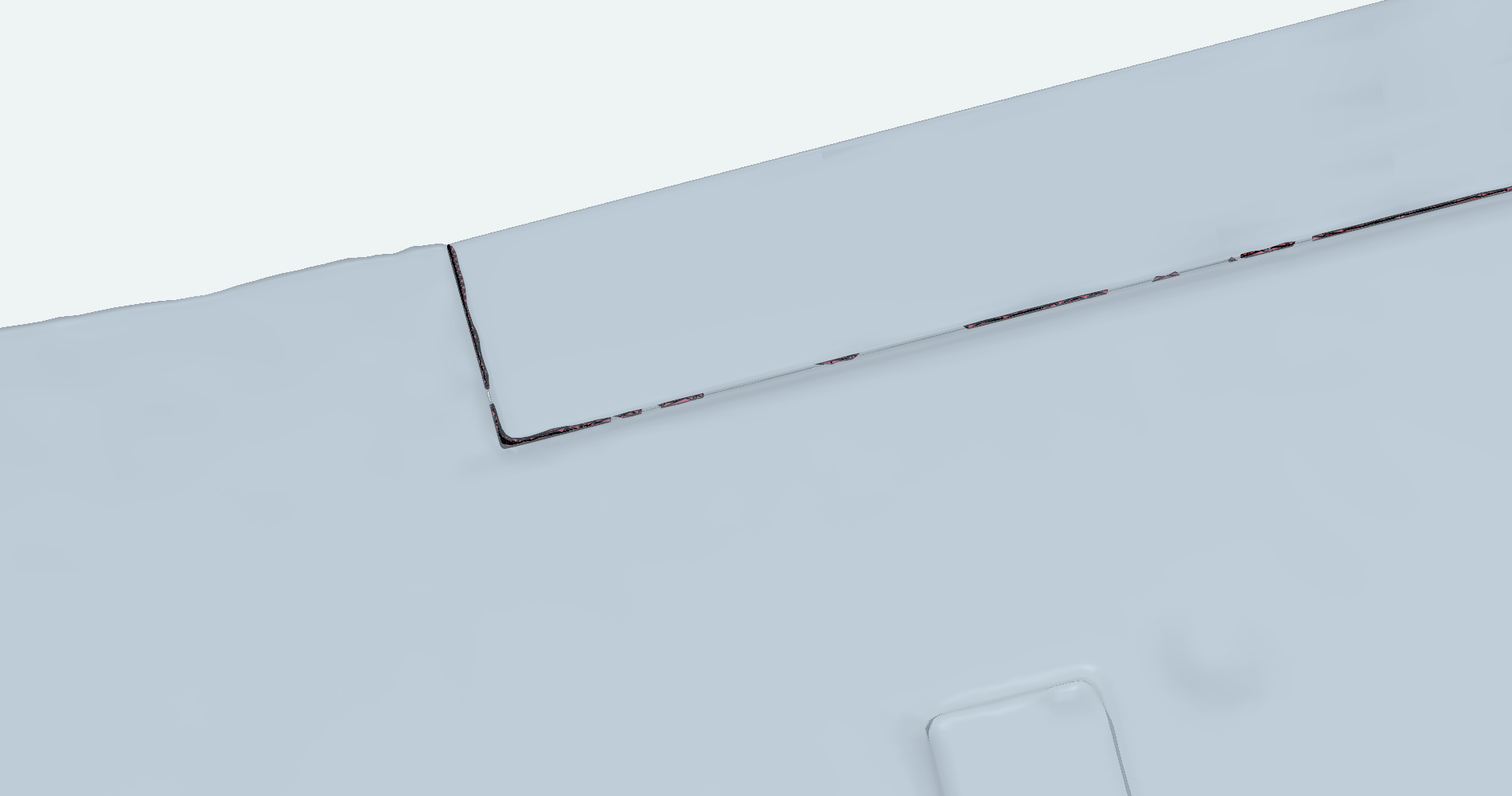

Classified overlapping scan patch
Classification overlay

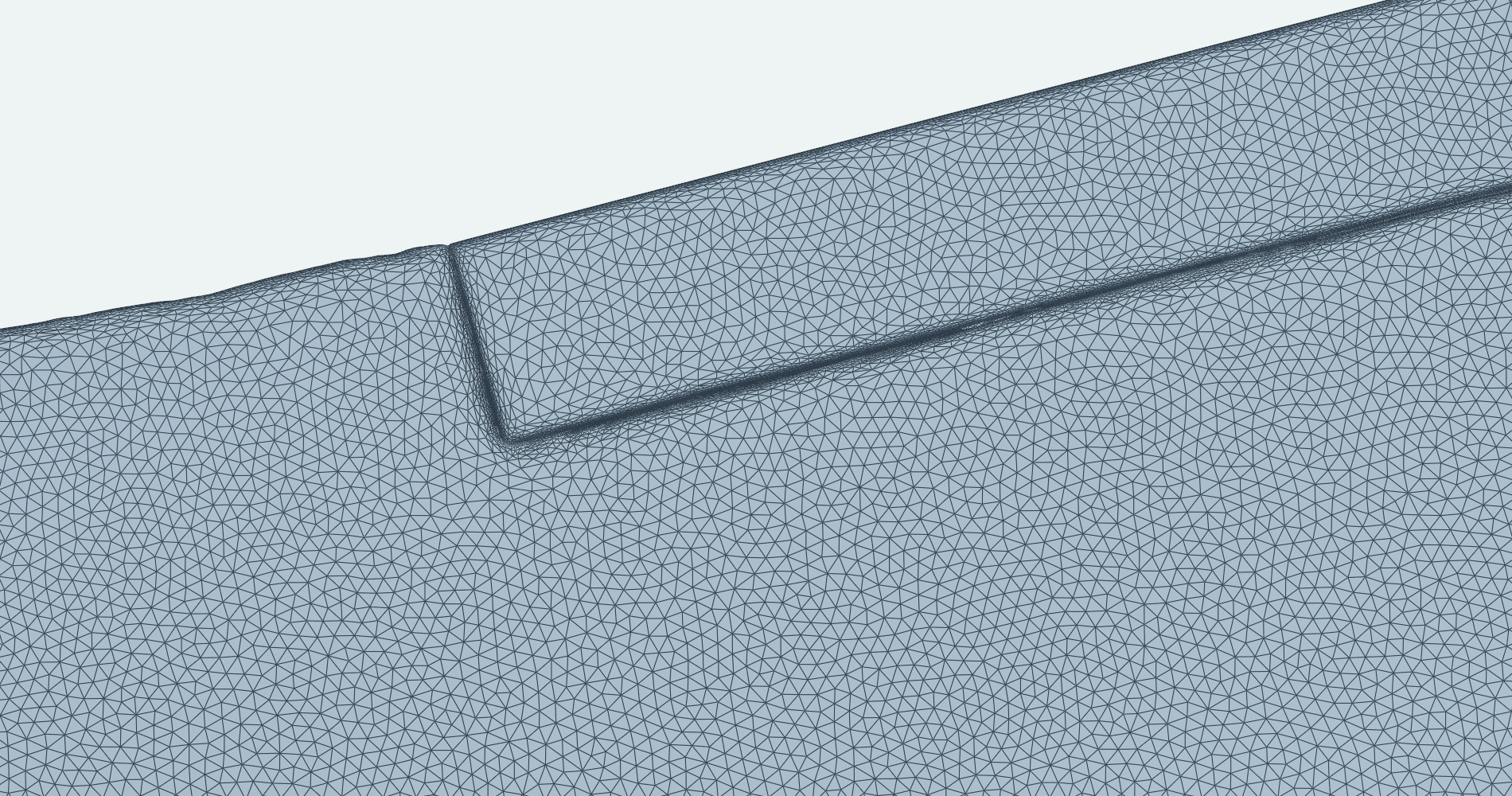

Reconstructed flap-gap mesh
Mesh
Final result

A clean watertight surface mesh

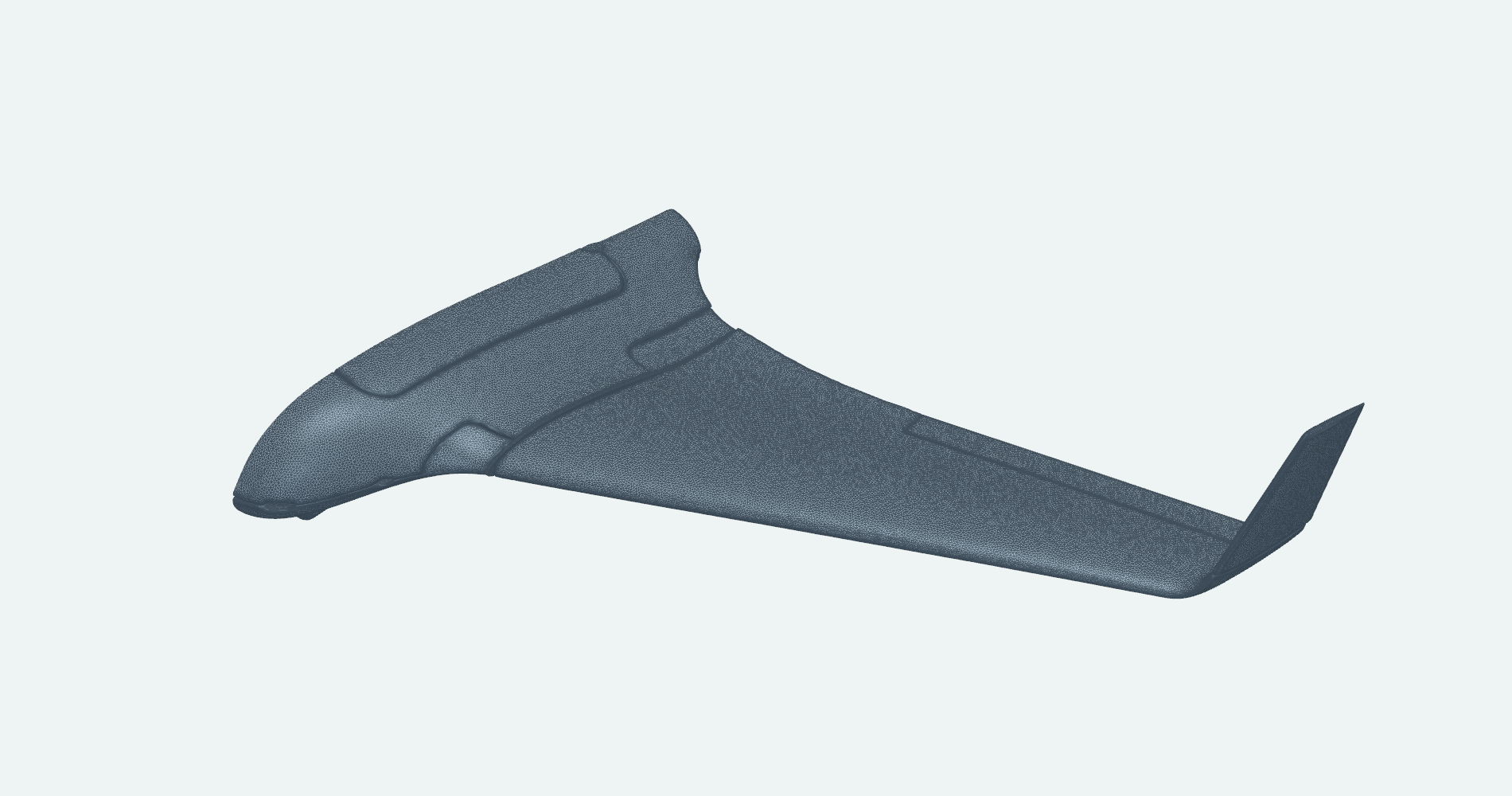

Final Skywalker X8 surface mesh
GeometryAI output
