Simulating bent waveguides using the EME solver

Warning. The cost of running this notebook is larger than 50 FC. The cost of running the FDTD portion of the notebook is about 60 FlexCredits. The cost of running the EME portion is less than 5.

EME is a frequency-domain technique used for propagating electromagnetic fields and calculating the complete bidirectional scattering matrix. It is particularly useful for simulating long waveguides, as it can be significantly faster and more cost-effective than FDTD. In the EME solver, the waveguide is divided into cells, and the bidirectional scattering matrix is calculated at its boundaries. Therefore, the method is suitable for waveguides with adiabatic variations, where the relative error compared to a full-wave FDTD simulation can be small.

Additionally, the EME solver can be used to simulate bent waveguides, either by concatenating circular sections with different bend radii or by creating a grid to capture the variations in the local radius for an arbitrary bend. However, the workflow might be counterintuitive, as the EME simulation consists of a straight geometry, with each EME cell representing a local curvature. This is depicted in the above picture, where a waveguide formed by a combination of circular arcs in FDTD is modeled as a straight waveguide in EME, with each cell accounting for the curvature radius of each section.

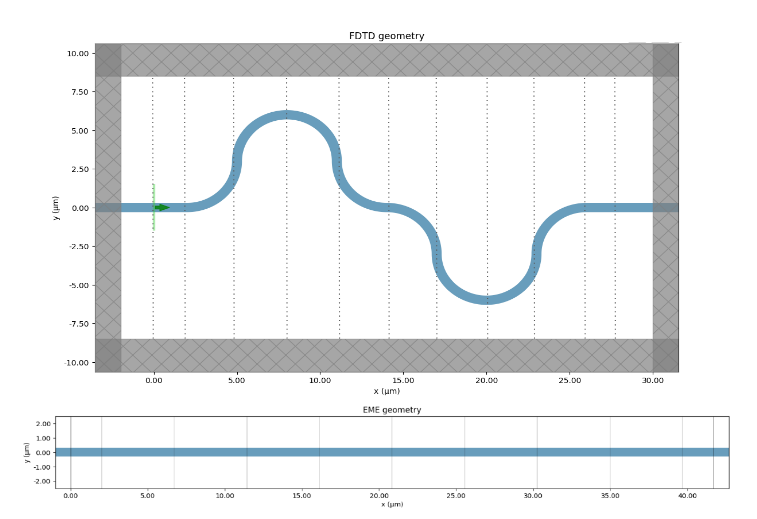

Schematic

In this notebook, we will demonstrate the use of the EME solver for analyzing bent structures through the following examples:

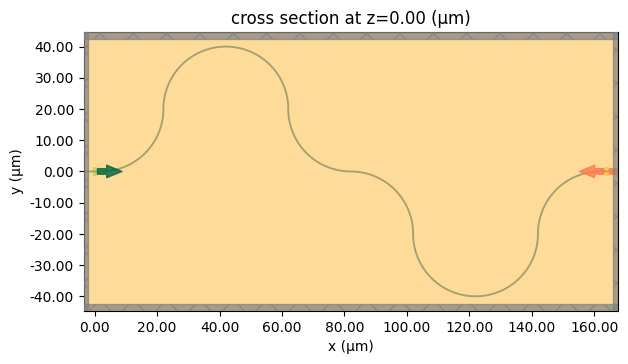

  1. S-shape bend composed of two semi-circles with identical bend radii

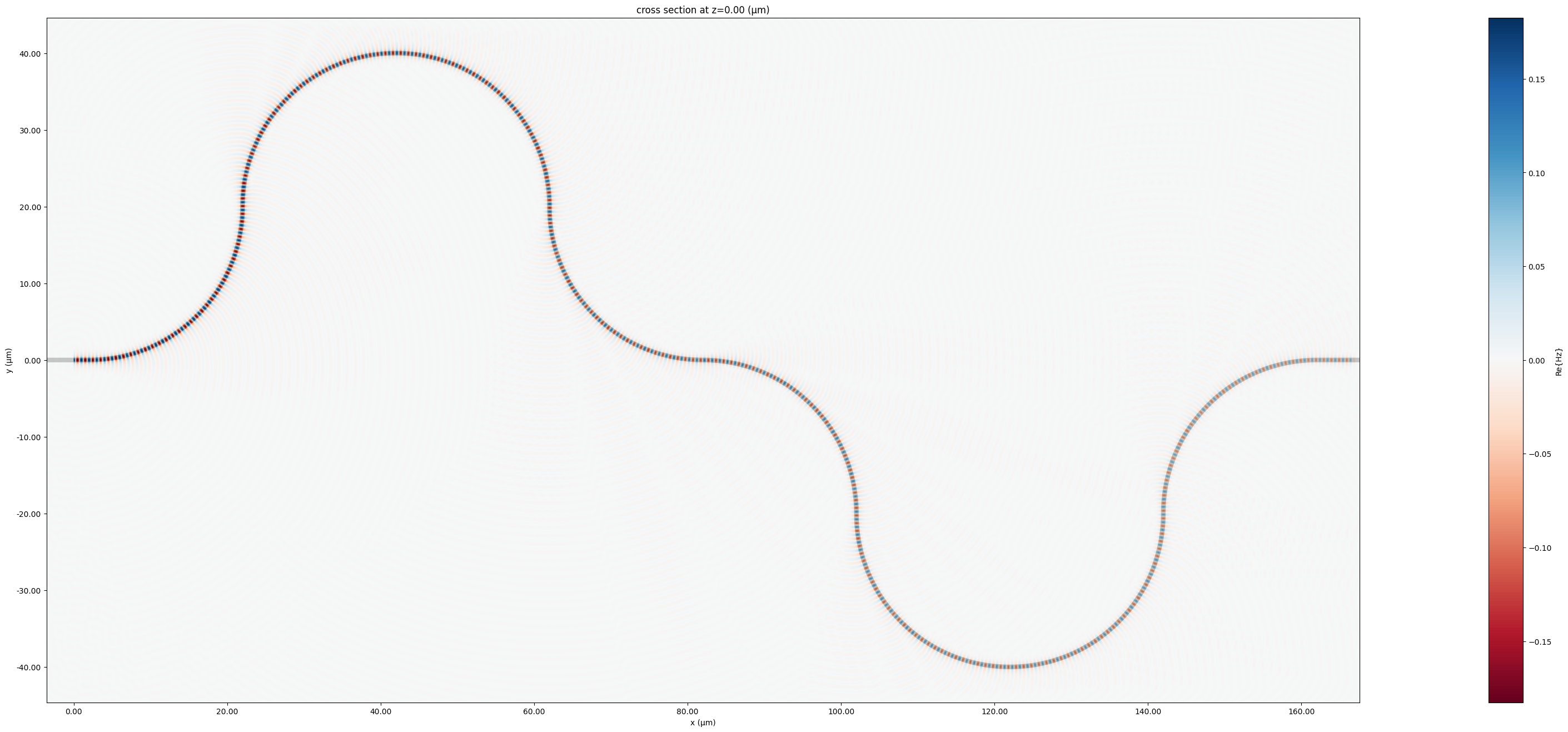

  2. Coupling arms formed by several semi-circles

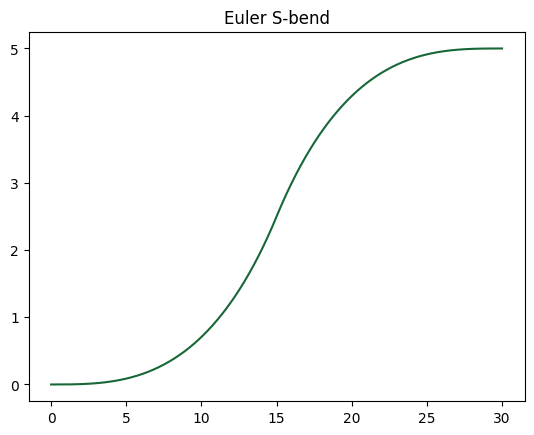

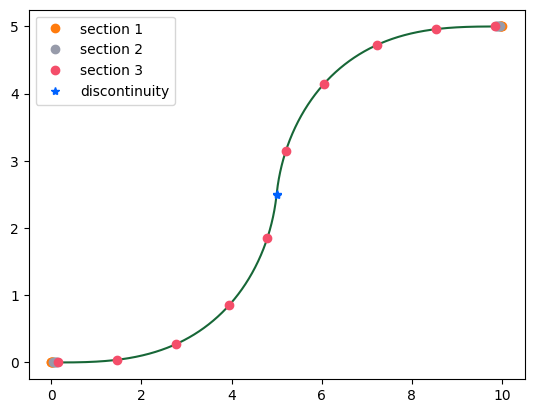

  3. S-shape Euler bend composed of two clothoid curves

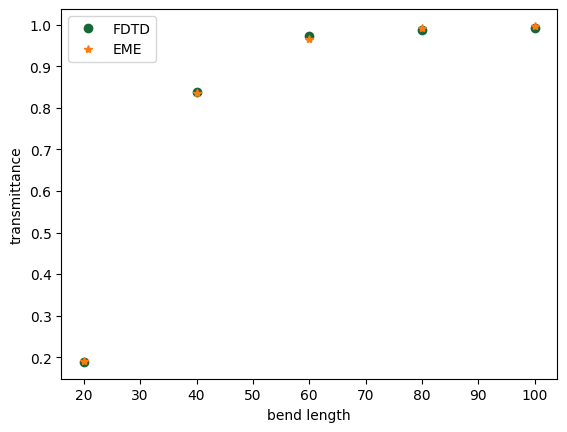

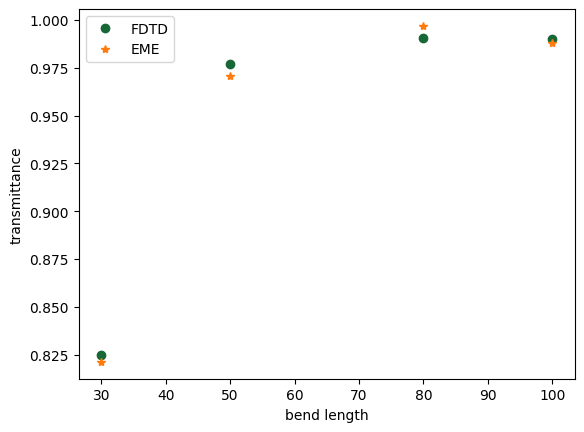

Also, we will compare the results obtained with the EME solver with the ones obtained with an FDTD simulation.

More information about the EME solver can be found in this example notebook.

# import libraries
# suppress warnings during calculations

import warnings

import matplotlib.pyplot as plt
import numpy as np
import tidy3d as td
from tidy3d import web

warnings.filterwarnings("ignore")

# emit each unique Tidy3D warning only once
td.log.warn_once = True

Circular Bends

The EME cells will be defined with the EMEExplicitGrid object, which allows us to position EME grid cells in specific positions. The first and last cells will simulate straight sections, which are the input and output waveguides of the device. The intermediate cells are a combination of circular arcs. The S-bend is formed by two circular arcs with a radius of curvature of equal magnitude but different signs, which represent a counter-clockwise and clockwise curvature. The curvature radius is defined in the EMEModeSpec object.

For all examples, the structures will consist of Silicon Nitride waveguides buried in \(\text{SiO}_2\).

Firstly, we will define a function for creating the EME simulation. For defining the bend region, we will input a list of tuples, where each tuple will have the information of the length and bend radius of a given cell.

def get_bend_eme(
    bends=[(1, 1)],
    wvgIn=2,
    wvgOut=2,
    width=0.6,
    thickness=0.4,
    plane_size=(6, 6),
    num_modes=160,
    target_neff=1.5,
    core_index=2,
    precision="double",
    store_port_modes=False,
    constraint=None,
):
    """
    Creates and returns an EME simulation for a bent waveguide structure.

    Parameters:
        bends (list of tuple): A list of tuples where each tuple represents a bend in the waveguide.
                                Each tuple consists of two values: length and bend radius. Default is [(1, 1)].
        wvgIn (float): The length of the straight waveguide section at the input. Default is 2.
        wvgOut (float): The length of the straight waveguide section at the output. Default is 2.
        width (float): The width of the waveguide. Default is 0.6.
        thickness (float): The thickness of the waveguide core. Default is 0.4.
        plane_size (tuple): The size of the simulation plane (height, width). Default is (6, 6).
        num_modes (int): The number of modes to compute for the simulation. Default is 160.
        target_neff (float): The target effective index for the modes. Default is 1.5.
        core_index (float): The refractive index of the core material. Default is 2.
        precision (str): The numerical precision for the simulation, either "single" or "double". Default is "double".
        store_port_modes (bool): Whether to store port modes. Default is False.
    """

    # default mode spec
    mode_spec = td.EMEModeSpec(
        num_modes=num_modes,
        bend_radius=None,
        bend_axis=1,
        num_pml=(12, 12),
        target_neff=target_neff,
        precision=precision,
    )

    # size of the EME simulation. Start with 2 to compensate the port offsets
    size = 2

    # add straight sections
    if wvgIn > 0:
        bends = [(wvgIn, None)] + bends
    if wvgOut > 0:
        bends = bends + [(wvgOut, None)]

    structures = []
    mode_specs = []

    # iterate through each section and create each mode spec
    for i, bend in enumerate(bends):
        length, radius = bend

        mode_specs.append(mode_spec.updated_copy(bend_radius=radius))

        if i == 0:
            boundaries = [length]
        else:
            boundaries.append(boundaries[-1] + length)

        size += length

    eme_grid_spec = td.EMEExplicitGrid(boundaries=boundaries[:-1], mode_specs=mode_specs)

    # monitor for visualizing fields
    eme_field_mon = td.EMEFieldMonitor(name="field", size=(td.inf, 0, td.inf), num_modes=1)

    # creating structures

    sio2 = td.material_library["SiO2"]["Palik_LowLoss"]
    core = td.Medium(permittivity=core_index**2)

    # creating waveguide structure
    structures = [
        td.Structure(
            attrs={},
            geometry=td.PolySlab(
                axis=2,
                sidewall_angle=0.0,
                slab_bounds=(-thickness / 2, thickness / 2),
                vertices=np.array(
                    [
                        [-1e15, -width / 2],
                        [-1e15, width / 2],
                        [1e15, width / 2],
                        [1e15, -width / 2],
                    ]
                ),
            ),
            medium=core,
        )
    ]

    # creating the simulation object
    sim = td.EMESimulation(
        size=(size, plane_size[0], plane_size[1]),
        medium=sio2,
        center=(size / 2 - 1, 0, 0),
        structures=structures,
        axis=0,
        freqs=[td.C_0 / 1.55],
        eme_grid_spec=eme_grid_spec,
        grid_spec=td.GridSpec.auto(min_steps_per_wvl=20),
        monitors=[eme_field_mon],
        port_offsets=(1, 1),
        symmetry=(0, 0, 1),
        store_port_modes=store_port_modes,
        constraint=constraint,
    )

    return sim

For each EME simulation, we will also create an equivalent FDTD simulation to explicitly simulate the curvature. For convenience, we will define auxiliary functions for creating a list of x and y points for a given EME simulation object, that can later be used to generate the correct structure for the FDTD simulation:

# function for creating points for an arc section
def arc(length, radius, center=(0, 0), theta0=0):
    theta = theta0 + np.linspace(0, length, 1001) / radius
    x = radius * np.cos(theta - np.pi / 2)
    y = radius * np.sin(theta - np.pi / 2)

    x = x + (center[0] - x[0])
    y = y + (center[1] - y[0])
    return x, y, theta


# function for creating points for a straight section at a given angle
def line(length, theta, center=(0, 0)):
    x = [center[0], center[0] + length * np.cos(theta)]
    y = [center[1], center[1] + length * np.sin(theta)]

    return x, y


# function for creating a list of points representing the bend waveguide from an EME simulation object
def eme2Curve(sim):
    mode_specs = sim.eme_grid_spec.mode_specs
    boundaries = sim.eme_grid_spec.boundaries
    boundaries = np.append(0, boundaries)
    boundaries = np.append(boundaries, sim.size[0] - sum(sim.port_offsets))
    lengths = np.diff(boundaries)
    radius = [i.bend_radius for i in mode_specs]

    x, y = [], []

    cx, cy = 0, 0
    theta = 0
    for i, r in enumerate(radius):
        if r:
            a, b, t = arc(lengths[i], r, (cx, cy), theta0=theta)
            theta = t[-1]
        else:
            a, b = line(lengths[i], theta, (cx, cy))
        x = np.append(x, a)
        y = np.append(y, b)

        cx = x[-1]
        cy = y[-1]

    return x, y

Next, we will create a function to return an FDTD simulation object, given as input a list of x and y coordinates of the waveguide structure. To analyze the transmission, a ModeMonitor is placed at the end of the last straight section, in the same position as the last cell of the EME grid. For analyzing modes that are not parallel with the x or y axis, we will input the correct angle_theta parameter in the ModeSpec object.

def get_fdtd(x, y, sim, width=0.6, thickness=0.4):
    # output angle
    theta = np.arctan2(y[-1] - y[-2], x[-1] - x[-2])

    # simulation size
    sx = max(x) - min(x)
    sy = max(y) - min(y)

    # simulation center
    centerX = min(x) + sx / 2
    centerY = min(y) + sy / 2

    # adding extra size so the structures will not start or end at the PML boundaries
    x = np.append([-5, 0], x)
    y = np.append([0, 0], y)

    cx = x[-1]
    cy = y[-1]

    a, b = line(5, theta, (cx, cy))
    x = np.append(x, a)
    y = np.append(y, b)

    # creating the structure with gdstk
    import gdstk

    cell = gdstk.Cell("bends")
    cell.add(gdstk.FlexPath(x + 1j * y, width, layer=1, datatype=0))

    geo = td.PolySlab.from_gds(
        cell,
        gds_layer=1,
        axis=2,
        slab_bounds=(-thickness / 2, thickness / 2),
    )[0]

    # simulation size
    size = (sx + 4, sy + 5, 3)

    # structure and source
    fdtd_structure = td.Structure(geometry=geo, medium=sim.structures[0].medium)

    source = td.ModeSource(
        center=(0, 0, 0),
        size=(0, 3, 3),
        direction="+",
        mode_spec=td.ModeSpec(num_modes=1),
        source_time=td.GaussianPulse(freq0=td.C_0 / 1.55, fwidth=0.1 * td.C_0 / 1.55),
    )

    while theta >= 2 * np.pi:
        theta -= 2 * np.pi

    thetaDeg = 180 * theta / np.pi

    # adjusting monitor size for the output angle
    if (thetaDeg > -45) and (thetaDeg <= 45):
        mon_size = (0, 3, 3)
    elif (thetaDeg > 45) and (thetaDeg <= 135):
        mon_size = (3, 0, 3)
    elif (thetaDeg > 135) and (thetaDeg <= 225):
        mon_size = (0, 3, 3)
    else:
        mon_size = (3, 0, 3)

    # monitors
    fieldMon = td.FieldMonitor(
        name="field", center=(0, 0, 0), size=(td.inf, td.inf, 0), freqs=[td.C_0 / 1.55]
    )

    # adjusting the theta angle of the output monitor
    if abs(theta - np.pi / 2) < 0.05 or abs(theta - np.pi) < 0.05:
        modeMon = td.ModeMonitor(
            name="modeMon",
            size=mon_size,
            center=(cx, cy, 0),
            freqs=[td.C_0 / 1.55],
            mode_spec=source.mode_spec,
        )

    else:
        # adjusting the correct angle for each quadrant
        if thetaDeg <= 90:
            t = theta
        if (thetaDeg > 90) and (thetaDeg <= 180):
            t = -(theta - np.pi / 2)
        if (thetaDeg > 180) and (thetaDeg <= 270):
            t = (theta - np.pi) + theta - np.pi / 2
        if (thetaDeg > 270) and (thetaDeg <= 360):
            t = -(theta - 3 * np.pi / 2)

        modeMon = td.ModeMonitor(
            center=(cx, cy, 0),
            size=mon_size,
            freqs=[td.C_0 / 1.55],
            mode_spec=td.ModeSpec(
                num_modes=5,
                angle_theta=t,
                angle_phi=0,
            ),
            name="modeMon",
        )

    sim_fdtd = td.Simulation(
        size=size,
        center=(centerX, centerY, sim.center[2]),
        medium=sim.medium,
        grid_spec=sim.grid_spec,
        sources=[source],
        monitors=[fieldMon, modeMon],
        run_time=10e-12,
        structures=[fdtd_structure],
        boundary_spec=td.BoundarySpec(
            x=td.Boundary.absorber(), y=td.Boundary.absorber(), z=td.Boundary.pml()
        ),
        symmetry=(0, 0, 1),
    )

    return sim_fdtd

Plane Size and Mode Index

As a sanity check, let’s start with a simple 90-degree bend:

radius = 50
length = radius * np.pi / 2

eme_sim = get_bend_eme(
    bends=[(length, radius)],
    wvgIn=2,
    wvgOut=2,
    plane_size=(6, 6),
)

x, y = eme2Curve(eme_sim)
fdtd_sim = get_fdtd(x, y, eme_sim)
02:55:47 UTC WARNING: A large number (160) of modes requested in monitor
             'mode_spec'. This can lead to solver slow-down and increased cost.
             Consider decreasing the number of modes and using
             'ModeSpec.target_neff' to target the modes of interest. This may
             become a hard limit in future Tidy3D versions.

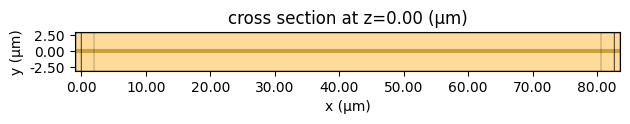

# plotting the EME simulation
eme_sim.plot(z=0)
plt.show()

# plotting the FDTD simulation

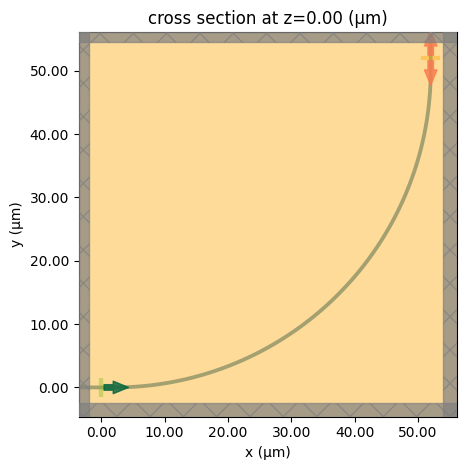

fdtd_sim.plot(z=0)
plt.show()

# running EME simulation
eme_data = web.run(eme_sim, task_name="eme", verbose=True)
02:55:48 UTC Created task 'eme' with resource_id
             'eme-f0bde3d2-e5ec-4f6f-83a7-a6b87c968e51' and task_type 'EME'.
             Tidy3D's EME solver is currently in the beta stage. Cost of EME
             simulations is subject to change in the future.
↑ simulation.hdf5.gz ━━━━━━━━━━━━━━━━━━━━━━━━━ 100.0% • 1.8/1.8 kB • ? • 0:00:00

             Estimated FlexCredit cost: 0.196. For this solver type, the
             estimate is the final billed cost.
             status = queued
             To cancel the simulation, use 'web.abort(task_id)' or
             'web.delete(task_id)' or abort/delete the task in the web UI.
             Terminating the Python script will not stop the job running on the
             cloud.                                                             02:55:58 UTC starting up solver
             running solver
solver progress ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:00

02:56:25 UTC status = success
↓ simulation_data.hdf5.gz ━━━━━━━━━━━ 100.0% • 3.9/3.9 MB • 444.4 MB/s • 0:00:00
02:56:27 UTC Loading results from simulation_data.hdf5
02:56:28 UTC WARNING: Warning messages were found in the solver log. For more
             information, check 'SimulationData.log' or use
             'web.download_log(task_id)'.
# analyzing the transmittance
t = float(eme_data.smatrix.S21.isel(mode_index_in=0, mode_index_out=0, f=0).abs.item() ** 2)
print(f"Transmittance: {t}")
Transmittance: 9.919098373240908e-26

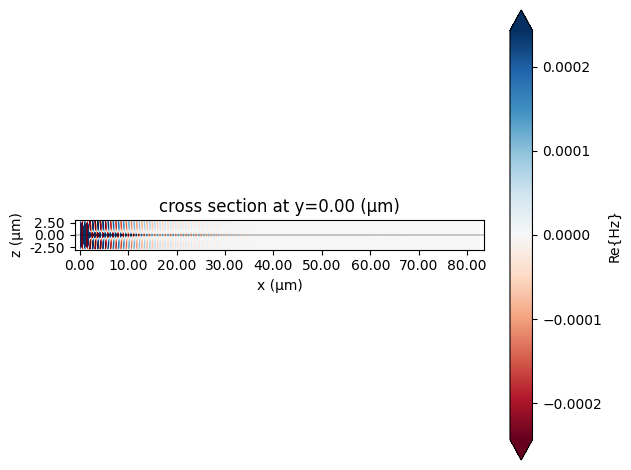

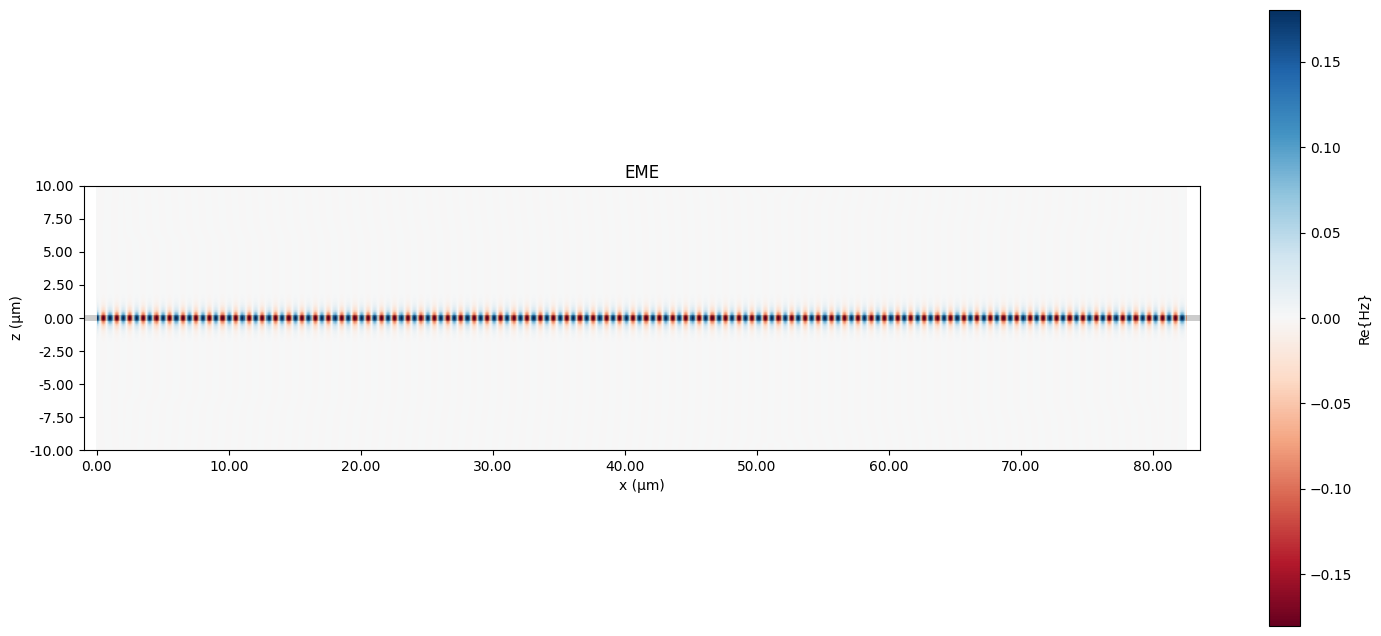

# plotting the fields
eme_data.plot_field("field", "Hz", "real", mode_index=0, eme_port_index=0)
plt.show()

We can note that the results are not correct, and there is a warning message in the simulation log.

As discussed in this notebook, the plane size for a bend mode solver simulation must be sufficiently large to yield correct values for the losses. Small plane sizes can lead to negative values, which are disregarded by the EME solver, and hence the results will not be correct.

Running again, increasing the plane size:

eme_sim = get_bend_eme(
    bends=[(length, radius)],
    wvgIn=2,
    wvgOut=2,
    plane_size=(20, 20),
)
x, y = eme2Curve(eme_sim)
fdtd_sim = get_fdtd(x, y, eme_sim)

# run the EME and FDTD simulations together in a single batch
eme_data, fdtd_data = web.run([eme_sim, fdtd_sim], verbose=True)
02:56:30 UTC WARNING: Internal mode solver monitor '_eme_mode_solver_monitor_0'
             has a large number (1.45e+05) of grid points. This can lead to
             solver slow-down and increased cost. Consider making the size of
             the component smaller, as long as the modes of interest decay by
             the plane boundaries.
             WARNING: Internal mode solver monitor '_eme_mode_solver_monitor_1'
             has a large number (1.45e+05) of grid points. This can lead to
             solver slow-down and increased cost. Consider making the size of
             the component smaller, as long as the modes of interest decay by
             the plane boundaries.
             WARNING: Internal mode solver monitor '_eme_mode_solver_monitor_2'
             has a large number (1.45e+05) of grid points. This can lead to
             solver slow-down and increased cost. Consider making the size of
             the component smaller, as long as the modes of interest decay by
             the plane boundaries.
Uploading data for 2 tasks ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:00
             Started working on Batch containing 2 tasks.
             Maximum FlexCredit cost: 11.131 for the whole batch.
             Use 'Batch.real_cost()' to get the billed FlexCredit cost after
             completion.                                                        02:56:48 UTC Batch complete.
22a96833e81222a0d0b6f194a9d... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:18
eccc2c086dffaa94b1b0db06809... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:11

We can now compare with a FDTD simulation:

eme = float(eme_data.smatrix.S21.isel(mode_index_in=0, mode_index_out=0, f=0).abs.item() ** 2)
print(f"EME transmittance:  {eme}")

fdtd = float(fdtd_data["modeMon"].amps.sel(direction="+", mode_index=0).abs.item() ** 2)
print(f"FDTD transmittance: {fdtd}")
EME transmittance:  0.9922684393816721
FDTD transmittance: 0.986723906668082

As we can see, with a plane size large enough, the results are now correct and very close to those obtained with an FDTD simulation. Hence, starting with an analysis of the required plane size for a given simulation is always a good approach.

We can also plot the fields for both simulations. Although the EME simulation correctly captures the field decay, the meaning of the field plot for bent waveguides is not a true representation of the electric field, as it is in the FDTD simulation.

fig, ax = plt.subplots(figsize=(18, 8))
eme_data.plot_field("field", "Hz", "real", mode_index=0, eme_port_index=0, robust=False, ax=ax)
ax.set_title("EME")

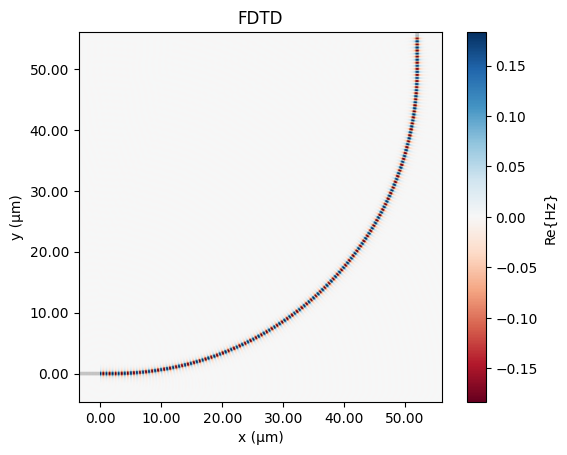

fig, ax = plt.subplots()
fdtd_data.plot_field("field", "Hz", "real", robust=False, ax=ax)
ax.set_title("FDTD")

plt.show()

Circular S-Bend

Now, we can simulate a S-bend formed by two circular arcs, with the same radius and opposite sign, and compare with FDTD results. The s-bends are parametrized by their length and offset, hence, we will define an auxiliary function to retrieve the correct angle and curvature radius for a given bend.

def get_theta(length, offset):
    from scipy.optimize import fsolve

    def get_params(params, *args):
        theta = params
        length, offset = args
        r = (length / 2) / np.cos(theta - np.pi / 2)
        return abs(offset / 2 - (r * np.sin(theta - np.pi / 2) + r))

    theta = fsolve(get_params, (1,), args=(length, offset))[0]
    return (length / 2) / np.cos(theta - np.pi / 2), theta

Next, we will vary the length of the S-bend and compare the results obtained from the EME and FDTD simulations.

lengths = [20, 40, 60, 80, 100]

eme_sims = []
fdtd_sims = []
for length in lengths:
    r, theta = get_theta(length, 20)
    eme_sim = get_bend_eme(
        wvgIn=2,
        wvgOut=2,
        bends=[(theta * r, r), (theta * r, -r)],
        plane_size=(17, 17),
        num_modes=160,
    )
    x, y = eme2Curve(eme_sim)
    fdtd_sim = get_fdtd(x, y, eme_sim)
    eme_sims.append(eme_sim)
    fdtd_sims.append(fdtd_sim)

eme_data, fdtd_data = web.run([eme_sims, fdtd_sims], verbose=True)

transmittance_eme = [
    float(d.smatrix.S21.isel(mode_index_in=0, mode_index_out=0, f=0).abs.item() ** 2) for d in eme_data
]
transmittance_fdtd = [
    float(d["modeMon"].amps.sel(direction="+", mode_index=0).abs.item() ** 2) for d in fdtd_data
]
             WARNING: Internal mode solver monitor '_eme_mode_solver_monitor_0'
             has a large number (1.06e+05) of grid points. This can lead to
             solver slow-down and increased cost. Consider making the size of
             the component smaller, as long as the modes of interest decay by
             the plane boundaries.
02:56:56 UTC WARNING: Internal mode solver monitor '_eme_mode_solver_monitor_3'
             has a large number (1.06e+05) of grid points. This can lead to
             solver slow-down and increased cost. Consider making the size of
             the component smaller, as long as the modes of interest decay by
             the plane boundaries.
             WARNING: Internal mode solver monitor '_eme_mode_solver_monitor_1'
             has a large number (1.06e+05) of grid points. This can lead to
             solver slow-down and increased cost. Consider making the size of
             the component smaller, as long as the modes of interest decay by
             the plane boundaries.
             WARNING: Internal mode solver monitor '_eme_mode_solver_monitor_2'
             has a large number (1.06e+05) of grid points. This can lead to
             solver slow-down and increased cost. Consider making the size of
             the component smaller, as long as the modes of interest decay by
             the plane boundaries.                                              Uploading data for 10 tasks ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:00
02:56:58 UTC Started working on Batch containing 10 tasks.
             Maximum FlexCredit cost: 34.947 for the whole batch.
             Use 'Batch.real_cost()' to get the billed FlexCredit cost after
             completion.                                                        02:57:33 UTC Batch complete.
ec8a859d5e95ed06ea486a40c96... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:34
2d47f43e62744cc943c58afb74b... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:04
1d750be11a119f4086916f29a61... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:04
0a8a074eed1a699fad038830127... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:04
3ae188cfd4d436b3acc6d1c73d4... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:03
386815aa375594b97a057784705... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:02
1cb96af36cb4d115cd556181faa... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:08
5f3286f94e4242cc79e08c1b1ab... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:16
cb38c427d4cf3e4bb57c80af70b... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:34
3d17857a128c50d55416d174977... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:07

Plotting the results, we can see that there is a good match between FDTD and EME transmittance.

fig, ax = plt.subplots()
ax.plot([20, 40, 60, 80, 100], transmittance_fdtd, "o", label="FDTD")
ax.plot([20, 40, 60, 80, 100], transmittance_eme, "*", label="EME")
ax.set_ylabel("transmittance")
ax.set_xlabel("bend length")

ax.legend()

plt.show()

Choice of target_neff and number of modes

For a bend, the EME result depends on how well the modal basis captures both the local bend mode and the radiation shed at the transitions between cells.

The mode solver returns the num_modes modes closest to target_neff. The guided mode of the straight waveguide sits at \(n_\text{eff} \approx 1.5456\). Targeting that value biases the basis toward the guided mode and overestimates the transmittance. Setting target_neff slightly lower (here 1.5) keeps the guided mode in the basis while also including the lower-index radiation modes that account for the junction loss.

The required number of modes grows with the number of connected bends, since radiation accumulates across the cell interfaces. We check convergence on a device of two connected bends (r = 20 µm) by sweeping the number of modes with EMEModeSweep in a single run. We also set constraint=None: the default passive constraint regularizes the interface matching but becomes expensive above ~50 modes, so it is disabled here for the large mode counts.

# convergence with the number of modes, on two connected bends
theta = np.pi / 2
r = 20
conv_bends = [(theta * r, r), (theta * r, -r)]
mode_counts = list(range(40, 201, 10))

conv_sim = get_bend_eme(
    wvgIn=2,
    wvgOut=2,
    bends=conv_bends,
    plane_size=(15, 15),
    num_modes=max(mode_counts),
    constraint=None,
)
conv_sim = conv_sim.updated_copy(monitors=[], sweep_spec=td.EMEModeSweep(num_modes=mode_counts))
conv_data = web.run(conv_sim, task_name="mode_convergence", verbose=True)

transmittance_conv = (
    np.abs(conv_data.smatrix.S21.isel(mode_index_in=0, mode_index_out=0, f=0).values.flatten()) ** 2
)

fig, ax = plt.subplots()
ax.plot(mode_counts, transmittance_conv, "o-")
ax.axvline(160, color="k", ls="--", label="160 modes")
ax.set_xlabel("number of modes")
ax.set_ylabel("transmittance")
ax.legend()
plt.show()
02:57:35 UTC WARNING: A large number (200) of modes requested in monitor
             'mode_spec'. This can lead to solver slow-down and increased cost.
             Consider decreasing the number of modes and using
             'ModeSpec.target_neff' to target the modes of interest. This may
             become a hard limit in future Tidy3D versions.
             Created task 'mode_convergence' with resource_id
             'eme-0d9bac96-da6d-40d6-9ba2-23d52bac4800' and task_type 'EME'.
             Tidy3D's EME solver is currently in the beta stage. Cost of EME
             simulations is subject to change in the future.
↑ simulation.hdf5.gz ━━━━━━━━━━━━━━━━━━━━━━━━━ 100.0% • 1.8/1.8 kB • ? • 0:00:00

             Estimated FlexCredit cost: 1.648. For this solver type, the
             estimate is the final billed cost.
             status = queued
             To cancel the simulation, use 'web.abort(task_id)' or
             'web.delete(task_id)' or abort/delete the task in the web UI.
             Terminating the Python script will not stop the job running on the
             cloud.                                                             02:57:41 UTC starting up solver
             running solver
solver progress ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:00

02:59:19 UTC status = success
↓ simulation_data.hdf5.gz ━━━━━━━━━━ 100.0% • 17.1/17.1   • 469.2 MB/s • 0:00:00
                                              MB
02:59:21 UTC Loading results from simulation_data.hdf5

The transmittance converges once about 160 modes are included (it is flat to within ~0.002 between 160 and 200 modes). We therefore use num_modes = 160 with constraint=None for the simulations in this notebook.

We can also work with a combination of s-bends, that can work as arms for interferometers. In this case, we will have a very large FDTD simulation, that costs around 10 FC, while the EME simulation will cost less then 1.

theta = np.pi / 2
r = 20

eme_sim = get_bend_eme(
    wvgIn=2,
    wvgOut=2,
    bends=[
        (theta * r, r),
        (theta * r, -r),
        (theta * r, -r),
        (theta * r, r),
        (theta * r, -r),
        (theta * r, r),
        (theta * r, r),
        (theta * r, -r),
    ],
    plane_size=(15, 15),
    num_modes=160,
)
x, y = eme2Curve(eme_sim)
fdtd_sim = get_fdtd(x, y, eme_sim)
# visualizing the structure

fdtd_sim.plot(z=0)
plt.show()

eme_data, fdtd_data = web.run([eme_sim, fdtd_sim], verbose=True)

fdtd = float(fdtd_data["modeMon"].amps.sel(direction="+", mode_index=0).abs.item() ** 2)
eme = float(eme_data.smatrix.S21.isel(mode_index_in=0, mode_index_out=0, f=0).abs.item() ** 2)
Uploading data for 2 tasks ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:00
02:59:22 UTC Started working on Batch containing 2 tasks.
             Maximum FlexCredit cost: 33.014 for the whole batch.
             Use 'Batch.real_cost()' to get the billed FlexCredit cost after
             completion.                                                        03:04:35 UTC Batch complete.
7f8a434c44f1062c60168a9539e... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:05:12
8e00f320835da94dc0ae2639783... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:05:12

As we can see, the results are very close, but the FC cost for the EME simulation is much smaller.

print(f"fdtd transmittance: {fdtd}\neme transmittance: {eme}")
fdtd transmittance: 0.17680590703484544
eme transmittance: 0.17119125188604944

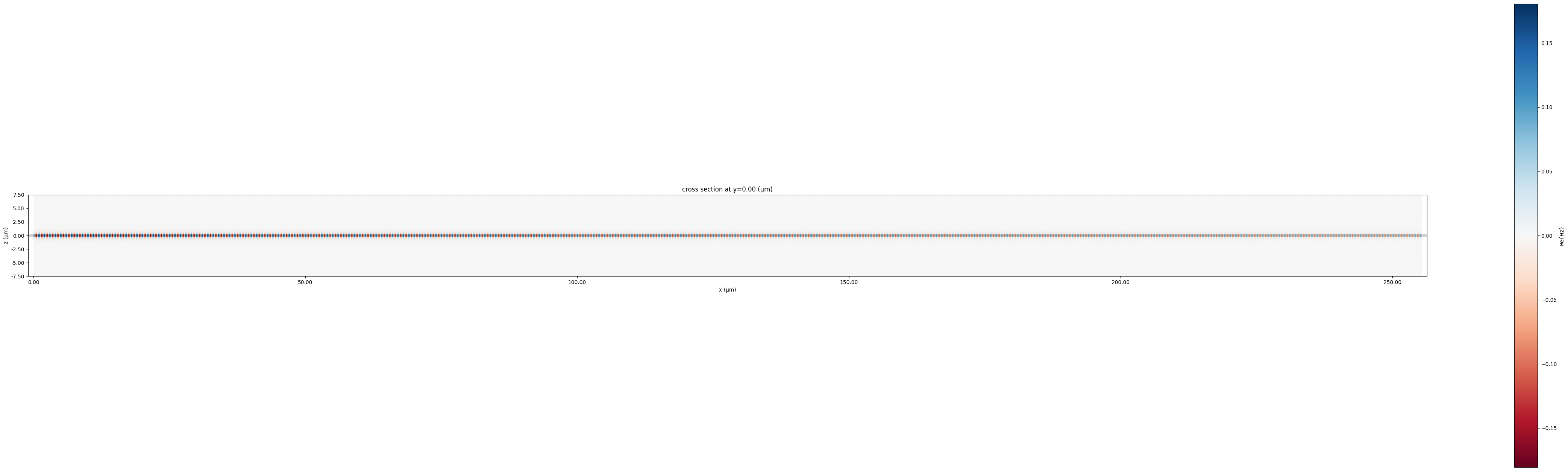

We can plot the fields of both simulations, and observe the intensity decreasing as it propagates through the waveguide.

fig, ax = plt.subplots(figsize=(60, 16))
fdtd_data.plot_field("field", "Hz", "real", robust=False, ax=ax)
plt.show()

fig, ax = plt.subplots(figsize=(60, 16))
eme_data.plot_field("field", "Hz", "real", mode_index=0, eme_port_index=0, robust=False, ax=ax)
plt.show()

Euler Bend

We can use a similar approach as in the previous examples to simulate an arbitrary curve that is not formed by circular arcs, such as an S-bend formed with Euler curves, similar to this example notebook.

As discussed in this example, for an adiabatically varying waveguide, the EME simulation can be a good approximation of the real structure. In this case, we will approximate the real structure using an EME grid accounting for the local radius at different sections.

First, we will define a function to create the Euler bend:

def euler_curve(A=2.4, L=10, num_points=1000):
    from scipy import integrate

    Ls = np.linspace(0, L, num_points)  # L at (x1,y1)
    x1 = np.zeros(len(Ls))  # x coordinate of the clothoid curve
    y1 = np.zeros(len(Ls))  # y coordinate of the clothoid curve

    # compute x1 and y1 using the above integral equations

    y1 = np.array([integrate.quad(lambda theta: A * np.sin(theta**2 / 2), 0, L / A)[0] for L in Ls])
    x1 = np.array([integrate.quad(lambda theta: A * np.cos(theta**2 / 2), 0, L / A)[0] for L in Ls])

    return x1, y1


def euler_bend(offset, length, num_points=1000):
    from scipy.optimize import fsolve

    def get_params(params):
        A, L = params

        x1, y1 = euler_curve(A=A, num_points=num_points, L=L)

        return (abs(x1[-1] - length / 2) ** 2, abs(y1[-1] - offset / 2) ** 2)

    A, L = fsolve(get_params, (1, 1))
    x1, y1 = euler_curve(A=A, num_points=num_points, L=L)

    x = np.append(x1, np.flip(-x1 + 2 * x1[-1]))
    y = np.append(y1, np.flip(-y1 + 2 * y1[-1]))

    return x, y

Next, we define a function for calculating the local curvature radius, as \(R = \frac{(1 + y'^2)^{\frac{3}{2}}}{y''}\):

def get_local_radius(x, y):
    yd = np.gradient(y, x, edge_order=2)
    ydd = np.gradient(yd, x, edge_order=2)
    R = ((1 + yd**2) ** (3 / 2)) / ydd

    return R

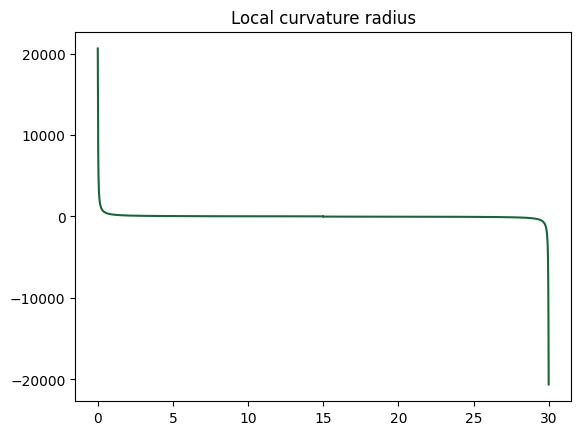

Now, lets visualize the Euler S-bend and the local curvature radius:

x_euler, y_euler = euler_bend(offset=5, length=30)
local_radius = get_local_radius(x_euler, y_euler)

fig, ax = plt.subplots()
ax.set_title("Euler S-bend")
ax.plot(x_euler, y_euler)

plt.show()

fig, ax = plt.subplots()
ax.set_title("Local curvature radius")
ax.plot(x_euler, local_radius)

plt.show()

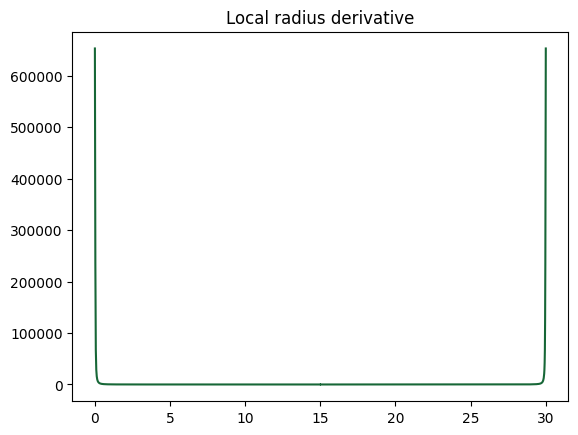

As we can note, an uniformly spaced grid might not be the most efficient approach, as the local radius varies much more in some sections than in others. We can visualize this by looking at its derivative:

dR = np.gradient(local_radius, x_euler, edge_order=2)
fig, ax = plt.subplots()
ax.set_title("Local radius derivative")
ax.plot(x_euler, abs(dR))

plt.show()

One possible approach is to divide the curve into sections based on its derivative value. This way, sections with greater variation will have a higher grid density, better capturing the waveguide radius change.

We will create a function get_bends that will divide the curve into tree sections, according with the local radius derivative values, and create even spaced grid cells into these sections.

# function to create evenly distributed grid cells into one particular section
def get_positions(points, n_grid):
    if n_grid >= len(points):
        return np.arange(0, len(points), 1)
    indices = np.linspace(0, len(points) - 1, n_grid, dtype=int)
    return indices


def get_bends(x_euler, y_euler, grid_per_section=5, plot=False):
    # local radius and its derivatives
    local_radius = get_local_radius(x_euler, y_euler)
    dR = np.gradient(local_radius, x_euler, edge_order=2)

    # slice the data in chunks based on mean and standard deviation
    mean = np.nanmean(abs(dR))
    std = np.nanstd(abs(dR))

    section1 = abs(dR) >= mean + std
    section2 = (abs(dR) < mean + std) & (abs(dR) >= mean)
    section3 = abs(dR) < mean

    section1_points = get_positions(x_euler[section1], grid_per_section)
    section2_points = get_positions(x_euler[section2], grid_per_section)
    section3_points = get_positions(x_euler[section3], grid_per_section)

    # discontinuity points in the derivative that are continuous in the local radius curve
    discontinuity = x_euler[np.isnan(dR)][~np.isnan(local_radius[np.isnan(dR)])]
    discontinuity_y = y_euler[np.isnan(dR)][~np.isnan(local_radius[np.isnan(dR)])]
    discontinuity_radius = local_radius[np.isnan(dR)][~np.isnan(local_radius[np.isnan(dR)])]

    # retrieving the x position and local radius of the EME grid
    x_positions = np.concatenate(
        [
            x_euler[section1][section1_points],
            x_euler[section2][section2_points],
            x_euler[section3][section3_points],
            discontinuity,
            [x_euler[-1]],
        ]
    )
    sort = np.argsort(x_positions)
    x_positions = x_positions[sort]
    radius = np.concatenate(
        [
            local_radius[section1][section1_points],
            local_radius[section2][section2_points],
            local_radius[section3][section3_points],
            discontinuity_radius,
            [local_radius[-1]],
        ]
    )
    radius = radius[sort][1:]

    # transform positions in length
    length = np.diff(x_positions)

    # creating the list of tuples
    bends = list(zip(length, radius))

    # plot the grid points
    if plot:
        fig, ax = plt.subplots()
        ax.plot(x_euler, y_euler)
        ax.plot(
            x_euler[section1][section1_points],
            y_euler[section1][section1_points],
            "o",
            label="section 1",
        )
        ax.plot(
            x_euler[section2][section2_points],
            y_euler[section2][section2_points],
            "o",
            label="section 2",
        )
        ax.plot(
            x_euler[section3][section3_points],
            y_euler[section3][section3_points],
            "o",
            label="section 3",
        )
        ax.plot(discontinuity, discontinuity_y, "*", label="discontinuity")

        ax.legend()

        plt.show()

    return bends

Now, let’s visualize an example. As we can note, the grid points are densely packed at the edges of the S-bend, where the local radius experiences more variation.

x_euler, y_euler = euler_bend(offset=5, length=10)
bends = get_bends(x_euler, y_euler, grid_per_section=10, plot=True)

Next, we will vary the length of the S-bend for a fixed offset value, and compare the results with EME and FDTD:

grids = 10
euler_lengths = [30, 50, 80, 100]

eme_sims = []
fdtd_sims = []
for l in euler_lengths:
    x_euler, y_euler = euler_bend(offset=5, length=l)
    bends = get_bends(x_euler, y_euler, grid_per_section=grids, plot=False)

    eme_sim = get_bend_eme(wvgIn=2, wvgOut=2, bends=bends, plane_size=(15, 15), num_modes=160)
    fdtd_sim = get_fdtd(x_euler, y_euler, eme_sim)
    eme_sims.append(eme_sim)
    fdtd_sims.append(fdtd_sim)

eme_data, fdtd_data = web.run([eme_sims, fdtd_sims], verbose=True)

transmittance_eme = [
    float(d.smatrix.S21.isel(mode_index_in=0, mode_index_out=0, f=0).abs.item() ** 2) for d in eme_data
]
transmittance_fdtd = [
    float(d["modeMon"].amps.sel(direction="+", mode_index=0).abs.item() ** 2) for d in fdtd_data
]
Uploading data for 8 tasks ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:10

03:05:25 UTC Started working on Batch containing 8 tasks.
03:05:26 UTC Maximum FlexCredit cost: 51.579 for the whole batch.
             Use 'Batch.real_cost()' to get the billed FlexCredit cost after
             completion.                                                        03:14:43 UTC Batch complete.
ba5308392cbeb12d022f495da12... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:06:17
1d68961aedcddd8dc489f939d2e... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:02:03
273e7758557a634ec7a03adca95... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:09:14
82b6bd682a60adf6773066eb5ca... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:08:09
e7861b02e1064fe182ab74b7062... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:13
d26139864358a0eb48124a76289... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:28
8a771f60fad741f8f680c9605c9... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:02:47
67204e9dba949bc70456075ec12... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:01:50
# plot results
fig, ax = plt.subplots()

ax.plot([30, 50, 80, 100], transmittance_fdtd, "o", label="FDTD")
ax.plot([30, 50, 80, 100], transmittance_eme, "*", label="EME")
ax.set_ylabel("transmittance")
ax.set_xlabel("bend length")
ax.legend()

plt.show()

As we can see, a number of 10 grid cells for each section allows good convergence with FDTD simulations.

Finally, we can try the same approach for a bigger S-bend, where the cost advantage of the EME solver becomes more apparent.

x_euler, y_euler = euler_bend(offset=80, length=150)
bends = get_bends(x_euler, y_euler, grid_per_section=grids, plot=False)

eme_sim = get_bend_eme(wvgIn=2, wvgOut=2, bends=bends, plane_size=(15, 15), num_modes=160)
fdtd_sim = get_fdtd(x_euler, y_euler, eme_sim)

eme_data, fdtd_data = web.run([eme_sim, fdtd_sim], verbose=True)
Uploading data for 2 tasks ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:00

03:14:52 UTC Started working on Batch containing 2 tasks.
             Maximum FlexCredit cost: 38.559 for the whole batch.
             Use 'Batch.real_cost()' to get the billed FlexCredit cost after
             completion.                                                        03:23:45 UTC Batch complete.
034ea8b2dc73b5e40032cc93909... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:08:52
f5aeb4ea7c8cfc8abf5524e040e... → success ━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:08:52

As we can see, there is only a small deviation compared to the FDTD simulation, although the EME simulation costs around 10 times less.

fdtd = float(fdtd_data["modeMon"].amps.sel(direction="+", mode_index=0).abs.item() ** 2)
eme = float(eme_data.smatrix.S21.isel(mode_index_in=0, mode_index_out=0, f=0).abs.item() ** 2)

print(f"fdtd transmittance: {fdtd}\neme transmittance: {eme}")
fdtd transmittance: 0.943323487480473
eme transmittance: 0.9583284911863666

Final Remarks

As we can see, the EME solver can be a good choice instead of FDTD when calculating very long bend waveguides. For waveguides formed only by circular arcs, the simulation setup is straightforward, and the error compared with an FDTD simulation is minimal.

On the other hand, for bends of arbitrary shapes, the simulation setup is more demanding, and the EME simulation becomes an approximation, as the structure is divided into cells and not all local curvature points are considered. Nevertheless, for a sufficient number of cells, the results deviate from an FDTD simulation by less than 3%, making it a suitable tool for simulating very large structures with minimal runtime and computational cost.

Additionally, it is worth emphasizing that the EME method will only yield low error for systems with slow variations, and where waveguides propagate along the same axis. For example, a system with two waveguides propagating with different curvatures would not be well-defined in an EME simulation.

Below, we summarize the pros and cons of each method:

EME Solver FDTD Solver
Easy setup for circular arc sections Can be demanding for a complex combination of circular arcs
Setup is demanding for bends of arbitrary shapes For shapes based on mathematical equations, the geometry setup is straightforward
Low number of unknowns. Ideal for long structures Number of grid points can be very large for long waveguides
Errors due to grid and cell discretization Higher accuracy.
Works well for a limited range of problems General method
