This notebook introduces the "Inverse Design" (invdes
) plugin of Tidy3D.
The goal of invdes
is to provide a simpler interface for setting up most practical inverse design problems. It wraps the lowerlevel autograd
support of Tidy3D to perform the gradient calculations, but allows the user to focus on the important aspects of their design without getting into the details of autograd
.
In this notebook, we'll give a simple demo showing the inverse design of a 1 > 3 splitter using the inverse design plugin.
We first import our main packages, note that we will import the invdes
plugin as tdi
to make it easy to access.
import matplotlib.pylab as plt
import numpy as np
import tidy3d as td
import tidy3d.plugins.invdes as tdi
Setting Up the Inverse Design problem¶

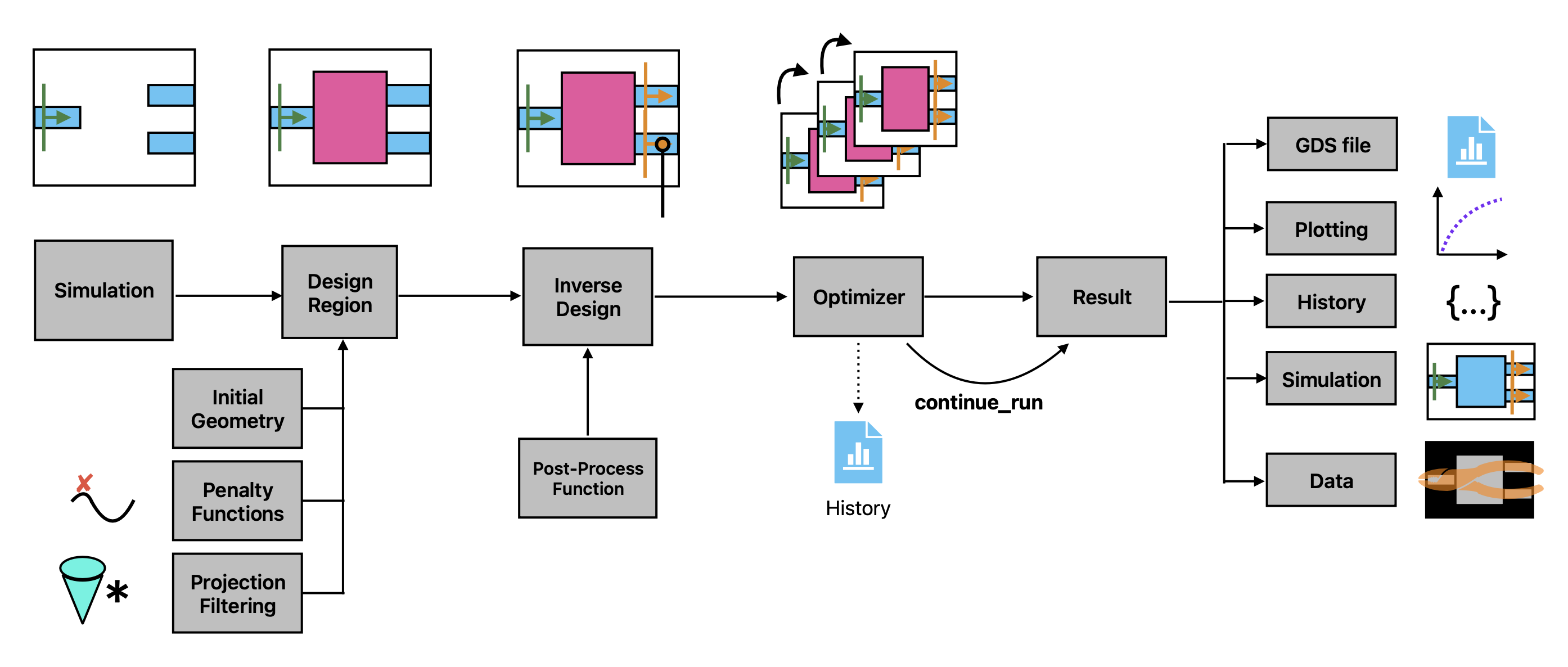

The invdes
problem works by constructing an InverseDesign
object that contains all of the information about the problem we wish to optimize. This includes some base information about the simulation itself, information about the design region, and which monitors our objective will depend on. We then run the InverseDesign
object using an Optimizer
, which returns an object that can be analyzed or used to continue the optimization, as needed.
In the next few cells we will define all of the components we need to make an InverseDesign
, but to start we will define some global parameters used throughout the notebook.
===== >

> ====+ ===== >

===== >
# source info
wavelength = 1.0
# waveguide parameters
num_output_waveguides = 3
ly_wg = 0.5 * wavelength
buffer_wg = 0.9 * wavelength
# buffer between design region, pml, and sources
buffer = 1 * wavelength
# relative permittivity of material
eps_mat = 4.0
# resolution (for both the FDTD simulation and for the design region)
min_steps_per_wvl = 30
pixel_size = wavelength / min_steps_per_wvl / np.sqrt(eps_mat)
Next we define some quantities derived from these parameters.
# spectral information
freq0 = td.C_0 / wavelength
fwidth = freq0 / 10
run_time = 50 / fwidth
# design region size in y
ly_des = num_output_waveguides * (ly_wg + buffer_wg)
lx_des = 4 * wavelength
# simulation size
Lx = 2 * buffer + lx_des + 2 * buffer
Ly = buffer + ly_des + buffer
# source and monitor locations
x_src = lx_des/2  buffer
x_mnt = x_src
# material Medium
medium = td.Medium(permittivity=eps_mat)
# grid spec
grid_spec = td.GridSpec.auto(wavelength=wavelength, min_steps_per_wvl=min_steps_per_wvl)
# monitor names
def output_monitor_name(i: int) > str:
return f"MNT_{i}"
field_mnt_name = "field"
# mode spec
mode_spec = td.ModeSpec(num_modes=1)
Define Base Simulation¶
Next we want to define the base td.Simulation
that contains the static portions of our inverse design problem.
For this, we will make a bunch of regular tidy3d
components (excluding the design region) and put them into a td.Simulation
.
waveguide_in = td.Structure(
geometry=td.Box(
size=(Lx, ly_wg, td.inf),
center=(Lx + 2 * buffer, 0, 0),
),
medium=medium,
)
y_max_wg_centers = ly_des / 2  buffer_wg / 2  ly_wg / 2
wg_y_centers_out = np.linspace(y_max_wg_centers, y_max_wg_centers, num_output_waveguides)
# put a waveguide and mode monitor at each of the outputs
waveguides_out = []
monitors_out = []
for i, wg_y_center in enumerate(wg_y_centers_out):
wg_out = td.Structure(
geometry=td.Box(
size=(Lx, ly_wg, td.inf),
center=(Lx  2 * buffer, wg_y_center, 0),
),
medium=medium,
)
waveguides_out.append(wg_out)
mnt_out = td.ModeMonitor(
size=(0, ly_wg + 1.8 * buffer_wg, td.inf),
center=(x_mnt, wg_y_center, 0),
freqs=[freq0],
name=output_monitor_name(i),
mode_spec=mode_spec,
)
monitors_out.append(mnt_out)
source = td.ModeSource(
size=(0, ly_wg + 1.8 * buffer_wg, td.inf),
center=(x_src, 0, 0),
source_time=td.GaussianPulse(freq0=freq0, fwidth=fwidth),
mode_index=0,
direction="+",
)
# used to visualize fields in the plane, not for optimization
fld_mnt = td.FieldMonitor(
center=(0,0,0),
size=(td.inf, td.inf, 0),
freqs=[freq0],
name=field_mnt_name,
)
simulation = td.Simulation(
size=(Lx, Ly, 0),
grid_spec=grid_spec,
boundary_spec=td.BoundarySpec.pml(x=True, y=True, z=False),
run_time=run_time,
structures=[waveguide_in] + waveguides_out,
sources=[source],
monitors=[fld_mnt] + monitors_out,
)

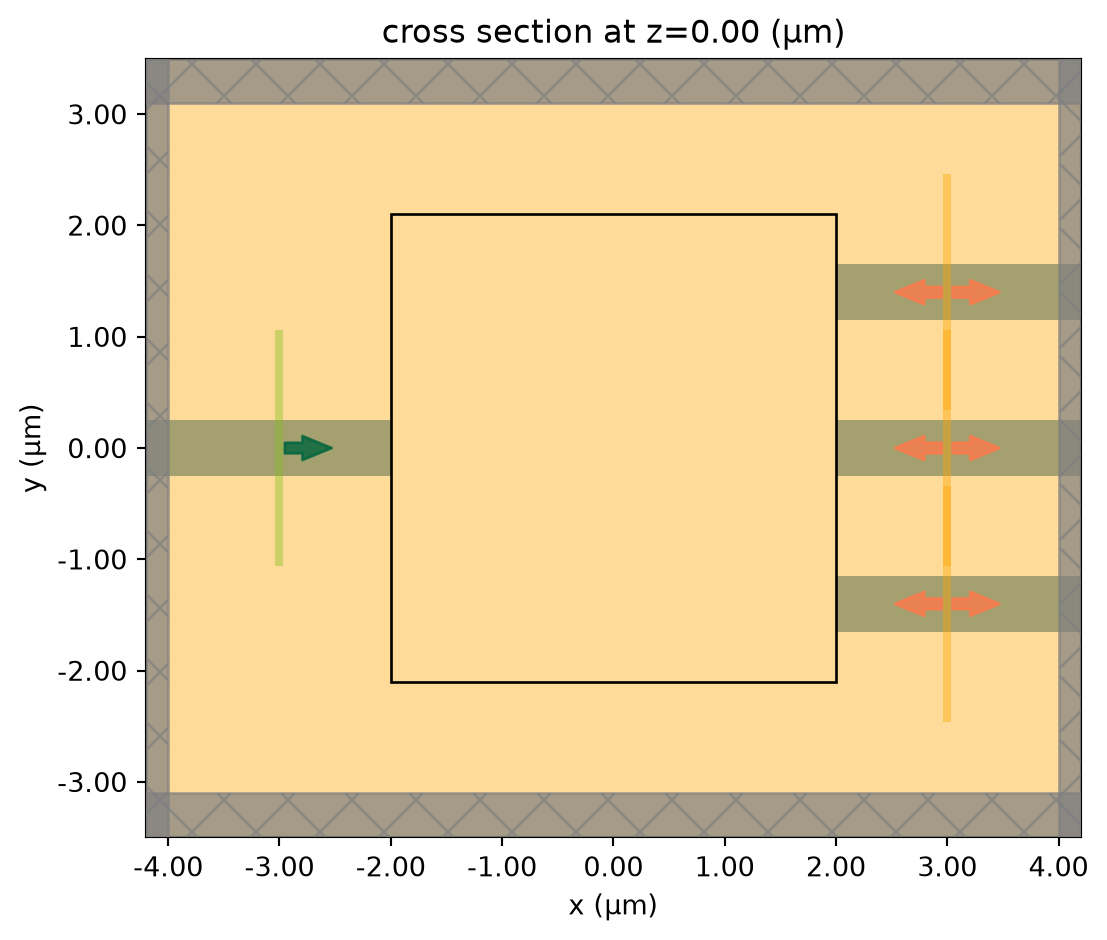

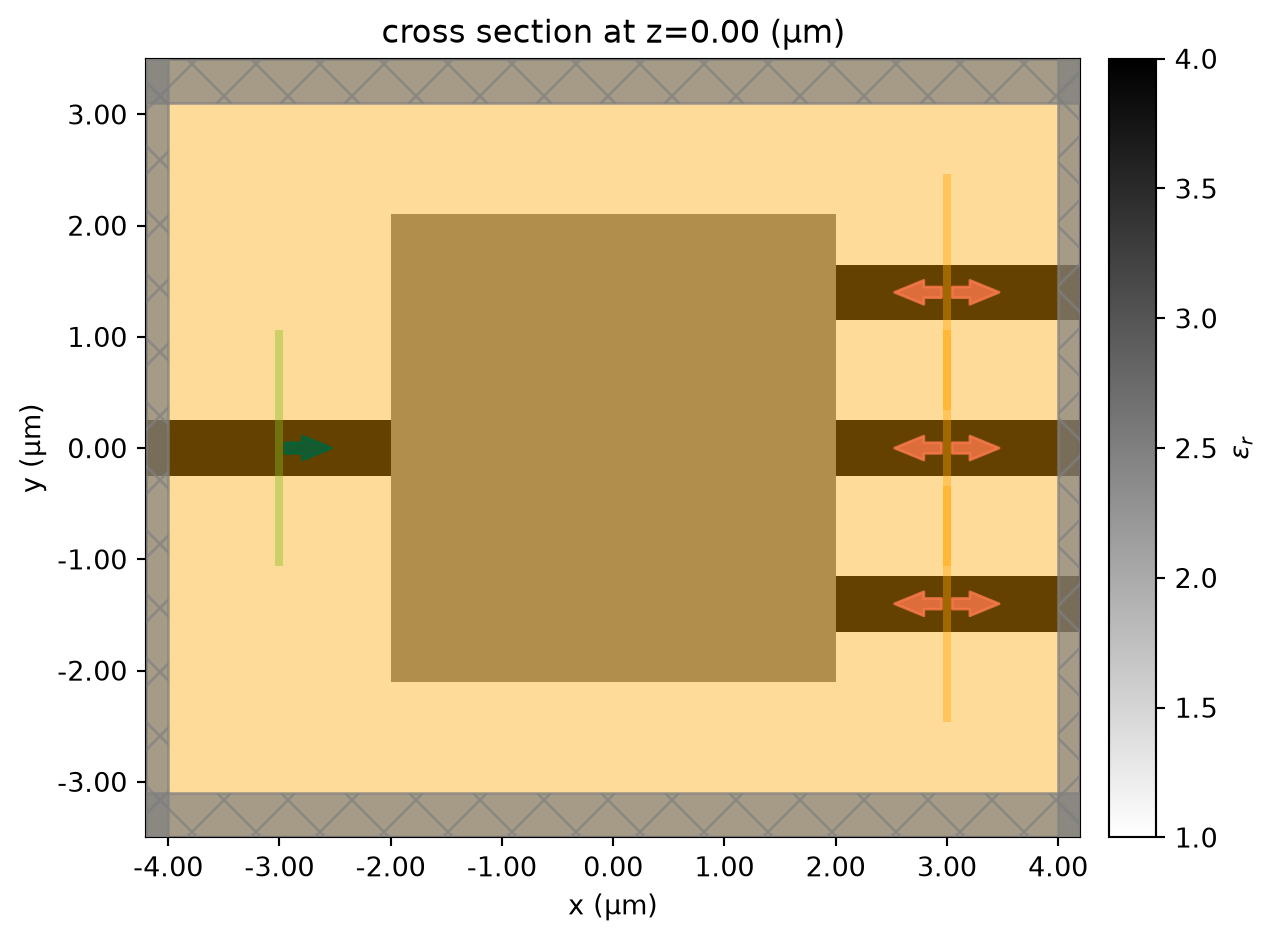

Let's visualize our base simulation.
Note: we have not added a design region yet, so for now we will draw an empty rectangle to indicate where that will go.
ax = simulation.plot(z=0)
import matplotlib
rect = matplotlib.patches.Rectangle(xy=(lx_des/2, ly_des/2), width=lx_des, height=ly_des, fill=None)
ax.add_patch(rect)
plt.show()
Note that our simulation is lacking a central coupling region. We will define that in the next step.
Define the Design Region¶
Next, we will introduce the DesignRegion
component of the invdes
plugin. This component contains fields that describe the design region and how it is rendered into a td.Structure
as a function of the optimization design parameters.
For now, we only support "topology optimization" design structures (pixellated permittivity grids) through a TopologyDesignRegion
, but in future versions we will introduce shape and levelset design regions.
The TopologyDesignRegion
combines geometric information (size, center) about the design region with some information describing the pixellated grid. Furthermore, it also accepts a list of transformations and penalties, which respectively determine how the permittivity is rendered and how the optimization will penalize various expressions of the design region. We will explore each of the features below.
Discretization¶
The TopologyDesignRegion
contains a pixel_size
parameter, which sets the resolution of the permittivity grid and also determines the shape of the parameter array.
The pixel_size
is also passed to the various penalties and transformations to allow them to work properly with the design region.
If not specified in a later step, this pixel_size
will be used to set the FDTD grid size of the structure in the final Simulation
. It is therefore a good idea to either set it to a low value (about equal to the simulation grid cell size) or manually set the mesh override structure resolution in the TopologyDesignRegion.mesh_override_dl
field to overwrite it.
Transformations¶
The TopologyDesignRegion.transformations
are specifications that tell the design region how to transform the supplied optimization parameters into a "material density" that is used to construct the permittivity grid. For example, a FilterProject
transformation applies a conic filter convolution followed by a hyperbolic tangent function projection. If multiple transformations are added to the design region, they will be evaluated one by one, from beginning to end, on the optimization parameters.
Penalties¶
The TopologyDesignRegion.penalties
are specifications that tell the optimizer how to penalize the material density corresponding to this design region. For example, an ErosionDilation
penalty will look at the material density of the region (state of the parameters after all transformations have completed) and evaluate it based on whether the material density is invariant under erosion and dilation, a good proxy for feature size compatibility. Penalties have a .weight
that can be used to tune their relative contribution to the objective. The total penalty contribution to the objective function is the weighted sum of penalties added to the design region.
Note: the convention used is that we wish to maximize our objective function. Penalties subtract from the objective. Therefore, a positive penalty
weight
corresponds to a negative contribution to the objective function.
# radius (um) of the conic filter that is convolved with th parameter array.
# Larger values tend to help create larger feature sizes in the final device.
projection_radius = 0.120
# projection strength, larger values lead to more binarization and tend to push intermediate parameters towards (0,1) density
beta = 10.0
# transformations on the parameters that lead to the material density array (0,1)
filter_project = tdi.FilterProject(radius=projection_radius, beta=beta)
# length scale (um) of the erosion dilation penalty.
# features smaller than this scale will be penalized
length_scale = 0.120
# penalty weight, the penalty contributes its raw value (max of 1) times this weight to the objective function
weight = 0.8
# penalties applied to the state of the material density, after these transformations are applied
penalty = tdi.ErosionDilationPenalty(weight=weight, length_scale=length_scale)
design_region = tdi.TopologyDesignRegion(
size=(lx_des, ly_des, td.inf),
center=(0, 0, 0),
eps_bounds=(1.0, eps_mat), # the minimum and maximum permittivity values in the final grid
transformations=[filter_project],
penalties=[penalty],
pixel_size=pixel_size,
)
Getting Parameter Arrays¶
When optimizing, we will update an array of design parameters. Therefore, the DesignRegion
accepts an array of these parameters when being converted to tidy3d Structure
objects or when evaluating penalties or the material density values.
The shape of this array is automatically determined by the geometric parameters and pixel_size
of the TopologyDesignRegion
. This shape can be accessed as a tuple
from design_region.params_shape
.
To make it convenient to initialize parameter arrays of the proper shape, there are a few properties of the TopologyDesignRegion
instance:

TopologyDesignRegion.params_random
(creates an array uniformly sampled at random between 0 and 1)
TopologyDesignRegion.params_ones
(creates an array of all 1)
TopologyDesignRegion.params_zeros
(creates an array of all 0)
These properties can be combined together to conveniently set up your parameter array, for example:
params0 = design_region.params_random
params0 += np.fliplr(params0)
params0 /= 2
print(params0.shape)
(240, 252, 1)
Converting to Structures¶
Given an array of parameter values, this TopologyDesignRegion
object can be exported to an equivalent td.Structure
.
Here's an example using the params0
array we just defined.
structure = design_region.to_structure(params0)

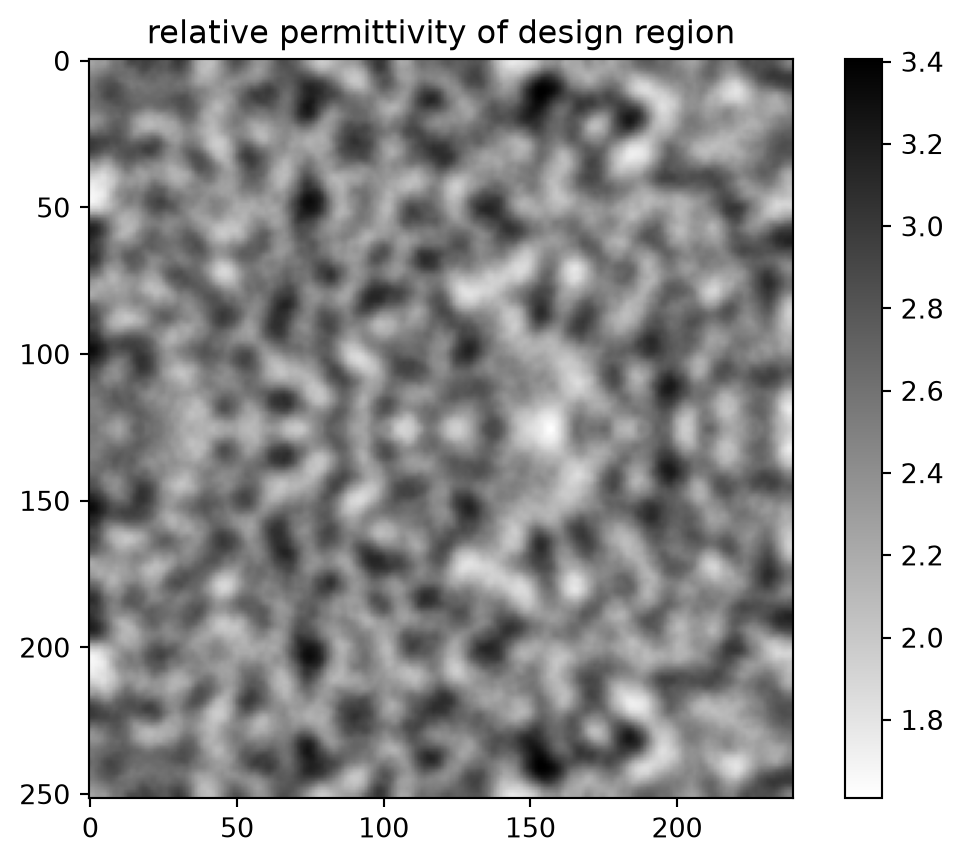

Let's plot the permittivity values of the custom medium contained in this structure.
eps_arr = structure.medium.permittivity.values
im = plt.imshow(eps_arr.squeeze().T, cmap="binary")
plt.colorbar(im)
plt.title('relative permittivity of design region')
plt.show()
We can see the influence of the FilterProject
object in smoothing out the features.
Inverse Design object¶
Next, we put the design region, simulation, and postprocessing function together into an InverseDesign
object, which captures everything we need to define our inverse design problem before running it.
design = tdi.InverseDesign(
simulation=simulation,
design_region=design_region,
task_name="invdes",
output_monitor_names=[mnt.name for mnt in monitors_out],
)
Note: the
output_monitor_names
field is used to specify which monitors to use in the objective function. If they are not supplied,invdes
will automatically include all compatible monitors.
The InverseDesign
object can be exported to a td.Simulation
given some parameters using the to_simulation(params)
method.
Let's do this with a set of parameters all at 0.5 as it's a better starting point for this specific problem.
params0 = 0.5 * np.ones_like(params0)
sim = design.to_simulation(params=params0)
ax = sim.plot_eps(z=0)
It can be useful to run the initial problem to ensure it looks correct before optimizing. For convenience, the to_simulation_data()
method generates the simulation and runs it through web.run()
to return the SimulationData
, which can be visualized.

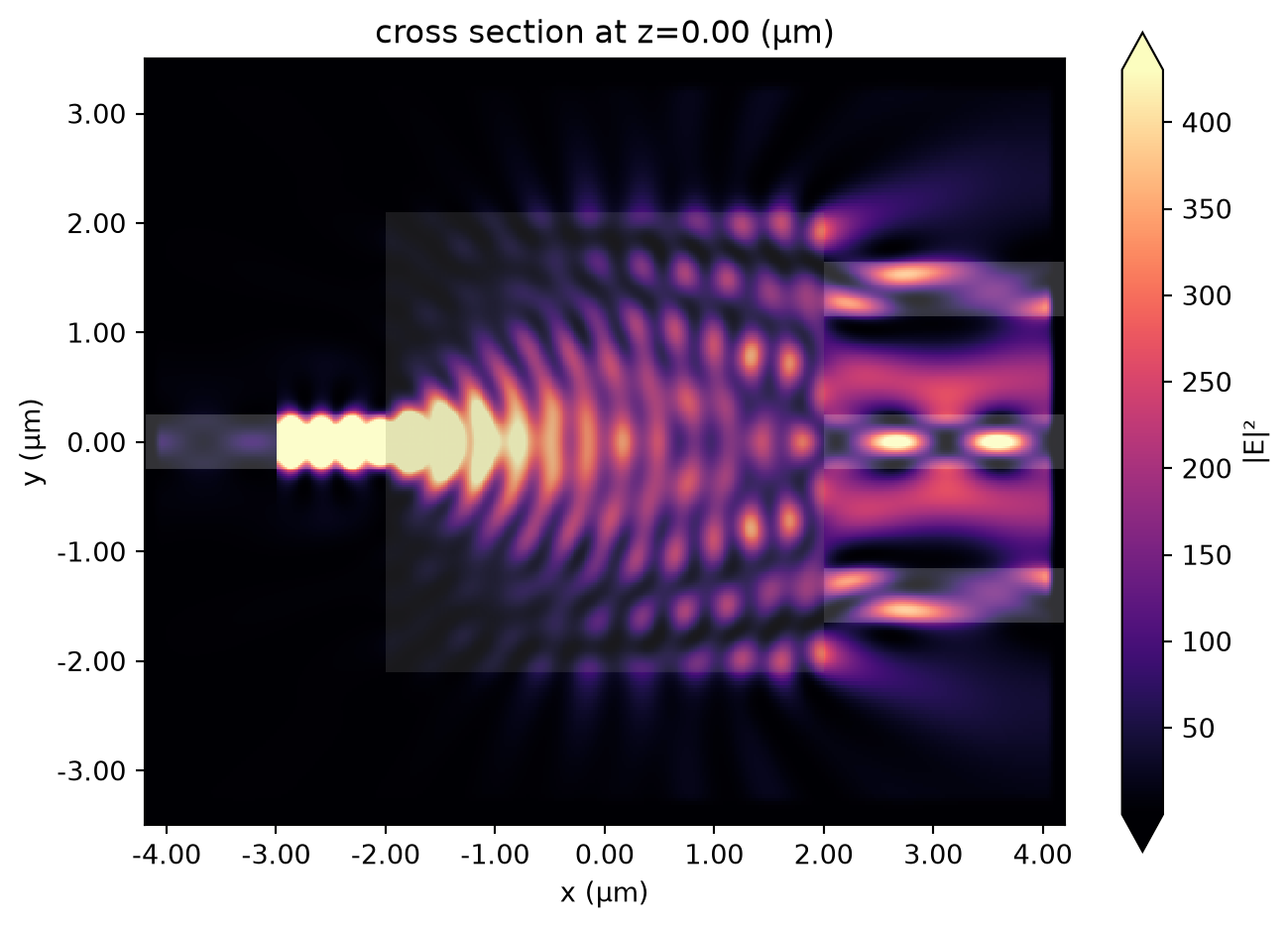

sim_data = design.to_simulation_data(params=params0, task_name="inspect")
ax = sim_data.plot_field(field_mnt_name, field_name="E", val="abs^2")
Optimization¶
Now that we've constructed our InverseDesign
object, we can optimize it with gradient ascent. We first define the contribution that we want our simulation result to have in our objective function.
PostProcess Function¶
The next step of this process is to define a postprocessing function, which tells our optimizer how we want it to interpret a SimulationData
that corresponds to this design. We write this as a regular python function that takes a td.SimulationData
as first argument. The function can accept optional keyword arguments involving the optimization history for more control over the objective function.
Reminder that the objective function will be maximized by our objective, minus any penalty values from the
DesignRegion
. So the sign of this function should take this into account.
In this example, we will try to maximize the minimum power in each of the three output waveguides. This is to ensure that we get an even distribution of power and no ports are ignored.
First we will grab the power at each of the waveguides from the SimulationData
. Then, we'll pass the negative of each power to a softmax function to get a differentiable set of normalized weights for each of the ports, with more weight on the smallest values. We'll take the dot product of our powers with these weights and try to maximize this. Normalizing so that a "perfect" splitter gives a value of 1.
Note: there are some utility functions included in the
tdi.utils
namespace that can make postprocessing a bit easier. Such asutils.get_amps(sim_data, monitor_name, **sel_kwargs)
, andutil.sum_abs_squared(arr)
. To see all of these available currently, tryhelp(tdi.utils)
. We'll demonstrate some these in the function below, along with the (commented out) equivalent approach usingautograd
.
Note: If doing more complex operations in the postprocess function, be sure to use
autograd.numpy
instead of regularnumpy
to ensure that the function is differentiable byautograd
.
import autograd.numpy as npa
def post_process_fn(sim_data: td.SimulationData, **kwargs) > float:
"""Function called internally to compute contribution to the objective function from the data."""
# grab the amplitudes for each of the output waveguide monitors
amps = [tdi.utils.get_amps(sim_data, monitor_name=mnt.name, direction="+") for mnt in monitors_out]
# compute the power at each of the output waveguides
powers = [tdi.utils.sum_abs_squared(amp) for amp in amps]
# # or, when written in more lowlevel syntax
# amps = [sim_data[mnt.name].amps.sel(direction="+") for mnt in monitors_out]
# powers = [jnp.sum(abs(jnp.array(amp.values))**2) for amp in amps]
powers = npa.array(powers)
# get a set of weights picking out which powers are the lowest of the three
softmin_weights = npa.exp(powers) / npa.sum(npa.exp(powers))
# compute a normalized weighted sum of the output powers, weighting the "worst" ones the highest (softmin)
return num_output_waveguides * npa.sum(powers * softmin_weights)
Note: the extra
**kwargs
contain information passed during optimization about the history and the index of the step. They can be used to schedule changes into the post processing function as a function of the optimization state. We won't go into more detail here but future tutorials will explore how to use these for more advanced optimization.
Optimizer¶
Next, we create Optimizer
object to contain all of the parameters that the optimization algorithm will need. This object also provides a few different methods to perform the optimization in different circumstances.
Note: For now, we only support the "Adam" optimization method (
AdamOptimizer
), but will implement other algorithms as needed later. Adam tends to work quite well for most applications.
The optimizer accepts our InverseDesign
, as well as various optimization parameters, such as the number of steps and learning rate, and parameters specific to the algorithm being implemented.
The results_cache_fname
is an optional, but very useful argument that will tell the optimizer to save the optimization state to file at each iteration using pickle
. It is good practice to include it in case the optimization gets stalled, which can happen in case of a bad internet connection, for example.
In a later section, we'll show how to conveniently load results from this file.
optimizer = tdi.AdamOptimizer(
design=design,
num_steps=10,
learning_rate=0.1,
results_cache_fname="data/invdes_history.hdf5",
)
Running the Optimization¶
Finally, we can use result = Optimizer.run(params0)
on our initial parameters to run the inverse design problem.
Note, if you leave out the
params0
, we will start the optimization with an array containing all 0.5 values, which is usually a good choice unless there is a symmetry in your problem that you need to break to get the optimization started.
This will construct our combined objective function behind the scenes, including the penalties and our postprocessing function, use autograd
to differentiate it, and feed it to a gradientdescent optimizer that we maintain.
result = optimizer.run(params0=params0, post_process_fn=post_process_fn)
step (1/10) objective_fn_val = 4.895e01 grad_norm = 2.329e01 post_process_val = 3.105e01 penalty = 8.000e01 step (2/10) objective_fn_val = 5.730e01 grad_norm = 1.453e01 post_process_val = 2.270e01 penalty = 8.000e01 step (3/10) objective_fn_val = 4.012e01 grad_norm = 1.625e01 post_process_val = 3.243e01 penalty = 7.254e01 step (4/10) objective_fn_val = 7.586e02 grad_norm = 1.818e01 post_process_val = 5.822e01 penalty = 5.063e01 step (5/10) objective_fn_val = 2.878e01 grad_norm = 1.780e01 post_process_val = 6.913e01 penalty = 4.035e01 step (6/10) objective_fn_val = 3.746e01 grad_norm = 1.656e01 post_process_val = 7.262e01 penalty = 3.515e01 step (7/10) objective_fn_val = 4.968e01 grad_norm = 7.447e02 post_process_val = 8.161e01 penalty = 3.193e01 step (8/10) objective_fn_val = 5.223e01 grad_norm = 1.311e01 post_process_val = 8.216e01 penalty = 2.993e01 step (9/10) objective_fn_val = 6.036e01 grad_norm = 4.928e02 post_process_val = 8.885e01 penalty = 2.849e01 step (10/10) objective_fn_val = 6.212e01 grad_norm = 6.699e02 post_process_val = 8.961e01 penalty = 2.748e01
Optimization Results¶
The result of an optimization run is stored as an InverseDesignResult
object. This object has various fields storing information about the history of the optimization run, including the optimizer states, as well as a copy of the initial InverseDesign
object.
Loading an Optimization Result from Backup File¶
If your optimization run was interrupted before you could get the result
object. You can load if from the optimizer.results_cache_fname
, if it was defined before. This file gets saved at every iteration with the most up to date InverseDesignResult
so it should have the most up to date history.
result = tdi.InverseDesignResult.from_file(optimizer.results_cache_fname)
Continuing an Optimization Run¶
To continue an optimization run from where it left off, you can use Optimizer.continue_run(results)
, passing in the InverseDesignResult
. As the InverseDesignResult
stores the previous states of the optimizer, it can continue the optimization without loss of information. The return value of this method will be a new copy of the InverseDesignResult
with the combined data.
# change some optimization parameters, if desired, set new number of steps
optimizer = optimizer.updated_copy(num_steps=1, learning_rate=0.1)
# continue the run, passing in the latest result
result = optimizer.continue_run(result=result, post_process_fn=post_process_fn)
step (1/1) objective_fn_val = 6.317e01 grad_norm = 6.651e02 post_process_val = 8.994e01 penalty = 2.677e01
Note: A convenient way to continue an optimization in just one line is to use
Optimizer.continue_run_from_history()
. This method combines.continue_run()
with the backup file in theresults_cache_fname
to continue a run from the history saved to disk.

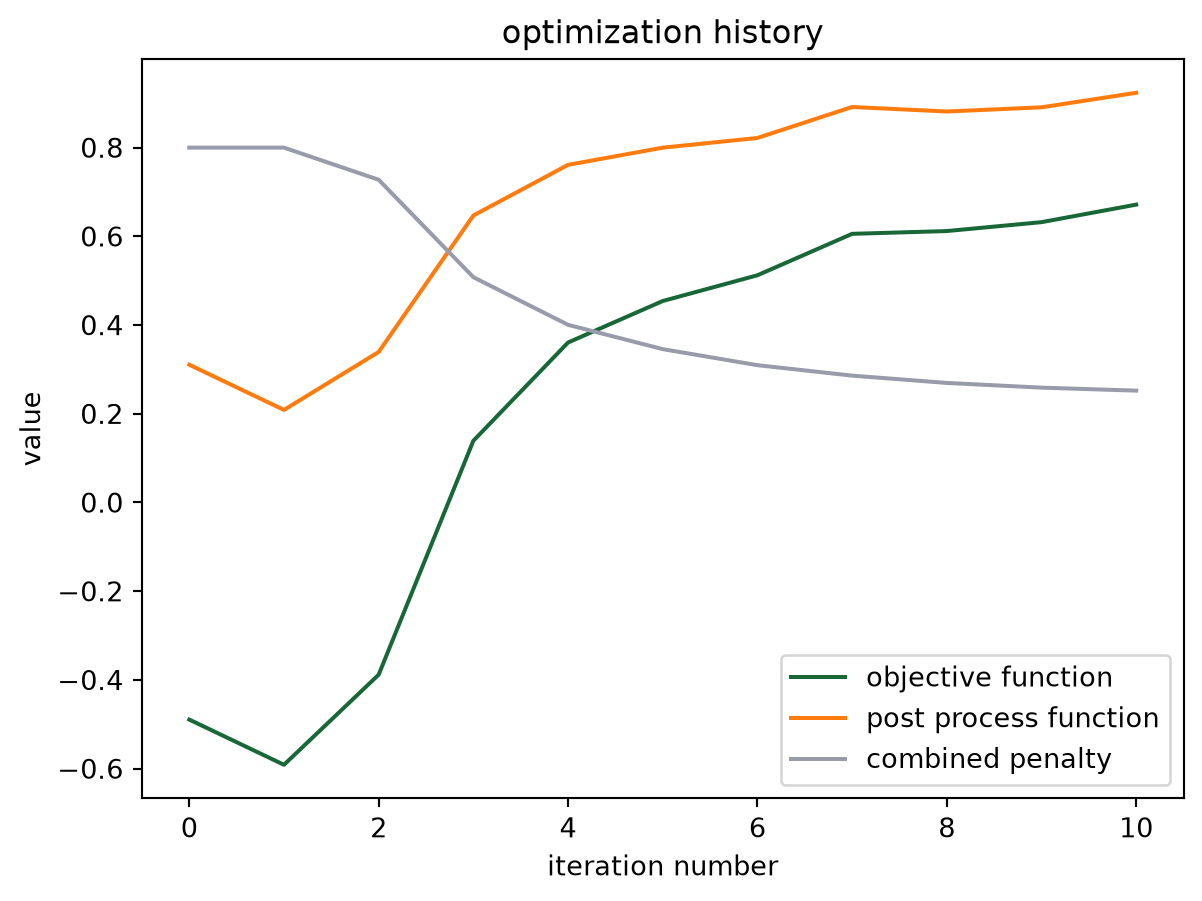

result.plot_optimization()
_ = plt.gca().set_title('optimization history')
Grabbing History Data¶
InverseDesignResult
objects maintain a history
dictionary that stores the various parameters over the course of the optimization.
They also have some methods to conveniently grab data from that history, as shown below:
history_keys = result.keys
history_penalty = result.history.get('penalty')
final_objective = result.get("objective_fn_val", index=1)
print(f"result contains '.history' for: {tuple(history_keys)}")
print(f"penalty history: {history_penalty}")
print(f"final objective function value: {final_objective}")
result contains '.history' for: ('params', 'objective_fn_val', 'grad', 'penalty', 'post_process_val', 'opt_state') penalty history: [0.7999999999999999, 0.799999998818935, 0.7254197906803874, 0.5062962521969759, 0.40354869712588715, 0.35154869950110396, 0.31929634017397035, 0.2993055030745288, 0.28488403558431197, 0.2748352622072918, 0.2676801600274299] final objective function value: 0.6316842169282437
Finally, we are able to quickly grab the last Simulation
and SimulationData
from the results, making it easy to plot final devices, field patterns, or export to GDS file.
sim_last = result.sim_last

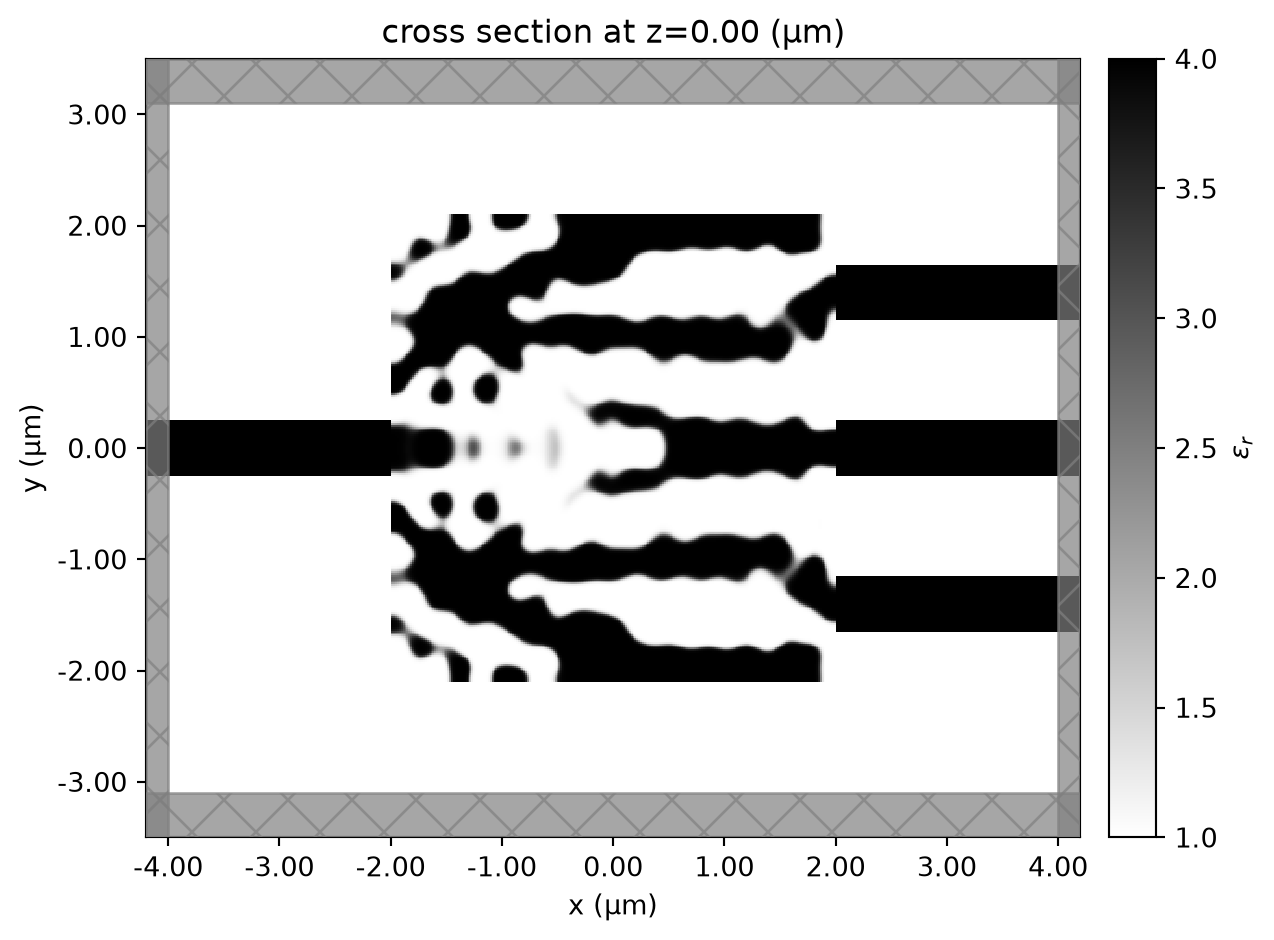

ax = sim_last.plot_eps(z=0, monitor_alpha=0.0, source_alpha=0.0)
Note: to get the simulation at a specific index
i
in the history, callsim_i = result.get_sim(index=i)
.
sim_data_last = result.sim_data_last(task_name="final_validation")

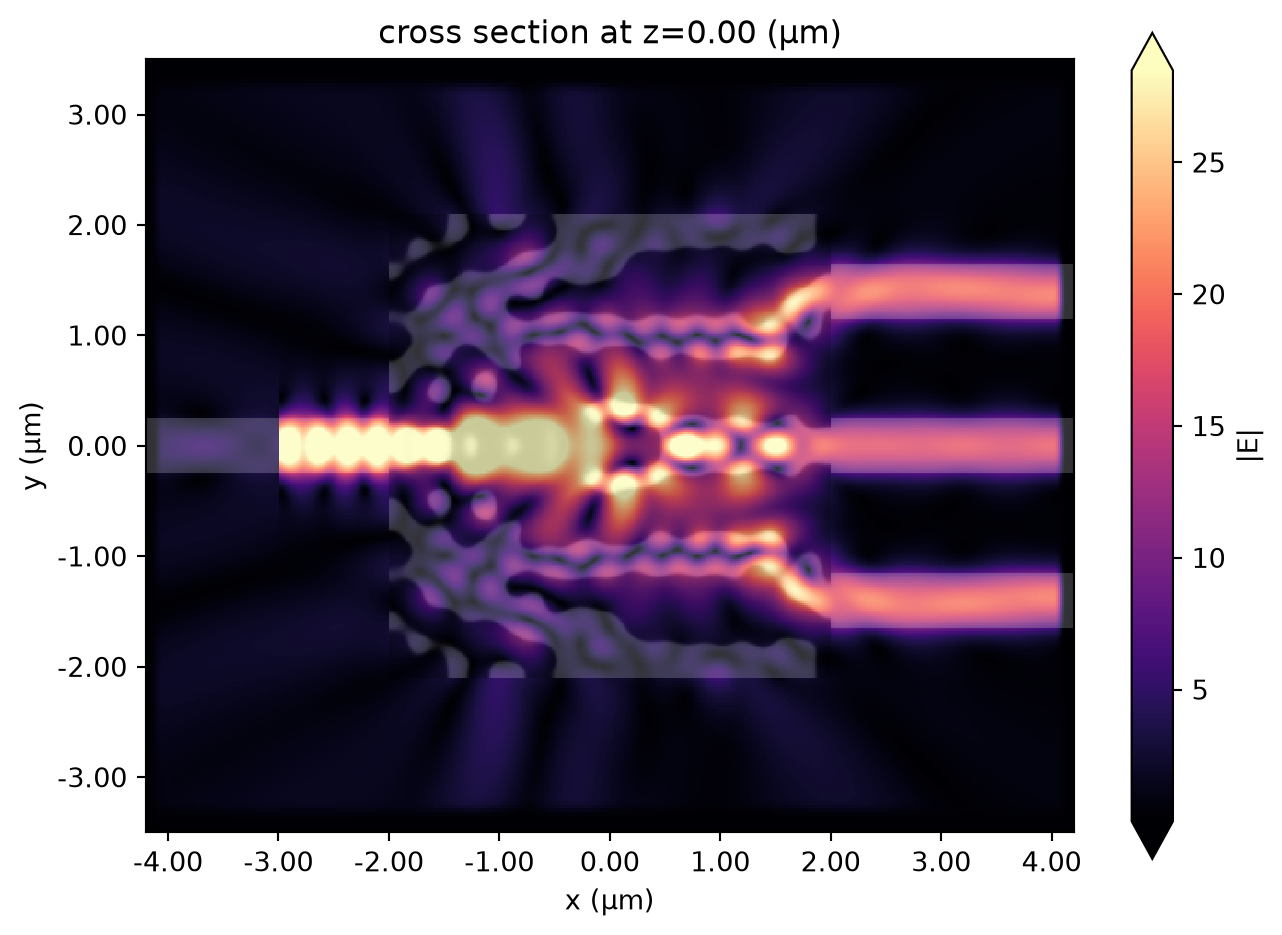

ax = sim_data_last.plot_field(field_mnt_name, field_name="E", val="abs")
Exporting to GDS¶
Use the regular GDS export functions defined in the sim_last
to easily export to GDS.
sim_last.to_gds_file(
fname="./misc/inv_des_demo.gds",
z=0,
frequency=freq0,
permittivity_threshold=2.5
)
MultiSimulation Objectives¶
In many cases, one would like to perform an optimization with more than one base simulation. For example, if optimizing a multiport device, it is very common to have objective functions that share a single design region, but each simulation involves a source placed at a different port, to compute a scattering matrix, for example.
To handle this usecase, the invdes
plugin includes an InverseDesignMulti
class. This object behaves similarly to the InverseDesign
class, except it allows for a set of multiple td.Simulation
instances. Additionally, the postprocess_fn
now accepts a list of td.SimulationData
objects as first argument, which allows the user to write an objective function over all simulation results.
Here we'll run through a simple example, where we'll place a source at each of the 3 waveguides on the right (each in a different simulation) and then measure the sum of the power measured on the waveguide on the left. Note that this objective function is similar to the one we optimized earlier, but involves three separate simulations, just for demonstration purposes.
First, we'll switch up our sources and mode monitors.
mnt_name_left = "mode"
mnt_left = td.ModeMonitor(
size=source.size,
center=source.center,
mode_spec=mode_spec,
name=mnt_name_left,
freqs=[freq0]
)
srcs_right = []
for mnt in monitors_out:
src_right = source.updated_copy(
size=mnt.size,
center=mnt.center,
direction="",
)
srcs_right.append(src_right)
Make a simulation for each of the independent sources.
simulations = [
simulation.updated_copy(sources=[src], monitors=[fld_mnt, mnt_left])
for src in srcs_right
]

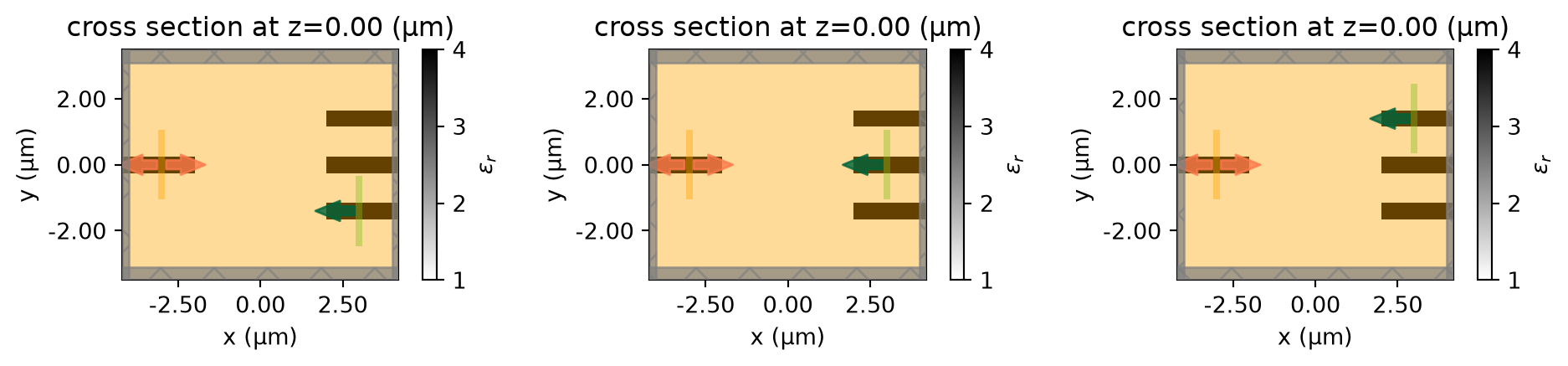

f, axes = plt.subplots(1,3,figsize=(10,4), tight_layout=True)
for ax, sim in zip(axes, simulations):
sim.plot_eps(z=0, ax=ax)
plt.show()
We also need to construct a postprocessing function that will tell the optimizer how to post process the data from each of the simulations
into a single objective.
def post_process_fn(batch_data: dict[str, td.SimulationData]) > float:
"""Grab the power going left at the single waveguide monitor"""
power_left = 0.0
for task_name, sim_data in batch_data.items():
amps = tdi.utils.get_amps(sim_data, monitor_name=mnt_name_left, direction="")
power = tdi.utils.sum_abs_squared(amps)
# # or, when written in more lowlevel syntax
# amp = sim_data[mnt_name_left].amps.sel(direction="")
# power = abs(jnp.sum(jnp.array(amp.values)))**2
power_left += power
return power_left
We'll also specify the output monitor names for each of the simulations, to keep unnecessary warnings from popping up.
output_monitor_names = [[mnt_name_left], [mnt_name_left], [mnt_name_left]]
Finally, we combine everything into an InverseDesignMulti
object.
In an analogy to the InverseDesign
from the previous section, this object will generate a set of td.SimulationData
objects under the hood and use td.web.run_async
to run each of them in parallel.
After the simulations are run, the combined postprocessing function will be applied to the combined data to give the final value, minus any penalties in the shared DesignRegion
.
design_multi = tdi.InverseDesignMulti(
design_region=design_region,
simulations=simulations,
task_name="invdes_multi",
output_monitor_names=output_monitor_names,
verbose=True,
)
To run this, let's make a new optimizer with this multidesign. We'll save the results to the same file as before.
optimizer = tdi.AdamOptimizer(
design=design_multi,
results_cache_fname="data/invdes_history.hdf5",
learning_rate=0.12,
num_steps=3,
)
And use the continue_run_from_history()
to pick up where we left off.
results_multi = optimizer.continue_run_from_history(post_process_fn=post_process_fn)
Output()
18:46:55 EDT Started working on Batch containing 3 tasks.
18:47:00 EDT Maximum FlexCredit cost: 0.075 for the whole batch.
Use 'Batch.real_cost()' to get the billed FlexCredit cost after the Batch has completed.
Output()
18:47:27 EDT Batch complete.
Output()
Output()
18:49:36 EDT Started working on Batch containing 3 tasks.
18:49:42 EDT Maximum FlexCredit cost: 0.075 for the whole batch.
Use 'Batch.real_cost()' to get the billed FlexCredit cost after the Batch has completed.
Output()
18:49:55 EDT Batch complete.
Output()
step (1/3) objective_fn_val = 6.473e01 grad_norm = 4.683e02 post_process_val = 9.093e01 penalty = 2.620e01
Output()
18:50:11 EDT Started working on Batch containing 3 tasks.
18:50:17 EDT Maximum FlexCredit cost: 0.075 for the whole batch.
Use 'Batch.real_cost()' to get the billed FlexCredit cost after the Batch has completed.
Output()
18:50:41 EDT Batch complete.
Output()
Output()
18:53:54 EDT Started working on Batch containing 3 tasks.
18:54:00 EDT Maximum FlexCredit cost: 0.075 for the whole batch.
Use 'Batch.real_cost()' to get the billed FlexCredit cost after the Batch has completed.
Output()
18:54:20 EDT Batch complete.
Output()
step (2/3) objective_fn_val = 6.627e01 grad_norm = 4.159e02 post_process_val = 9.202e01 penalty = 2.575e01
Output()
18:54:39 EDT Started working on Batch containing 3 tasks.
18:54:45 EDT Maximum FlexCredit cost: 0.075 for the whole batch.
Use 'Batch.real_cost()' to get the billed FlexCredit cost after the Batch has completed.
Output()
18:55:11 EDT Batch complete.
Output()
Output()
18:57:18 EDT Started working on Batch containing 3 tasks.
18:57:24 EDT Maximum FlexCredit cost: 0.075 for the whole batch.
Use 'Batch.real_cost()' to get the billed FlexCredit cost after the Batch has completed.
Output()
18:57:36 EDT Batch complete.
Output()
step (3/3) objective_fn_val = 6.802e01 grad_norm = 3.095e02 post_process_val = 9.341e01 penalty = 2.539e01

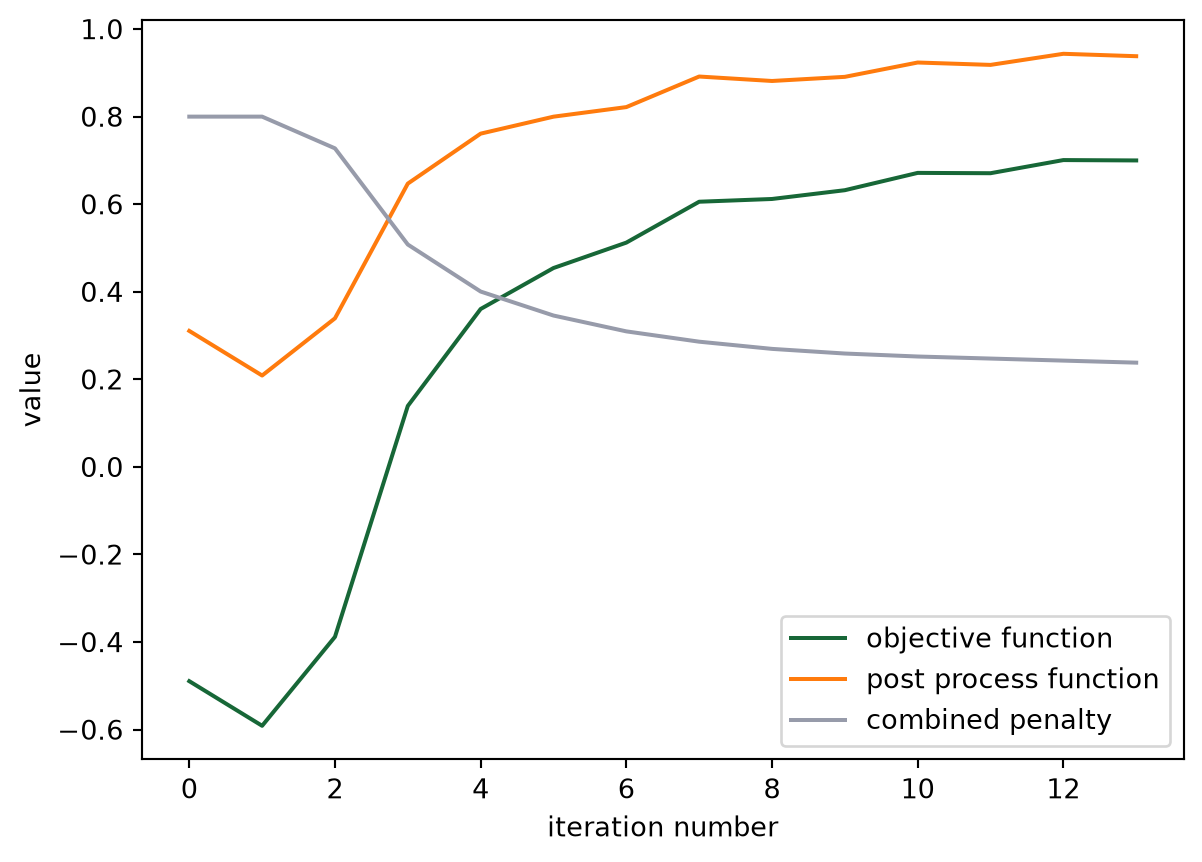

results_multi.plot_optimization()
