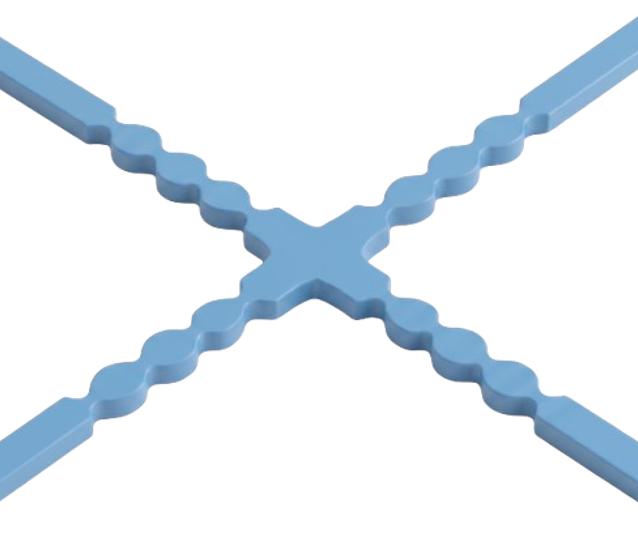

In this notebook, we will use inverse design to create a compact, high-performance waveguide crossing. This device is a fundamental component in photonic integrated circuits, allowing two separate optical signals in different waveguides to cross each other with minimal signal loss and crosstalk.
Instead of manually designing the structure, we will use an adjoint optimization method. We'll start by defining the function we want the device to perform in terms of its scattering matrix (S-matrix). Then, we will use tidy3d's automatic differentiation capabilities to discover a geometric structure that achieves this function.
This example highlights the use of the tidy3d.plugins.smatrix.ComponentModeler, a powerful tool for optimizing devices based on their multi-port scattering properties. It simplifies the process by automatically running the necessary simulations to compute the full S-matrix, which we can then use directly in our objective function. For more details on the ComponentModeler, see this tutorial.
If you are new to inverse design, we recommend our tutorials on the Learning Center and our primer on automatic differentiation with tidy3d.
import autograd as ag
import autograd.numpy as np
import matplotlib.pylab as plt
import tidy3d as td
np.random.seed(2)
Setup¶
First, we define the basic parameters for our simulation.
Our device will consist of two parallel input waveguides and two parallel output waveguides. Between them lies a rectangular "design region." We will optimize the pixel-by-pixel permittivity within this region to make light from the top input guide cross over to the bottom output guide, and light from the bottom input guide cross to the top output guide.
This example is a 2D simulation for speed and reduced FlexCredit usage, but it can be easily extended to 3D by defining a vertical dimension (Lz), adding a substrate, and modifying the structures accordingly.
# material information
n_si = 3.49
n_air = 1
# source
wvl0 = 1.5
freq0 = td.C_0 / wvl0
fwidth = freq0 / 10
run_time = 200 / fwidth
# size of waveguides
wg_width = 0.3
wg_length = 1.5
wg_spacing = 1.5
# size of design region
lx = 4.5
ly = 4.5
lz = td.inf
# spacing between design region and PML in y
buffer = 1.5
# size of simulation
Lx = lx + wg_length * 2
Ly = Lx
Lz = 0.0
# fabrication constraints (feature size and projection strength)
radius = 0.150
beta0 = 2
# resolution information
min_steps_per_wvl = 18
dl_design_region = 0.01
Static Simulation¶
Before we define the optimizable design region, we will set up the "static" parts of the simulation—the components that do not change during the optimization. These include the input and output waveguides and the ports used to inject and measure light.
wg_vert = td.Structure(
geometry=td.Box(
center=(0, 0, 0),
size=(td.inf, wg_width, lz),
),
medium=td.Medium(permittivity=n_si**2),
)
wg_horz = td.Structure(
geometry=td.Box(
center=(0, 0, 0),
size=(wg_width, td.inf, lz),
),
medium=td.Medium(permittivity=n_si**2),
)
wgs = [wg_vert, wg_horz]
fld_mnt_name = "field"
# field monitor that measures fields on the z=0 plane at the design freqs
fld_mnt = td.FieldMonitor(
center=(0, 0, 0),
size=(td.inf, td.inf, 0),
freqs=[freq0],
name=fld_mnt_name,
)
sim_static = td.Simulation(
size=(Lx, Ly, Lz),
grid_spec=td.GridSpec.auto(
min_steps_per_wvl=min_steps_per_wvl,
wavelength=wvl0,
),
structures=wgs,
sources=[],
monitors=[fld_mnt],
boundary_spec=td.BoundarySpec.pml(x=True, y=True, z=True if Lz else False),
run_time=run_time,
symmetry=(0, 0, 0),
)
ax = sim_static.plot_eps(z=0.01, freq=freq0)
ax.set_aspect("equal")
Define design region¶
Next, we define the design region as a pixelated grid of permittivity values that get generated from our optimization parameters.
We first define the overall geometry as a td.Box and also the number of pixels in x and y static on our design region resolution.
nx = (int(lx / dl_design_region) // 2) * 2 + 1
ny = (int(ly / dl_design_region) // 2) * 2 + 1
print(nx, ny)
design_region_geo = td.Box(size=(lx, ly, lz), center=(0, 0, 0))
451 451
Next we write a function to give us the pixelated array as a function of our parameters through our filtering and projection methods, which are used to make the resulting structures easier to fabricate. For more details, refer to our 4th lecture in the inverse design 101 lecture series, which focuses on fabrication constraints.
We also wrap this function in another one that generates the entire td.Structure corresponding to the design region, for convenience later.
Note: we will enforce here that the design region has both 90 degree rotational symmetry and also x and y mirror symmetry, since we expect the final device to respect these symmetries to work in all orientations.
from tidy3d.plugins.autograd import make_filter_and_project, rescale
filter_project = make_filter_and_project(radius, dl_design_region)
def get_density(params: np.ndarray, beta: float) -> np.ndarray:
"""Get the density of material (0, 1) as a function of the parameters (0,1)"""
fp0 = filter_project(params, beta=beta)
# make sure density has 90 degree rotation symmetry
fp_90 = np.rot90(fp0)
fp_180 = np.rot90(fp_90)
fp_270 = np.rot90(fp_180)
fp_rot_symm = (fp0 + fp_90 + fp_180 + fp_270) / 4.0
# make sure density has x=0 and y=0 mirror symmetry
fp_xy_symm_lr = np.fliplr(fp_rot_symm)
fp_xy_symm_ud = np.flipud(fp_rot_symm)
fp_xy_symm_lrud = np.flipud(np.fliplr(fp_rot_symm))
return (fp_rot_symm + fp_xy_symm_lr + fp_xy_symm_ud + fp_xy_symm_lrud) / 4.0
def make_eps(params: np.ndarray, beta: float) -> np.ndarray:
"""Construct density values and rescale them to relative permittivity values between air and silicon."""
density = get_density(params, beta=beta)
return rescale(density, 1, n_si**2)
def make_custom_medium(params: np.ndarray, beta: float) -> td.Structure:
"""Make td.Structure containing custom medium with the permittivity data as a function of parameters."""
eps_data = make_eps(params, beta).reshape((nx, ny, 1))
return td.Structure.from_permittivity_array(eps_data=eps_data, geometry=design_region_geo)
Construct Simulation¶
With all of these functions and variables defined, we can write a single function to return our variable td.Simulation as a function of our design parameters. This function first constructs the design region, a mesh override structure to control the resolution in this region, and then creates a copy of the original td.Simulation with all of the basic parameters.
def get_sim(params, beta, include_extra_mnts: bool = True):
design_region = make_custom_medium(params, beta=beta)
design_override = td.MeshOverrideStructure(
geometry=design_region.geometry,
dl=[dl_design_region, dl_design_region, dl_design_region],
)
grid_spec = sim_static.grid_spec.updated_copy(
override_structures=list(sim_static.grid_spec.override_structures) + [design_override]
)
update_dict = dict(
structures=list(sim_static.structures) + [design_region],
grid_spec=grid_spec,
)
# if include_extra_mnts is False, update sim to only include mode monitors, to save data.
if not include_extra_mnts:
update_dict["monitors"] = []
return sim_static.updated_copy(**update_dict)

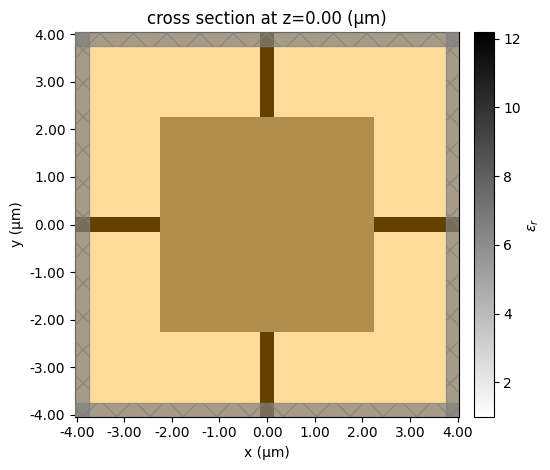

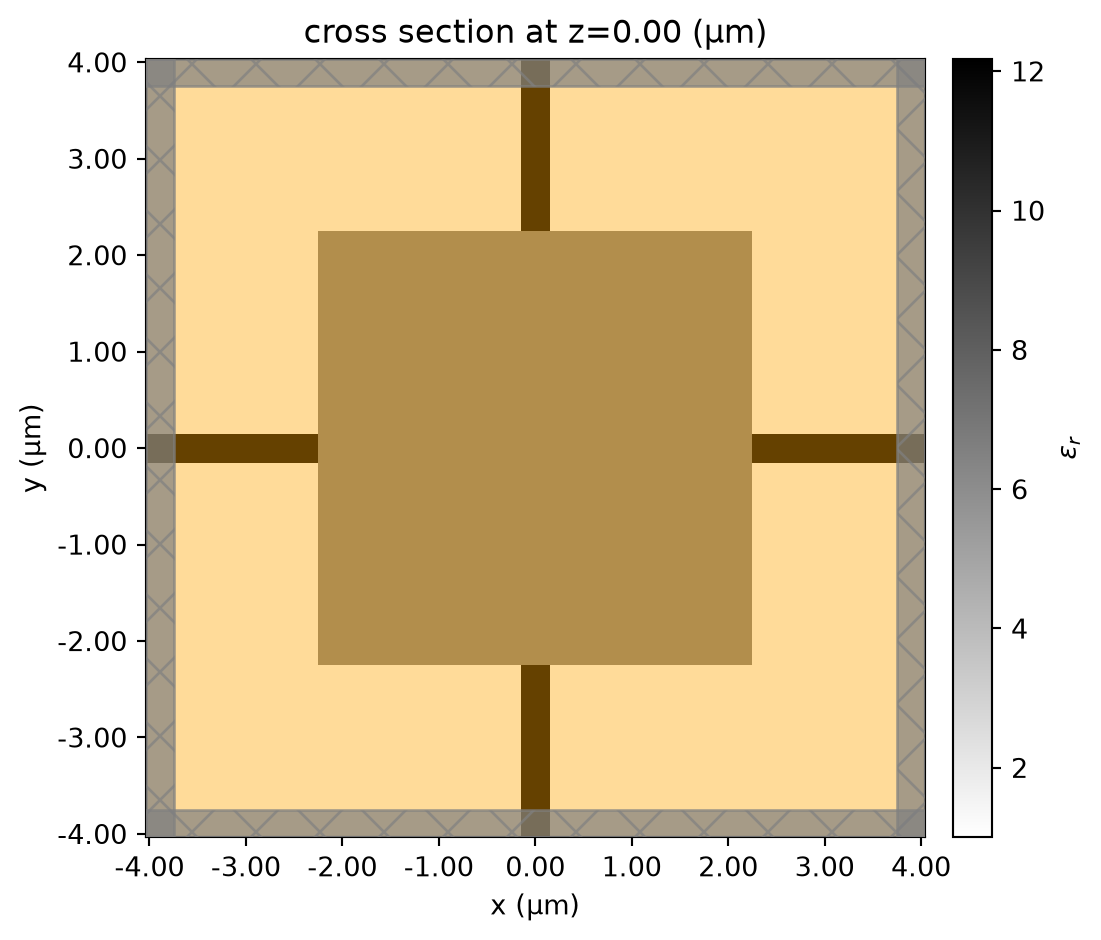

Let's test out our function. We'll make an initially random array of parameters between 0 and 1 and generate the static simulation to plot and inspect.
params0 = 0.5 * np.ones((nx, ny))
sim0 = get_sim(params0, beta=100)
sim0.plot_eps(z=0, freq=freq0)
plt.show()

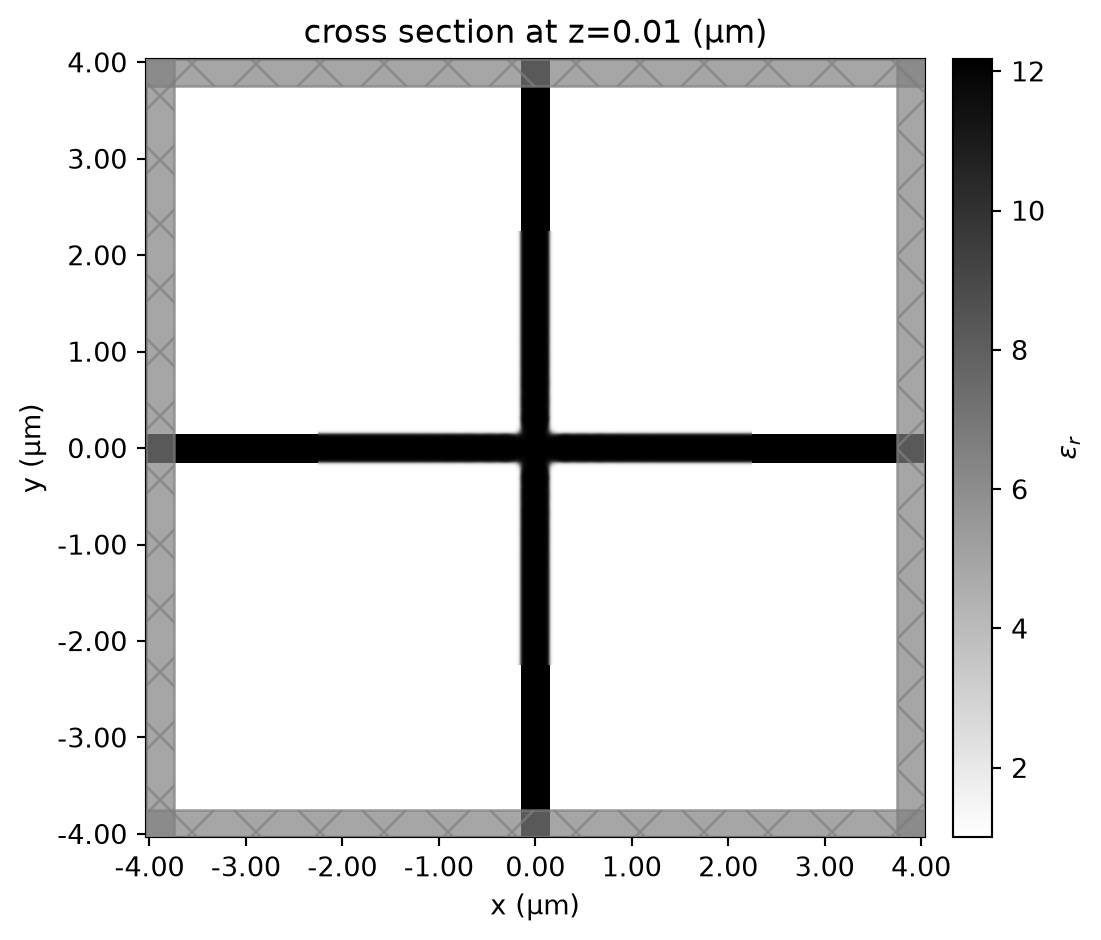

Next we will set up an initial set of parameters to approximate the waveguide crossing represented by two intersecting waveguides. We'll use this as the starting point for our optimization since it already mostly works.
Below we'll import a helper function to set this up automatically by looking at a base Simulation object and a parameterization corresponding to the design region Structure.
from tidy3d.plugins.autograd.invdes import initialize_params_from_simulation
params0 = initialize_params_from_simulation(
sim=sim_static,
param_to_structure=make_custom_medium,
params0=params0,
verbose=False,
beta=10,
)

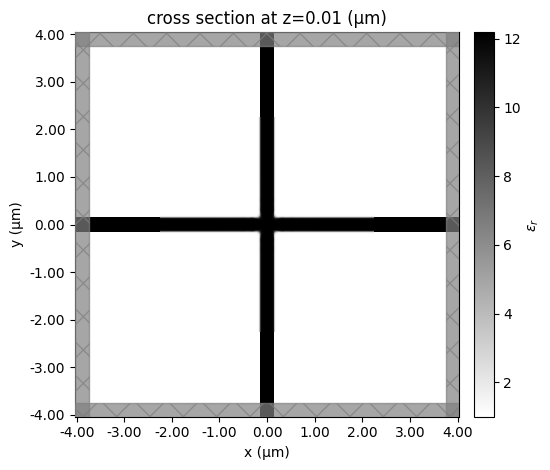

sim0 = get_sim(params0, beta=10)
ax = sim0.plot_eps(z=0.01, freq=freq0)
ax.set_aspect("equal")
The simulation with design region and initial parameters looks very similar to our initial waveguide crossing.
Component Modeler¶
Next we use the ComponentModeler to wrap the Simulation, together with a set of Port objects, in an object that makes it straighforward to generate scattering matrices. The ComponentModeler figures out which simulations need to run for a given specification and can perform parallel processing and final assembly for us. For more details, refer to this tutorial.
Note: we will use
run_onlyargument to only compute one column of the scattering matrix, helping save computation time. The structure works the same when turned 90 degrees so we can determine everything we need using the single port excitation + applying symmetry in the design region.
from tidy3d.plugins.smatrix import ModalComponentModeler, Port
# set up the ports
spc = -Lx / 2 + wvl0 / 5
ports = []
for side in "-+":
for axis, dim in enumerate("xy"):
center_axis = spc if side == "-" else -spc
center = td.Box.unpop_axis(center_axis, (0, 0), axis=axis)
size = td.Box.unpop_axis(0, (lx / 2, td.inf), axis=axis)
port = Port(
center=center,
size=size,
direction="+" if side == "-" else "-",
name=f"port_{dim}_{side}",
)
ports.append(port)
def get_modeler(params, beta, include_extra_mnts: bool = True):
"""return the ComponentModeler given the parameters"""
sim = get_sim(params, beta, include_extra_mnts=include_extra_mnts)
return ModalComponentModeler(
simulation=sim,
ports=ports,
freqs=[freq0],
run_only=[("port_x_-", 0)],
)

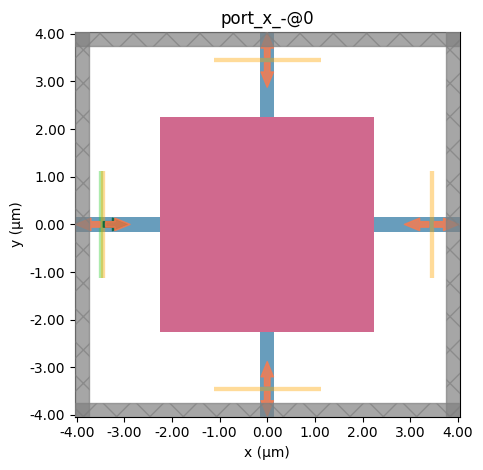

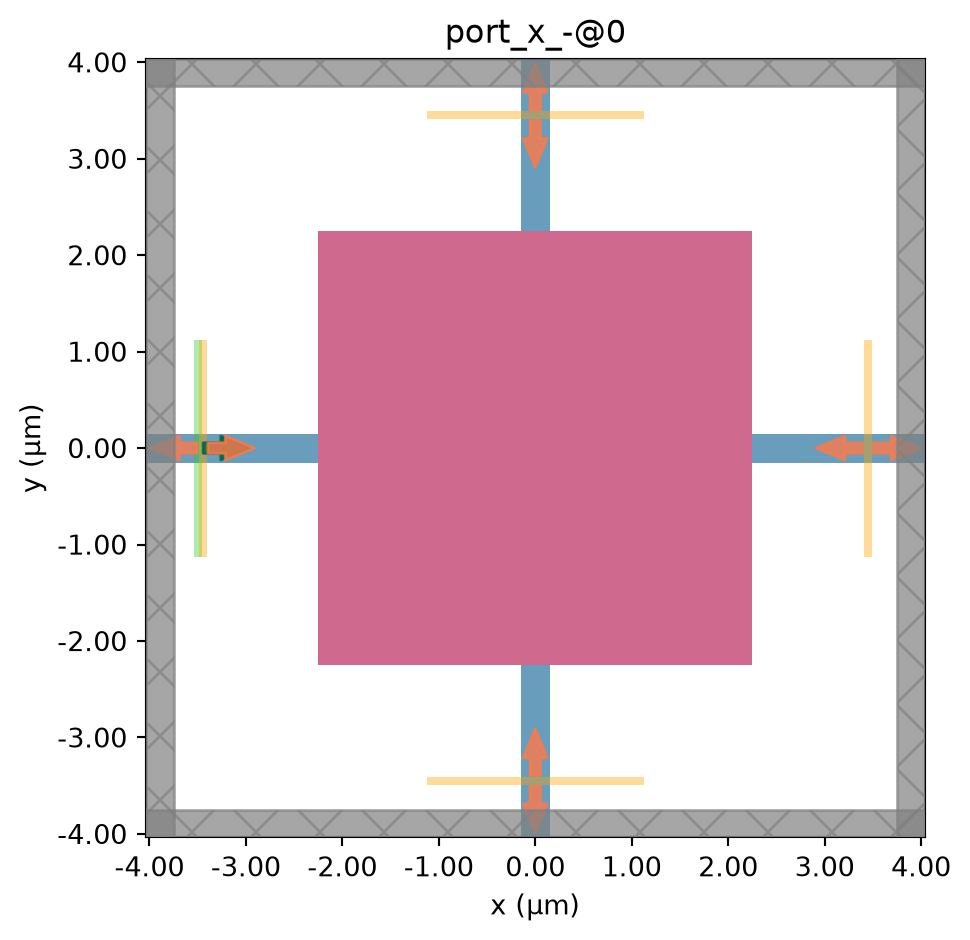

Let's first plot the fundamental simulation generated by the ComponentModeler to verify that everything looks sufficient.
modeler = get_modeler(params0, beta=10, include_extra_mnts=False)
for name, sim in modeler.sim_dict.items():
ax = sim.plot(z=0)
ax.set_title(name)
plt.show()
Defining Objective Function¶
With our simulation fully defined as a function of our parameters, we are ready to define our objective function.
First, we generate a matrix where the ij element represents our "desired" transmission from port i to port j.
In this case, since we only need to specify one port due to symmetry, we just describe our desired column of the scattering matrix. But this can be easily generalized to a full scattering matrix.
# the S-matrix column we want
s_matrix_desired = np.array([0.0, 0.0, 1.0, 0.0])
norm = np.linalg.norm(s_matrix_desired)
The next step is writing a python function that combines everything together.
import tidy3d.web as web
def objective(params, beta: float, include_extra_mnts=False, verbose: bool = True) -> float:
"""Construct and run the modeler, then compare S-matrix column to desired."""
modeler = get_modeler(params, beta=beta, include_extra_mnts=include_extra_mnts)
modeler_data = web.run(modeler, verbose=verbose, task_name="crossing")
smatrix = modeler_data.smatrix()
smatrix = smatrix.sel(port_in="port_x_-")
smatrix_array = np.abs(smatrix.data.squeeze()) ** 2
return np.linalg.norm(smatrix_array - s_matrix_desired) / norm
Differentiating the objective¶
Finally, we can simply use autograd (ag) to transform this objective function into a function that returns our objective function value and our gradient, which we will feed to the optimizer.
grad_fn = ag.value_and_grad(objective)
Let's try out our gradient function to verify that it works properly.
J, grad = grad_fn(params0, beta=1)
Output()
Output()
Output()
09:17:28 EDT Started working on Batch containing 1 tasks.
09:17:29 EDT Maximum FlexCredit cost: 0.065 for the whole batch.
Use 'Batch.real_cost()' to get the billed FlexCredit cost after the Batch has completed.
Output()
09:17:30 EDT Batch complete.
Output()
09:17:33 EDT Started working on Batch containing 1 tasks.
09:17:37 EDT Maximum FlexCredit cost: 0.067 for the whole batch.
Use 'Batch.real_cost()' to get the billed FlexCredit cost after the Batch has completed.
Output()
09:18:05 EDT Batch complete.
Output()
print(f"J = {J:.4f}")
print(f"gradient shape = {grad.shape}")
print(f"gradient norm = {np.linalg.norm(grad):.4f}")
J = 0.2659 gradient shape = (451, 451) gradient norm = 0.0286
Run Optimization¶
Finally, we are ready to optimize our device. We will make use of the optax package to define an optimizer using the adam method, as we've done in the previous inverse design tutorials.

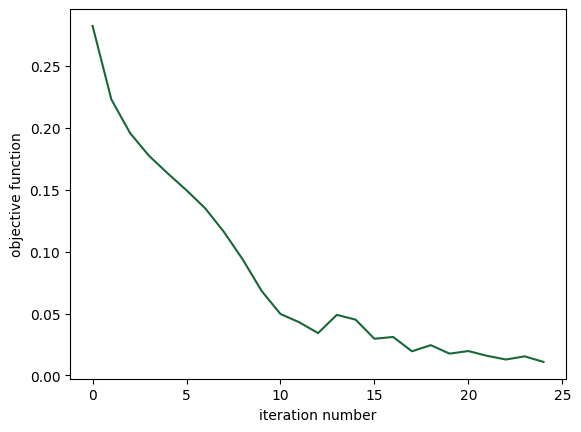

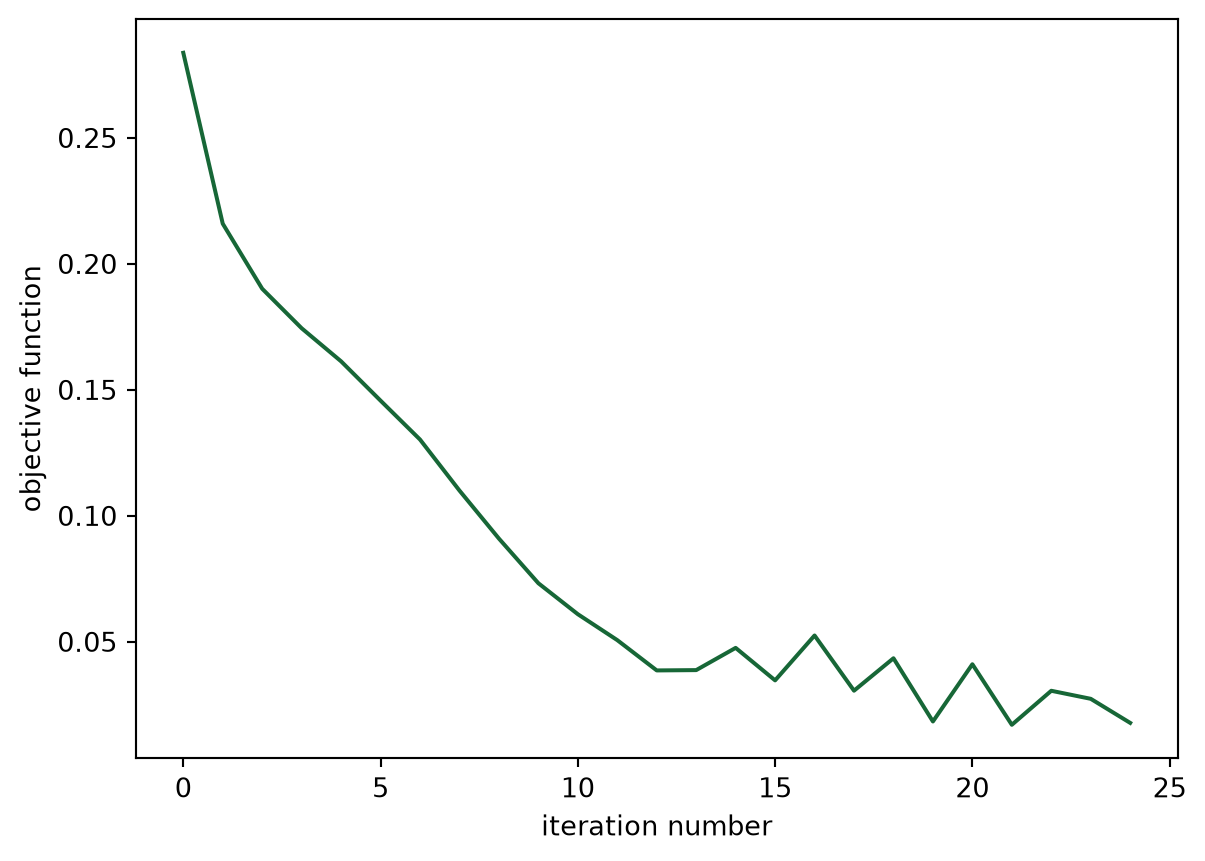

We record a history of objective function values, and parameters, for visualization later.
import optax
# hyperparameters
num_steps = 25
learning_rate = 0.05
# we will just have the same projection strength for beginning and end in this case
beta = 30
# initialize adam optimizer with starting parameters
params = params0.copy()
optimizer = optax.adam(learning_rate=learning_rate)
opt_state = optimizer.init(params)
# store history
Js = []
params_history = [params0]
beta_history = []
for i in range(num_steps):
perc_done = i / (num_steps - 1)

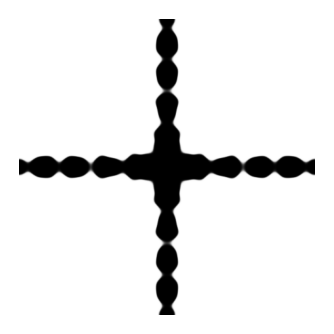

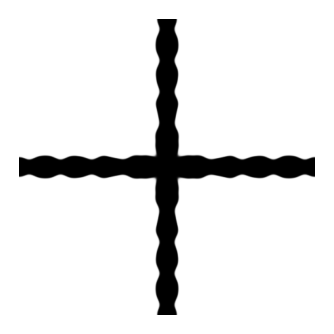

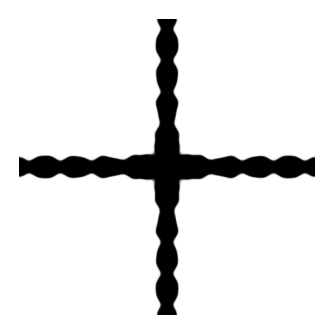

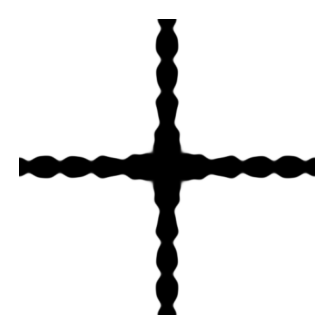

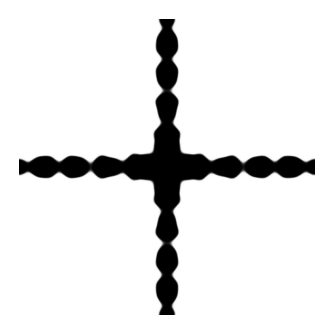

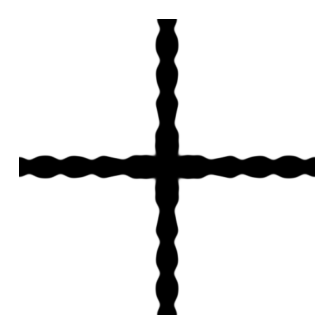

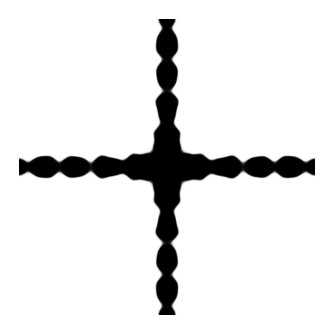

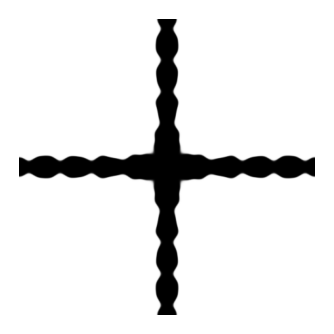

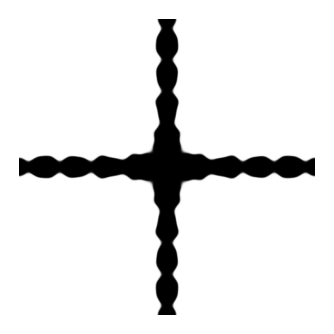

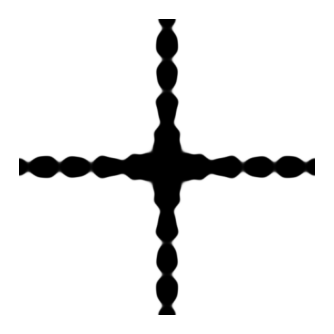

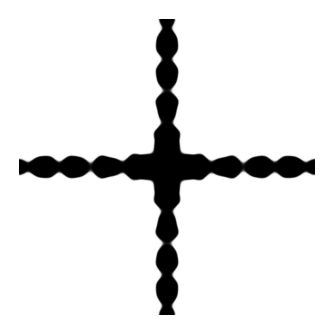

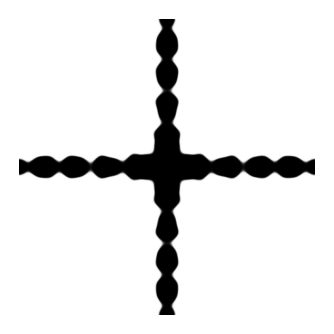

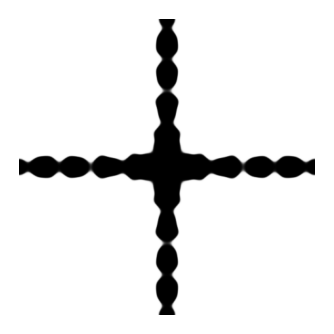

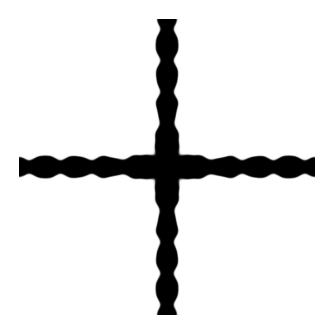

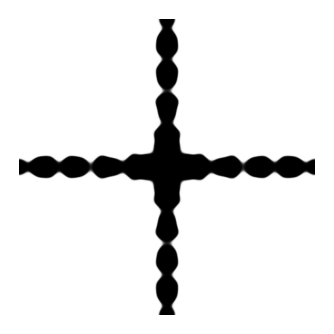

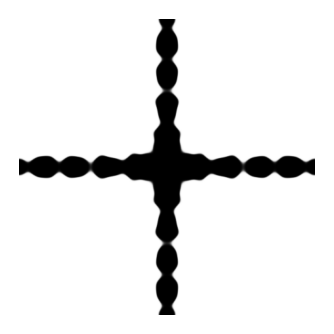

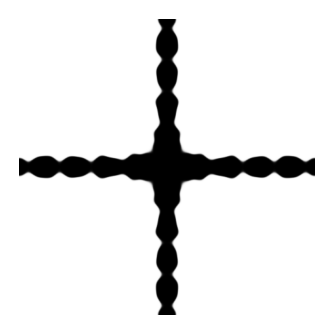

# make a plot of density to check on progress
density = get_density(params, beta=beta)
plt.subplots(figsize=(2, 2))
plt.imshow(np.flipud(1 - density.T), cmap="gray", vmin=0, vmax=1)
plt.axis("off")
plt.show()
# compute gradient and current objective function value
value, gradient = grad_fn(params, beta=beta, verbose=False)
# outputs
print(f"step = {i + 1}")
print(f"\tJ = {value:.4e}")
print(f"\tbeta = {beta:.2f}")
print(f"\tgrad_norm = {np.linalg.norm(gradient):.4e}")
# compute and apply updates to the optimizer based on gradient (-1 sign to maximize obj_fn)
updates, opt_state = optimizer.update(gradient, opt_state, params)
params[:] = optax.apply_updates(params, updates)
# keep params between 0 and 1
np.clip(params, 0.0, 1.0, out=params)
# save history
Js.append(value)
params_history.append(params.copy())
step = 1 J = 2.8238e-01 beta = 30.00 grad_norm = 1.8386e-02
step = 2 J = 2.2298e-01 beta = 30.00 grad_norm = 8.4923e-03
step = 3 J = 1.9572e-01 beta = 30.00 grad_norm = 6.0384e-03
step = 4 J = 1.7752e-01 beta = 30.00 grad_norm = 5.6506e-03
step = 5 J = 1.6322e-01 beta = 30.00 grad_norm = 5.8429e-03
step = 6 J = 1.4959e-01 beta = 30.00 grad_norm = 6.7027e-03
step = 7 J = 1.3494e-01 beta = 30.00 grad_norm = 8.5567e-03
step = 8 J = 1.1575e-01 beta = 30.00 grad_norm = 8.8893e-03
step = 9 J = 9.3497e-02 beta = 30.00 grad_norm = 9.3111e-03
step = 10 J = 6.8201e-02 beta = 30.00 grad_norm = 9.3080e-03
step = 11 J = 4.9634e-02 beta = 30.00 grad_norm = 1.1281e-02
step = 12 J = 4.2938e-02 beta = 30.00 grad_norm = 2.3617e-02
step = 13 J = 3.4192e-02 beta = 30.00 grad_norm = 1.3442e-02
step = 14 J = 4.8930e-02 beta = 30.00 grad_norm = 3.2987e-02
step = 15 J = 4.5076e-02 beta = 30.00 grad_norm = 3.9481e-02
step = 16 J = 2.9627e-02 beta = 30.00 grad_norm = 8.3295e-03
step = 17 J = 3.1068e-02 beta = 30.00 grad_norm = 2.4241e-02
step = 18 J = 1.9480e-02 beta = 30.00 grad_norm = 4.5024e-03
09:46:34 EDT WARNING: No connection: Retrying for 180 seconds.
step = 19 J = 2.4465e-02 beta = 30.00 grad_norm = 3.2538e-02
step = 20 J = 1.7596e-02 beta = 30.00 grad_norm = 1.3490e-02
step = 21 J = 1.9705e-02 beta = 30.00 grad_norm = 2.3249e-02
step = 22 J = 1.5817e-02 beta = 30.00 grad_norm = 1.9620e-02
step = 23 J = 1.2857e-02 beta = 30.00 grad_norm = 1.3309e-02
step = 24 J = 1.5397e-02 beta = 30.00 grad_norm = 2.7810e-02
step = 25 J = 1.0909e-02 beta = 30.00 grad_norm = 1.5978e-02
plt.plot(Js)
plt.xlabel("iteration number")
plt.ylabel("objective function")
plt.show()
Final Device Performance¶
Now, let's take a closer look at the final, optimized design. We take the best parameters found during the optimization and run the ComponentModeler one last time.
# we'll sample the modes at a finer frequency resolution for this final evaluation, for smoother plots
freqs = np.linspace(freq0 - fwidth, freq0 + fwidth, 201)
modeler_start = get_modeler(params_history[0], beta=beta, include_extra_mnts=True).updated_copy(
freqs=freqs
)
modeler_final = get_modeler(params_history[-1], beta=beta, include_extra_mnts=True).updated_copy(
freqs=freqs
)

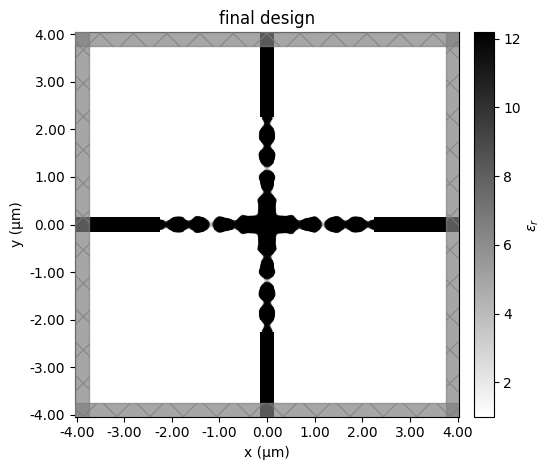

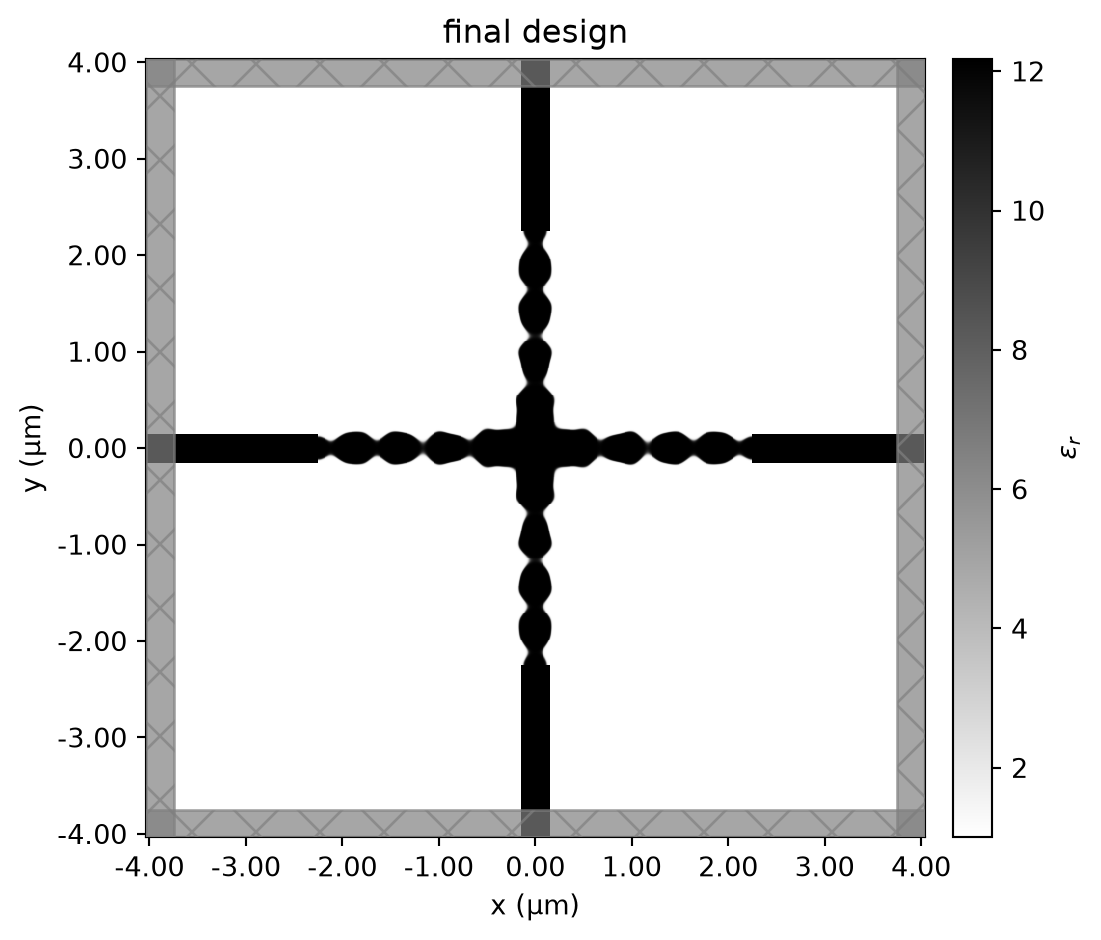

Let's take a look at our final design.
ax = modeler_final.simulation.plot_eps(z=0, monitor_alpha=0, freq=freq0)
ax.set_title("final design")
Text(0.5, 1.0, 'final design')

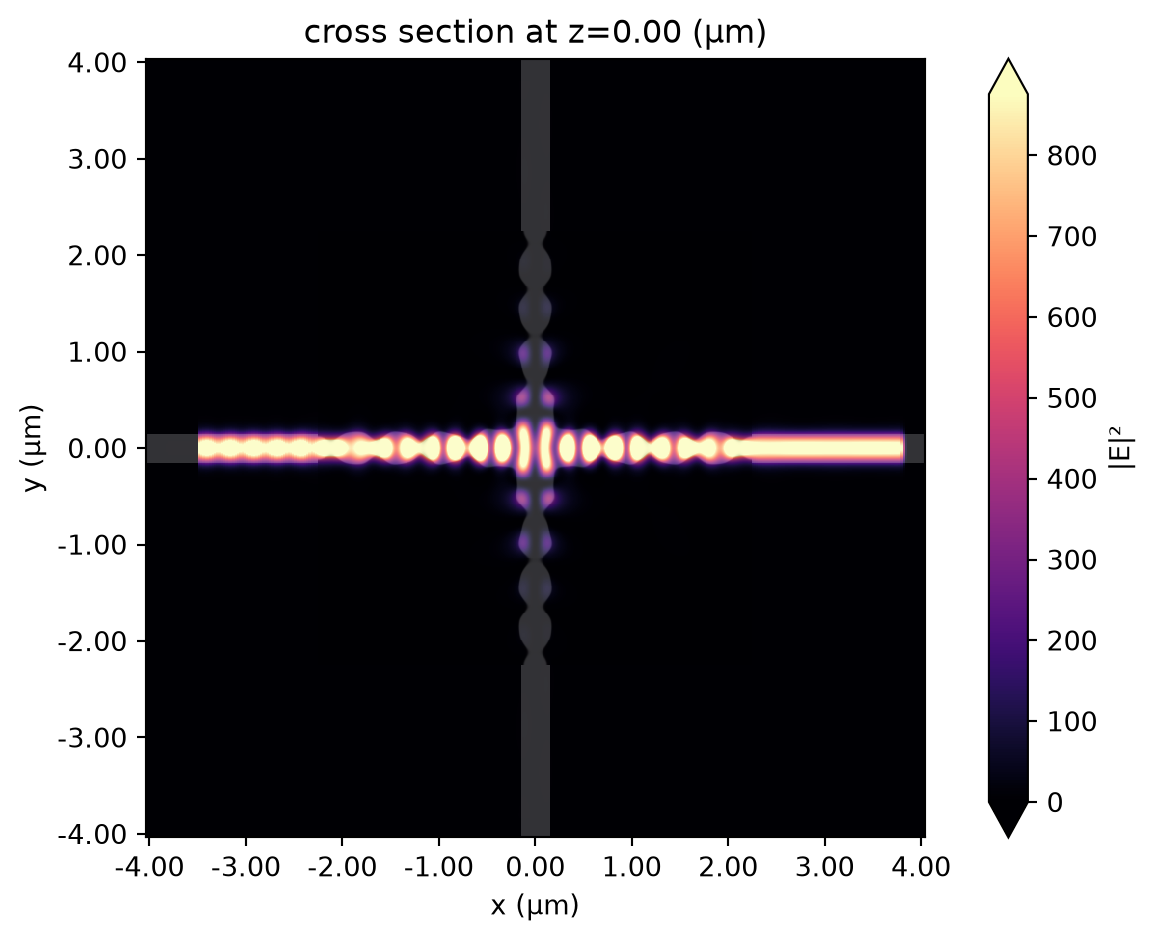

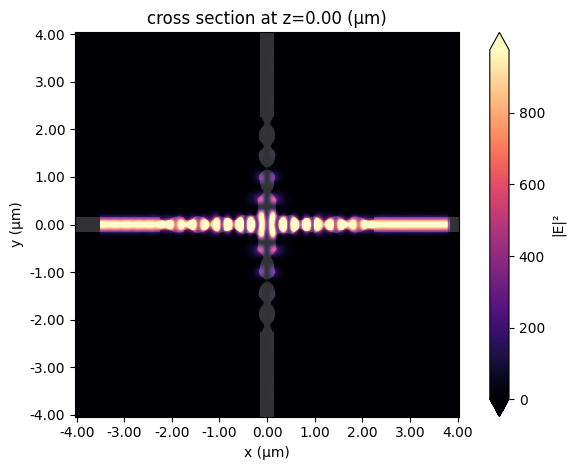

The field plots below show the device operating at the central design frequency. We can clearly see the crossover behavior: light entering the top-left port is efficiently routed to the bottom-right port, and light from the bottom-left is routed to the top-right.
simulations = modeler_final.sim_dict
bd = web.run_async(simulations)
for task_name, sim_data in bd.items():
sim_data.plot_field(field_monitor_name="field", field_name="E", val="abs^2")
Output()
09:55:52 EDT Started working on Batch containing 1 tasks.
09:55:53 EDT Maximum FlexCredit cost: 0.134 for the whole batch.
Use 'Batch.real_cost()' to get the billed FlexCredit cost after the Batch has completed.
Output()
09:56:40 EDT Batch complete.
Output()

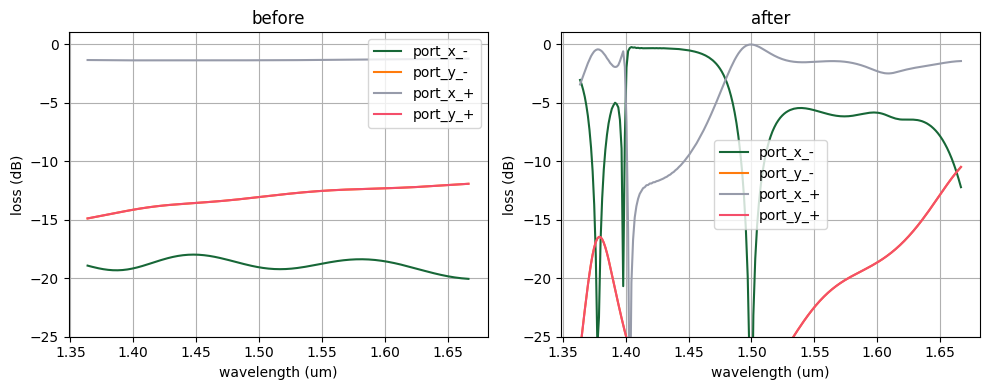

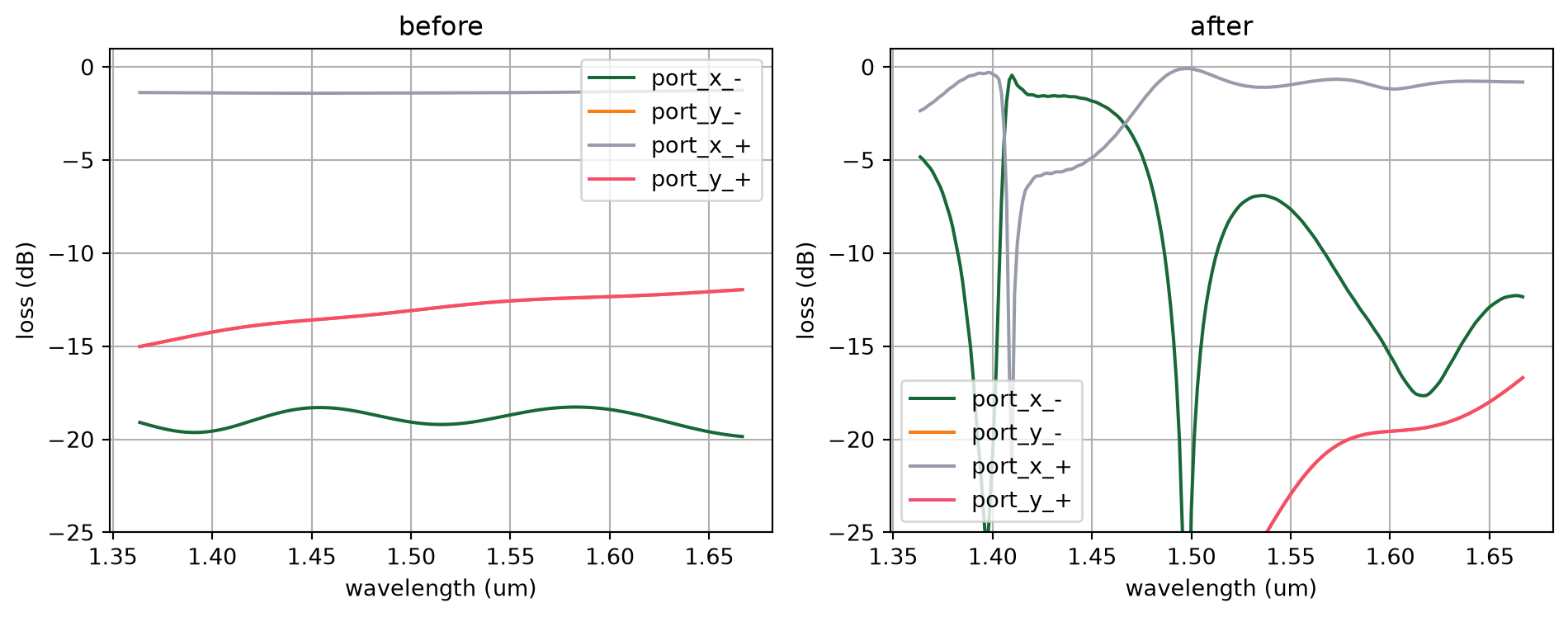

Next, let's look at the S-parameters over a range of frequencies to see how our final device behaves.
smatrix_start = web.run(modeler_start, task_name="start").smatrix()
smatrix_final = web.run(modeler_final, task_name="final").smatrix()
09:56:46 EDT Created task 'start' with resource_id 'sid-df34a742-6a56-491f-9f4c-2632b2c82cbc' and task_type 'RF'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId=sid-df34a742-6a56 -491f-9f4c-2632b2c82cbc'.
Task folder: 'default'.
Output()
09:56:49 EDT Child simulation subtasks are being uploaded to - port_x_-@0: 'rf-b36e4261-6012-4b66-805f-14e162cb4612'
09:56:50 EDT Validating component modeler and subtask simulations...
Maximum FlexCredit cost: 0.134. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
09:56:51 EDT Component modeler batch validation has been successful.
Subtasks status - start Group ID: 'pa-80b32ccd-ee55-41e2-9409-3eedb5252ded'
Output()
09:57:47 EDT Modeler has finished running successfully.
09:57:48 EDT Billed FlexCredit cost: 0.086. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
Output()
09:57:50 EDT loading component modeler data from ./cm_data.hdf5
Created task 'final' with resource_id 'sid-a5113da9-103b-40f3-bf9a-8d7fb8599e65' and task_type 'RF'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId=sid-a5113da9-103b -40f3-bf9a-8d7fb8599e65'.
Task folder: 'default'.
Output()
09:57:53 EDT Child simulation subtasks are being uploaded to - port_x_-@0: 'rf-63060054-b8f3-4678-9866-a0564cddebe8'
Validating component modeler and subtask simulations...
09:57:54 EDT Maximum FlexCredit cost: 0.134. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
Component modeler batch validation has been successful.
09:57:55 EDT Subtasks status - final Group ID: 'pa-6dfb45bf-f1ad-40b4-9986-85c9d54914d4'
Output()
09:59:53 EDT Modeler has finished running successfully.
Billed FlexCredit cost: 0.096. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
Output()
09:59:56 EDT loading component modeler data from ./cm_data.hdf5
_, axes = plt.subplots(1, 2, tight_layout=True, figsize=(10, 4))
wvs = td.C_0 / freqs
for ax, smatrix, label in zip(axes, [smatrix_start, smatrix_final], ["before", "after"]):
for port in ports:
amps = smatrix.sel(port_in=ports[0].name, port_out=port.name).data.squeeze()
ts = np.abs(amps) ** 2
loss = 10 * np.log10(ts)
ax.plot(wvs, loss, label=f"{port.name}")
ax.set_title(label)
ax.set_ylim([-25, 1])
ax.set_ylabel("loss (dB)")
ax.set_xlabel("wavelength (um)")
ax.grid("on")
ax.legend()
plt.show()
As we can see, through transmission is very low loss whereas the transmission to the side ports is suppressed.
abs(smatrix_final.interp(f=freq0).data.squeeze()) ** 2
array([2.34935260e-04, 8.71454911e-04, 9.90924129e-01, 8.71589045e-04])
TERMS & CONDITIONS
How the process works:
Try this real URL to see an example:
