This notebook demonstrates how to perform simulations of a finite size suspended silicon nitride membrane with a periodic 2D array of holes and compares the results with the fully periodic case. This simulation corresponds to the paper P. Franceschini et. al., Enhanced effective nonlinearities in silicon nitride free-standing nanopatterned membranes. APL Photonics 11, 021301 (2026). DOI: 10.1063/5.0309777
Periodic Simulation¶
First, we will perform a fully periodic simulation of a unit cell using periodic boundary conditions.
[1]:
import matplotlib.pyplot as plt
import numpy as np
import tidy3d as td
import tidy3d.web as web
Definite wavelength and frequency ranges.
[2]:
# Convert input wavelength to frequency
wl_min = 0.755
wl_max = 0.8
f_max = td.C_0 / wl_min
f_min = td.C_0 / wl_max
f0 = (f_min + f_max) / 2
f_width = f_max - f_min
Define materials used.
[3]:
Vacuum = td.Medium()
SiN = td.material_library["Si3N4"]["Luke2015PMLStable"]
We define a function to set up the simulation.
[4]:
def Setup_Periodic_Membrane_simulation(period, r_hole, t_slab, Nfreq, sim_time_ps):
Farray = np.linspace(f_min, f_max, Nfreq) # Array of frequency to probe
planewave_0 = td.PlaneWave(
center=[0, 0, 1.6],
size=[td.inf, td.inf, 0],
source_time=td.GaussianPulse(
freq0=f0,
fwidth=f_width,
),
direction="-",
)
fluxmonitor_0 = td.FluxMonitor(
name="fluxmonitor_0",
center=[0, 0, -1.6],
size=[td.inf, td.inf, 0],
freqs=Farray,
)
box_0 = td.Structure(geometry=td.Box(size=[td.inf, td.inf, t_slab]), medium=SiN)
cylinder_1 = td.Structure(
geometry=td.Cylinder(radius=r_hole, length=t_slab), medium=Vacuum
)
override_structure_0 = td.MeshOverrideStructure(
geometry=td.Box(size=[r_hole * 2, r_hole * 2, t_slab]),
dl=[0.04, 0.04, 0.02],
)
sim = td.Simulation(
size=[period, period, 4.2],
boundary_spec=td.BoundarySpec(
x=td.Boundary.periodic(), y=td.Boundary.periodic(), z=td.Boundary.pml()
),
grid_spec=td.GridSpec.auto(
min_steps_per_wvl=20, wavelength=(wl_min + wl_max) / 2
),
run_time=sim_time_ps * 1e-12,
sources=[planewave_0],
monitors=[fluxmonitor_0],
structures=[box_0, cylinder_1],
shutoff=1e-8,
)
return sim
We can now define the membrane geometrical parameters and visualize the geometry.
[5]:
# Expressed in micrometers
period = 0.9695
r_hole = 0.1
t_slab = 0.0495
sim_time_ps = 5 # in ps
Nfreq_periodic = 251
[6]:
sim3d = Setup_Periodic_Membrane_simulation(
period, r_hole, t_slab, Nfreq_periodic, sim_time_ps
)
sim3d.plot_3d()
Now, we run the simulation of the periodic structure to obtain the transmission.
[7]:
sim = Setup_Periodic_Membrane_simulation(
period, r_hole, t_slab, Nfreq_periodic, sim_time_ps
)
sim_data = web.run(
sim,
task_name=f"FDTD_Periodic_SN_membrane_sim_time_ps{sim_time_ps}",
path=f"./Periodic_SN_membranesim_time_ps{sim_time_ps}.hdf5",
)
sim_air = sim.copy(update={"structures": []})
sim_data_air = web.run(
sim_air,
task_name=f"FDTD_Periodic_Air_membrane",
path=f"./Periodic_Air_membrane.hdf5",
)
monitor_data = sim_data.monitor_data
monitor_air = sim_data_air.monitor_data
# Convert input wavelength to frequency
Farray_periodic = np.linspace(
f_min, f_max, Nfreq_periodic
) # Array of frequency to probe
wl_array_periodic = td.C_0 / Farray_periodic
# Access the flux monitor by name
flux_data = monitor_data["fluxmonitor_0"].flux
flux_air = monitor_air["fluxmonitor_0"].flux
flux_periodic = flux_data / flux_air

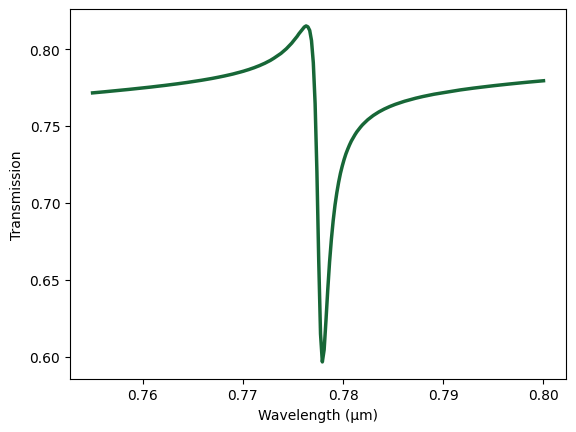

# Plot simulation results
plt.plot(wl_array_periodic, flux_periodic, linewidth=2.5)
plt.xlabel("Wavelength (μm)")
plt.ylabel("Transmission")
plt.show()
12:07:25 Eastern Daylight Time Created task 'FDTD_Periodic_SN_membrane_sim_time_ps5' with task_id 'fdve-74f43e3a-aa43-4958-bfea-d121a747425a' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-74f43e3a-aa43-4958-bfea-d121a747425a'.
Task folder: 'default'.
Output()
12:07:26 Eastern Daylight Time Maximum FlexCredit cost: 0.025. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
12:07:27 Eastern Daylight Time status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
Output()
12:07:35 Eastern Daylight Time starting up solver
12:07:36 Eastern Daylight Time running solver
Output()
12:07:56 Eastern Daylight Time early shutoff detected at 76%, exiting.
status = postprocess
Output()
status = success
12:07:58 Eastern Daylight Time View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-74f43e3a-aa43-4958-bfea-d121a747425a'.
Output()
12:07:59 Eastern Daylight Time loading simulation from ./Periodic_SN_membranesim_time_ps5.hdf5
12:08:00 Eastern Daylight Time Created task 'FDTD_Periodic_Air_membrane' with task_id 'fdve-0ce21f40-a2c4-4b5b-81bb-e3ba1ee344fe' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-0ce21f40-a2c4-4b5b-81bb-e3ba1ee344fe'.
Task folder: 'default'.
Output()
12:08:01 Eastern Daylight Time Maximum FlexCredit cost: 0.025. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
12:08:02 Eastern Daylight Time status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
Output()
12:08:10 Eastern Daylight Time starting up solver
12:08:11 Eastern Daylight Time running solver
Output()
early shutoff detected at 4%, exiting.
status = success
View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-0ce21f40-a2c4-4b5b-81bb-e3ba1ee344fe'.
Output()
12:08:12 Eastern Daylight Time loading simulation from ./Periodic_Air_membrane.hdf5
Finite Array Simulations¶
We are now ready to set up the finite size simulation. It is useful to define a function also in this case to perform stability tests of the domain and mesh sizes and then study the Fano resonance as a function of the number of cells. Beware that simulating long living photonic modes might lead to a high computational cost. Although it is possible to perform such a simulation in Tidy3D, you should carefully judge the FlexCredit cost of such simulations.
[8]:
def array_cylinders(Ncells, period, r_hole, t_slab):
geometries = []
for Nx in range(0, Ncells + 1):
for Ny in range(0, Ncells + 1):
geometries.append(
td.Cylinder(
radius=r_hole,
center=[(Nx - Ncells / 2) * period, (Ny - Ncells / 2) * period, 0],
length=t_slab,
)
)
return geometries
# Finer mesh in the cylinder array
def finer_hole_mesh(Ncells, period, r_hole, t_slab):
override_structure = []
for Nx in range(0, Ncells + 1):
for Ny in range(0, Ncells + 1):
# Set Finer mesh in the holes
override_structure.append(
td.MeshOverrideStructure(
name=f"override_structure_{Nx}_{Ny}",
geometry=td.Box(
center=[
(Nx - Ncells / 2) * period,
(Ny - Ncells / 2) * period,
0,
],
size=[r_hole * 2, r_hole * 2, t_slab],
),
dl=[0.04, 0.04, 0.02],
)
)
return override_structure
def Setup_Finite_Membrane_simulation(
Ncells, period, r_hole, t_slab, Nfreq, Henv, Wside, sim_time_ps
):
W_env = (
Ncells * period + Wside
) # 2 um around structure are chosen from stability simulations
box_0 = td.Structure(geometry=td.Box(size=[td.inf, td.inf, t_slab]), medium=SiN)
geometrygroup_1 = td.Structure(
geometry=td.GeometryGroup(
geometries=array_cylinders(Ncells, period, r_hole, t_slab)
),
medium=Vacuum,
)
## Setup Source
planewave_0 = td.PlaneWave(
center=[0, 0, Henv / 2 - 0.3],
size=[td.inf, td.inf, 0],
source_time=td.GaussianPulse(
freq0=f0,
fwidth=f_width,
),
direction="-",
)
### Setup Monitors
Farray = np.linspace(
f_min, f_max, Nfreq
) # Array of frequency to probe. Values must be in increasing order
# Flux Monitor
fluxmonitor_0 = td.FluxMonitor(
name="fluxmonitor_0",
center=[0, 0, -Henv / 2 + 0.3],
size=[td.inf, td.inf, 0],
freqs=Farray,
)
sim = td.Simulation(
size=[W_env, W_env, Henv],
grid_spec=td.GridSpec.auto(
min_steps_per_wvl=20,
wavelength=(wl_min + wl_max) / 2,
override_structures=finer_hole_mesh(Ncells, period, r_hole, t_slab),
),
run_time=sim_time_ps * 1e-12,
sources=[planewave_0],
monitors=[fluxmonitor_0],
structures=[box_0, geometrygroup_1],
symmetry=(-1, 1, 0),
)
return sim
def Finite_Membrane_simulation(
Ncells, period, r_hole, t_slab, Nfreq, Henv, Wside, sim_time_ps
):
sim_finite_size = Setup_Finite_Membrane_simulation(
Ncells, period, r_hole, t_slab, Nfreq, Henv, Wside, sim_time_ps
)
sim_data = web.run(
sim_finite_size,
task_name=f"FDTD_Finite_SN_membrane_N{Ncells}_Henv{Henv}_Wside{Wside}_sim_time_ps{sim_time_ps}",
path=f"./Finite_SN_membrane_N{Ncells}_Henv{Henv}_Wside{Wside}_sim_time_ps{sim_time_ps}.hdf5",
)
sim_air = sim_finite_size.copy(update={"structures": []})
sim_data_air = web.run(
sim_air,
task_name=f"FDTD_Finite_Air_membrane_N{Ncells}_Henv{Henv}_Wside{Wside}",
path=f"./Finite_Air_membrane_N{Ncells}_Henv{Henv}_Wside{Wside}.hdf5",
)
monitor_data = sim_data.monitor_data
monitor_air = sim_data_air.monitor_data
Farray = np.linspace(f_min, f_max, Nfreq) # Array of frequency to probe
wl_array = td.C_0 / Farray
# Access the flux monitor by name
flux_data = monitor_data["fluxmonitor_0"].flux
flux_air = monitor_air["fluxmonitor_0"].flux
flux = flux_data / flux_air
# Plot simulation results
plt.plot(wl_array, flux, label=f"{Ncells:.2f}")
plt.xlabel("Wavelength (μm)")
plt.ylabel("Transmission")
plt.legend()
return wl_array, flux

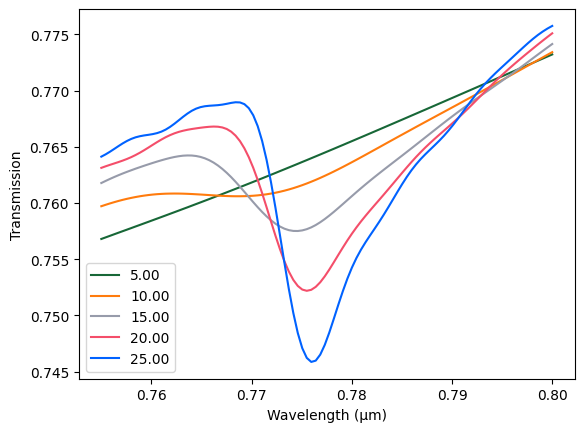

We first plot the geometry for the case N=10 to check our simulation domain. We also define the size of the simulation domain.
[9]:
Ncells = 10
Henv = 2.1
Wside = 8 # total length of unpatterned area around the square array of holes
sim_time_finite_size_ps = 1
Nfreq_finite_size = 101
sim3d = Setup_Finite_Membrane_simulation(
Ncells,
period,
r_hole,
t_slab,
Nfreq_finite_size,
Henv,
Wside,
sim_time_finite_size_ps,
)
sim3d.plot_3d()
Define the number of elements of the N x N array and simulate different cases.
[10]:
Ncell_start = 5
Ncell_max = 30
Nstep = 5
[11]:
total_flux_N = np.zeros((Nstep, Nfreq_finite_size))
for i, N in enumerate(range(Ncell_start, Ncell_max, Nstep)):
wl, flux = Finite_Membrane_simulation(
N,
period,
r_hole,
t_slab,
Nfreq_finite_size,
Henv,
Wside,
sim_time_finite_size_ps,
)
total_flux_N[i, :] = flux
12:08:13 Eastern Daylight Time Created task 'FDTD_Finite_SN_membrane_N5_Henv2.1_Wside8_sim_ti me_ps1' with task_id 'fdve-3039c6aa-ff52-4ca4-9555-140b8eda50c6' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-3039c6aa-ff52-4ca4-9555-140b8eda50c6'.
Task folder: 'default'.
Output()
12:08:14 Eastern Daylight Time Maximum FlexCredit cost: 0.126. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
Output()
12:08:25 Eastern Daylight Time status = preprocess
12:08:30 Eastern Daylight Time starting up solver
running solver
Output()
12:08:34 Eastern Daylight Time early shutoff detected at 12%, exiting.
status = postprocess
Output()
12:08:36 Eastern Daylight Time status = success
12:08:38 Eastern Daylight Time View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-3039c6aa-ff52-4ca4-9555-140b8eda50c6'.
Output()
12:08:39 Eastern Daylight Time loading simulation from ./Finite_SN_membrane_N5_Henv2.1_Wside8_sim_time_p s1.hdf5
12:08:40 Eastern Daylight Time Created task 'FDTD_Finite_Air_membrane_N5_Henv2.1_Wside8' with task_id 'fdve-97331d2d-3f51-47a0-a209-0ea829c5934a' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-97331d2d-3f51-47a0-a209-0ea829c5934a'.
Task folder: 'default'.
Output()
12:08:41 Eastern Daylight Time Maximum FlexCredit cost: 0.025. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
Output()
12:08:48 Eastern Daylight Time status = preprocess
12:08:52 Eastern Daylight Time starting up solver
running solver
Output()
12:08:54 Eastern Daylight Time early shutoff detected at 8%, exiting.
status = postprocess
Output()
12:08:57 Eastern Daylight Time status = success
12:08:59 Eastern Daylight Time View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-97331d2d-3f51-47a0-a209-0ea829c5934a'.
Output()
12:09:00 Eastern Daylight Time loading simulation from ./Finite_Air_membrane_N5_Henv2.1_Wside8.hdf5
Created task 'FDTD_Finite_SN_membrane_N10_Henv2.1_Wside8_sim_t ime_ps1' with task_id 'fdve-a5c7595c-eb7d-4fe6-9c66-71fc8abbb546' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-a5c7595c-eb7d-4fe6-9c66-71fc8abbb546'.
Task folder: 'default'.
Output()
12:09:01 Eastern Daylight Time Maximum FlexCredit cost: 0.246. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
12:09:02 Eastern Daylight Time status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
Output()
12:09:06 Eastern Daylight Time status = preprocess
12:09:11 Eastern Daylight Time starting up solver
running solver
Output()
12:09:23 Eastern Daylight Time early shutoff detected at 16%, exiting.
status = success
View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-a5c7595c-eb7d-4fe6-9c66-71fc8abbb546'.
Output()
12:09:24 Eastern Daylight Time loading simulation from ./Finite_SN_membrane_N10_Henv2.1_Wside8_sim_time_ ps1.hdf5
Created task 'FDTD_Finite_Air_membrane_N10_Henv2.1_Wside8' with task_id 'fdve-fc9e235b-e232-464f-b1ad-b353adcf04b4' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-fc9e235b-e232-464f-b1ad-b353adcf04b4'.
Task folder: 'default'.
Output()
12:09:25 Eastern Daylight Time Maximum FlexCredit cost: 0.045. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
12:09:26 Eastern Daylight Time status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
Output()
12:09:41 Eastern Daylight Time starting up solver
running solver
Output()
12:09:43 Eastern Daylight Time early shutoff detected at 8%, exiting.
status = postprocess
Output()
12:09:45 Eastern Daylight Time status = success
12:09:47 Eastern Daylight Time View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-fc9e235b-e232-464f-b1ad-b353adcf04b4'.
Output()
12:09:48 Eastern Daylight Time loading simulation from ./Finite_Air_membrane_N10_Henv2.1_Wside8.hdf5
12:09:49 Eastern Daylight Time Created task 'FDTD_Finite_SN_membrane_N15_Henv2.1_Wside8_sim_t ime_ps1' with task_id 'fdve-abe291bc-e627-4917-8814-4828a9359c9b' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-abe291bc-e627-4917-8814-4828a9359c9b'.
Task folder: 'default'.
Output()
12:09:50 Eastern Daylight Time Maximum FlexCredit cost: 0.375. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
12:09:51 Eastern Daylight Time status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
Output()
12:09:57 Eastern Daylight Time status = preprocess
12:10:02 Eastern Daylight Time starting up solver
running solver
Output()
12:10:16 Eastern Daylight Time early shutoff detected at 24%, exiting.
status = success
View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-abe291bc-e627-4917-8814-4828a9359c9b'.
Output()
12:10:17 Eastern Daylight Time loading simulation from ./Finite_SN_membrane_N15_Henv2.1_Wside8_sim_time_ ps1.hdf5
12:10:18 Eastern Daylight Time Created task 'FDTD_Finite_Air_membrane_N15_Henv2.1_Wside8' with task_id 'fdve-68e9b23d-4665-45a3-bb7d-d844a6684020' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-68e9b23d-4665-45a3-bb7d-d844a6684020'.
Task folder: 'default'.
Output()
12:10:19 Eastern Daylight Time Maximum FlexCredit cost: 0.071. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
12:10:20 Eastern Daylight Time status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
Output()
12:10:31 Eastern Daylight Time starting up solver
running solver
Output()
12:10:34 Eastern Daylight Time early shutoff detected at 8%, exiting.
status = postprocess
Output()
12:10:36 Eastern Daylight Time status = success
12:10:38 Eastern Daylight Time View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-68e9b23d-4665-45a3-bb7d-d844a6684020'.
Output()
12:10:39 Eastern Daylight Time loading simulation from ./Finite_Air_membrane_N15_Henv2.1_Wside8.hdf5
12:10:40 Eastern Daylight Time Created task 'FDTD_Finite_SN_membrane_N20_Henv2.1_Wside8_sim_t ime_ps1' with task_id 'fdve-5d59f6c0-0a12-4a46-9660-d725d2c80409' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-5d59f6c0-0a12-4a46-9660-d725d2c80409'.
Task folder: 'default'.
Output()
12:10:41 Eastern Daylight Time Maximum FlexCredit cost: 0.576. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
12:10:42 Eastern Daylight Time status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
Output()
12:10:49 Eastern Daylight Time status = preprocess
12:10:53 Eastern Daylight Time starting up solver
running solver
Output()
12:11:13 Eastern Daylight Time status = success
View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-5d59f6c0-0a12-4a46-9660-d725d2c80409'.
Output()
12:11:14 Eastern Daylight Time loading simulation from ./Finite_SN_membrane_N20_Henv2.1_Wside8_sim_time_ ps1.hdf5
Created task 'FDTD_Finite_Air_membrane_N20_Henv2.1_Wside8' with task_id 'fdve-ec06ad0e-7acc-4a34-89a8-9f69d3932605' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-ec06ad0e-7acc-4a34-89a8-9f69d3932605'.
Task folder: 'default'.
Output()
12:11:16 Eastern Daylight Time Maximum FlexCredit cost: 0.104. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
Output()
12:11:25 Eastern Daylight Time status = preprocess
12:11:30 Eastern Daylight Time starting up solver
running solver
Output()
12:11:34 Eastern Daylight Time early shutoff detected at 8%, exiting.
status = postprocess
Output()
status = success
12:11:36 Eastern Daylight Time View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-ec06ad0e-7acc-4a34-89a8-9f69d3932605'.
Output()
12:11:37 Eastern Daylight Time loading simulation from ./Finite_Air_membrane_N20_Henv2.1_Wside8.hdf5
12:11:38 Eastern Daylight Time Created task 'FDTD_Finite_SN_membrane_N25_Henv2.1_Wside8_sim_t ime_ps1' with task_id 'fdve-0bb8db1b-937c-4253-ace6-f19489393af0' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-0bb8db1b-937c-4253-ace6-f19489393af0'.
Task folder: 'default'.
Output()
12:11:40 Eastern Daylight Time Maximum FlexCredit cost: 0.756. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
Output()
12:11:47 Eastern Daylight Time status = preprocess
12:11:51 Eastern Daylight Time starting up solver
running solver
Output()
12:12:13 Eastern Daylight Time early shutoff detected at 36%, exiting.
status = success
12:12:14 Eastern Daylight Time View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-0bb8db1b-937c-4253-ace6-f19489393af0'.
Output()
loading simulation from ./Finite_SN_membrane_N25_Henv2.1_Wside8_sim_time_ ps1.hdf5
12:12:15 Eastern Daylight Time Created task 'FDTD_Finite_Air_membrane_N25_Henv2.1_Wside8' with task_id 'fdve-22baacd0-e51b-4f7a-84cd-be43a2639726' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-22baacd0-e51b-4f7a-84cd-be43a2639726'.
Task folder: 'default'.
Output()
12:12:17 Eastern Daylight Time Maximum FlexCredit cost: 0.143. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
12:12:18 Eastern Daylight Time status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
Output()
12:12:29 Eastern Daylight Time starting up solver
running solver
Output()
12:12:33 Eastern Daylight Time early shutoff detected at 8%, exiting.
status = success
View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-22baacd0-e51b-4f7a-84cd-be43a2639726'.
Output()
12:12:34 Eastern Daylight Time loading simulation from ./Finite_Air_membrane_N25_Henv2.1_Wside8.hdf5

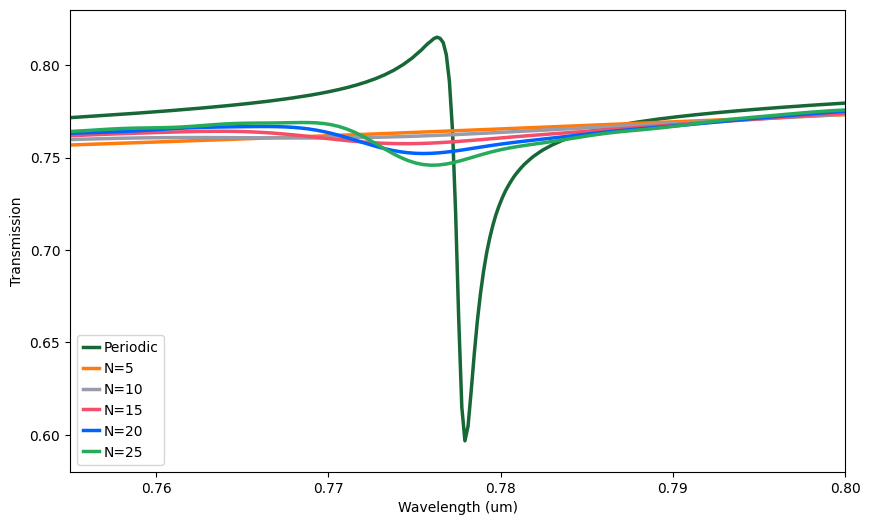

Finally, we compare the results obtained for the fully periodic structure and the finite size structure.
[12]:
plt.figure(figsize=(10, 6))
plt.plot(wl_array_periodic, flux_data / flux_air, label=f"Periodic", linewidth=2.5)
for i, N in enumerate(range(Ncell_start, Ncell_max, Nstep)):
plt.plot(wl, total_flux_N[i, :], label=f"N={N}", linewidth=2.5)
plt.xlim(wl_min, wl_max)
plt.ylim(0.58, 0.83)
plt.xlabel("Wavelength (um)")
plt.ylabel("Transmission")
plt.legend(
ncol=1, loc="lower left", columnspacing=0.5, handletextpad=0.3, handlelength=1.2
)
[ ]:
TERMS & CONDITIONS
How the process works:
Try this real URL to see an example:
