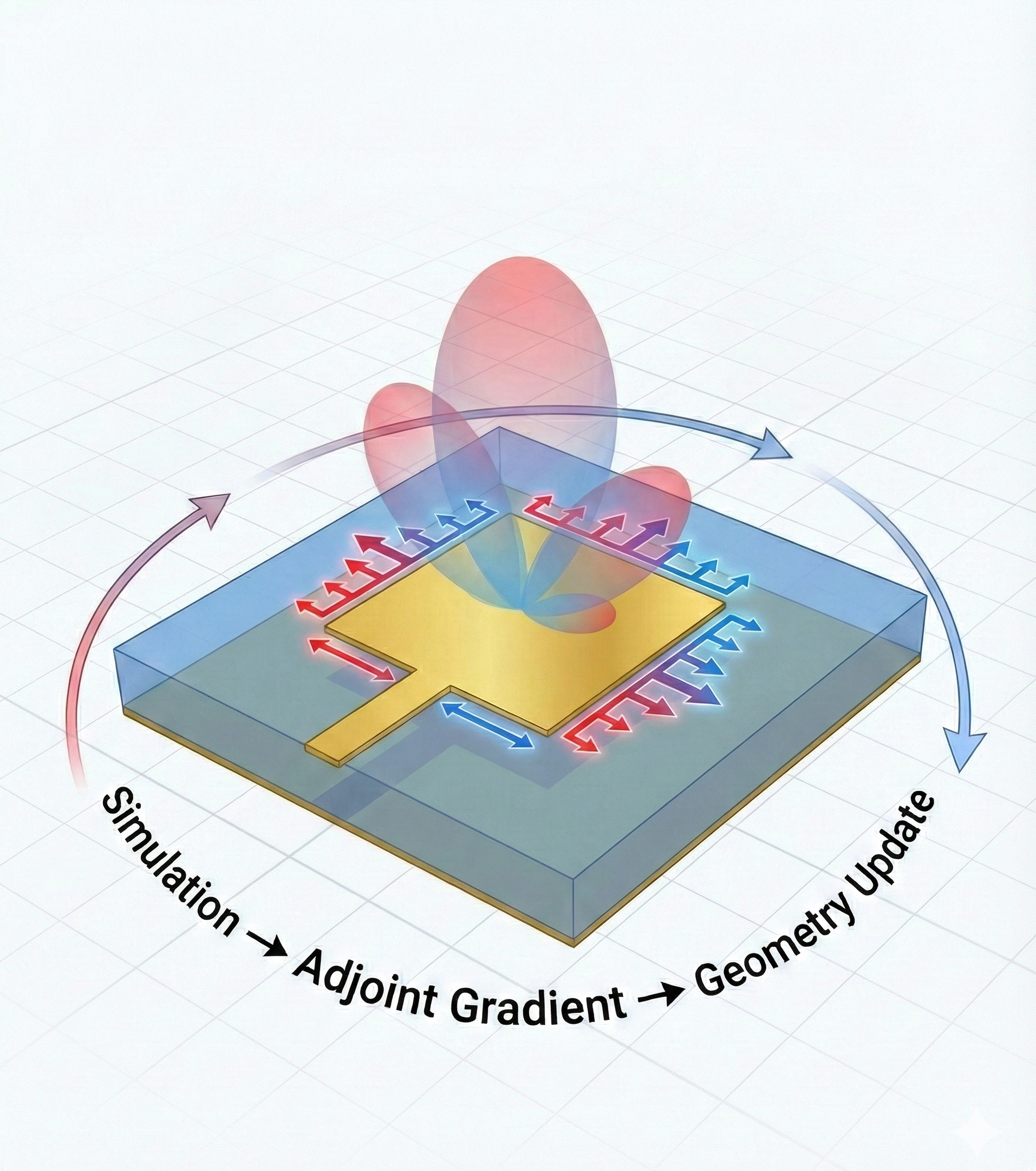

# length scales and geometric parameters for optimization
mm = 1e3  # mm scaling

# feedline parameters
feed_x = 2.46 * mm  # width of feed
feed_y = 20 * mm  # length of feed
feed_offset = 2.09 * mm  # feed offset from center of patch

# substrate geometric parameters
sub_width = 23.34 * mm
sub_height_extension = 25 * mm

sub_x = [-0.5 * sub_width, 0.5 * sub_width]
sub_y = [-feed_y, sub_height_extension]
sub_z = 0.68 * mm

# center and size for placing directivity and far field monitors to capture radiation from the
# antenna patch
directivity_center_x = np.mean(sub_x)
directivity_center_y = np.mean(sub_y)
directivity_size_x = 5 * mm + sub_x[1] - sub_x[0]
directivity_size_y = 5 * mm + sub_y[1] - sub_y[0]

# frequency range (Hz) for simulating
freq_start = 7e9
freq_stop = 11e9
# simulation frequencies to cover enough bandwidth for evaluating and optimizing antennas
opt_sim_freqs = [8e9, 10e9]

freq0 = 0.5 * (freq_start + freq_stop)  # central frequency
wavelength0 = td.C_0 / freq0  # wavelength of central frequency in vacuum

# frequencies for computing S-parameters of antennas
freqs_s_params = np.linspace(freq_start, freq_stop, 200)

# frequencies for optimizing different
opt_freqs = [8.25e9]  # single patch target frequency

# set ranges of theta and phi to record directivity for
theta_directivity = np.linspace(-np.pi, np.pi, 201)
phi_directivity = np.linspace(0, np.pi, 101)

# set the optimization theta, phi grid for enhancing directivity around theta=0
num_theta_opt_points = 12
theta_opt = theta_directivity[
    (len(theta_directivity) // 2) - (num_theta_opt_points // 2) : (len(theta_directivity) // 2)
    + (num_theta_opt_points // 2)
    + 1
]
phi_opt = phi_directivity  # use the full phi sweep, but limit the theta points to be centered around 0 degrees

# materials for optimization
air = td.Medium()  # set up the antennas so they radiate into air
# choose common PCB material, ArlonAD255C, from the RF material library to use as substrate
sub_medium = rf_material_library["AD255C"]["design"]
PEC = td.PEC2D  # thickness-free PEC medium for antenna patches, feed lines, and the ground plane

def create_base_sim():
    """
    Creates the base simulation for evaluating and optimizing patch antennas. The base simulation includes the
    substrate geometry, and ground plane. It also overrides a vertical slice of the simulation where the feed and
    patch will be placed with a fine mesh override to ensure accurate simulation and gradients near the PEC boundaries.
    """
    substrate_box = td.Box.from_bounds(
        [sub_x[0], sub_y[0], -sub_z / 2.0],
        [sub_x[1], sub_y[1], sub_z / 2.0],
    )
    # Define substrate structure
    substrate = td.Structure(
        geometry=substrate_box,
        medium=sub_medium,
    )

    # Define ground plane structure and assign the material by PEC
    ground_plane = td.Structure(
        geometry=substrate_box.updated_copy(
            center=list(substrate_box.center[0:2]) + [-sub_z / 2.0],
            size=list(substrate_box.size[0:2]) + [0],
        ),
        medium=PEC,
    )

    # list of structures for the simulation arranged first by dielectric and then PEC to
    # ensure PEC takes precedence at interfaces.
    structures_list = [substrate, ground_plane]

    # PML wavelength at 10 GHz
    wl_pml = wavelength0

    # quarter wavelength (at 10 GHz) padding on each side
    sim_x_size = sub_x[1] - sub_x[0] + wl_pml / 2.0
    sim_y_size = sub_y[1] - sub_y[0] + wl_pml / 2.0
    sim_y_center = np.mean(sub_y)

    sim_z_max = sub_z + 1.5 * wavelength0
    sim_z_min = sub_z - 0.5 * wavelength0
    sim_z_center = 0.5 * (sim_z_max + sim_z_min)
    sim_z_size = sim_z_max - sim_z_min

    # set a fine mesh for the corner refinement based on the center wavelength
    dl = wavelength0 / 200.0
    mesh_override_vertical_padding = 1 * mm

    layer_refinement_ground = td.LayerRefinementSpec.from_structures(
        axis=2, min_steps_along_axis=3, structures=[ground_plane]
    )

    layer_refinement_patch = td.LayerRefinementSpec(
        center=(0, sim_y_center, sub_z / 2),
        size=(td.inf, td.inf, mesh_override_vertical_padding),
        axis=2,
        min_steps_along_axis=3,
        corner_refinement=td.GridRefinement(dl=dl, num_cells=3),
    )

    layer_refinement_substrate = td.LayerRefinementSpec.from_structures(
        axis=2, structures=[substrate], min_steps_along_axis=3
    )

    # Truncate the computational domain by PMLs
    boundary_spec = td.BoundarySpec(
        x=td.Boundary.pml(),
        y=td.Boundary.pml(),
        z=td.Boundary.pml(),
    )

    # Create the simulation object
    base_sim = td.Simulation(
        center=[0.0, sim_y_center, sim_z_center],
        size=[sim_x_size, sim_y_size, sim_z_size],
        grid_spec=td.GridSpec.auto(
            min_steps_per_wvl=20,  # largest cell size is set to 20 cells per smallest wavelength.
            wavelength=td.C_0 / freq_stop,  # smallest wavelength to resolve
            layer_refinement_specs=[
                layer_refinement_ground,
                layer_refinement_substrate,
                layer_refinement_patch,
            ],
        ),
        structures=structures_list,
        sources=[],  # sources will be added by TerminalComponentModeler
        monitors=[],
        run_time=70 * (substrate.geometry.size[1] / td.C_0),
        boundary_spec=boundary_spec,
        plot_length_units="mm",  # this option will make plots default to units of millimeters.
    )

    return base_sim

def create_simulation_with_patches(base_sim, patch_boxes, monitors):
    """
    Creates a new simulation from the base simulation that includes PEC patches for all of the Box
    objects in patch_boxes as well as adds a feed line.
    """
    patches = []
    for patch_box in patch_boxes:
        patches.append(td.Structure(geometry=patch_box, medium=PEC))

    feed_geometry = td.Box.from_bounds(
        [feed_offset - 0.5 * feed_x, -feed_y, sub_z / 2], [feed_offset + 0.5 * feed_x, 0, sub_z / 2]
    )

    feed = td.Structure(geometry=feed_geometry, medium=PEC)

    return base_sim.updated_copy(
        structures=list(base_sim.structures) + [feed] + patches,
        monitors=list(base_sim.monitors) + monitors,
    )

def create_modeler(simulation, frequencies, radiation_monitors=(), port_impedance=50):
    """
    Creates the LumpedPort and TerminalComponentModeler based on a `simulation`, the desired
    simulation `frequencies`, `radiation_monitors` for computing directivity, and a `port_impedance`.
    """
    # Setup a LumpedPort for the TerminalComponentModeler, which is needed
    # to end the port with a matched load as well as providing a source for the simulation.
    port = smatrix.LumpedPort(
        center=[feed_offset, -feed_y, 0],
        size=[feed_x, 0, sub_z],
        voltage_axis=2,
        name="lumped_port",
        impedance=port_impedance,
    )

    # We integrate the base simulation with the LumpedPort using the TerminalComponentModeler.
    # This allows us to compute scattering parameters and extract any additional data needed from the simulation.
    modeler = smatrix.TerminalComponentModeler(
        simulation=simulation,
        ports=[port],
        freqs=frequencies,
        remove_dc_component=False,  # include DC component for more accuracy at low frequencies
        radiation_monitors=radiation_monitors,
    )

    return modeler

def plot_structures_and_mesh(patch_boxes):
    """Plots the antenna structure and surrounding mesh to ensure it looks as expected before running simulations."""
    base_sim = create_base_sim()

    no_additional_monitors = []
    sim_with_patches = create_simulation_with_patches(base_sim, patch_boxes, no_additional_monitors)

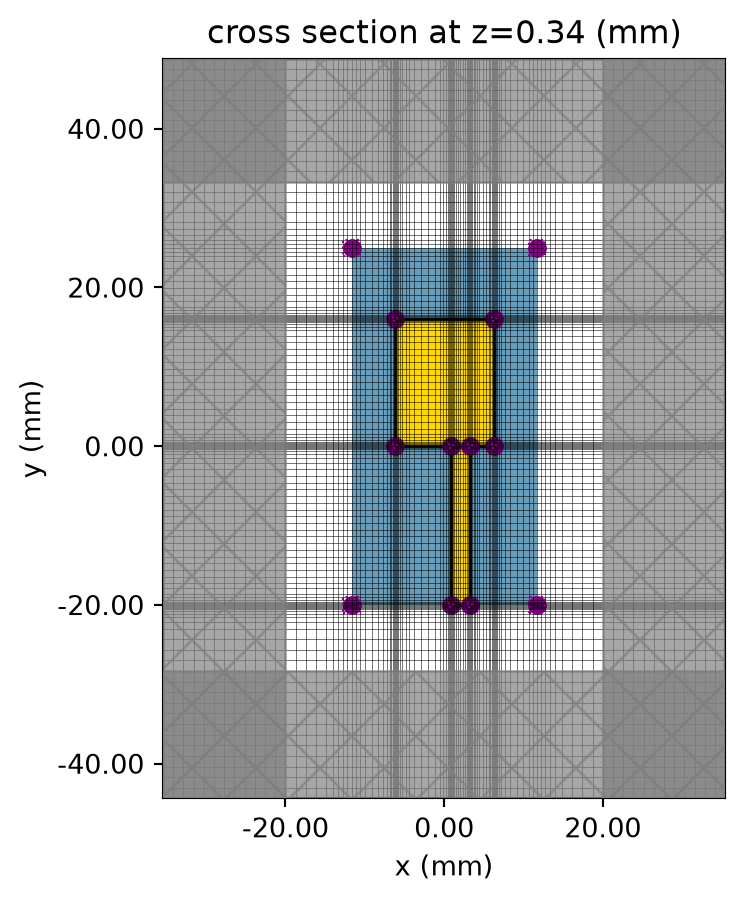

    fig, ax = plt.subplots()

    # examine the structure and mesh in the x-y plane
    sim_with_patches.plot(
        z=sub_z / 2,
        ax=ax,
        monitor_alpha=0.2,
    )
    sim_with_patches.plot_grid(z=sub_z / 2, ax=ax)

    plt.show()

def evaluate_antenna(patch_params, eval_s_params_freqs):
    """
    Evaluate the S11 parameter and realized gain in both polarizations for the given antenna geometry.
    The S11 is calculated across a broad spectrum while the realized gain is only computed for the opt_freqs.
    """
    patch_boxes = params_to_boxes(patch_params)

    base_sim = create_base_sim()
    no_additional_monitors = []
    sim_with_patches = create_simulation_with_patches(base_sim, patch_boxes, no_additional_monitors)

    monitor_directivity = td.DirectivityMonitor(
        center=[directivity_center_x, directivity_center_y, 0],
        size=(
            directivity_size_x,
            directivity_size_y,
            4 * mm,
        ),
        freqs=opt_freqs,
        name="directivity",
        phi=list(phi_directivity),
        theta=list(theta_directivity),
        far_field_approx=True,
    )

    # we only need whatever frequencies are unique in these two lists to have all the data we need for computing
    # S11 and gain
    eval_freqs = np.unique(list(eval_s_params_freqs) + list(opt_freqs))

    modeler = create_modeler(sim_with_patches, eval_freqs, radiation_monitors=[monitor_directivity])
    smatrix_data = run(modeler, task_name="smatrix", verbose=False)

    antenna_parameters_freq = smatrix_data.get_antenna_metrics_data(monitor_name="directivity")
    partial_realized_gain = antenna_parameters_freq.partial_realized_gain(pol_basis="linear")

    return smatrix_data, partial_realized_gain

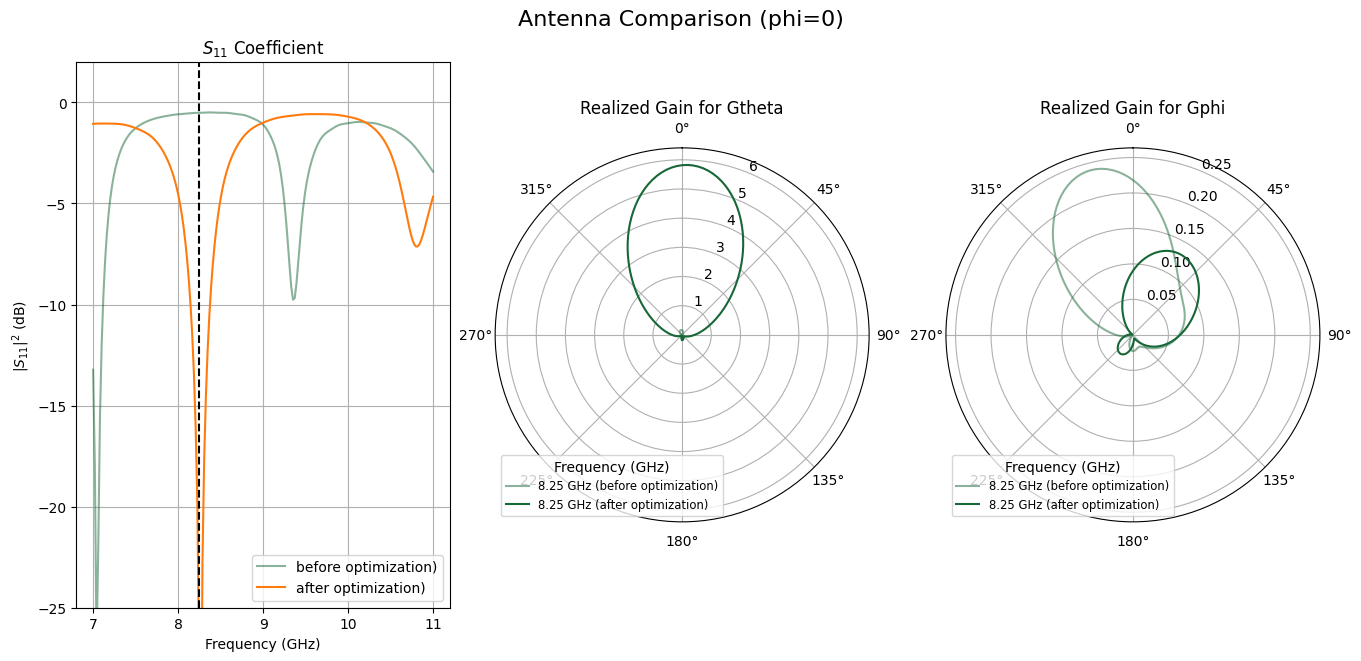

def plot_antenna_comparison(
    s_matrix_list,
    sim_data_list,
    partial_realized_gain_list,
    plot_phi,
    plot_title="Antenna Simulation Comparison",
    sim_names=None,
    single_color_gain_plots=False,
    savefig_fname=None,
):
    """
    Plots a comparison of two sets of simulation data.

    Args:
        s_matrix_list: List of S-matrix objects [s_matrix_sim1, s_matrix_sim2].
        sim_data_list: List of sim_data objects [sim_data_sim1, sim_data_sim2],
                       where each sim_data contains a "radiation" DirectivityMonitor output.
        partial_realized_gain_list: List of realized gain in linear polarization for each simulation.
        plot_phi: The phi value to select in the realized gain data for plotting.
        plot_title: Optional title to specify for plot (default is "Antenna Simulation Comparison").
        sim_names: Optional list of names for simulations for clearer legends.
        single_color_gain_plots: Optional choice to use a single color for all the frequencies
                                 in the gain plot (True) or have each frequency a different
                                 color (False). Default is False.
        savefig_fname: An optional filename to save the resulting figure
    """

    num_simulations = len(s_matrix_list)
    if num_simulations != 2 or len(sim_data_list) != 2:
        print("Warning: This function is designed to compare exactly two simulations.")

    alphas = [0.5, 1.0]  # Alpha for sim1, sim2
    if sim_names is None or len(sim_names) != num_simulations:
        sim_names = [f"Sim {i + 1}" for i in range(num_simulations)]

    grid_spec_cols = 3  # S11 and realized gain for each polarization side-by-side
    fig_width = grid_spec_cols * 4.5
    fig_height = 6.5

    num_rows = 1

    fig = plt.figure(figsize=(fig_width, fig_height), constrained_layout=True)
    gs = fig.add_gridspec(num_rows, grid_spec_cols)
    axs_list = []

    # plot the S11 parameter comparison for each simulation
    ax_s11 = fig.add_subplot(gs[0, 0])
    axs_list.append(ax_s11)
    ax_s11.set_title("$S_{11}$ Coefficient")
    ax_s11.set_xlabel("Frequency (GHz)")
    ax_s11.set_ylabel("$|S_{11}|^2$ (dB)")

    for sim_idx in range(num_simulations):
        s_matrix = s_matrix_list[sim_idx]
        current_alpha = alphas[sim_idx]
        sim_label_name = sim_names[sim_idx]

        s11_freqs_ghz = s_matrix.data.coords["f"] / 1e9
        s11_data_selection = s_matrix.data.isel(port_out=0, port_in=0)

        s11_values_flat = s11_data_selection.values.flatten()
        s11_values_db = 20 * np.log10(np.abs(s11_values_flat))
        ax_s11.plot(
            s11_freqs_ghz,
            s11_values_db,
            alpha=current_alpha,
            label=f"{sim_label_name})",
        )

    for opt_freq in opt_freqs:
        ax_s11.axvline(x=opt_freq / 1e9, color="k", linestyle="--")

    ax_s11.set_ylim(-25, 2)
    ax_s11.grid(True)
    ax_s11.legend()

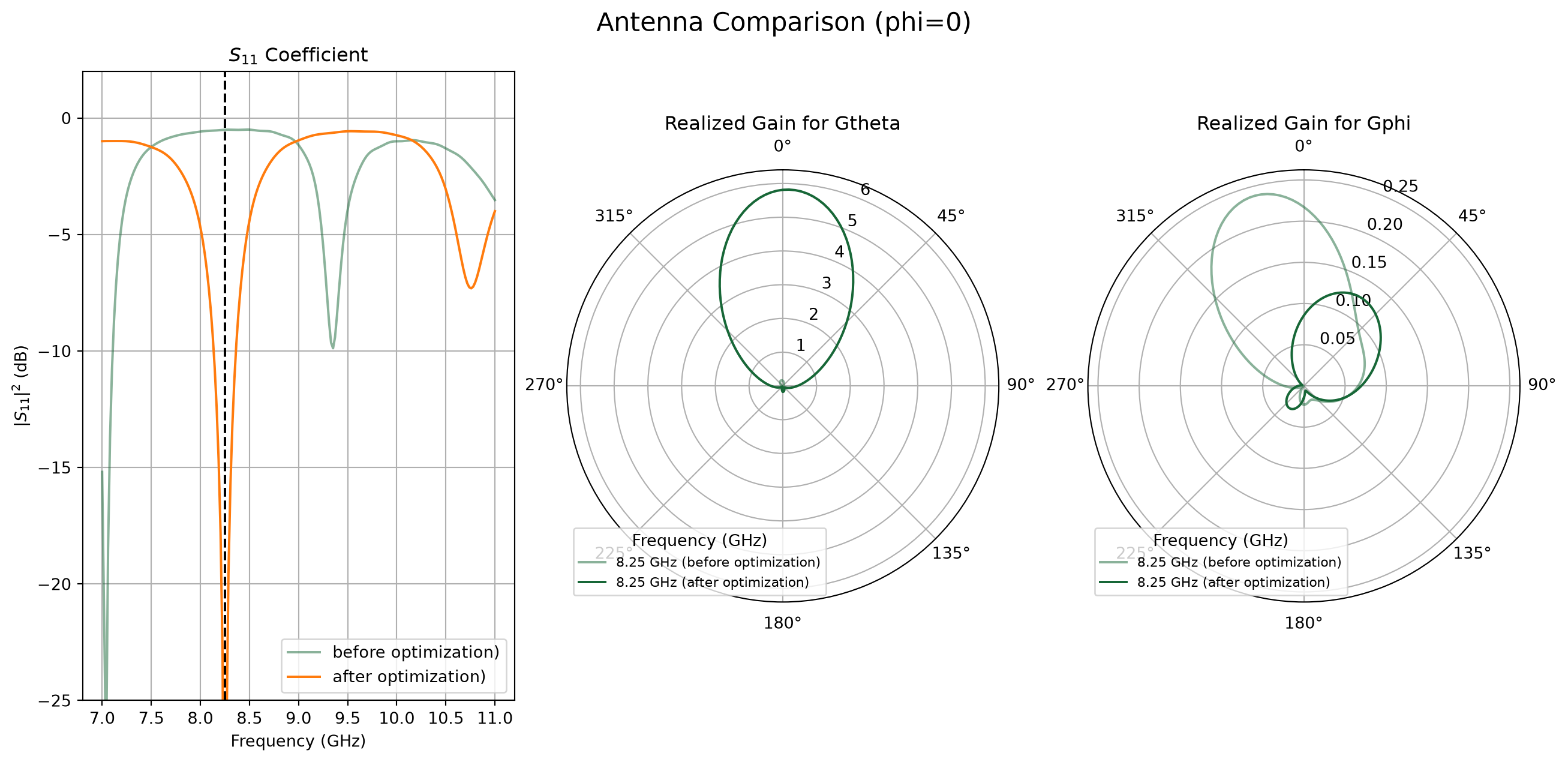

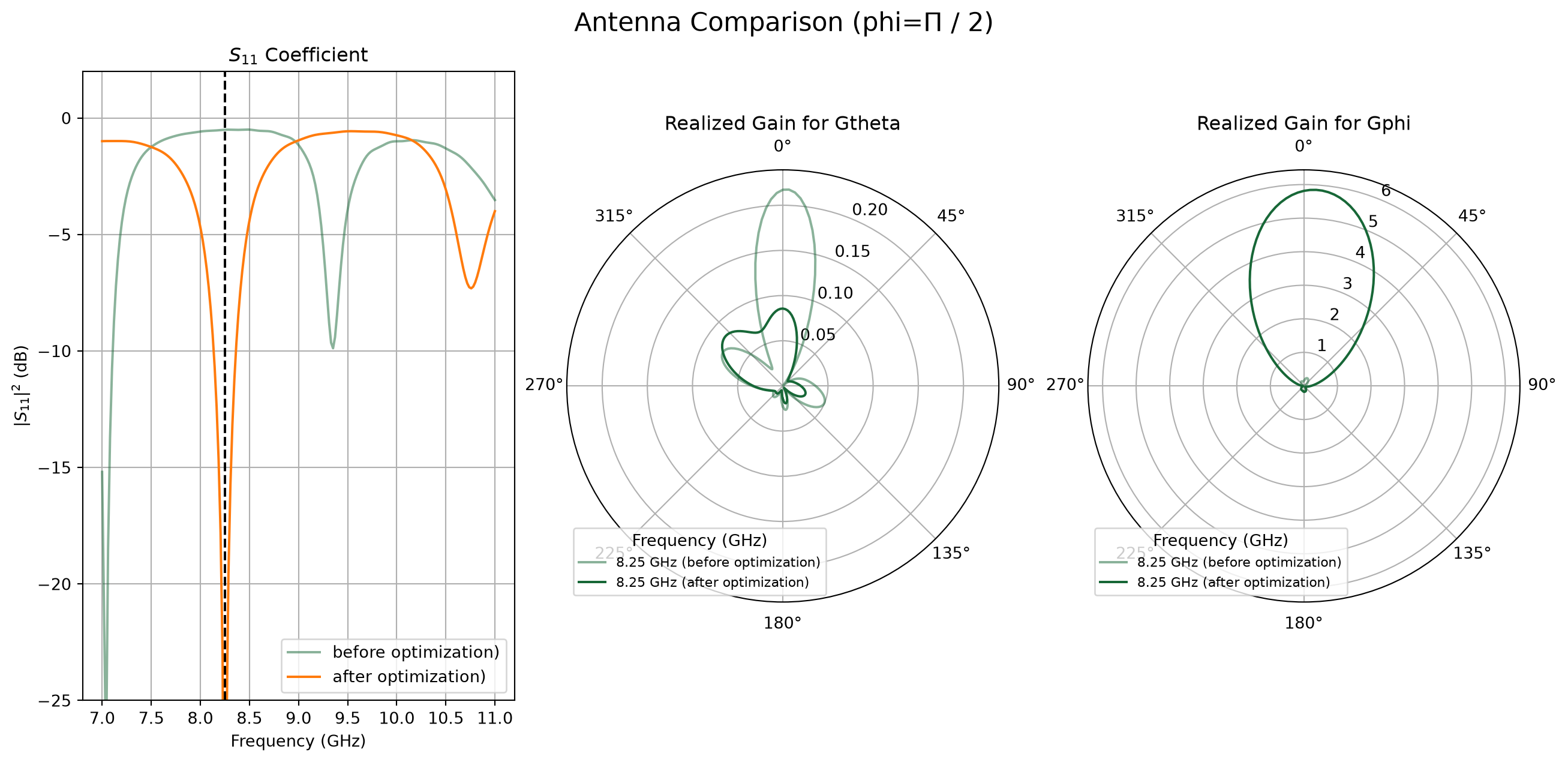

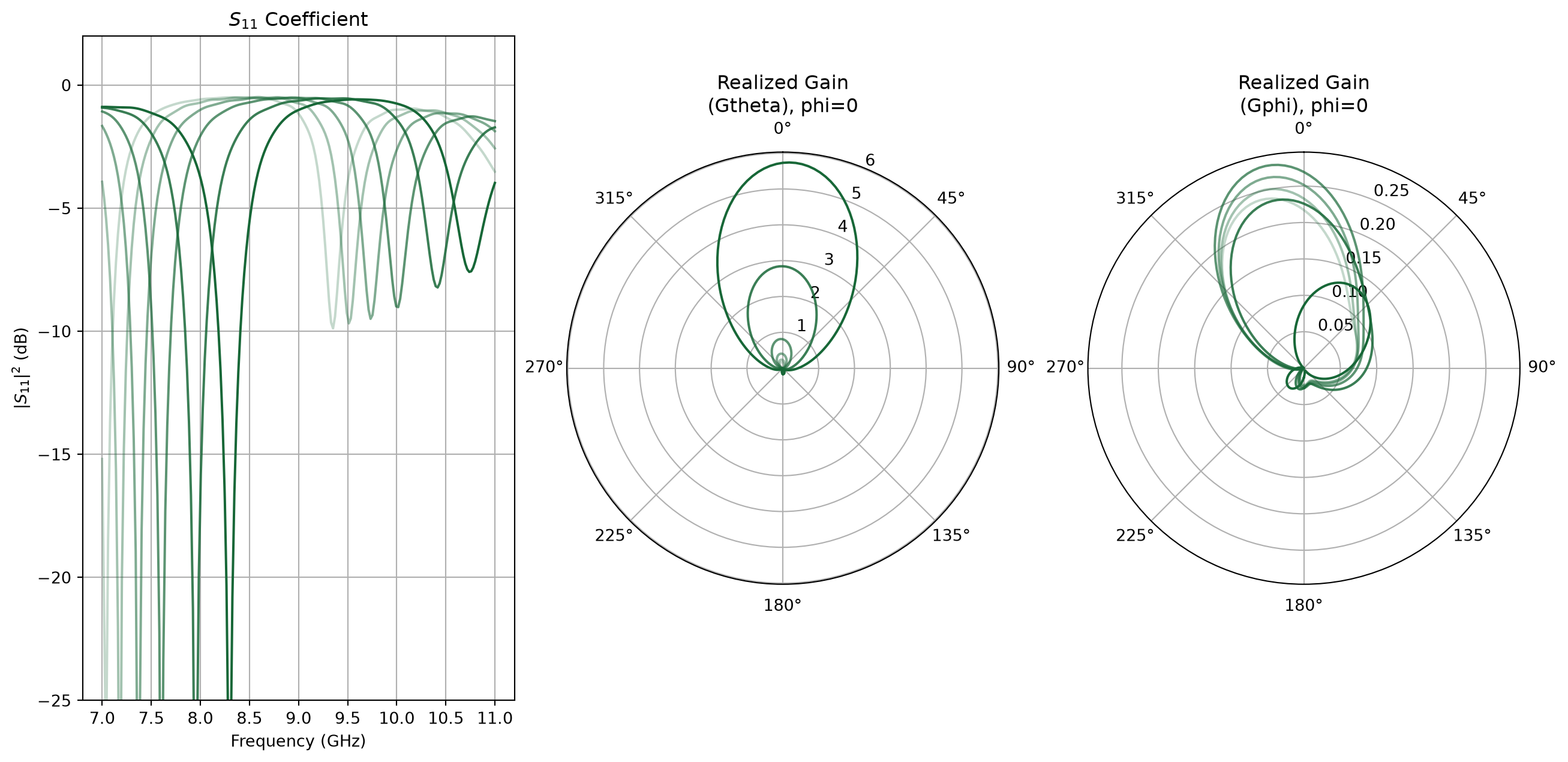

    # for each linear polarization component, plot the realized gain for each linear polarization
    polarization_components = ["Gtheta", "Gphi"]

    for pol_idx, pol_component in enumerate(polarization_components):
        ax_polar = fig.add_subplot(gs[0, 1 + pol_idx], projection="polar")
        axs_list.append(ax_polar)
        ax_polar.set_title(f"Realized Gain for {pol_component}")

        ax_polar.set_theta_direction(-1)
        ax_polar.set_theta_offset(np.pi / 2.0)
        ax_polar.grid(True)
        ax_polar.set_rlabel_position(22.5)

        overall_max_gain = -np.inf
        color_cycle = plt.rcParams["axes.prop_cycle"].by_key()["color"]

        for freq_idx, eval_freq in enumerate(opt_freqs):
            base_color = color_cycle[freq_idx % len(color_cycle)]
            if single_color_gain_plots:
                base_color = color_cycle[0]
            freq_label_for_legend = f"{eval_freq / 1e9:.2f} GHz"

            # Plot data for each simulation for the current frequency
            for sim_idx in range(num_simulations):
                current_alpha = alphas[sim_idx]

                if single_color_gain_plots:
                    base_color = color_cycle[sim_idx]

                realized_gain_data = partial_realized_gain_list[sim_idx][pol_component].sel(
                    f=eval_freq, phi=plot_phi, method="nearest"
                )

                gain_values_for_plot = realized_gain_data.squeeze().values

                current_max_val = np.max(gain_values_for_plot)
                if current_max_val > overall_max_gain:
                    overall_max_gain = current_max_val

                # Label only the second simulation's line (alpha=1.0) for the legend entry of this frequency
                label_to_use = f"{freq_label_for_legend} ({sim_names[sim_idx]})"
                ax_polar.plot(
                    theta_directivity,
                    gain_values_for_plot,
                    color=base_color,
                    alpha=current_alpha,
                    label=label_to_use,
                )

        ax_polar.set_rlim(0, overall_max_gain * 1.1 if overall_max_gain > 0 else 1.0)
        ax_polar.legend(title="Frequency (GHz)", loc="best", fontsize="small")

    fig.suptitle(plot_title, fontsize=16)

    if savefig_fname:
        plt.savefig(savefig_fname)

    plt.show()


def plot_antenna_evolution(s11_sq_dB, s11_f, partial_realized_gain, gain_freqs):
    """Plots the evolution of the antenna S11 and and realized gain throughout an optimization.
    Args:
        s11_sq_dB: List of |S11|^2 (in dB) at each point in optimization. The length should match the
                   length of `partial_realized_gain`
        s11_f: Frequencies for each S11 array
        partial_realized_gain: List of realized gain objects broken into linear polarization. The length
                               of this list should match the length of `s11_sq_dB`
        gain_freqs: List of frequencies for each realized gain object.
    """
    num_lines = len(s11_sq_dB)

    alphas = np.linspace(0.25, 1.0, num_lines)

    fig_width = 13.5
    fig_height = 6.5

    fig = plt.figure(figsize=(fig_width, fig_height), constrained_layout=True)
    num_rows = 1
    grid_spec_cols = 3
    gs = fig.add_gridspec(num_rows, grid_spec_cols)
    axs_list = []

    ax_s11 = fig.add_subplot(gs[0, 0])
    axs_list.append(ax_s11)
    ax_s11.set_title("$S_{11}$ Coefficient")
    ax_s11.set_xlabel("Frequency (GHz)")
    ax_s11.set_ylabel("$|S_{11}|^2$ (dB)")

    color_cycle = plt.rcParams["axes.prop_cycle"].by_key()["color"]

    for idx in range(0, num_lines):
        ax_s11.plot(s11_f, s11_sq_dB[idx], color=color_cycle[0], linewidth=1.5, alpha=alphas[idx])

    ax_s11.set_ylim(-25, 2)
    ax_s11.grid(True)

    def add_polar_sequence(grid_col, pol_component, title):
        ax_polar = fig.add_subplot(gs[0, grid_col], projection="polar")
        axs_list.append(ax_polar)
        ax_polar.set_title(f"Realized Gain for {pol_component}")

        ax_polar.set_theta_direction(-1)
        ax_polar.set_theta_offset(np.pi / 2.0)
        ax_polar.grid(True)
        ax_polar.set_rlabel_position(22.5)

        for idx in range(0, num_lines):
            partial_realized_gain_batch = partial_realized_gain[idx][pol_component]
            partial_realized_gain_batch = np.reshape(
                partial_realized_gain_batch, (len(gain_freqs), len(theta_directivity))
            )

            for freq_idx in range(0, len(gain_freqs)):
                gain_values_for_plot = partial_realized_gain_batch[freq_idx]

                ax_polar.plot(
                    theta_directivity,
                    gain_values_for_plot,
                    color=color_cycle[freq_idx],
                    alpha=alphas[idx],
                )

            ax_polar.set_title(title)

    add_polar_sequence(1, "Gtheta", "Realized Gain\n(Gtheta), phi=0")
    add_polar_sequence(2, "Gphi", "Realized Gain\n(Gphi), phi=0")

    plt.show()

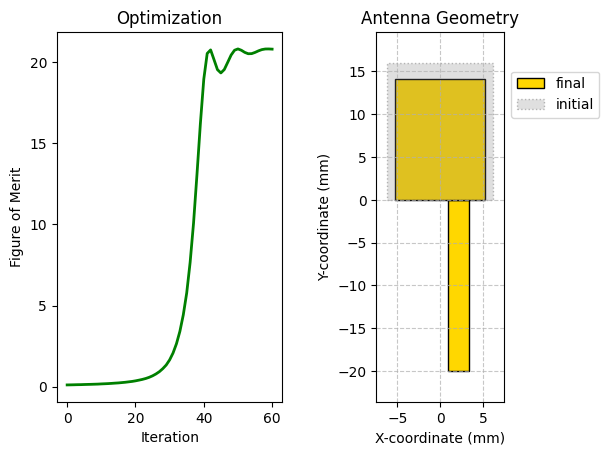

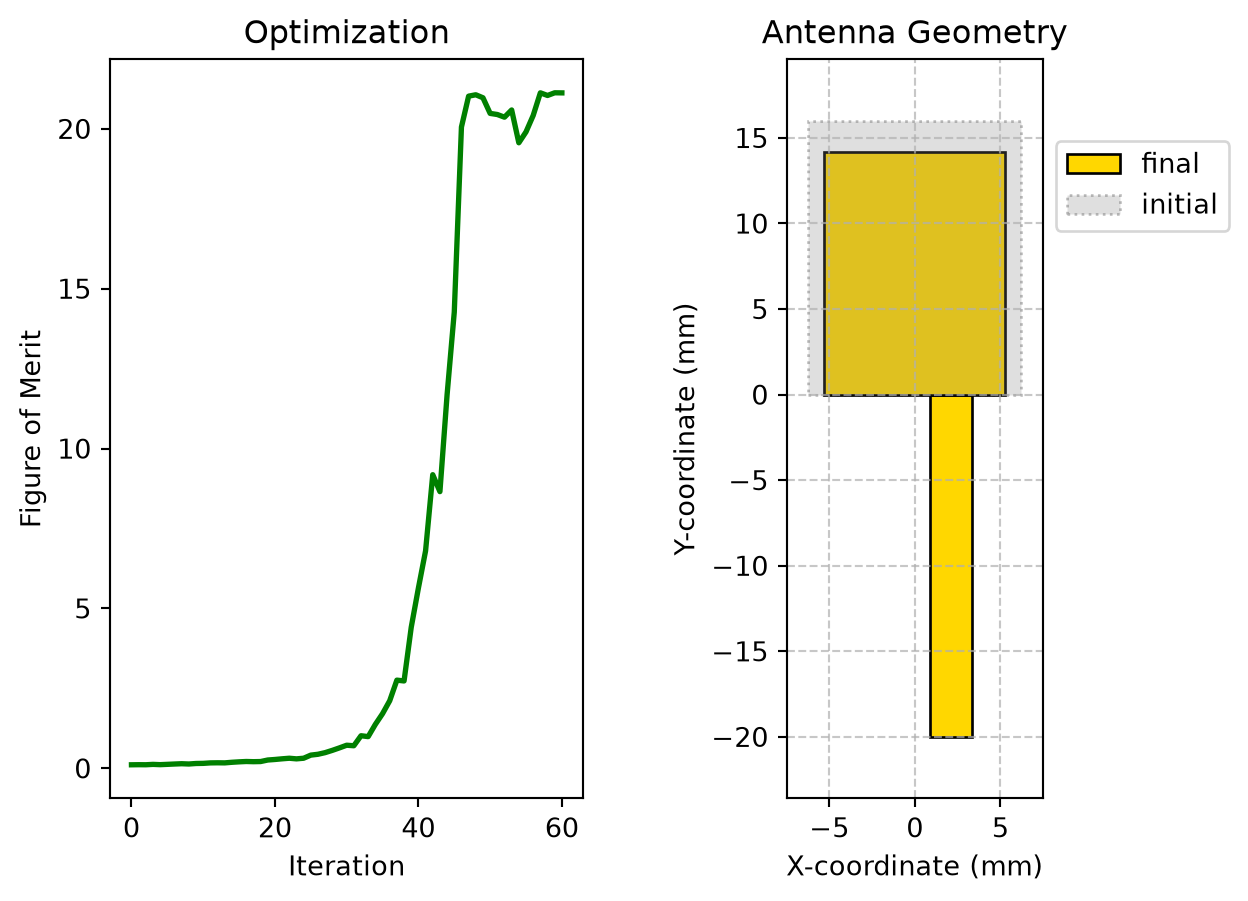

def plot_optimization_results(
    figure_of_merit, feed_rect, init_rectangles, final_rectangles, savefig_fname=None
):
    """
    Plots a main rectangle and two lists of other rectangles with specified styles.

    Args:
        figure_of_merit: Figure of merit for each iteration during the optimization.
        feed_rect: The rectangular corresponding to the feed line.
        init_rectangles: A list of rectangles corresponding to the initial state
                         of the optimization.
        final_rectangles: A list of rectangles corresponding to the final condition
                         of the optimization.
        savefig_fname: Optional filename to save the resulting figure.

    """
    fig, ax = plt.subplots(1, 2)
    ax[1].set_aspect("equal", adjustable="box")

    all_rects_params = []  # to store (x_bl, y_bl, width, height) for limit calculation

    # helper function to add a rectangle and collect its parameters
    def add_rectangle_to_plot(
        rect_obj, facecolor, alpha=1.0, edgecolor="black", linestyle="solid", legend=None
    ):
        """
        Adds a single rectangle to the plot and collects its parameters.

        Args:
            rect_obj: The rectangle object with 'center' and 'size'.
            facecolor: The face color of the rectangle.
            alpha: Optional transparency of the rectangle.
            edgecolor: Optional edge color of the rectangle.
            linestyle: Optional line style of the rectangle's border.
            legend: Optional legend entry to use for this rectangle.
        """
        center_x, center_y, _ = (coord / mm for coord in rect_obj.center)
        width, height, _ = (sz / mm for sz in rect_obj.size)

        # Calculate bottom-left corner coordinates
        bottom_left_x = center_x - width / 2
        bottom_left_y = center_y - height / 2

        all_rects_params.append((bottom_left_x, bottom_left_y, width, height))

        rect_patch = patches.Rectangle(
            (bottom_left_x, bottom_left_y),
            width,
            height,
            facecolor=facecolor,
            alpha=alpha,
            edgecolor=edgecolor,
            linestyle=linestyle,
            linewidth=1,  # Default linewidth for borders
            label=legend,
        )
        ax[1].add_patch(rect_patch)

    add_rectangle_to_plot(feed_rect, facecolor="gold", edgecolor="black")

    legends_init_rect = [
        "initial" if (idx == 0) else None for idx in range(0, len(init_rectangles))
    ]
    legends_final_rect = [
        "final" if (idx == 0) else None for idx in range(0, len(final_rectangles))
    ]

    # plot rectangles from the second list (gold)
    for idx, rect_obj in enumerate(final_rectangles):
        add_rectangle_to_plot(
            rect_obj, facecolor="gold", edgecolor="black", legend=legends_final_rect[idx]
        )  # Added black edge for consistency

    # plot rectangles from the first list (gray, 0.25 alpha, dotted black border)
    for idx, rect_obj in enumerate(init_rectangles):
        add_rectangle_to_plot(
            rect_obj,
            facecolor="gray",
            alpha=0.25,
            edgecolor="black",
            linestyle="dotted",
            legend=legends_init_rect[idx],
        )

    # calculate plot limits
    if all_rects_params:
        min_x = min(p[0] for p in all_rects_params)
        min_y = min(p[1] for p in all_rects_params)
        max_x = max(p[0] + p[2] for p in all_rects_params)  # max x is bottom_left_x + width
        max_y = max(p[1] + p[3] for p in all_rects_params)  # max y is bottom_left_y + height

        # add some padding to the limits
        padding_x = (max_x - min_x) * 0.1 if (max_x - min_x) > 0 else 1
        padding_y = (max_y - min_y) * 0.1 if (max_y - min_y) > 0 else 1

        ax[1].set_xlim(min_x - padding_x, max_x + padding_x)
        ax[1].set_ylim(min_y - padding_y, max_y + padding_y)
    else:
        # default limits if no rectangles are plotted
        ax[1].set_xlim(-5, 5)
        ax[1].set_ylim(-5, 5)

    ax[1].set_title("Antenna Geometry")
    ax[1].set_xlabel("X-coordinate (mm)")
    ax[1].set_ylabel("Y-coordinate (mm)")
    ax[1].grid(True, linestyle="--", alpha=0.7)

    ax[1].legend(loc="lower left", bbox_to_anchor=(1.0, 0.75))

    ax[0].plot(figure_of_merit, color="green", linewidth=2)
    ax[0].set_title("Optimization")
    ax[0].set_xlabel("Iteration")
    ax[0].set_ylabel("Figure of Merit")

    if savefig_fname:
        plt.savefig(savefig_fname)

    plt.show()

def compute_poynting_and_s11(
    patch_params,
    log_simulation_cost=False,
):
    """
    Computes the Poynting flux for an antenna. The antenna parameters are specified in and
    `patch_params` are converted these parameters to simulation objects. These objects are inserted
    into a base simulation. After setup, the antenna simulation is run to compute the `S11` and the
    Poynting flux considering just the angular components in the `FieldProjectionAngleMonitor`.
    """
    base_sim = create_base_sim()

    # set up monitor that will be used as a data source for far field projection
    monitor_radiation = td.FieldMonitor(
        center=[directivity_center_x, directivity_center_y, 0.5 * sub_z + 5 * mm],
        size=(directivity_size_x, directivity_size_y, 0.0),
        freqs=opt_freqs,
        name="radiation",
        colocate=False,
    )
    # set up monitor that will be used to project radiation to the far field so we can
    # optimize for directivity
    monitor_far_field = td.FieldProjectionAngleMonitor(
        center=[directivity_center_x, directivity_center_y, 0.5 * sub_z + 5 * mm],
        size=(directivity_size_x, directivity_size_y, 0.0),
        freqs=opt_freqs,
        name="far_field",
        phi=phi_opt,
        theta=theta_opt,
        far_field_approx=True,
        proj_distance=50 * wavelength0,  # project far away form antenna
    )

    antenna_monitors = [monitor_radiation, monitor_far_field]

    # Add antenna patches to simulation
    sim_with_patches = create_simulation_with_patches(
        base_sim, params_to_boxes(patch_params), antenna_monitors
    )

    # Create the `TerminalComponentModeler` to add the source and get the simulation we can run
    # to evaluate the antenna performance
    modeler_freqs = sorted(set(list(opt_sim_freqs) + list(opt_freqs)))

    modeler = create_modeler(
        sim_with_patches,
        modeler_freqs,
    )

    # Run the simulations for the antenna
    if log_simulation_cost:
        job = td.web.Job(simulation=modeler, task_name="smatrix", verbose=False)
        smatrix_data = job.run()
        cost = td.web.real_cost(job.task_id)
        console.print(
            f"The antenna cost [bold yellow]{cost:.3f}[/bold yellow] FlexCredits to run. "
            f"Each iteration of the optimization will cost around "
            f"[bold cyan]{2 * cost:.3f}[/bold cyan] FlexCredits to complete."
        )
    else:
        smatrix_data = run(modeler, task_name="smatrix", verbose=False, local_gradient=False)

    # Set up a `FieldProjector` based on the 'radiation' monitor near the patch
    projector = td.FieldProjector.from_near_field_monitors(
        sim_data=smatrix_data.data["lumped_port"],
        near_monitors=[monitor_radiation],
        normal_dirs=["+"],  # we are projecting along the +z direction
    )
    # Project this near field into the subset of far field components
    # specified by the 'far_field' monitor
    radiation_data = projector.project_fields(monitor_far_field)
    poynting_flux = np.abs(
        np.real(
            0.5
            * (
                radiation_data.Etheta * np.conj(radiation_data.Hphi)
                - radiation_data.Ephi * np.conj(radiation_data.Htheta)
            )
        )
    )

    return poynting_flux, smatrix_data.smatrix()


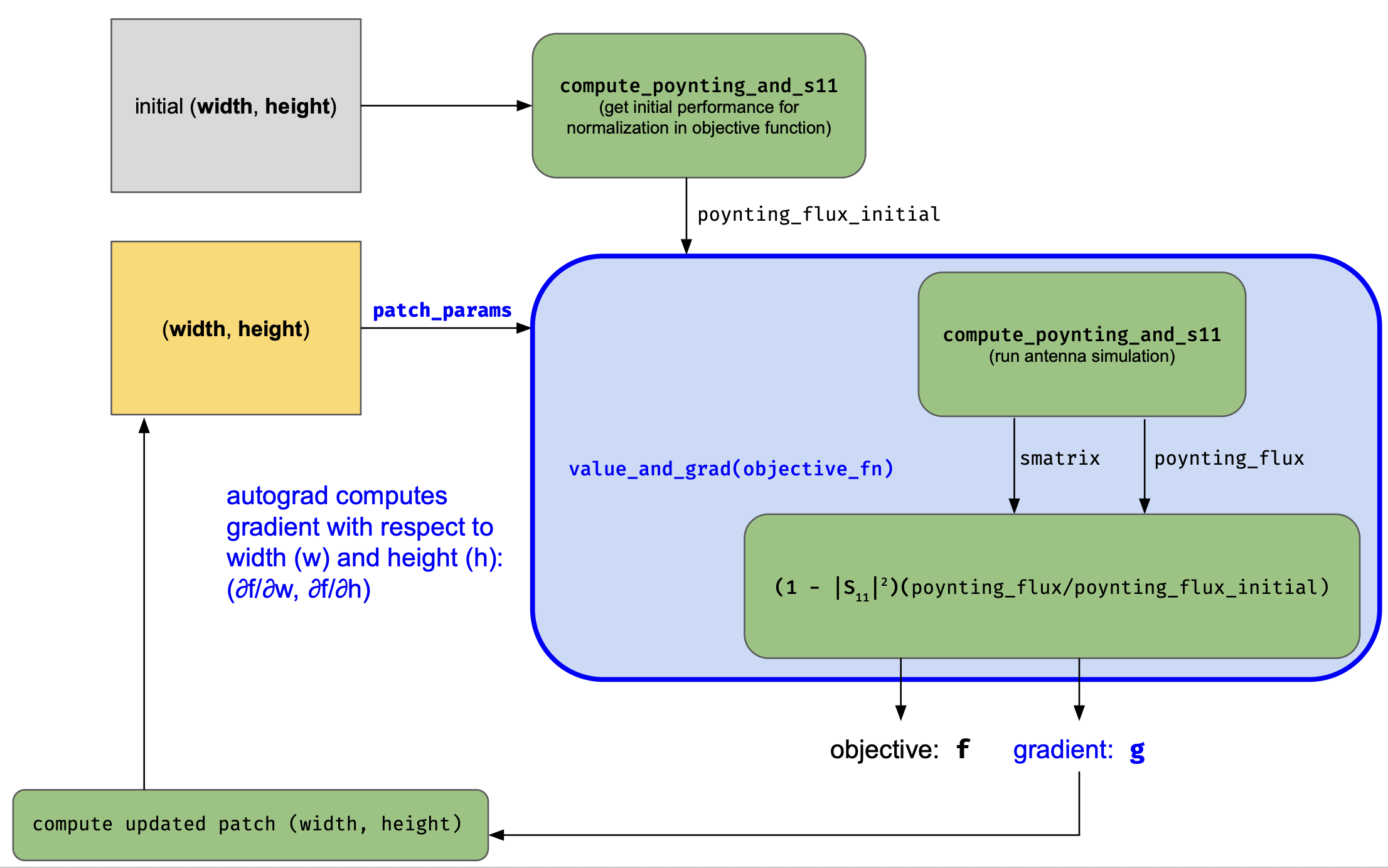

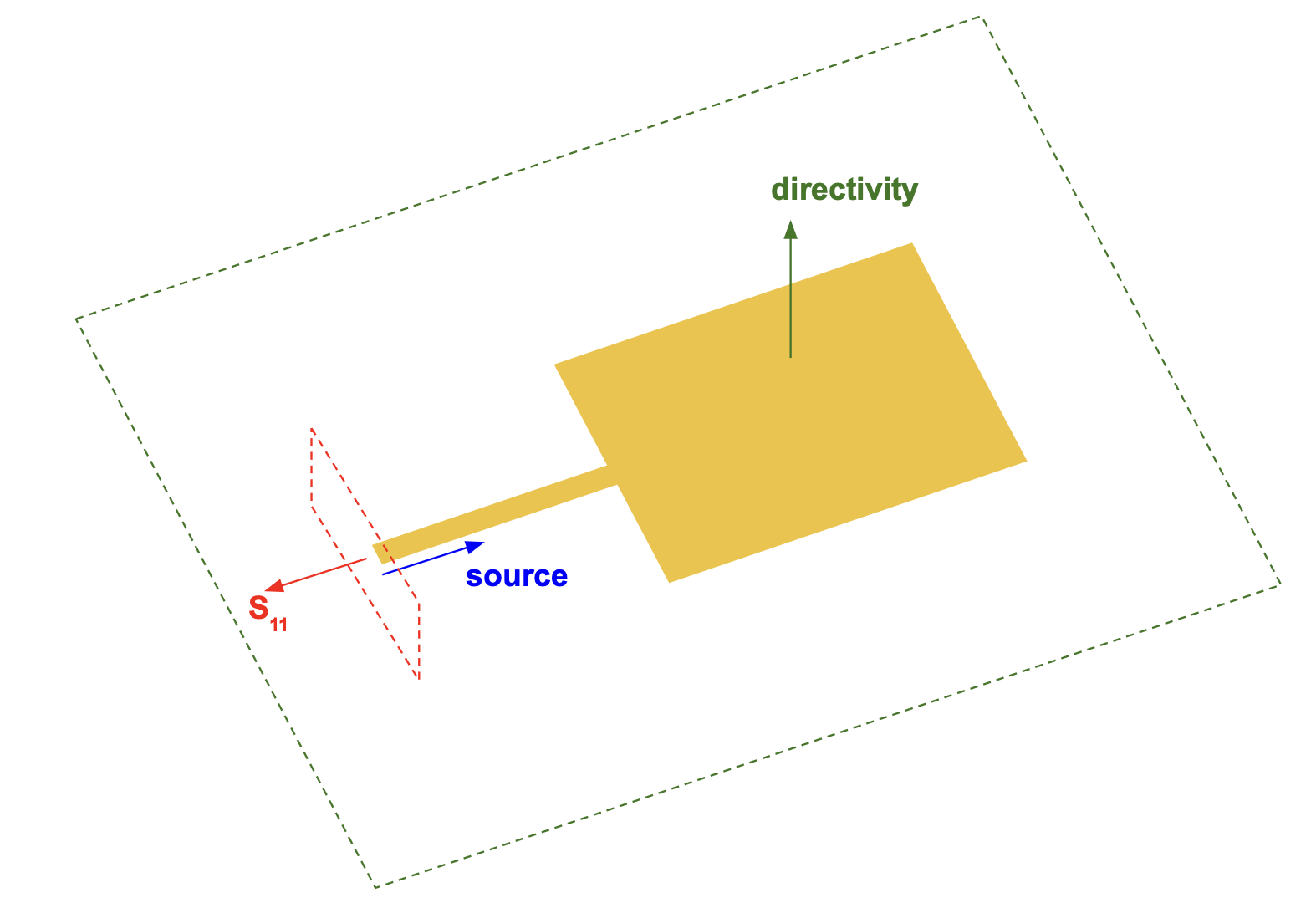

def objective_fn(patch_params, poynting_flux_initial):
    """
    Objective function for an antenna optimization that computes a product of the reflection
    efficiency and the increased flux in a set of optimization angles compared to the initial design.
    """

    def weights_from_merit(merit):
        """
        Computes performance based weights that sum to a total weight of 1.
        For a given frequency, the weights are inversely tied to the performance
        so that figures of merit that are lagging get favored more than those that
        are leading.
        """
        weights = (2.0 / len(merit)) - (merit**2 / anp.sum(merit**2))
        clip_weights = anp.maximum(weights, 0.0)

        inv_weights = 1.0 / anp.sum(clip_weights)
        renorm_weights = clip_weights * inv_weights

        return renorm_weights

    poynting_flux, smatrix = compute_poynting_and_s11(patch_params)

    fom_by_freq = []
    for freq in opt_freqs:
        directivity_metric = np.sum(poynting_flux.sel(f=freq).data) / np.sum(
            poynting_flux_initial.sel(f=freq).data
        )

        s11 = np.abs(smatrix.data.isel(port_out=0, port_in=0).sel(f=freq).data)

        fom = (1 - np.abs(s11) ** 2) * directivity_metric
        fom_by_freq.append(fom)

    fom_by_freq = anp.array(fom_by_freq)

    if len(fom_by_freq) > 1:
        weights = weights_from_merit(fom_by_freq)  # dynamic optimization weights
        return anp.sum(weights * fom_by_freq)
    else:
        return anp.sum(fom_by_freq)
