Grating couplers are photonic devices that couple light efficiently between optical fibers and integrated photonic waveguides. They work by diffracting light incident from above into the plane of the chip, enabling vertical fiber-to-chip coupling—a key functionality for scalable photonic integrated circuits. Vertical grating couplers are widely used because they simplify packaging and alignment compared to edge coupling, and can be designed with high efficiency for target wavelengths, such as the telecom band around 1.55 μm.

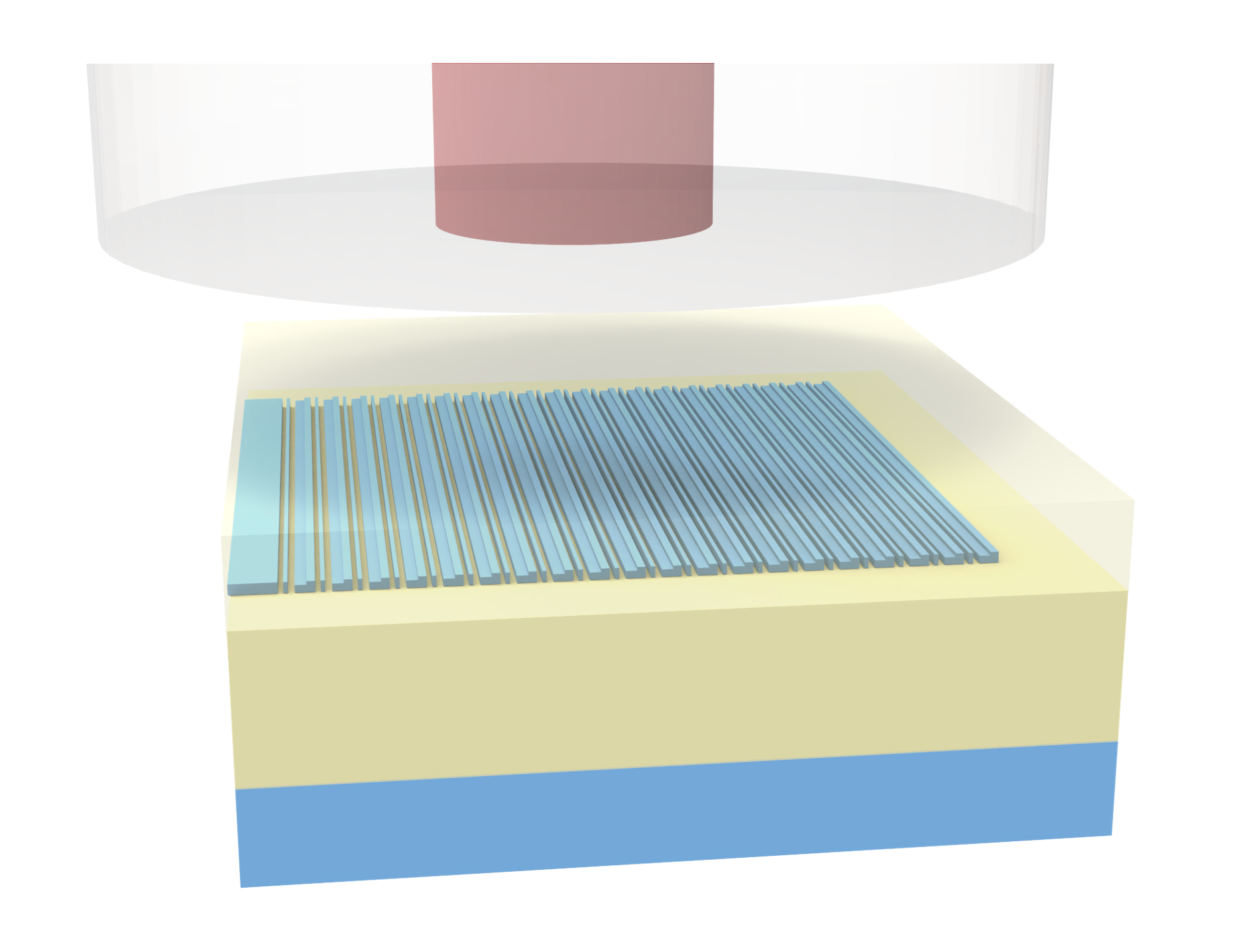

This notebook demonstrates the design optimization of a vertical grating coupler using the Bayesian optimizer from Tidy3D's design plugin. The optimized design achieves a < 2dB coupling efficiency. The design is based on the work T. Watanabe, M. Ayata, U. Koch, Y. Fedoryshyn and J. Leuthold, "Perpendicular Grating Coupler Based on a Blazed Antiback-Reflection Structure," in Journal of Lightwave Technology, vol. 35, no. 21, pp. 4663-4669, 1 Nov.1, 2017. DOI: 10.1109/JLT.2017.2755673.
[1]:
# Standard library imports
import matplotlib.pyplot as plt
import numpy as np
# Tidy3D imports
import tidy3d as td
import tidy3d.plugins.design as tdd
import tidy3d.web as web
Simulation Setup¶
We define the simulation parameters, including the wavelength range, fixed geometric parameters, and the materials (silicon and silicon oxide).
[2]:
# Define frequency and wavelength range
lda0 = 1.55 # Central wavelength
freq0 = td.C_0 / lda0 # Central frequency
ldas = np.linspace(1.5, 1.6, 101) # Wavelength range
freqs = td.C_0 / ldas # Frequency range
fwidth = 0.5 * (np.max(freqs) - np.min(freqs)) # Frequency width of the source
[3]:
# Geometric parameters
h_si = 0.22 # Silicon thickness
h_etch = 0.07 # Etch depth
h_box = 3 # Buried oxide thickness
h_clad = 1.5 # Cladding thickness
n = 20 # Number of grating periods
mfd = 10.4 # Mode field diameter
ly = 15 # Grating size in y
# Materials
n_si = 3.45
mat_si = td.Medium(permittivity=n_si**2)
n_sio2 = 1.45
mat_sio2 = td.Medium(permittivity=n_sio2**2)

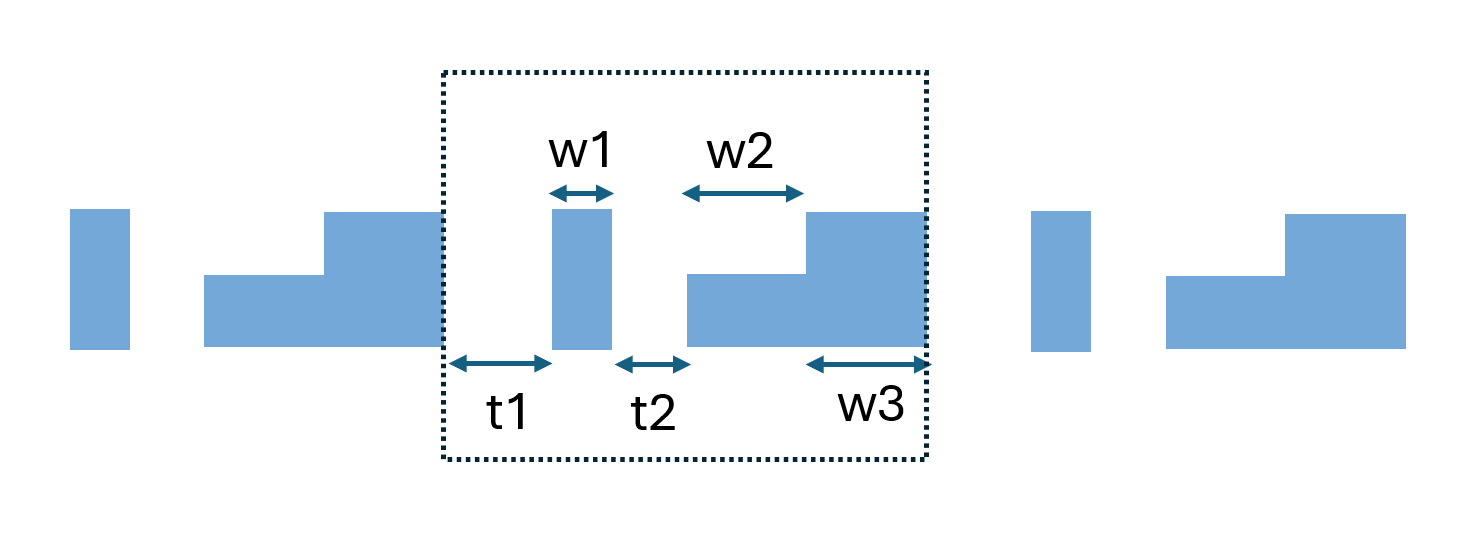

The grating coupler geometry is parameterized by the thickness and width of the grating teeth (t1, t2, w1, w2, w3). The make_grating function constructs the grating geometry, and make_sim_2d creates the full Tidy3D simulation, including the waveguide, substrate, source, and monitors. We will start our optimization in 2D since it's much faster and cheaper. Then we will verify the optimal design with the full 3D simulation.
[4]:
def make_grating(t1, t2, w1, w2, w3):
"""Constructs the grating geometry based on parameters."""
p = t1 + t2 + w1 + w2 + w3 # Grating period
grating = 0
for i in range(n):
# First tooth section
grating += td.Box.from_bounds(
rmin=(i * p + t1, -ly / 2, 0), rmax=(i * p + t1 + w1, ly / 2, h_si)
)
# Etched section
grating += td.Box.from_bounds(
rmin=(i * p + t1 + w1 + t2, -ly / 2, 0),
rmax=(i * p + t1 + w1 + t2 + w2, ly / 2, h_si - h_etch),
)
# Second tooth section
grating += td.Box.from_bounds(
rmin=(i * p + t1 + w1 + t2 + w2, -ly / 2, 0),
rmax=(i * p + t1 + w1 + t2 + w2 + w3, ly / 2, h_si),
)
return td.Structure(geometry=grating, medium=mat_si)
[5]:
def make_sim_2d(t1, t2, w1, w2, w3):
"""Creates the Tidy3D simulation."""
grating = make_grating(t1, t2, w1, w2, w3)
p = t1 + t2 + w1 + w2 + w3 # Grating period
lx = p * n # Grating size in x
inf_eff = 1e3 # effective infinity
# Waveguide
waveguide = td.Structure(
geometry=td.Box.from_bounds(rmin=(-inf_eff, -ly / 2, 0), rmax=(0, ly / 2, h_si)),
medium=mat_si,
)
# Cladding and buried oxide
box_clad = td.Structure(
geometry=td.Box.from_bounds(
rmin=(-inf_eff, -inf_eff, -h_box), rmax=(inf_eff, inf_eff, h_clad + h_si)
),
medium=mat_sio2,
)
# Substrate
substrate = td.Structure(
geometry=td.Box.from_bounds(
rmin=(-inf_eff, -inf_eff, -h_box - inf_eff), rmax=(inf_eff, inf_eff, -h_box)
),
medium=mat_si,
)
# Gaussian beam source
gaussian_beam = td.GaussianBeam(
center=(lx / 2, 0, h_clad + lda0 / 2),
size=(2 * mfd, 2 * mfd, 0),
source_time=td.GaussianPulse(freq0=freq0, fwidth=fwidth),
pol_angle=np.pi / 2,
angle_theta=0,
angle_phi=0,
direction="-",
waist_radius=mfd / 2,
waist_distance=0,
)
# Mode monitor
mode_monitor = td.ModeMonitor(
center=(-lda0 / 2, 0, h_si / 2),
size=(0, 1.5 * ly, 5 * h_si),
freqs=freqs,
mode_spec=td.ModeSpec(num_modes=1, target_neff=n_si),
name="mode",
)
# Simulation domain box
sim_box = td.Box.from_bounds(
rmin=(-0.6 * lda0, 0, -h_box - 0.6 * lda0),
rmax=(lx + 0.6 * lda0, 0, h_clad + h_si + 0.6 * lda0),
)
# Define the simulation
sim = td.Simulation(
center=sim_box.center,
size=sim_box.size,
grid_spec=td.GridSpec.auto(min_steps_per_wvl=20),
run_time=1e-11,
structures=[substrate, box_clad, grating, waveguide],
sources=[gaussian_beam],
monitors=[mode_monitor],
boundary_spec=td.BoundarySpec(
x=td.Boundary.pml(),
y=td.Boundary.periodic(), # set the boundary to periodic in y since it's a 2D simulation
z=td.Boundary.pml(),
),
)
return sim
[6]:
# Create a simulation instance with some arbitrary parameters
sim = make_sim_2d(t1=0.1, t2=0.1, w1=0.1, w2=0.25, w3=0.1)

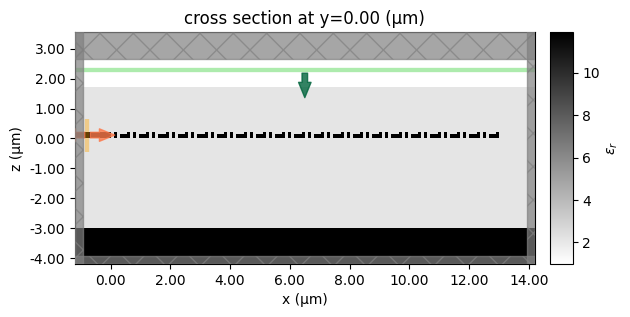

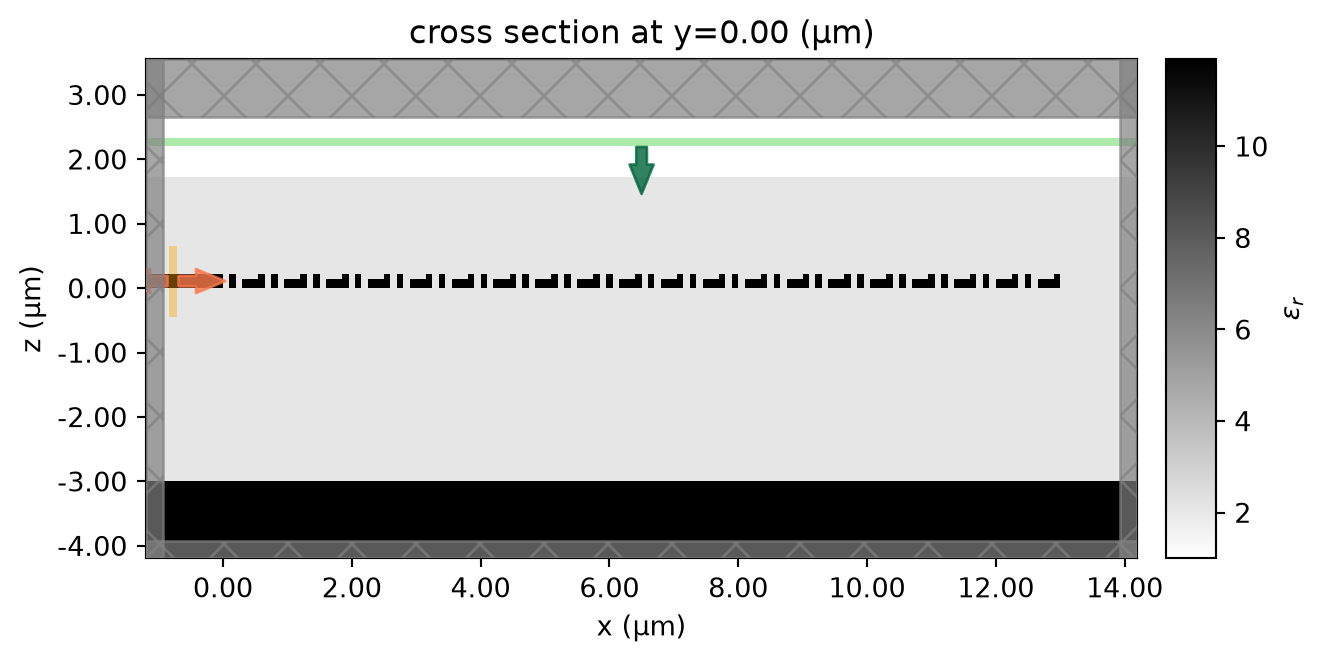

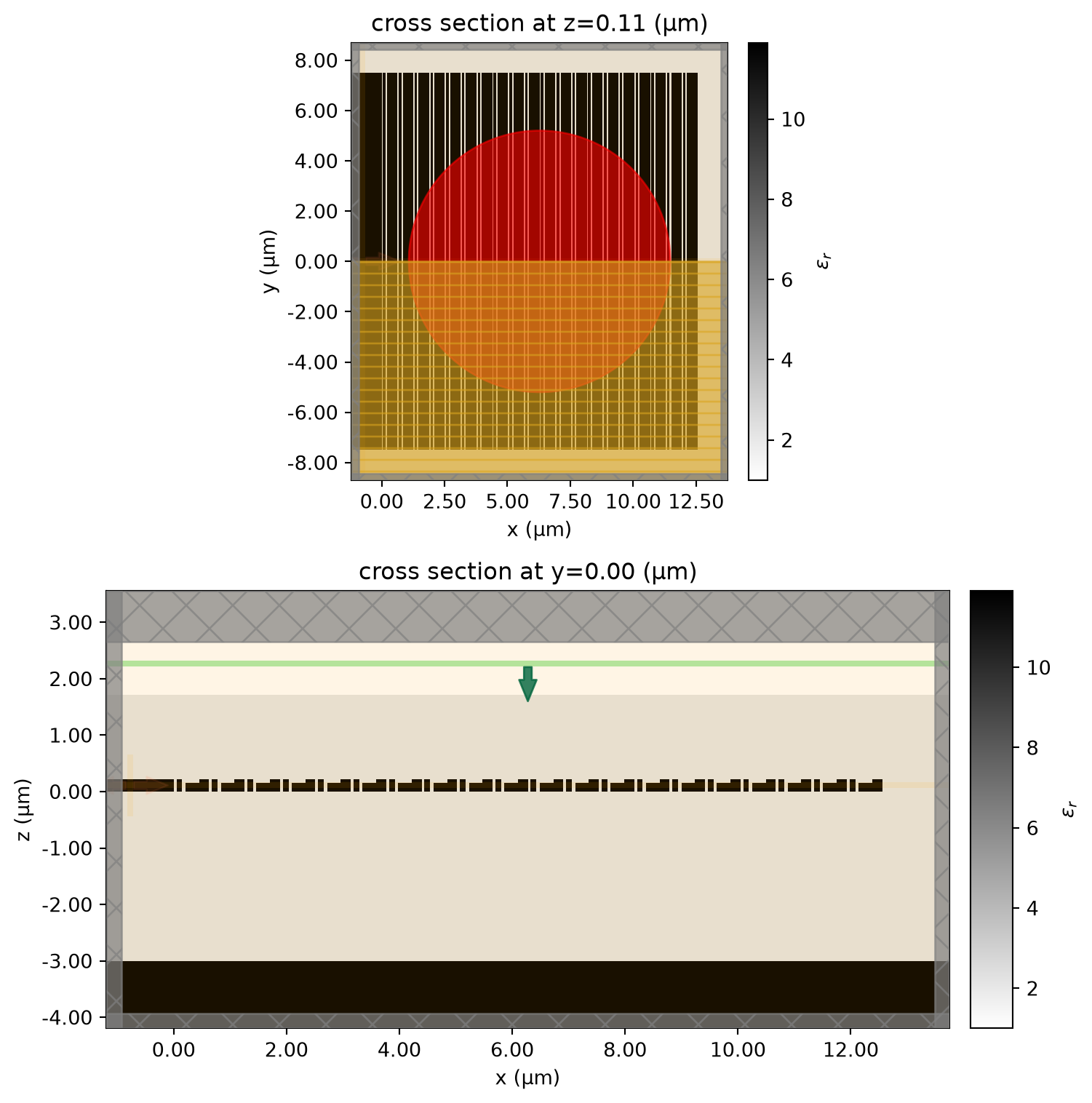

# Visualize the permittivity distribution
sim.plot_eps(y=0)
plt.show()
Optimization¶
Bayesian optimization is a powerful strategy for optimizing expensive-to-evaluate functions, using a probabilistic model to efficiently explore the parameter space and identify optimal solutions with fewer simulations.
To optimize the grating design for maximal coupling efficiency at 1550 nm, we configure the Bayesian optimization using MethodBayOpt.
We define the design space for the grating parameters and specify the objective function compute_transmission, which calculates the transmission efficiency based on the mode monitor data.
[7]:
def compute_transmission(sim_data):
"""Calculates the coupling efficiency from the simulation data."""
# Extract mode amplitude data at 1550 nm
T = np.abs(sim_data["mode"].amps.sel(mode_index=0, f=freq0, direction="-").values) ** 2
# Return coupling efficiency in dB
return 10 * np.log10(T)
To ensure fabrication constraint, we limit the minimal feature size to 50 nm. All design parameters have a range from 50 nm to 250 nm.

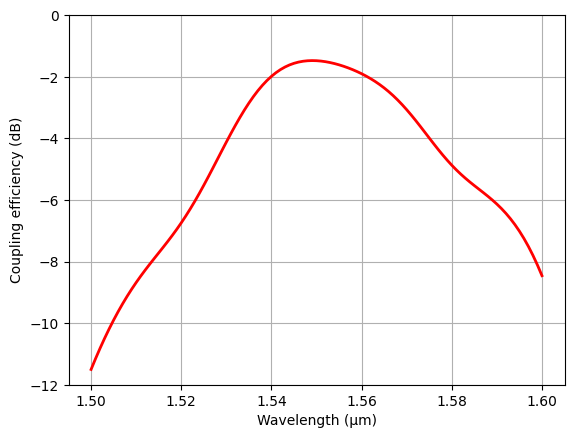

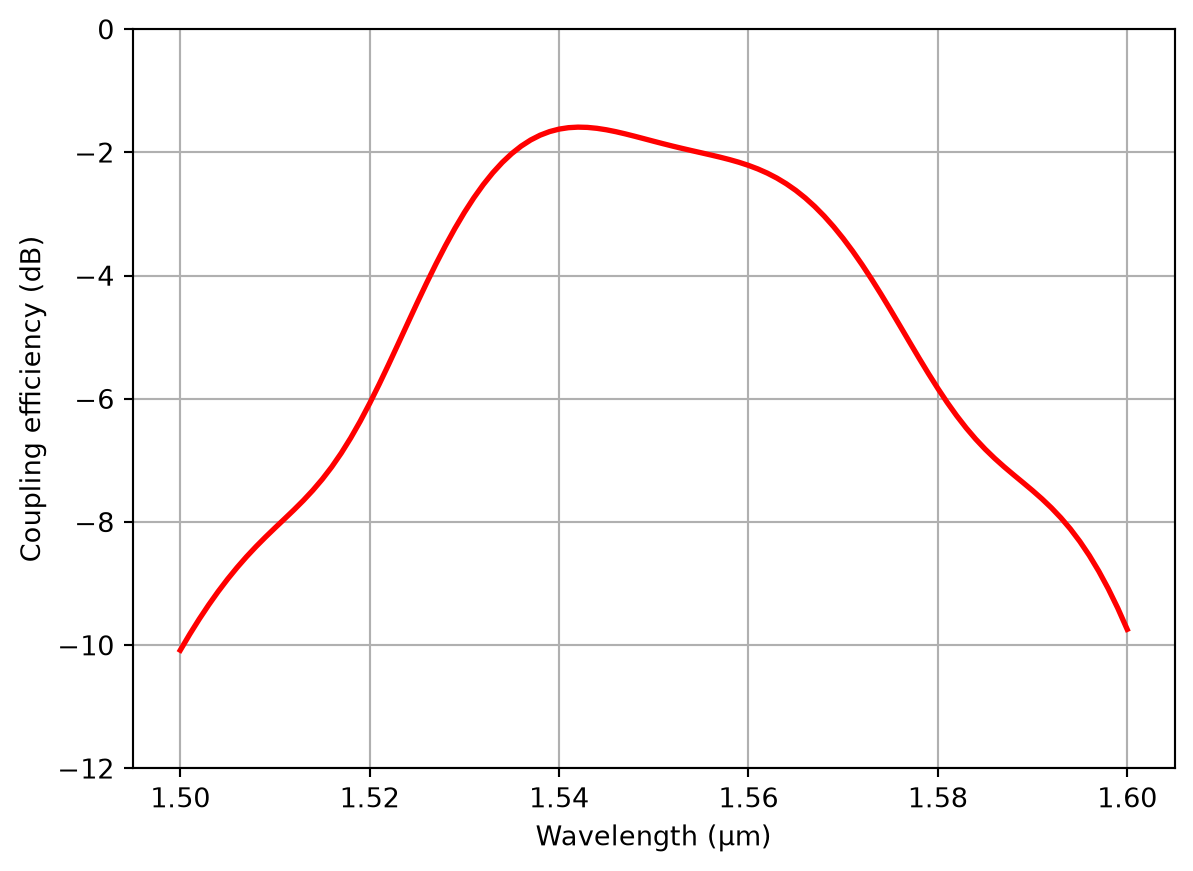

After running the optimization, we achieved a design with sub 2dB coupling efficiency.
[8]:
# Define optimization method (Bayesian optimization)
method = tdd.MethodBayOpt(
initial_iter=50,
n_iter=150,
acq_func="ucb",
kappa=1,
seed=4,
)
span = (0.05, 0.25) # Parameter value range
# Define optimization parameters
parameters = [
tdd.ParameterFloat(name="t1", span=span),
tdd.ParameterFloat(name="t2", span=span),
tdd.ParameterFloat(name="w1", span=span),
tdd.ParameterFloat(name="w2", span=span),
tdd.ParameterFloat(name="w3", span=span),
]
# Define a design space
design_space = tdd.DesignSpace(
method=method, parameters=parameters, task_name="bay_opt", path_dir="./data"
)
# Run the design optimization
results = design_space.run(make_sim_2d, compute_transmission, verbose=True)
22:32:15 Eastern Standard Time Running 50 Simulations
22:33:46 Eastern Standard Time Best Fit from Initial Solutions: -7.691
22:33:47 Eastern Standard Time Running 1 Simulations
22:33:52 Eastern Standard Time Running 1 Simulations
22:33:58 Eastern Standard Time Running 1 Simulations
22:34:03 Eastern Standard Time Running 1 Simulations
22:34:09 Eastern Standard Time Running 1 Simulations
22:34:13 Eastern Standard Time Latest Best Fit on Iter 4: -7.068
22:34:15 Eastern Standard Time Running 1 Simulations
22:34:21 Eastern Standard Time Running 1 Simulations
22:34:25 Eastern Standard Time Latest Best Fit on Iter 6: -6.926
22:34:26 Eastern Standard Time Running 1 Simulations
22:34:32 Eastern Standard Time Running 1 Simulations
22:34:38 Eastern Standard Time Running 1 Simulations
22:34:42 Eastern Standard Time Latest Best Fit on Iter 9: -3.59
22:34:44 Eastern Standard Time Running 1 Simulations
22:34:48 Eastern Standard Time Latest Best Fit on Iter 10: -2.235
22:34:49 Eastern Standard Time Running 1 Simulations
22:34:55 Eastern Standard Time Running 1 Simulations
22:35:01 Eastern Standard Time Running 1 Simulations
22:35:08 Eastern Standard Time Running 1 Simulations
22:35:14 Eastern Standard Time Running 1 Simulations
22:35:21 Eastern Standard Time Running 1 Simulations
22:35:27 Eastern Standard Time Running 1 Simulations
22:35:35 Eastern Standard Time Running 1 Simulations
22:35:42 Eastern Standard Time Running 1 Simulations
22:35:49 Eastern Standard Time Running 1 Simulations
22:35:56 Eastern Standard Time Running 1 Simulations
22:36:02 Eastern Standard Time Running 1 Simulations
22:36:10 Eastern Standard Time Running 1 Simulations
22:36:17 Eastern Standard Time Running 1 Simulations
22:36:24 Eastern Standard Time Running 1 Simulations
22:36:29 Eastern Standard Time Latest Best Fit on Iter 25: -2.145
22:36:32 Eastern Standard Time Running 1 Simulations
22:36:40 Eastern Standard Time Running 1 Simulations
22:36:47 Eastern Standard Time Running 1 Simulations
22:36:55 Eastern Standard Time Running 1 Simulations
22:37:01 Eastern Standard Time Running 1 Simulations
22:37:08 Eastern Standard Time Running 1 Simulations
22:37:16 Eastern Standard Time Running 1 Simulations
22:37:24 Eastern Standard Time Running 1 Simulations
22:37:31 Eastern Standard Time Running 1 Simulations
22:37:39 Eastern Standard Time Running 1 Simulations
22:37:47 Eastern Standard Time Running 1 Simulations
22:37:54 Eastern Standard Time Running 1 Simulations
22:38:02 Eastern Standard Time Running 1 Simulations
22:38:10 Eastern Standard Time Running 1 Simulations
22:38:18 Eastern Standard Time Running 1 Simulations
22:38:25 Eastern Standard Time Running 1 Simulations
22:38:33 Eastern Standard Time Running 1 Simulations
22:38:41 Eastern Standard Time Running 1 Simulations
22:38:48 Eastern Standard Time Running 1 Simulations
22:38:55 Eastern Standard Time Running 1 Simulations
22:39:03 Eastern Standard Time Running 1 Simulations
22:39:11 Eastern Standard Time Running 1 Simulations
22:39:19 Eastern Standard Time Running 1 Simulations
22:39:26 Eastern Standard Time Running 1 Simulations
22:39:34 Eastern Standard Time Running 1 Simulations
22:39:42 Eastern Standard Time Running 1 Simulations
22:39:50 Eastern Standard Time Running 1 Simulations
22:39:58 Eastern Standard Time Running 1 Simulations
22:40:06 Eastern Standard Time Running 1 Simulations
22:40:13 Eastern Standard Time Running 1 Simulations
22:40:22 Eastern Standard Time Running 1 Simulations
22:40:30 Eastern Standard Time Running 1 Simulations
22:40:38 Eastern Standard Time Running 1 Simulations
22:40:45 Eastern Standard Time Running 1 Simulations
22:40:53 Eastern Standard Time Running 1 Simulations
22:40:57 Eastern Standard Time Latest Best Fit on Iter 60: -1.962
22:41:02 Eastern Standard Time Running 1 Simulations
22:41:09 Eastern Standard Time Running 1 Simulations
22:41:16 Eastern Standard Time Running 1 Simulations
22:41:24 Eastern Standard Time Running 1 Simulations
22:41:32 Eastern Standard Time Running 1 Simulations
22:41:40 Eastern Standard Time Running 1 Simulations
22:41:48 Eastern Standard Time Running 1 Simulations
22:41:55 Eastern Standard Time Running 1 Simulations
22:41:59 Eastern Standard Time Latest Best Fit on Iter 68: -1.689
22:42:03 Eastern Standard Time Running 1 Simulations
22:42:11 Eastern Standard Time Running 1 Simulations
22:42:20 Eastern Standard Time Running 1 Simulations
22:42:28 Eastern Standard Time Running 1 Simulations
22:42:35 Eastern Standard Time Running 1 Simulations
22:42:42 Eastern Standard Time Running 1 Simulations
22:42:49 Eastern Standard Time Running 1 Simulations
22:42:56 Eastern Standard Time Running 1 Simulations
22:43:00 Eastern Standard Time Latest Best Fit on Iter 76: -1.473
22:43:04 Eastern Standard Time Running 1 Simulations
22:43:12 Eastern Standard Time Running 1 Simulations
22:43:19 Eastern Standard Time Running 1 Simulations
22:43:28 Eastern Standard Time Running 1 Simulations
22:43:36 Eastern Standard Time Running 1 Simulations
22:43:44 Eastern Standard Time Running 1 Simulations
22:43:54 Eastern Standard Time Running 1 Simulations
22:44:02 Eastern Standard Time Running 1 Simulations
22:44:11 Eastern Standard Time Running 1 Simulations
22:44:19 Eastern Standard Time Running 1 Simulations
22:44:28 Eastern Standard Time Running 1 Simulations
22:44:37 Eastern Standard Time Running 1 Simulations
22:44:46 Eastern Standard Time Running 1 Simulations
22:44:55 Eastern Standard Time Running 1 Simulations
22:45:04 Eastern Standard Time Running 1 Simulations
22:45:14 Eastern Standard Time Running 1 Simulations
22:45:22 Eastern Standard Time Running 1 Simulations
22:45:30 Eastern Standard Time Running 1 Simulations
22:45:39 Eastern Standard Time Running 1 Simulations
22:45:47 Eastern Standard Time Running 1 Simulations
22:45:57 Eastern Standard Time Running 1 Simulations
22:46:08 Eastern Standard Time Running 1 Simulations
22:46:19 Eastern Standard Time Running 1 Simulations
22:46:29 Eastern Standard Time Running 1 Simulations
22:46:38 Eastern Standard Time Running 1 Simulations
22:46:47 Eastern Standard Time Running 1 Simulations
22:46:57 Eastern Standard Time Running 1 Simulations
22:47:09 Eastern Standard Time Running 1 Simulations
22:47:13 Eastern Standard Time Latest Best Fit on Iter 104: -1.438
22:47:21 Eastern Standard Time Running 1 Simulations
22:47:32 Eastern Standard Time Running 1 Simulations
22:47:36 Eastern Standard Time Latest Best Fit on Iter 106: -1.431
22:47:43 Eastern Standard Time Running 1 Simulations
22:47:54 Eastern Standard Time Running 1 Simulations
22:48:05 Eastern Standard Time Running 1 Simulations
22:48:18 Eastern Standard Time Running 1 Simulations
22:48:30 Eastern Standard Time Running 1 Simulations
22:48:40 Eastern Standard Time Running 1 Simulations
22:48:50 Eastern Standard Time Running 1 Simulations
22:49:00 Eastern Standard Time Running 1 Simulations
22:49:13 Eastern Standard Time Running 1 Simulations
22:49:22 Eastern Standard Time Running 1 Simulations
22:49:32 Eastern Standard Time Running 1 Simulations
22:49:41 Eastern Standard Time Running 1 Simulations
22:49:51 Eastern Standard Time Running 1 Simulations
22:50:00 Eastern Standard Time Running 1 Simulations
22:50:10 Eastern Standard Time Running 1 Simulations
22:50:21 Eastern Standard Time Running 1 Simulations
22:50:32 Eastern Standard Time Running 1 Simulations
22:50:45 Eastern Standard Time Running 1 Simulations
22:50:55 Eastern Standard Time Running 1 Simulations
22:51:06 Eastern Standard Time Running 1 Simulations
22:51:19 Eastern Standard Time Running 1 Simulations
22:51:31 Eastern Standard Time Running 1 Simulations
22:51:43 Eastern Standard Time Running 1 Simulations
22:51:55 Eastern Standard Time Running 1 Simulations
22:52:07 Eastern Standard Time Running 1 Simulations
22:52:17 Eastern Standard Time Running 1 Simulations
22:52:27 Eastern Standard Time Running 1 Simulations
22:52:39 Eastern Standard Time Running 1 Simulations
22:52:50 Eastern Standard Time Running 1 Simulations
22:53:00 Eastern Standard Time Running 1 Simulations
22:53:15 Eastern Standard Time Running 1 Simulations
22:53:26 Eastern Standard Time Running 1 Simulations
22:53:37 Eastern Standard Time Running 1 Simulations
22:53:48 Eastern Standard Time Running 1 Simulations
22:54:00 Eastern Standard Time Running 1 Simulations
22:54:12 Eastern Standard Time Running 1 Simulations
22:54:22 Eastern Standard Time Running 1 Simulations
22:54:34 Eastern Standard Time Running 1 Simulations
22:54:43 Eastern Standard Time Running 1 Simulations
22:54:53 Eastern Standard Time Running 1 Simulations
22:55:05 Eastern Standard Time Running 1 Simulations
22:55:16 Eastern Standard Time Running 1 Simulations
22:55:28 Eastern Standard Time Running 1 Simulations
22:55:32 Eastern Standard Time Best Result: -1.4312574950042578 Best Parameters: t1: 0.06619187862910186 t2: 0.07768004339792024 w1: 0.09880189782129595 w2: 0.25 w3: 0.1572388312903357
Final Design¶
After the optimization runs, we extract the best parameters and then run a 3D final simulation with these optimal parameters to verify the design from the previous 2D simulations. The 3D simulation can be made by copying the 2D simulation and updating the simulation domain size and boundary condition. To help with visualization, we also added two FieldMonitors in the $xy$ and $xz$ planes. Also note that the 3D simulation has a symmetry in the $y$ direction that we can utilize to reduce the computational cost and time.
[9]:
# Define field monitors for visualization
field_xy = td.FieldMonitor(
center=(0, 0, h_si / 2), size=(td.inf, td.inf, 0), freqs=[freq0], name="field_xy"
)
field_xz = td.FieldMonitor(
center=(0, 0, 0), size=(td.inf, 0, td.inf), freqs=[freq0], name="field_xz"
)
# Extract optimal parameters from the results
optimal_params = results.optimizer.max["params"]
# Make a 2D simulation with the optimal parameters
sim_opt = make_sim_2d(**optimal_params)
# Update simulation with monitors and new domain size to make it 3D
sim_opt = sim_opt.updated_copy(
size=(sim_opt.size[0], ly + 1.2 * lda0, sim_opt.size[2]),
monitors=[sim_opt.monitors[0], field_xy, field_xz],
boundary_spec=td.BoundarySpec.all_sides(boundary=td.PML()),
symmetry=(0, -1, 0),
)

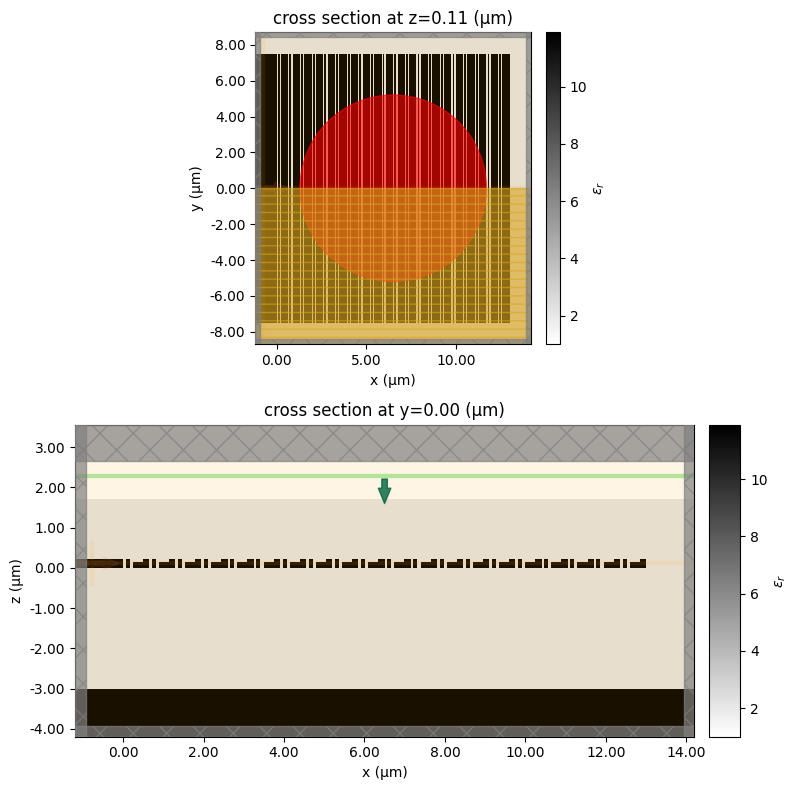

# Plot the permittivity distribution of the optimal design
fig, ax = plt.subplots(2, 1, figsize=(8, 8), tight_layout=True)
# Plot the permittivity distribution in the xy plane
sim_opt.plot_eps(z=h_si / 2, ax=ax[0], monitor_alpha=0.1)
# Add a circle to indicate the mode field diameter
lx = sum(optimal_params.values()) * n
circle = plt.Circle((lx / 2, 0), mfd / 2, color="red", alpha=0.6, fill=True)
ax[0].add_patch(circle)
# Plot the permittivity distribution in the xz plane
sim_opt.plot_eps(y=0, ax=ax[1], monitor_alpha=0.1)
plt.show()
Run the 3D simulation and plot the coupling efficiency spectrum.
[10]:
# Run the 3D simulation
sim_data_opt = web.run(sim_opt, "optimal design")
# extract coupling efficiency and plot it
amp = sim_data_opt["mode"].amps.sel(mode_index=0, direction="-")
T = np.abs(amp) ** 2
plt.plot(ldas, 10 * np.log10(T), c="red", linewidth=2)
plt.ylim(-12, 0)
plt.xlabel("Wavelength (μm)")
plt.ylabel("Coupling efficiency (dB)")
plt.grid()
plt.show()
22:55:33 Eastern Standard Time Created task 'optimal design' with task_id 'fdve-feef3272-1211-48cf-a8c3-a6afe75cd1d5' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId =fdve-feef3272-1211-48cf-a8c3-a6afe75cd1d5'.
Task folder: 'default'.
Output()
22:55:34 Eastern Standard Time Maximum FlexCredit cost: 3.384. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
22:55:35 Eastern Standard Time status = success
Output()
22:55:37 Eastern Standard Time loading simulation from simulation_data.hdf5

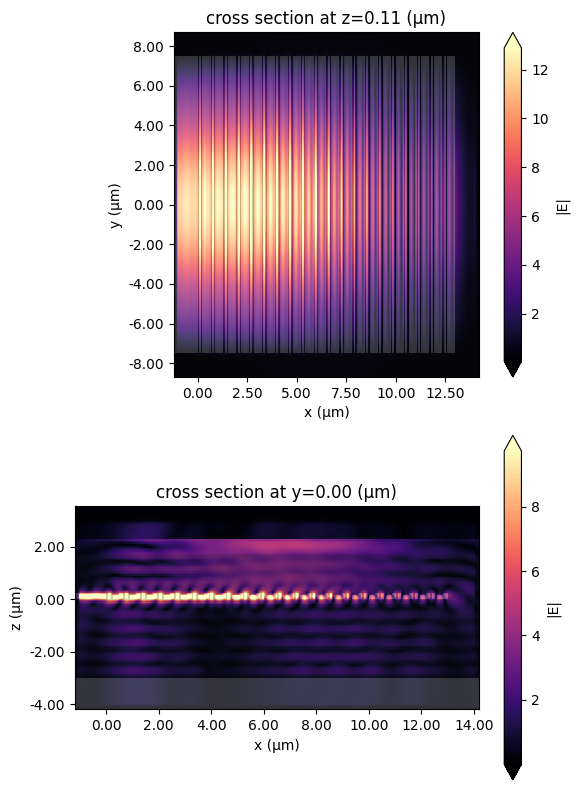

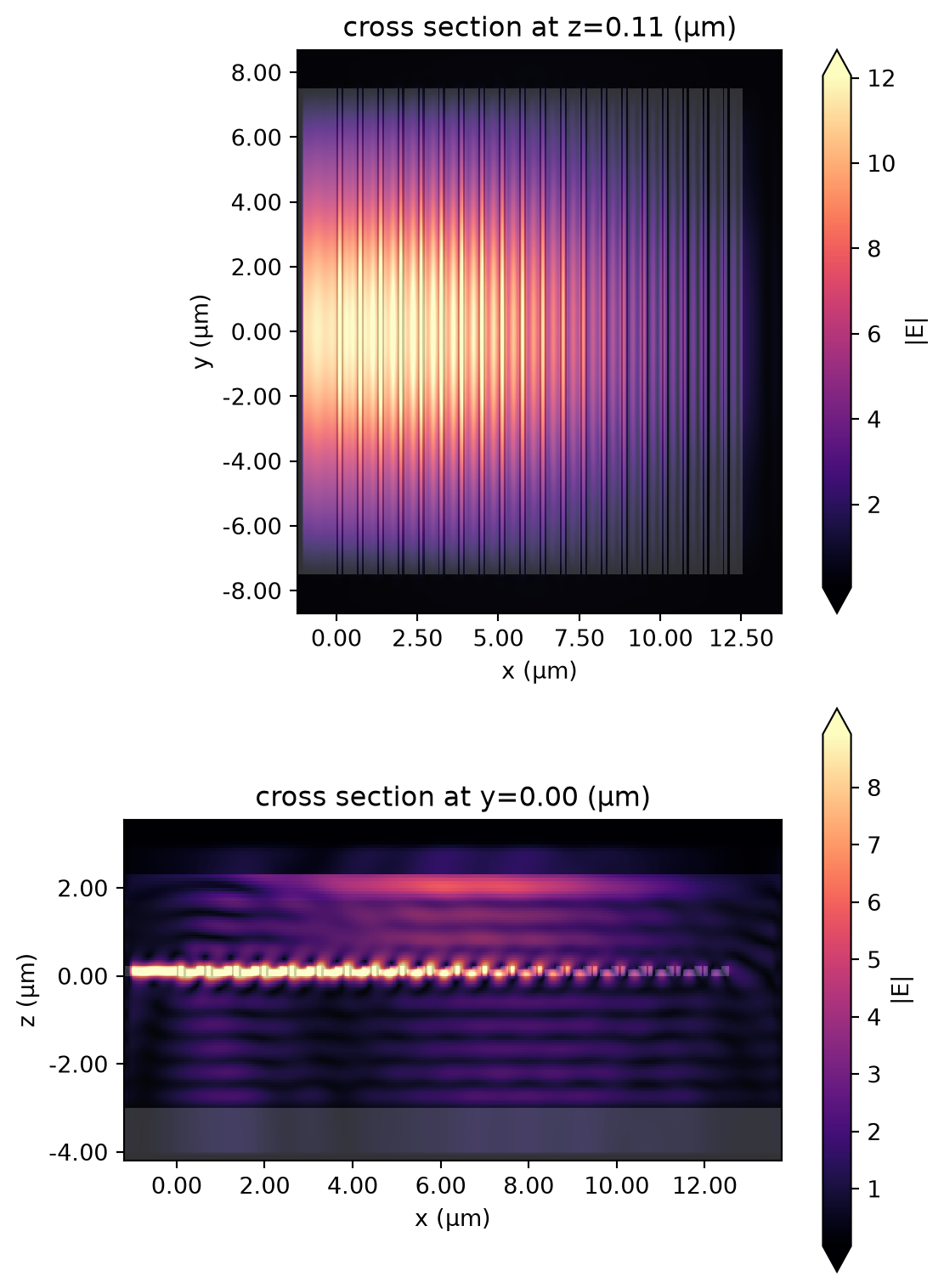

Finally, plot the field distribution to visualize the mode coupling.
[11]:
fig, ax = plt.subplots(2, 1, figsize=(6, 8), tight_layout=True)
sim_data_opt.plot_field("field_xy", "E", "abs", ax=ax[0])
sim_data_opt.plot_field("field_xz", "E", "abs", ax=ax[1])
plt.show()
Final Notes¶
The grating coupler is typically connected to a waveguide taper, which enables an adiabatic transition into a single-mode waveguide. In our simulation, we omit the taper to reduce computational cost. The taper itself can be optimized independently to ensure minimal loss, thereby maintaining a high overall coupling efficiency for the complete device.
In addition to Bayesian optimization, alternative optimization strategies, such as particle swarm optimization (PSO) and adjoint-based inverse design, can also be used to further improve device performance, for example through apodization.
[ ]:
TERMS & CONDITIONS
How the process works:
Try this real URL to see an example:
