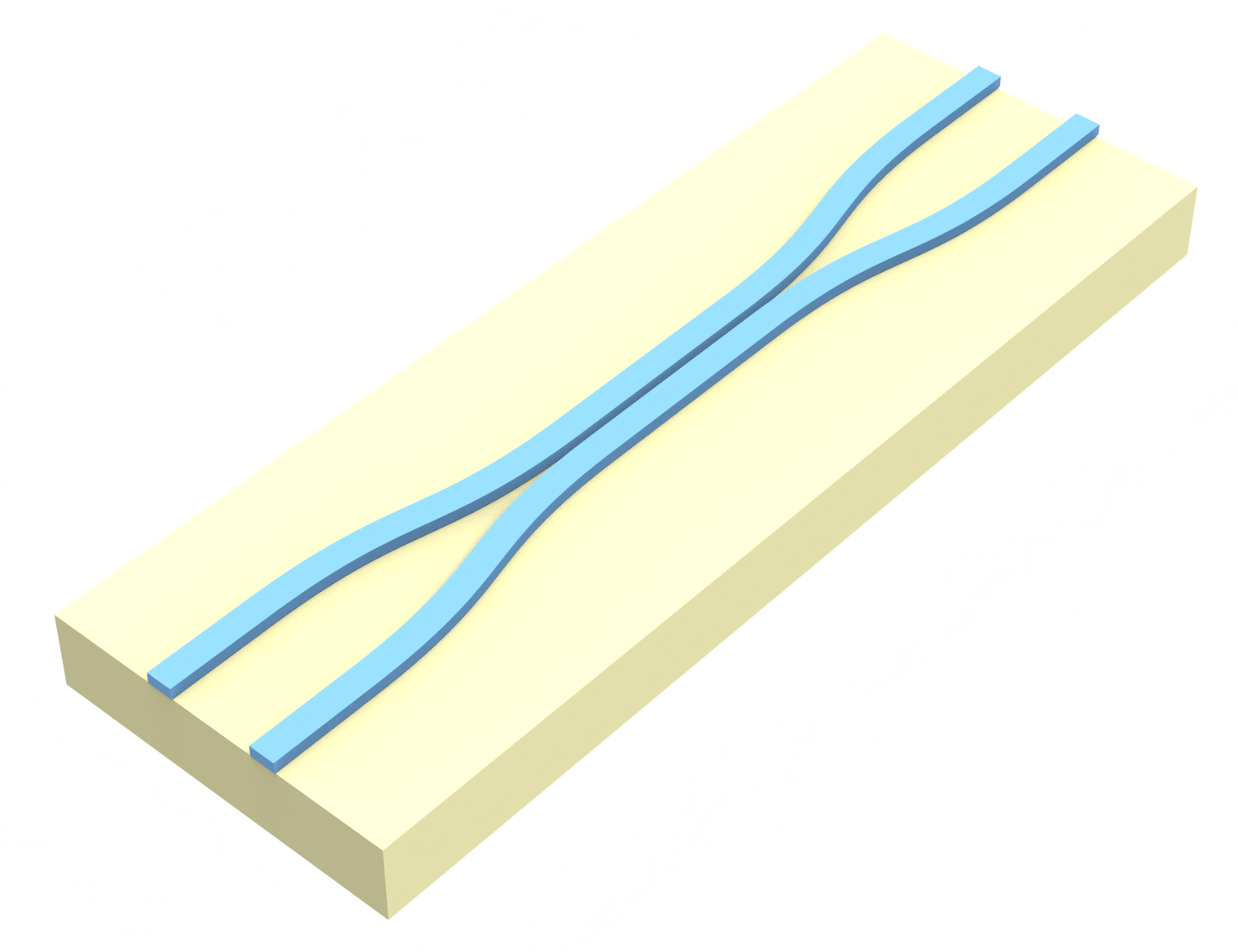

Directional couplers are fundamental components in photonic integrated circuits, enabling efficient splitting and combining of optical signals. By placing two parallel waveguides in close proximity, these passive devices exploit evanescent field coupling to control how light is distributed between channels. It is also possible to control the output by adjusting the relative phase between the inputs, enabling flexible power splitting ratios and switching behavior. Their design and compatibility with silicon-on-insulator technology have made them a popular choice for applications ranging from wavelength-division multiplexing to optical switching and signal processing.
An important consideration is how fabrication variations might affect device performance. Hence, one common approach is to sweep over different parameters and see how the quantities of interest behave.
In this notebook, we will demonstrate how to set up a simple directional coupler simulation, illustrating the common steps of the workflow:
1. Importing the geometry using gdstk. For the process of this geometry, please follow the steps presented in this example.
2. Placing the ModeSource and ModeMonitors to excite the first TE mode and analyze the transmittance and losses on both arms
3. Carry out the post-process analysis to find the 50/50 splitting frequency and efficiency.
4. Create a parametric sweep over different values of the sidewall angle and its effect on the splitting frequency and efficiency, and create a Batch object to run in parallel.
5. Use the Simulation.updated_copy method to easily create a simulation with two sources at the input ports with a $\pi$/2 phase difference.
For instructions on how to calculate the full S-matrix, please refer to our SMatrix tutorial. Additionally, if you are new to the finite-difference time-domain (FDTD) method, we highly recommend going through our FDTD101 tutorials.
First, we import the relevant structures. We will use gdstk for importing the geometry. To install it, uncomment the !pip install gdstk line.
# install gdstk
#!pip install gdstk
# Standard python imports
import gdstk
import matplotlib.pyplot as plt
import numpy as np
# Tidy3d import
import tidy3d as td
from tidy3d import web
gds_path = "misc/coupler.gds"
# Load a GDSII library from the file previously created
lib_loaded = gdstk.read_gds(gds_path)
all_cells = {c.name: c for c in lib_loaded.cells}
# Define waveguide height
wg_height = 0.22
dilation = 0.02
# Define reference plane and sidewall angle
reference_plane = "bottom"
sidewall_angle = np.pi / 6
substrate_geo = td.Geometry.from_gds(
all_cells["COUPLER"],
gds_layer=0,
gds_dtype=0,
axis=2,
slab_bounds=(-4, 0),
reference_plane=reference_plane,
)
arms_geo = td.Geometry.from_gds(
all_cells["COUPLER"],
gds_layer=1,
gds_dtype=0,
axis=2,
slab_bounds=(0, wg_height),
sidewall_angle=sidewall_angle,
dilation=dilation,
reference_plane=reference_plane,
)
Set up Structures¶
Next, we assign material properties to the imported geometries and create the td.Structures with each of those material properties.
# Permittivity of waveguide and substrate
wg_n = 3.48
sub_n = 1.45
medium_wg = td.Medium(permittivity=wg_n**2)
medium_sub = td.Medium(permittivity=sub_n**2)
# Substrate
substrate = td.Structure(geometry=substrate_geo, medium=medium_sub)
# Waveguides
arms = td.Structure(geometry=arms_geo, medium=medium_wg)
structures = [substrate, arms]
Set up Simulation ¶
Now we set up the simulation. First, we define the wavelength of interest and set the runtime.
# Wavelength range
wl1 = 1.4
wl2 = 1.7
# Transforming in frequency
f1 = td.C_0 / wl2
f2 = td.C_0 / wl1
fwidth = (f2 - f1) / 2
freq0 = f1 + fwidth
wl0 = td.C_0 / freq0
# Frequencies to analyze
num_freqs = 21
freqs = [freq0] if num_freqs == 1 else np.linspace(freq0 - fwidth, freq0 + fwidth, num_freqs)
Now, we add the ModeSource, which excites the first order TE mode (mode_index = 0). To analyze the transmittance, we will place ModeMonitors at the end of both output arms. These monitors will carry out mode decomposition and analyze the fraction of power transmitted in each mode. Since we are only interested in the first order TE mode, the number of modes analyzed can be just 1.
We will also add a FieldMonitor to visualize the field profile in the xy-plane.
# Source
source_time = td.GaussianPulse(freq0=freq0, fwidth=fwidth)
source = td.ModeSource(
center=(-8, -2, 0), size=(0, 2, 1), source_time=source_time, mode_index=0, direction="+"
)
# Field monitor
field_mon = td.FieldMonitor(
name="field_mon",
size=(td.inf, td.inf, 0),
center=(0, 0, wg_height / 2),
freqs=freqs,
)
# Mode monitor
mode_spec = td.ModeSpec(num_modes=1)
mode_mon_up = td.ModeMonitor(
center=(8, 2, 0), size=(0, 2, 1), freqs=freqs, name="mode_mon_up", mode_spec=mode_spec
)
mode_mon_down = td.ModeMonitor(
center=(8, -2, 0), size=mode_mon_up.size, freqs=freqs, name="mode_mon_down", mode_spec=mode_spec
)
Finally, we define the grid with our AutoGrid object, which automatically creates a non-uniform mesh, and place everything together in the Simulation object.
# GridSpec
min_steps_per_wvl = 15
grid_spec = td.GridSpec.auto(min_steps_per_wvl=min_steps_per_wvl)
# Simulation size
sim_size = (17, 7, wg_height + 2)
sim_center = list(arms_geo.bounding_box.center)
sim_center[2] = 0
### Initialize and visualize simulation ###
sim = td.Simulation(
size=sim_size,
center=sim_center,
grid_spec=grid_spec,
structures=structures,
run_time=5e-12,
boundary_spec=td.BoundarySpec.all_sides(boundary=td.PML()),
sources=[source],
monitors=[field_mon, mode_mon_up, mode_mon_down],
)
Plot Simulation Geometry¶

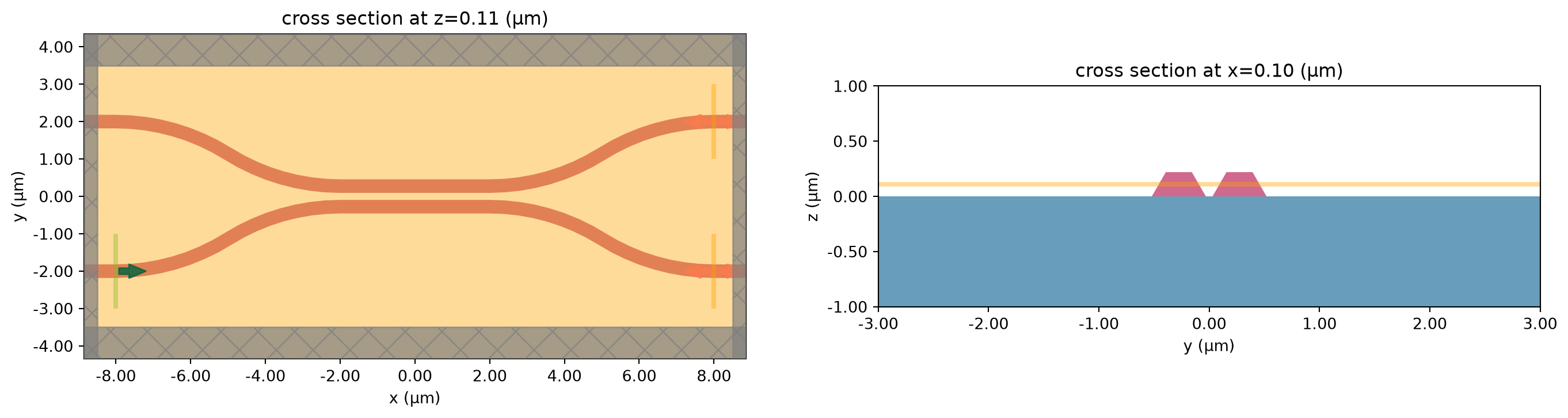

It is a good practice to check the simulation and see if everything is correctly set. That can be easily achieved with the Simulation.plot method:
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(17, 5))
sim.plot(z=wg_height / 2, lw=1, ax=ax1)
sim.plot(x=0.1, lw=1, ax=ax2)
ax2.set_xlim([-3, 3])
_ = ax2.set_ylim([-1, 1])
plt.show()
We can also see the 3D model.
sim.plot_3d()
Before running the simulation, we can check the maximum possible Flexcredit cost. If the field decays before the runtime, the simulation will auto shut-off and we will only be billed for the Flexcredits of the effective runtime.
# Estimating the cost
task_id = web.upload(sim, "directional coupler")
cost = web.estimate_cost(task_id)
19:30:37 -03 Created task 'directional coupler' with task_id 'fdve-ed3dd467-82ed-4f4b-b43e-aea51a36a600' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId=fdve-ed3dd467-82e d-4f4b-b43e-aea51a36a600'.
Task folder: 'default'.
Output()
19:30:40 -03 Maximum FlexCredit cost: 0.241. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
19:30:41 -03 Maximum FlexCredit cost: 0.241. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
Finally, we can run the simulation and analyze the data.
sim_data = web.run(sim, "directional coupler")
Created task 'directional coupler' with task_id 'fdve-4e016f8d-226b-4073-9c67-697bf9b13bb2' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId=fdve-4e016f8d-226 b-4073-9c67-697bf9b13bb2'.
Task folder: 'default'.
Output()
19:30:44 -03 Maximum FlexCredit cost: 0.241. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
19:30:45 -03 status = success
Output()
19:31:02 -03 loading simulation from simulation_data.hdf5
Postprocessing ¶

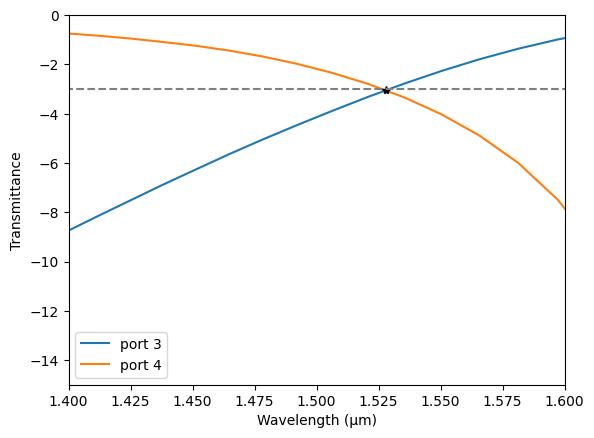

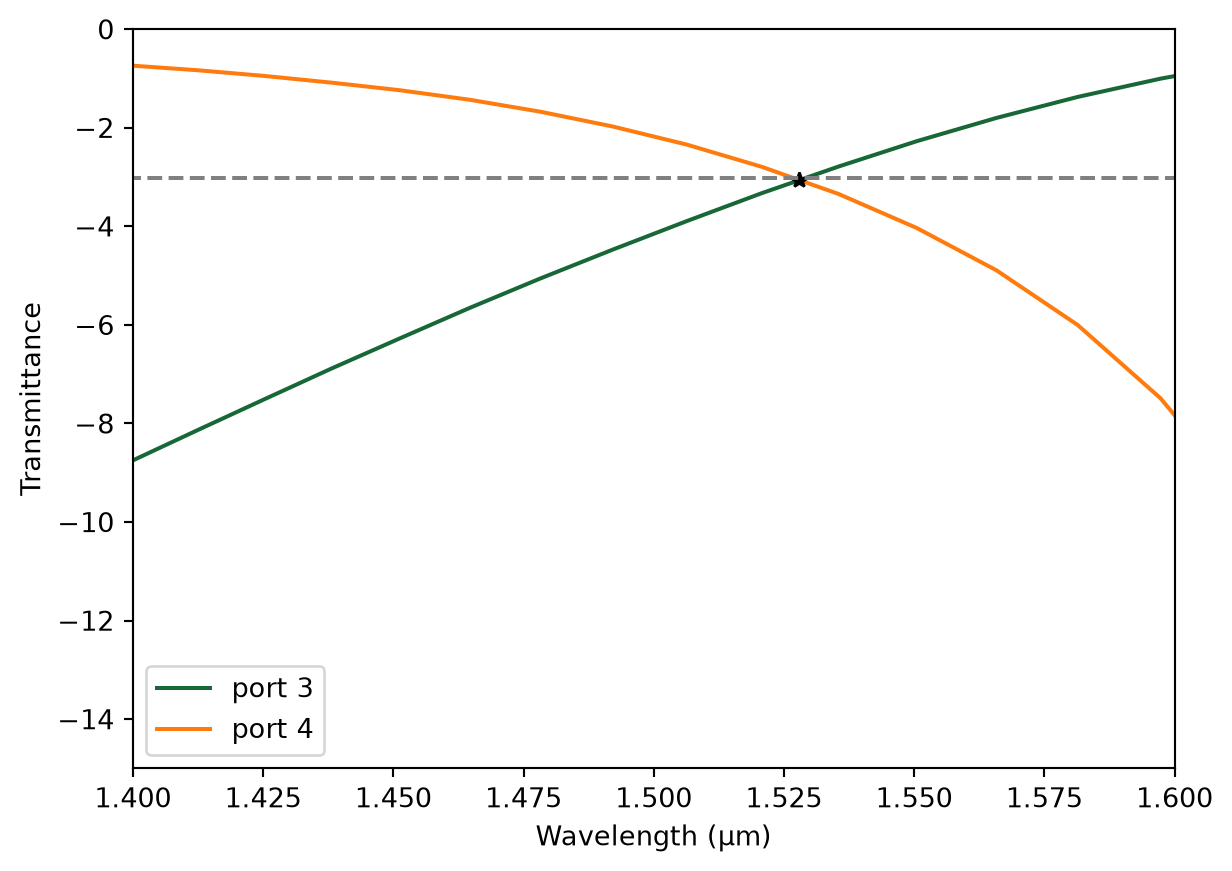

Now we would like to analyze the output of each arm as a function of wavelength, and find the frequency where the fields are equally distributed, and the losses.
The monitor decomposes the fields into mode components, and since the source is normalized, the transmittance of each component is simply $\text{|amplitude|}^2$.
For finding the point where the amplitudes of each arm are the same, we will just look at the signal change of the difference between both signals, which is the crossing point. For better resolution, we will interpolate the data.
from scipy.interpolate import interp1d
def postprocess(sim_data, plot=True):
transmission_up = sim_data["mode_mon_up"].amps.sel(mode_index=0, direction="+").abs ** 2
transmission_down = sim_data["mode_mon_down"].amps.sel(mode_index=0, direction="+").abs ** 2
freqs = transmission_up.f.values
diff = (transmission_up - transmission_down).values
# Interpolate difference to find zero crossing (sign change)
sign_change = np.where(np.diff(np.sign(diff)))[0]
if len(sign_change) == 0:
crossing_freq = freqs[np.argmin(abs(diff))]
print("No sign change found, showing closest point only.")
else:
i = sign_change[0]
f_interp = interp1d(diff[i : i + 2], freqs[i : i + 2])
crossing_freq = f_interp(0)
amp_crossing = np.interp(crossing_freq, freqs, transmission_up)
if plot:
fig, ax = plt.subplots()
wavelengths = td.C_0 / freqs
ax.plot(wavelengths, 10 * np.log10(transmission_up), label="port 3")
ax.plot(wavelengths, 10 * np.log10(transmission_down), label="port 4")
ax.plot([td.C_0 / crossing_freq], [10 * np.log10(amp_crossing)], "*", color="black")
ax.set_ylabel("Transmittance")
ax.set_xlabel("Wavelength (µm)")
ax.hlines(-3.01, 1, 1.6, colors="gray", linestyles="dashed")
ax.set_xlim(1.4, 1.6)
ax.set_ylim(-15, 0)
ax.legend()
plt.show()
return float(crossing_freq), 2 * amp_crossing
cross_freq, total_transmittance = postprocess(sim_data)
print(f"Crossing wavelength :{td.C_0 / cross_freq:.2f}")
print(f"Total transmittance: {total_transmittance:.4f}")
Crossing wavelength :1.53 Total transmittance: 0.9912

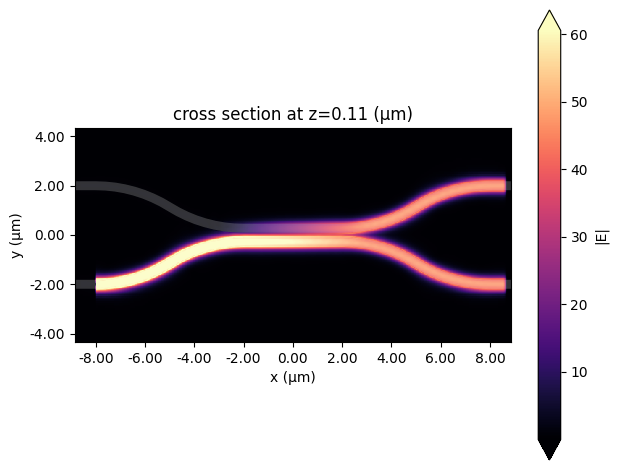

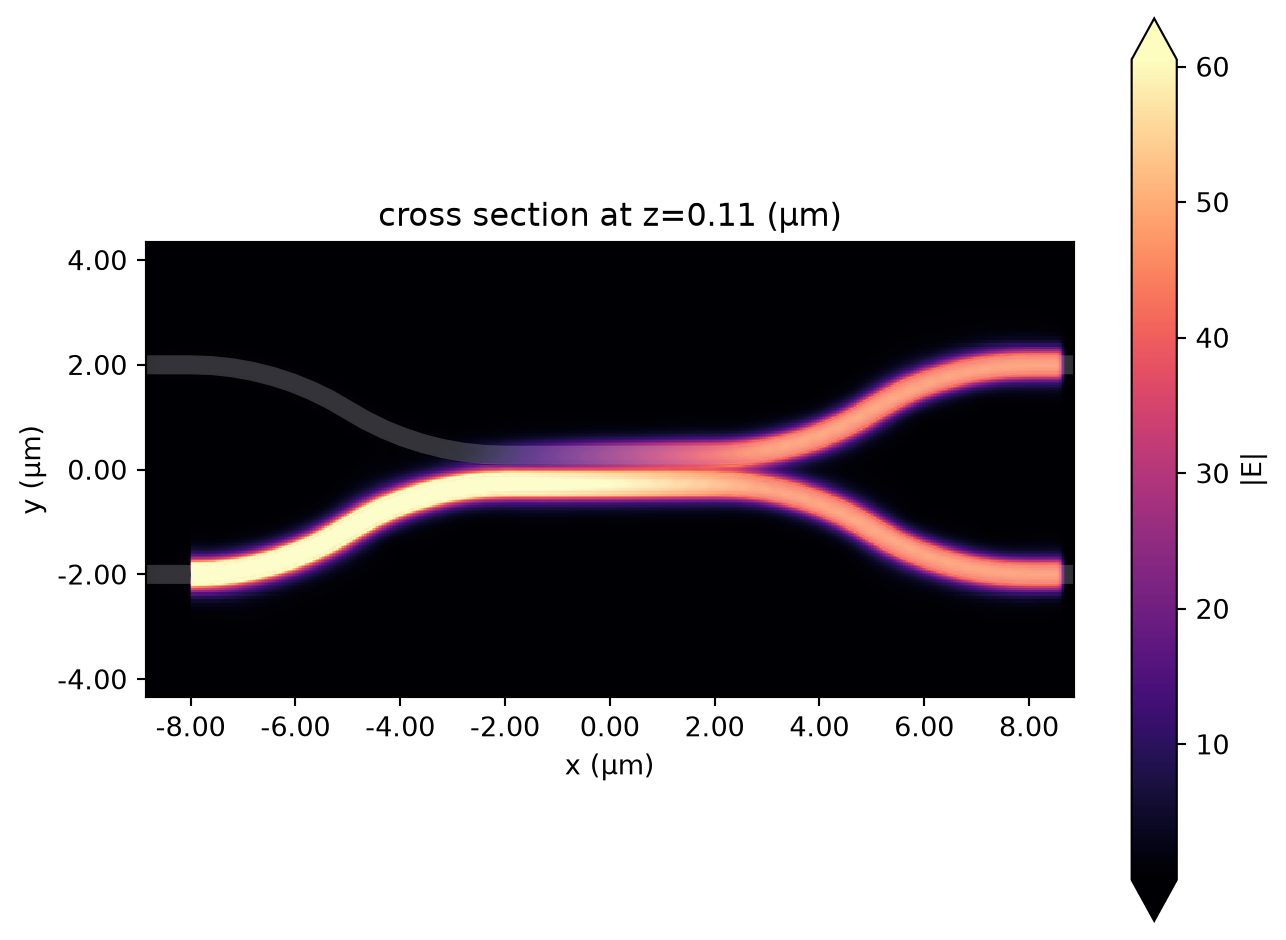

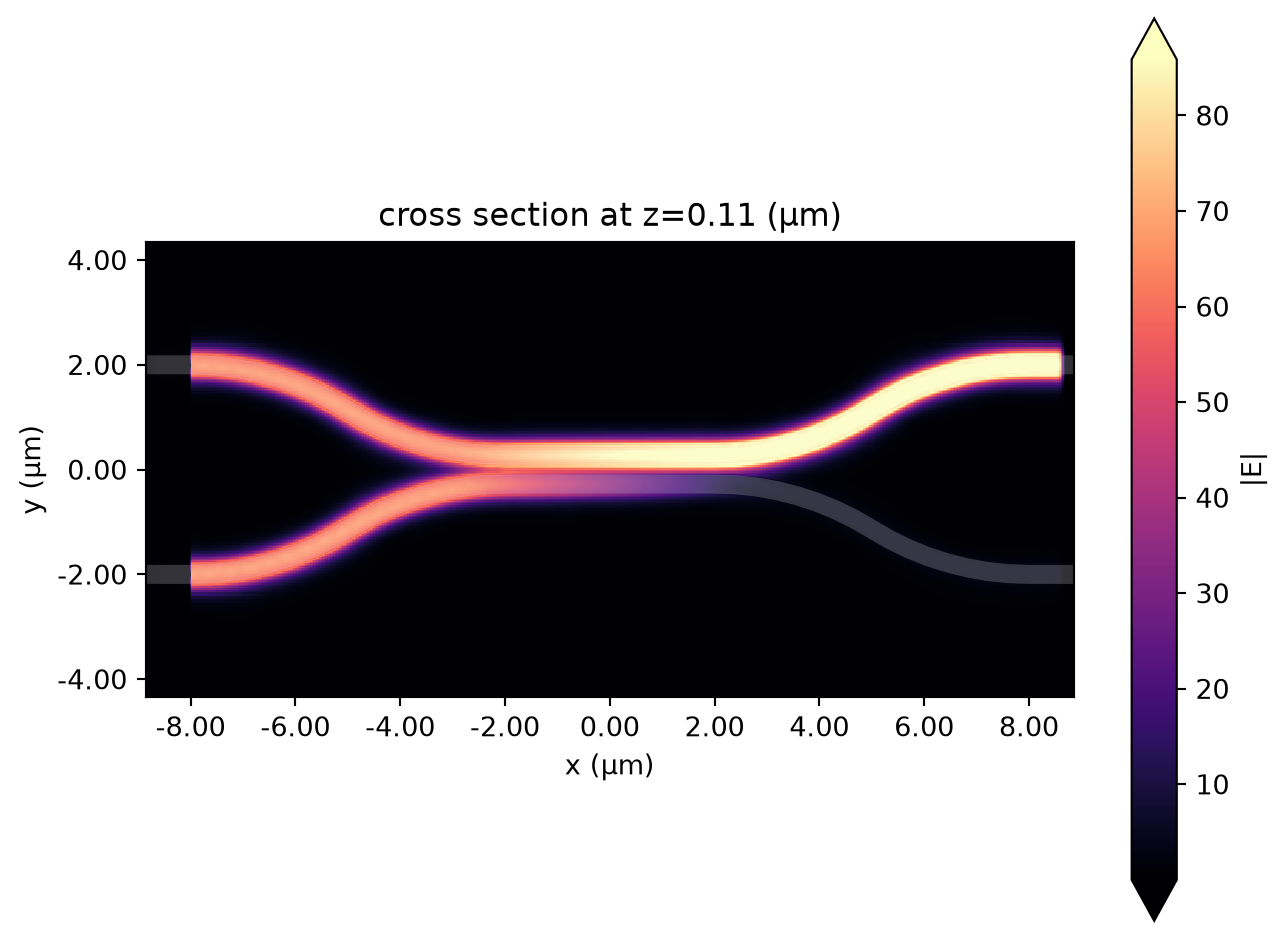

Now, we can easily plot the E field with the SimulationData.plot_field method. As we can see, the input field is equally split over the two output arms.
# Plot field
sim_data.plot_field("field_mon", "E", "abs", f=cross_freq)
plt.show()
Parametric Sweep ¶
Now, we will investigate how the sidewall angle changes the component performance. To do so, we will create a dictionary where each value is a simulation object with a different coupler sidewall.
sims = {}
sidewall_angles = [0, 5, 10, 15, 20, 25, 30]
for s_angle in sidewall_angles:
arms_geo_sweep = td.Geometry.from_gds(
all_cells["COUPLER"],
gds_layer=1,
gds_dtype=0,
axis=2,
slab_bounds=(0, wg_height),
sidewall_angle=np.deg2rad(s_angle),
dilation=dilation,
reference_plane=reference_plane,
)
arms_sweep = td.Structure(geometry=arms_geo_sweep, medium=medium_wg)
sims[s_angle] = sim.updated_copy(structures=[substrate, arms_sweep])
Next, we create a Batch object to run all simulations in parallel.
batch = web.Batch(simulations=sims, folder_name="directional_coupler")
batch_data = batch.run()
Output()
19:31:08 -03 Started working on Batch containing 7 tasks.
19:31:17 -03 Maximum FlexCredit cost: 1.686 for the whole batch.
Use 'Batch.real_cost()' to get the billed FlexCredit cost after the Batch has completed.
Output()
19:31:25 -03 Batch complete.
Output()

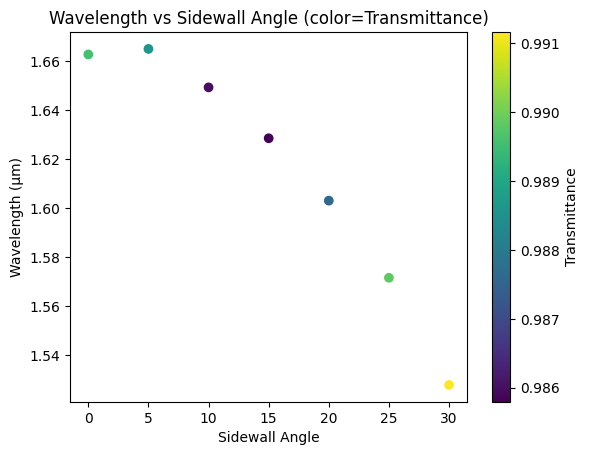

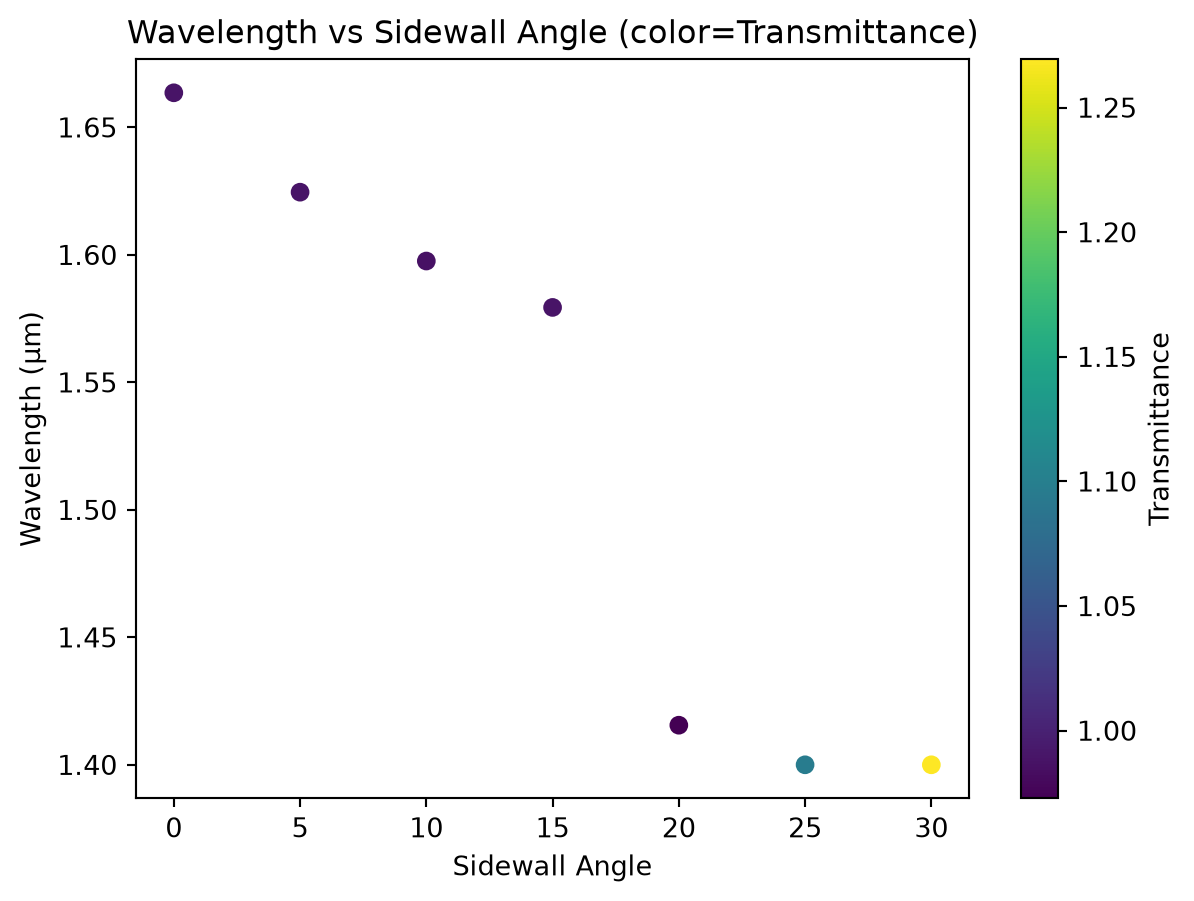

Now we can easily track the crossing frequency and transmittance using our defined post-processing function.
freqs = []
transmittance = []
for data in batch_data.values():
f, t = postprocess(data, plot=False)
freqs.append(f)
transmittance.append(t)
fig, ax = plt.subplots()
# Use scatter for color mapping
sc = ax.scatter(sidewall_angles, td.C_0 / np.array(freqs), c=transmittance, cmap="viridis")
plt.colorbar(sc, ax=ax, label="Transmittance")
ax.set_xlabel("Sidewall Angle")
ax.set_ylabel("Wavelength (µm)")
ax.set_title("Wavelength vs Sidewall Angle (color=Transmittance)")
plt.show()
Creating a Simulation With Two Ports ¶
We can use the updated_copy method to easily create another simulation with a second source with a $\pi$/2 phase difference.
source_time2 = source_time.updated_copy(phase=np.pi / 2)
source2 = source.updated_copy(
center=(source.center[0], -source.center[1], source.center[2]), source_time=source_time2
)
sim2 = sim.updated_copy(sources=[source, source2])
sim_data2 = web.run(sim2, "sources at 1 and 2")
19:33:21 -03 Created task 'sources at 1 and 2' with task_id 'fdve-3f89ee6b-940f-4a82-822f-e3df54c08e9e' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId=fdve-3f89ee6b-940 f-4a82-822f-e3df54c08e9e'.
Task folder: 'default'.
Output()
19:33:25 -03 Maximum FlexCredit cost: 0.245. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
19:33:26 -03 status = success
Output()
19:34:00 -03 loading simulation from simulation_data.hdf5

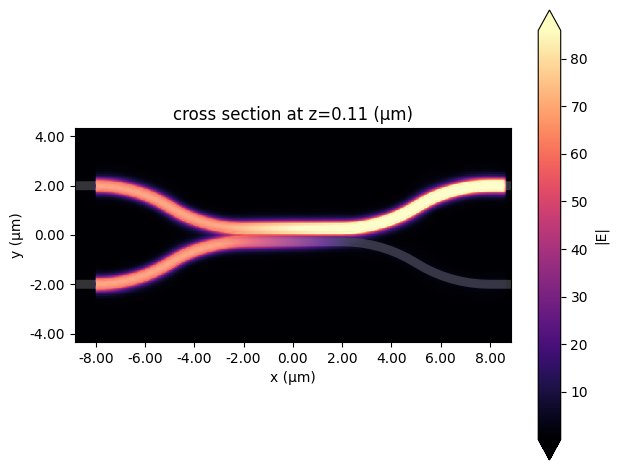

As we can see, in this configuration, all power is directed to the upper output at the crossing frequency.
# Plot field
sim_data2.plot_field("field_mon", "E", "abs", f=cross_freq)
plt.show()
