Inverse design optimization of a mode converter¶

from typing import List
import numpy as np
import matplotlib.pylab as plt

# import jax to be able to use automatic differentiation
import jax.numpy as jnp
from jax import grad, value_and_grad

# import regular tidy3d
import tidy3d as td
import tidy3d.web as web
from tidy3d.plugins.mode import ModeSolver

# import the components we need from the adjoint plugin
from tidy3d.plugins.adjoint import JaxSimulation, JaxBox, JaxCustomMedium, JaxStructure, JaxStructureStaticGeometry
from tidy3d.plugins.adjoint import JaxSimulationData, JaxDataArray, JaxPermittivityDataset
from tidy3d.plugins.adjoint.web import run

# set random seed to get same results
np.random.seed(2)

# wavelength and frequency
wavelength = 1.0
freq0 = td.C_0 / wavelength
k0 = 2 * np.pi * freq0 / td.C_0

# resolution control
min_steps_per_wvl = 16
# in the design region, we set uniform grid resolution,
# and define the design parameters on the same grid
dl_design_region = 0.01

# space between boxes and PML
buffer = 1.0 * wavelength

# optimize region size
lz = td.inf
lx = 5.0
ly = 3.0

# position of source and monitor (constant for all)
source_x = -lx / 2 - buffer * 0.8
meas_x = lx / 2 + buffer * 0.8

# total size
Lx = lx + 2 * buffer
Ly = ly + 2 * buffer
Lz = 0

# permittivity and width of the input/output waveguide
eps_wg = 2.75
wg_width = 0.7

# random starting parameters between 0 and 1
nx = int(lx / dl_design_region)
ny = int(ly / dl_design_region)
params0 = np.random.random((nx, ny))

# frequency width and run time
freqw = freq0 / 10
run_time = 50 / freqw

waveguide = td.Structure(
    geometry=td.Box(size=(2*Lx, wg_width, lz)), medium=td.Medium(permittivity=eps_wg)
)

mode_size = (0, wg_width * 3, lz)

source_plane = td.Box(
    center=[source_x, 0, 0],
    size=mode_size,
)

measure_plane = td.Box(
    center=[meas_x, 0, 0],
    size=mode_size,
)

from tidy3d.plugins.adjoint.utils.filter import ConicFilter, BinaryProjector

radius = .120
beta = 50

conic_filter = ConicFilter(radius=radius, design_region_dl=float(lx) / nx)

def filter_project(params, beta, eta=0.5):
    """Apply conic filter and binarization to the raw params."""
    params_smooth = conic_filter.evaluate(params)
    binary_projector = BinaryProjector(vmin=0, vmax=1, beta=beta, eta=eta)
    params_smooth_binarized = binary_projector.evaluate(params_smooth)
    return params_smooth_binarized

def get_eps(params, beta):
    """Get the permittivity values (1, eps_wg) array as a funciton of the parameters (0, 1)"""
    processed_params = filter_project(params, beta)
    return 1 + processed_params * (eps_wg - 1)

def make_input_structures(params, beta) -> List[JaxStructure]:

    x0_min = -lx / 2 + dl_design_region / 2
    y0_min = -ly / 2 + dl_design_region / 2

    input_structures = []

    coords_x = [x0_min + dl_design_region * ix for ix in range(nx)]
    coords_y = [y0_min + dl_design_region * iy for iy in range(ny)]

    coords = dict(x=coords_x, y=coords_y, z=[0], f=[freq0])

    eps = get_eps(params, beta=beta).reshape((nx, ny, 1, 1))

    field_components = {
        f"eps_{dim}{dim}": JaxDataArray(values=eps, coords=coords) for dim in "xyz"
    }
    eps_dataset = JaxPermittivityDataset(**field_components)
    custom_medium = JaxCustomMedium(eps_dataset=eps_dataset)
    box = td.Box(center=(0, 0, 0), size=(lx, ly, lz))
    custom_structure = JaxStructureStaticGeometry(geometry=box, medium=custom_medium)
    return [custom_structure]

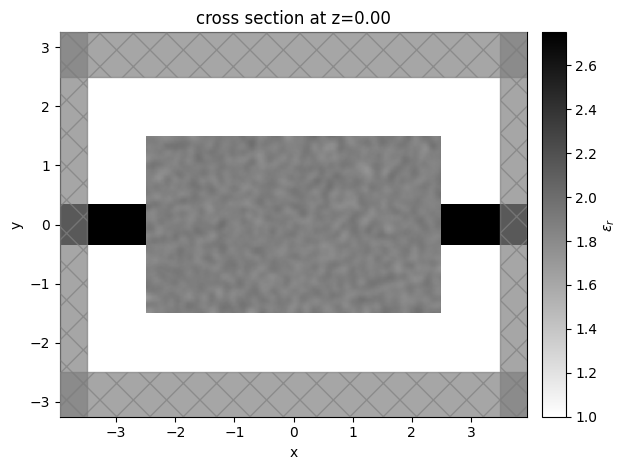

def make_sim_base(params, beta) -> JaxSimulation:

    input_structures = make_input_structures(params, beta=beta)
    design_region_mesh = td.MeshOverrideStructure(
        geometry=td.Box(size=(lx, ly, lz)),
        dl=[dl_design_region] * 3,
        enforce=True,
    )
    grid_spec=td.GridSpec.auto(
        wavelength=wavelength,
        min_steps_per_wvl=16,
        override_structures=[design_region_mesh],
    )

    return JaxSimulation(
        size=[Lx, Ly, Lz],
        grid_spec=grid_spec,
        structures=[waveguide],
        input_structures=input_structures,
        sources=[],
        monitors=[],
        output_monitors=[],
        run_time=run_time,
        boundary_spec=td.BoundarySpec.pml(x=True, y=True, z=False),
    )

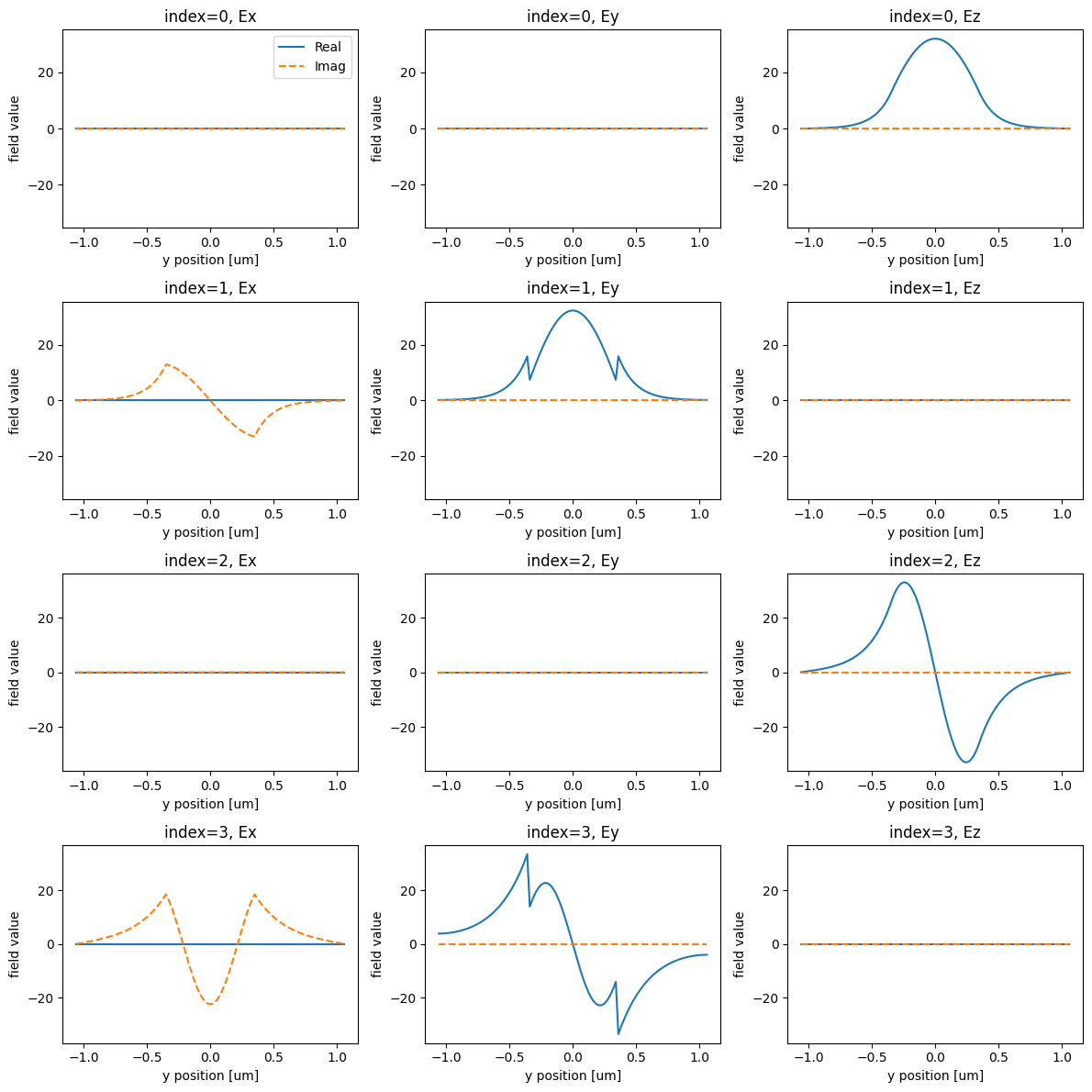

mode_index_in = 0
mode_index_out = 2

num_modes = max(mode_index_in, mode_index_out) + 1

mode_spec = td.ModeSpec(num_modes=num_modes)

# source seeding the simulation
forward_source = td.ModeSource(
    source_time=td.GaussianPulse(freq0=freq0, fwidth=freqw),
    center=[source_x, 0, 0],
    size=mode_size,
    mode_index=mode_index_in,
    mode_spec=mode_spec,
    direction="+",
)

# we'll refer to the measurement monitor by this name often
measurement_monitor_name = "measurement"

# monitor where we compute the objective function from
measurement_monitor = td.ModeMonitor(
    center=[meas_x, 0, 0],
    size=mode_size,
    freqs=[freq0],
    mode_spec=mode_spec,
    name=measurement_monitor_name,
)

def make_sim(params, beta):
    sim = make_sim_base(params, beta=beta)
    return sim.updated_copy(sources=[forward_source], output_monitors=[measurement_monitor])

def measure_power(sim_data: JaxSimulationData) -> float:
    """Return the power in the output_data amplitude at the mode index of interest."""
    output_amps = sim_data["measurement"].amps
    amp = output_amps.sel(direction="+", f=freq0, mode_index=mode_index_out)
    return jnp.sum(jnp.abs(amp) ** 2)

from tidy3d.plugins.adjoint.utils.penalty import ErosionDilationPenalty

def penalty(params, beta):
    processed_params = filter_project(params, beta=beta)

    ed_penalty = ErosionDilationPenalty(length_scale=radius, pixel_size=dl_design_region)
    return ed_penalty.evaluate(processed_params)

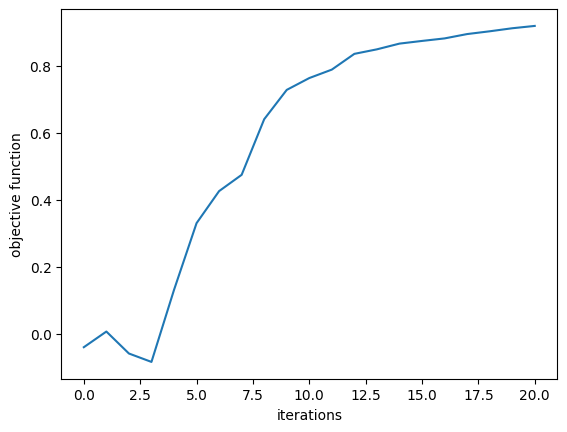

def J(params, beta: float, step_num: int = None, verbose: bool = False) -> float:
    sim = make_sim(params, beta=beta)
    task_name = "inv_des"
    if step_num:
        task_name += f"_step_{step_num}"
    sim_data = run(sim, task_name=task_name, verbose=verbose)
    penalty_weight = np.minimum(1, beta/25)
    return measure_power(sim_data) - penalty_weight * penalty(params, beta)

dJ_fn = value_and_grad(J)

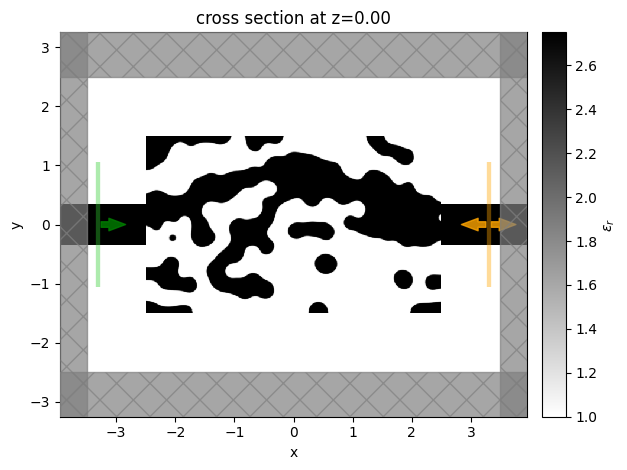

params_final = params_history[-1]

sim_final = make_sim(params_final, beta=beta)

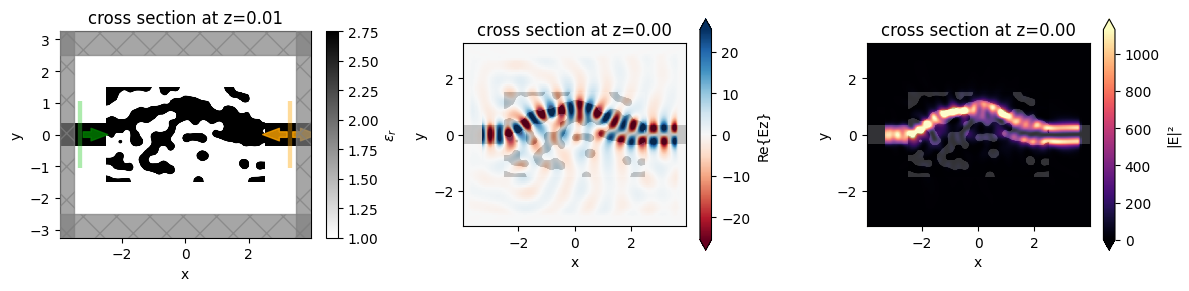

field_mnt = td.FieldMonitor(
    size=(td.inf, td.inf, 0),
    freqs=[freq0],
    name="field_mnt",
)

sim_final = sim_final.copy(update=dict(monitors=(field_mnt, measurement_monitor)))

sim_final.to_gds_file(
    fname="./misc/inv_des_mode_conv.gds",
    z=0,
    frequency=freq0,
    permittivity_threshold=2.6
)
