Animations are often created from FDTD simulations to provide a more intuitive understanding of the physical phenomena being modeled. These animations can visualize the evolution of the field distribution over time, showing wave propagation, interactions, and other dynamic effects that static images cannot adequately depict. This can help researchers and engineers better understand the results of their simulations, identify anomalies, and develop or refine their models. Additionally, these animations can serve as effective educational and communication tools, making complex concepts more accessible to non-experts.
This tutorial demonstrates how to create an animation in a waveguide taper simulation and display the animation directly in a Jupyter Notebook.
We also provide a conprehensive list of other tutorials such as how to define boundary conditions, how to defining spatially-varying sources and structures, how to model dispersive materials, and how to visualize simulation setups and results.
If you are new to the finite-difference time-domain (FDTD) method, we highly recommend going through our FDTD101 tutorials.
import numpy as np import matplotlib.pyplot as plt import matplotlib.animation as animation from IPython.display import HTML import tidy3d as td import tidy3d.web as web
lda0 = 1.55 # central wavelength freq0 = td.C_0 / lda0 # central frequency ldas = np.linspace(1.5, 1.6, 101) # wavelength range freqs = td.C_0 / ldas # frequency range fwidth = 0.5 * (np.max(freqs) - np.min(freqs)) # width of the frequency distribution
n_si = 3.48 # silicon refractive index si = td.Medium(permittivity=n_si**2) n_sio2 = 1.44 # silicon oxide refractive index sio2 = td.Medium(permittivity=n_sio2**2)
w_in = 5 # input waveguide width w_out = 0.45 # output waveguide width t_wg = 0.11 # waveguide thickness L_t = 10 inf_eff = 1e3 # effective infinity of the model # define the substrate structure sub = td.Structure( geometry=td.Box.from_bounds( rmin=(-inf_eff, -inf_eff, -inf_eff), rmax=(inf_eff, inf_eff, 0) ), medium=sio2, ) # vertices of the taper vertices = [ [-inf_eff, w_in / 2], [0, w_in / 2], [L_t, w_out / 2], [inf_eff, w_out / 2], [inf_eff, -w_out / 2], [L_t, -w_out / 2], [0, -w_in / 2], [-inf_eff, -w_in / 2], ] # construct the taper structure using a PolySlab linear_taper = td.Structure( geometry=td.PolySlab(vertices=vertices, axis=2, slab_bounds=(0, t_wg)), medium=si, )
To create an animation, we need to capture the frames at different time instances of the simulation. This can be done by using a FieldTimeMonitor. Usually a FDTD simulation contains a large number of time steps and grid points. Recording the field at every time step and grid point will result in a large dataset. For the purpose of making animations, this is usually unnecessary. In this particular case, we will record one frame every 100 time steps, which is realized by setting
interval=100 in the FieldTimeMonitor. Similarly, we set
interval_space=(3,3,1) such that the field is recorded every 3 grid points. To further reduce dataset size, we will only be recording the z-component of the magnetic field.
run_time = 5e-13 # run time of the simulation # define a mode source mode_source = td.ModeSource( center=(-lda0 / 2, 0, t_wg / 2), size=(0, 1.2 * w_in, 6 * t_wg), source_time=td.GaussianPulse(freq0=freq0, fwidth=fwidth), direction="+", mode_spec=td.ModeSpec(num_modes=1, target_neff=n_si), mode_index=0, ) # define a field time monitor to record animation frames monitor = td.FieldTimeMonitor( center=(0, 0, t_wg/2), size=(td.inf, td.inf, 0), fields=['Hz'], start=0, stop=run_time, interval=100, interval_space=(3,3,1), name='movie_monitor' ) # define simulation domain size Lx = L_t + 2 * lda0 Ly = w_in + 2 * lda0 Lz = t_wg + 1.5 * lda0 sim_size = (Lx, Ly, Lz) # define simulation sim = td.Simulation( center=(L_t / 2, 0, t_wg), size=sim_size, grid_spec=td.GridSpec.auto(min_steps_per_wvl=15, wavelength=lda0), structures=[linear_taper, sub], sources=[mode_source], monitors=[monitor], run_time=run_time, boundary_spec=td.BoundarySpec.all_sides( boundary=td.PML() ), # pml is used in all boundaries symmetry=(0, -1, 0), ) # a pec symmetry plane at y=0 can be used to reduce the grid points of the simulation

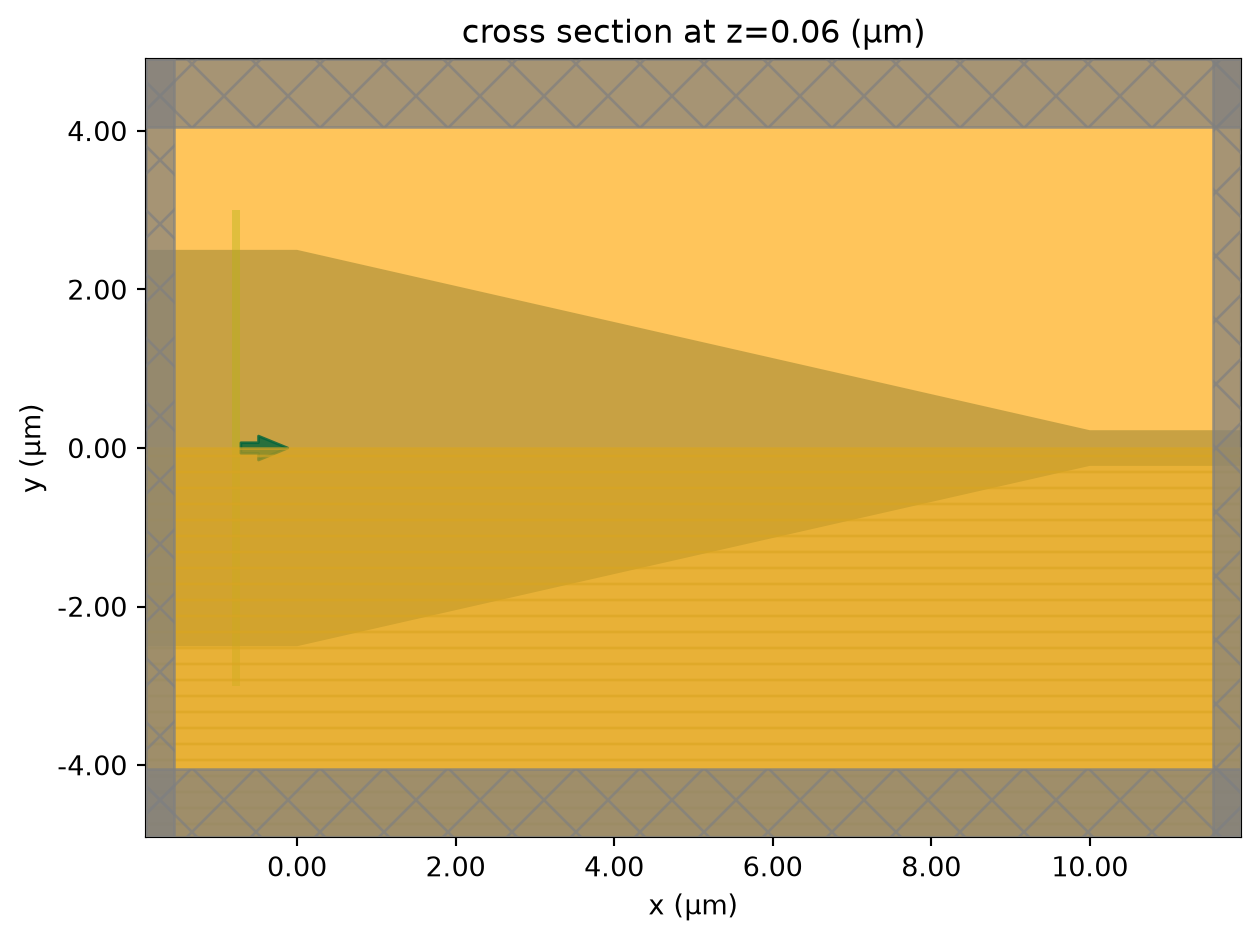

Visualize the simulation.
Submit the simulation.
sim_data = web.run(simulation=sim, task_name="taper", path="data/simulation_data.hdf5")
View task using web UI at webapi.py:190 'https://tidy3d.simulation.cloud/workbench?taskId=fdve- 8aa4d764-5d7d-4d1e-bc01-3ecde39a647bv1'.

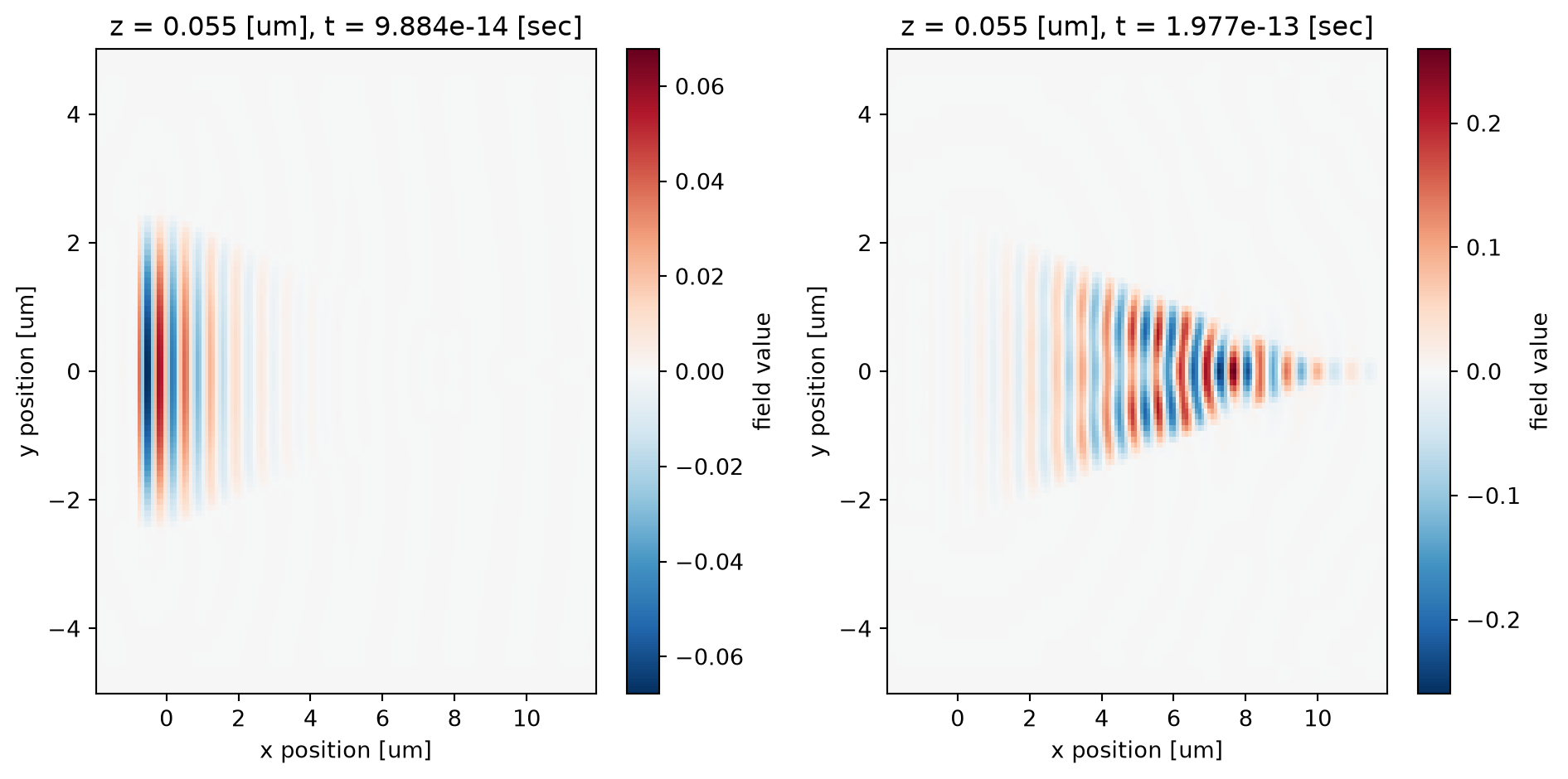

Before creating the animation, we can inspect the field distribution at a few time instances.
fig, ax = plt.subplots(1,2, figsize=(10,5), tight_layout=True) sim_data['movie_monitor'].Hz.sel(t=1e-13, method='nearest').plot(x='x', y='y', ax=ax) sim_data['movie_monitor'].Hz.sel(t=2e-13, method='nearest').plot(x='x', y='y', ax=ax) plt.show()
To create an animation, we need to define a function that plots each frame. Then we use
FuncAnimation to create the animation. For this particular animation, we use 50 frames. For detail on
FuncAnimation, please reference the documentation.
After the animation is created, we can display it directly in the notebook environment by using

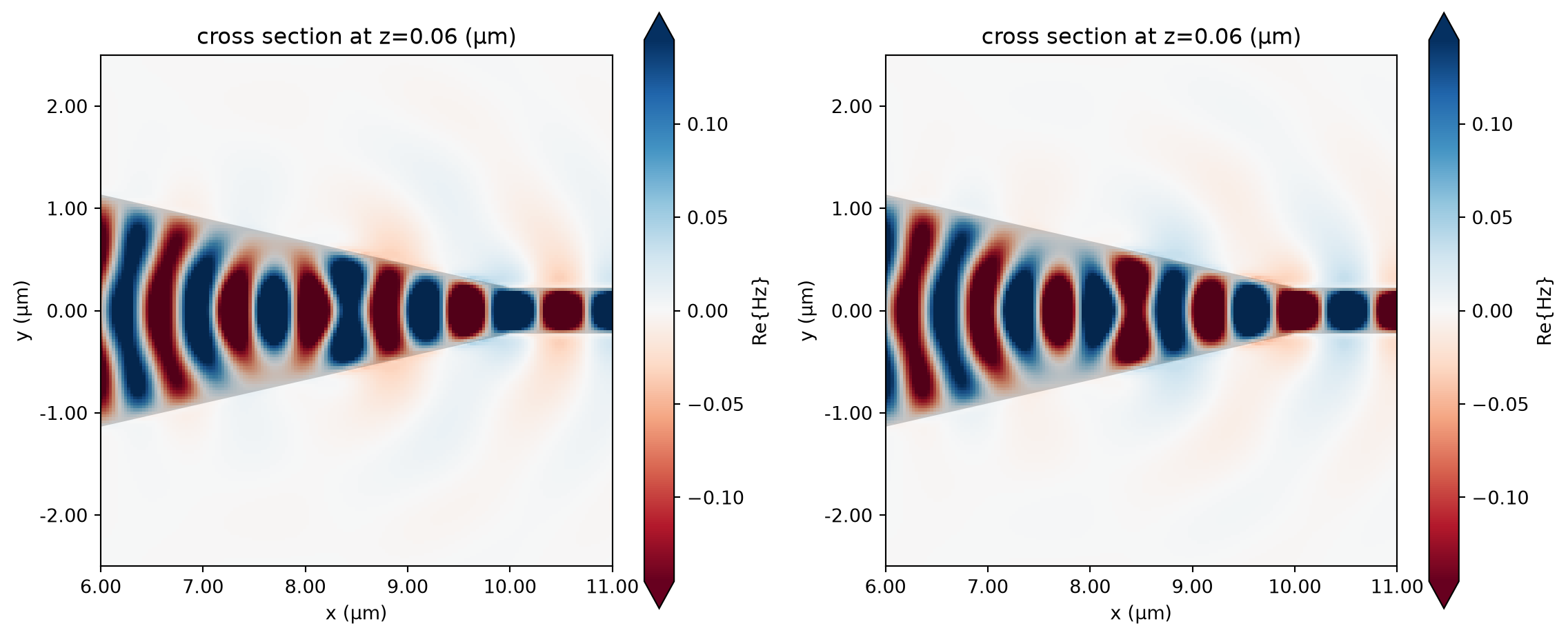

HTML. Here we see the incident pulse from the wider waveguide is squeezed into the narrower waveguide through the taper. Some field is reflected back or leaked out of the waveguide, leading to some insertion loss, which can be minimized by using a longer taper.
t_end = sim_data['movie_monitor'].Hz.coords['t'][-1] # end time of the animation frames = 50 # number of frames fig, ax = plt.subplots() def animate(i): t = t_end*i/frames # time at each frame sim_data['movie_monitor'].Hz.sel(t=t, method='nearest').plot(x='x', y='y', ax=ax, vmin=-0.1, vmax=0.1, add_colorbar=False, cmap='seismic') # create animation ani = animation.FuncAnimation(fig, animate, frames=frames); plt.close() # display the animation HTML(ani.to_jshtml())
