This notebook contains grab-and-go functions of popular periodic structures commonly used in photonic crystals and other photonic devices: square/hexagonal arrays of cylinders, slabs with square/hexagonal arrays of holes, rectangular grating, L and H cavities, wood pile, and FCC/BCC crystals. Users can directly copy these pre-defined functions to your own script and use them directly in building your simulations. More importantly, users can learn the workflow from these examples and build your own periodic Structures using the same principles.
For photonic crystal related case studies, please see the band structure calculation, the optimized L3 cavity, and the waveguide polarization filter.
For how to define common photonic integrated circuit components, please see here.
import tidy3d as td
import numpy as np
Square Array of Cylinders¶
The function square_cylinder_array
returns a square array of cylinders with tunable radius, spacing in both x and y directions, height, and array dimensions.
def square_cylinder_array(
x0,
y0,
z0,
R,
hole_spacing_x,
hole_spacing_y,
n_x,
n_y,
height,
medium,
reference_plane="bottom",
sidewall_angle=0,
axis=2,
):
# parameters
# ------------------------------------------------------------
# x0: x coordinate of center of the array (um)
# y0: y coordinate of center of the array (um)
# z0: z coordinate of center of the array (um)
# R: radius of the circular holes (um)
# hole_spacing_x: distance between centers of holes in x direction (um)
# hole_spacing_y: distance between centers of holes in y direction (um)
# n_x: number of holes in x direction
# n_y: number of holes in y direction
# height: height of array
# medium: medium of the cylinders
# reference_plane
# sidewall_angle: angle slant of cylinders
# axis
cylinder_group = []
start_x, start_y = x0 + hole_spacing_x * (1 - n_x) / 2, y0 + hole_spacing_y * (1 - n_y) / 2
for i in range(0, n_x):
for j in range(0, n_y):
c = td.Cylinder(
axis=axis,
sidewall_angle=sidewall_angle,
reference_plane=reference_plane,
radius=R,
center=(start_x + i * hole_spacing_x, start_y + j * hole_spacing_y, z0),
length=height,
)
cylinder_group.append(c)
structure = td.Structure(geometry=td.GeometryGroup(geometries=cylinder_group), medium=medium)
return structure
To demonstrate an example, we use the square_cylinder_array
function and put it into an empty simulation for visualization purposes. By using the plot_3d
method of the Simulation object, we can visualize the defined structures in 3D.

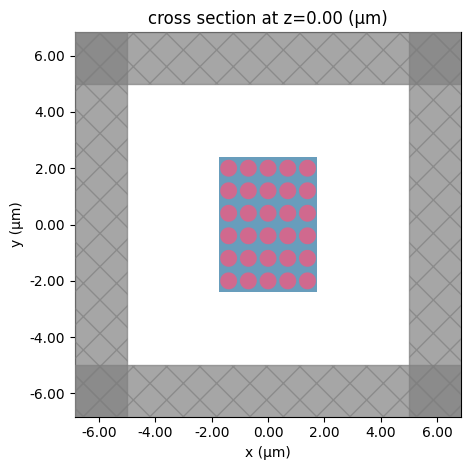

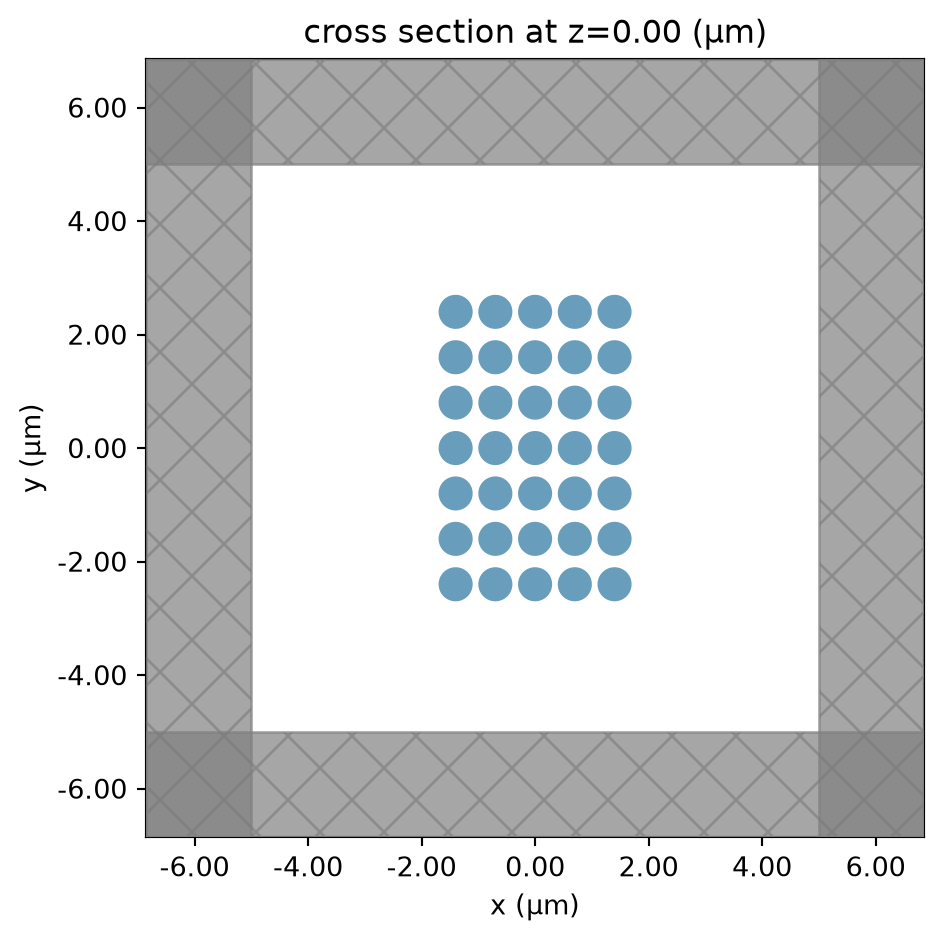

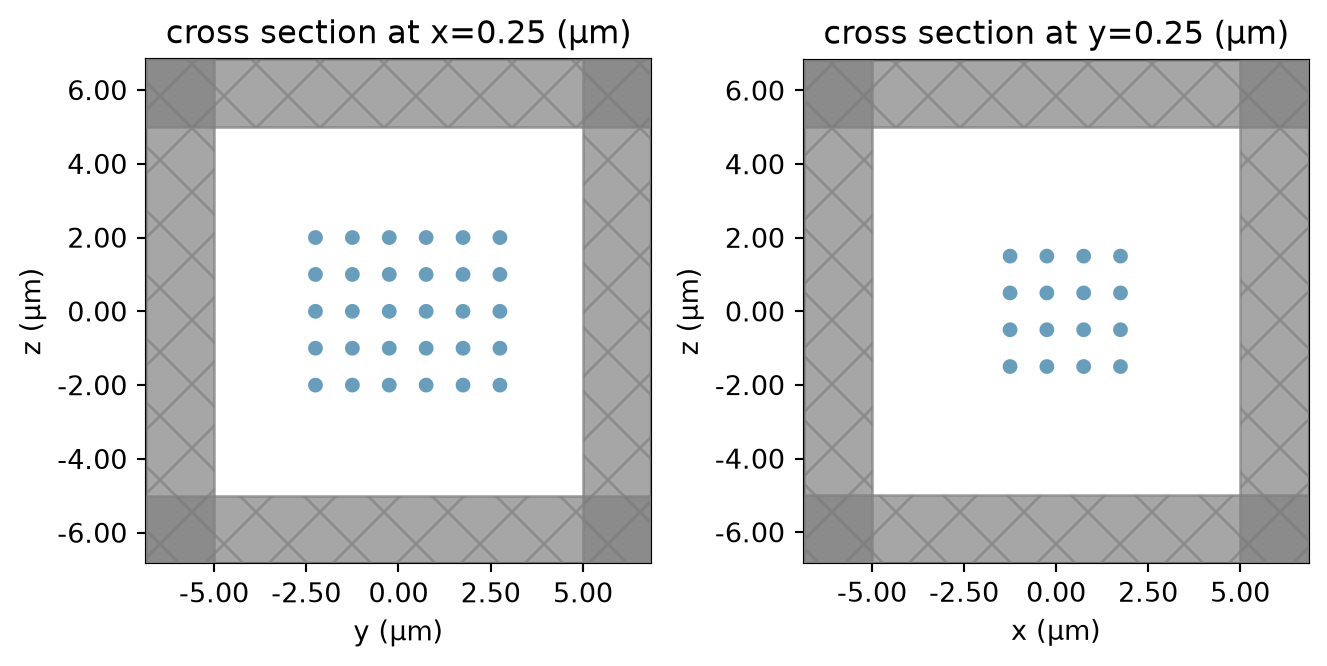

s = square_cylinder_array(0, 0, 0, 0.3, 0.7, 0.8, 8, 10, 0.4, td.Medium(permittivity=3.48**2))
sim = td.Simulation(
size=[10, 10, 3],
grid_spec=td.GridSpec.auto(wavelength=1.55),
structures=[s],
run_time=1,
)
sim.plot_3d()
Hexagonal Array of Cylinders¶
The function hex_cylinder_array
returns a hexagonal array of cylinders with tunable radius, spacing in both x and y directions, height, and array dimensions.
def hex_cylinder_array(
x0,
y0,
z0,
R,
hole_spacing_x,
hole_spacing_y,
n_x,
n_y,
height,
medium,
reference_plane="bottom",
sidewall_angle=0,
axis=2,
):
# parameters
# ------------------------------------------------------------
# x0: x coordinate of center of the array (um)
# y0: y coordinate of center of the array (um)
# z0: z coordinate of center of the array (um)
# R: radius of the circular holes (um)
# hole_spacing_x: distance between centers of holes in x direction (um)
# hole_spacing_y: distance between centers of holes in y direction (um)
# n_x: number of holes in x direction
# n_y: number of holes in y direction
# height: height of array
# medium: medium of the holes
# reference_plane
# sidewall_angle: angle slant of cylinders. Add compensation for the box geometry if != 0?
# axis
x_slab_length, y_slab_length = hole_spacing_x * (n_x + 0.5), hole_spacing_y * n_y
start_x, start_y = (
x0 - x_slab_length / 2 + hole_spacing_x / 2,
y0 - y_slab_length / 2 + hole_spacing_y / 2,
)
cylinders = []
for i in range(0, n_x):
for j in range(0, n_y):
c = td.Cylinder(
axis=axis,
sidewall_angle=sidewall_angle,
reference_plane=reference_plane,
radius=R,
center=(
start_x + (i + (j % 2) * 0.5) * hole_spacing_x,
start_y + j * hole_spacing_y,
z0,
),
length=height,
)
cylinders.append(c)
structure = td.Structure(geometry=td.GeometryGroup(geometries=cylinders), medium=medium)
return structure

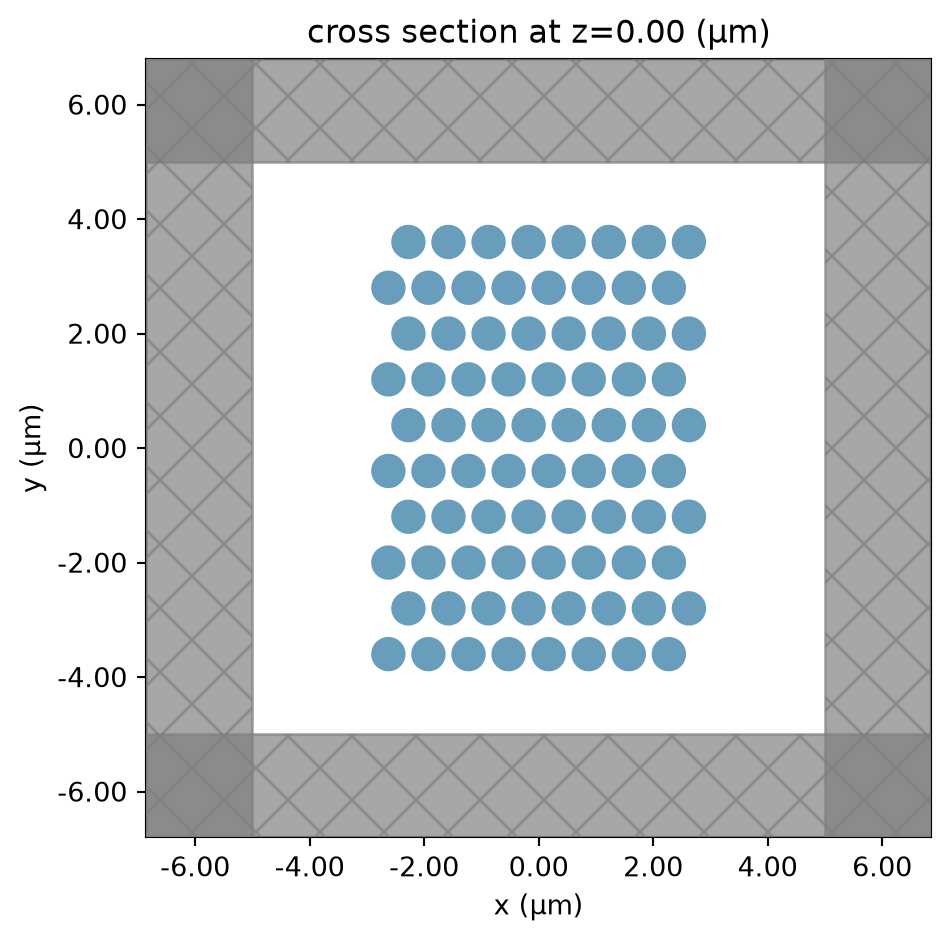

s = hex_cylinder_array(0, 0, 0, 0.3, 0.7, 0.8, 8, 10, 0.4, td.Medium(permittivity=3.48**2))
sim = td.Simulation(
size=[10, 10, 3],
grid_spec=td.GridSpec.auto(wavelength=1.55),
structures=[s],
run_time=1,
)
sim.plot_3d()
Square Array of Holes¶
The function slab_square_array
returns a slab with a square array of holes of separately-defined medium. The slab has a tunable hole radius, spacing in both x and y directions, height, and array dimensions.
def slab_square_array(
x0,
y0,
z0,
R,
hole_spacing_x,
hole_spacing_y,
n_x,
n_y,
height,
hole_medium,
slab_medium,
reference_plane="bottom",
sidewall_angle=0,
axis=2,
):
# parameters
# ------------------------------------------------------------
# x0: x coordinate of center of the array (um)
# y0: y coordinate of center of the array (um)
# z0: z coordinate of center of the array (um)
# R: radius of the circular holes (um)
# hole_spacing_x: distance between centers of holes in x direction (um)
# hole_spacing_y: distance between centers of holes in y direction (um)
# n_x: number of holes in x direction
# n_y: number of holes in y direction
# height: height of array
# hole_medium: medium of the holes
# slab_medium: medium of the slab
# reference_plane
# sidewall_angle: angle slant of cylinders. Add compensation for the box geometry if != 0?
# axis
start_x, start_y = x0 - hole_spacing_x * (n_x - 1) / 2, y0 - hole_spacing_y * (n_y - 1) / 2
box = td.Box(center=(x0, y0, z0), size=(hole_spacing_x * n_x, hole_spacing_y * n_y, height))
structures = [td.Structure(geometry=box, medium=slab_medium)]
cylinders = []
for i in range(0, n_x):
for j in range(0, n_y):
c = td.Cylinder(
axis=axis,
sidewall_angle=sidewall_angle,
reference_plane=reference_plane,
radius=R,
center=(start_x + i * hole_spacing_x, start_y + j * hole_spacing_y, z0),
length=height,
)
cylinders.append(c)
cylinders_structure = td.Structure(
geometry=td.GeometryGroup(geometries=cylinders), medium=hole_medium
)
structures.append(cylinders_structure)
return structures

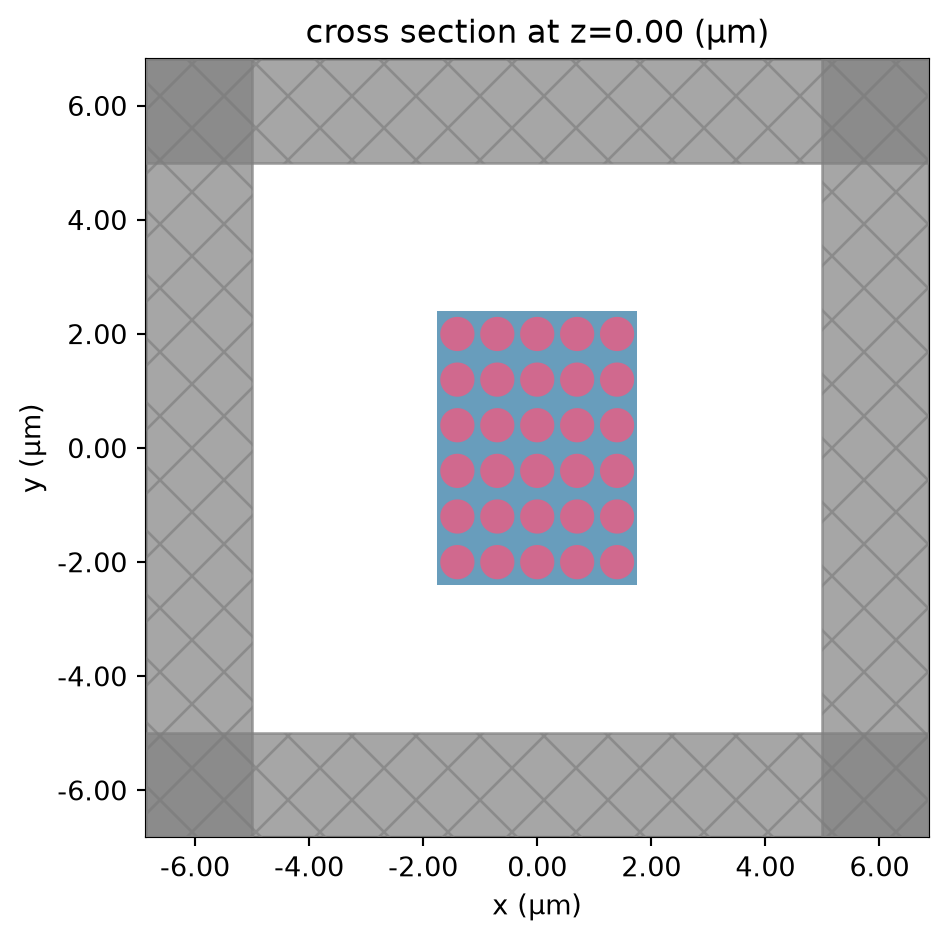

s = slab_square_array(
0,
0,
0,
0.3,
0.7,
0.8,
8,
10,
0.4,
td.Medium(permittivity=3.48**2),
td.Medium(permittivity=1.003**2),
)

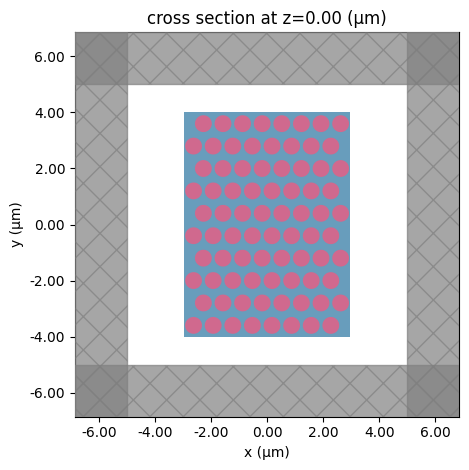

sim = td.Simulation(
size=[10, 10, 10],
grid_spec=td.GridSpec.auto(wavelength=1.55),
structures=s,
run_time=1,
)
sim.plot_3d()
Hexagonal Array of Holes¶
The function slab_hex_array
returns a slab with a square array of holes with separately-defined medium. The slab has a tunable hole radius, spacing in both x and y directions, height, and array dimensions.
def slab_hex_array(
x0,
y0,
z0,
R,
hole_spacing_x,
hole_spacing_y,
n_x,
n_y,
height,
hole_medium,
slab_medium,
reference_plane="bottom",
sidewall_angle=0,
axis=2,
):
# parameters
# ------------------------------------------------------------
# x0: x coordinate of center of the array (um)
# y0: y coordinate of center of the array (um)
# z0: z coordinate of center of the array (um)
# R: radius of the circular holes (um)
# hole_spacing_x: distance between centers of holes in x direction (um)
# hole_spacing_y: distance between centers of holes in y direction (um)
# n_x: number of holes in x direction
# n_y: number of holes in y direction
# height: height of array
# hole_medium: medium of the holes
# slab_medium: medium of the slab
# reference_plane
# sidewall_angle: angle slant of cylinders. Add compensation for the box geometry if != 0?
# axis
# define geometry for slab
x_slab_length, y_slab_length = hole_spacing_x * (n_x + 0.5), hole_spacing_y * n_y
start_x, start_y = (
x0 - x_slab_length / 2 + hole_spacing_x / 2,
y0 - y_slab_length / 2 + hole_spacing_y / 2,
)
box = td.Box(center=(x0, y0, z0), size=(x_slab_length, y_slab_length, height))
structures = [td.Structure(geometry=box, medium=slab_medium)]
cylinders = []
for i in range(0, n_x):
for j in range(0, n_y):
c = td.Cylinder(
axis=axis,
sidewall_angle=sidewall_angle,
reference_plane=reference_plane,
radius=R,
center=(
start_x + (i + (j % 2) * 0.5) * hole_spacing_x,
start_y + j * hole_spacing_y,
z0,
),
length=height,
)
cylinders.append(c)
cylinders_structure = td.Structure(
geometry=td.GeometryGroup(geometries=cylinders), medium=hole_medium
)
structures.append(cylinders_structure)
return structures

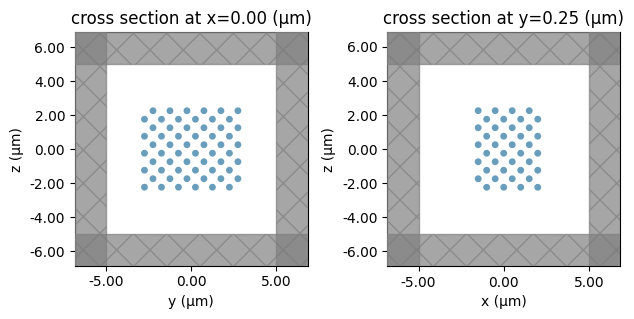

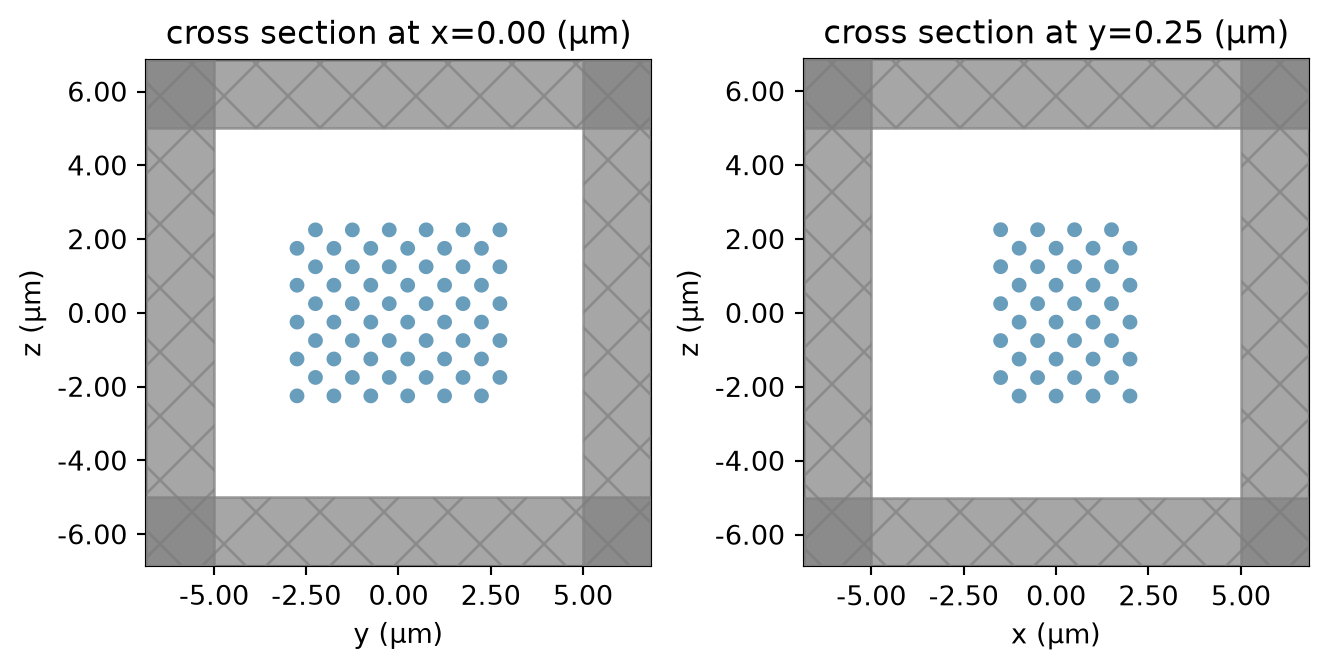

s = slab_hex_array(
0,
0,
0,
0.3,
0.7,
0.8,
8,
10,
0.4,
td.Medium(permittivity=3.48**2),
td.Medium(permittivity=1.003**2),
)

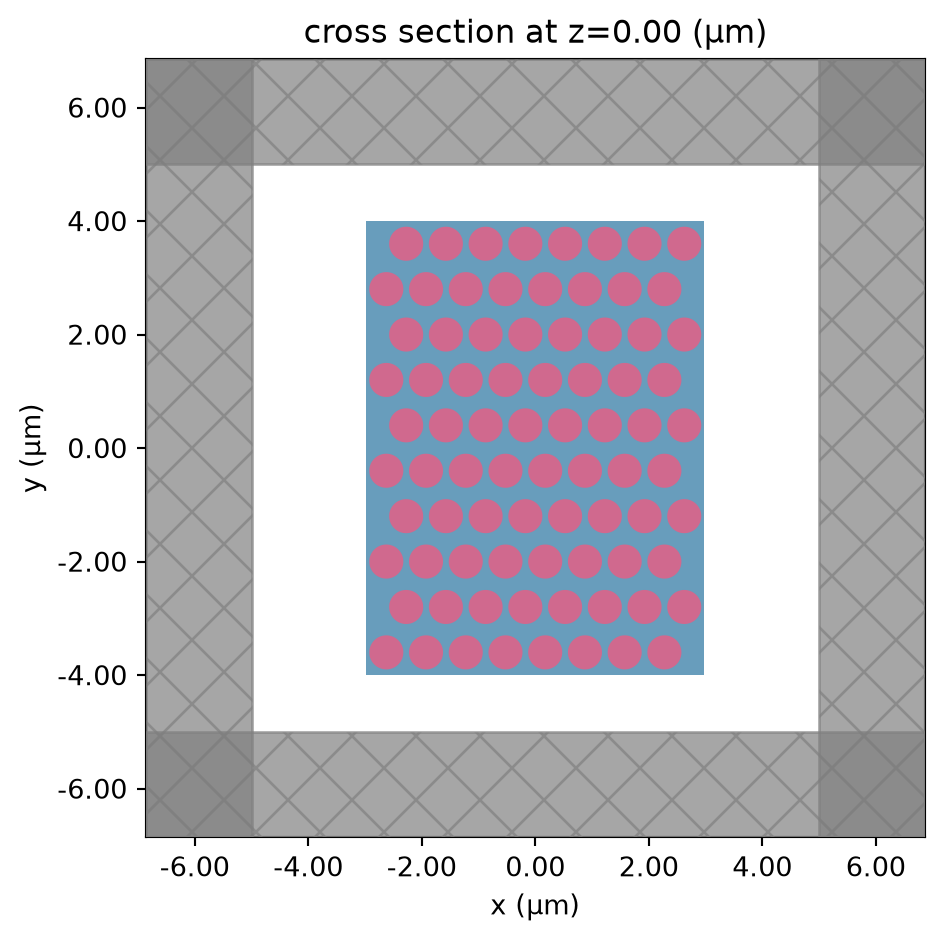

sim = td.Simulation(
size=[10, 10, 10],
grid_spec=td.GridSpec.auto(wavelength=1.55),
structures=s,
run_time=1,
)
sim.plot_3d()
Rectangular Grating¶
The function grating
returns a rectangular grating, with tunable height, thickness, tooth width, tooth height, tooth spacing, and tooth number.
def grating(
x0,
y0,
z0,
tooth_width,
tooth_height,
spacing,
base_height,
thickness,
tooth_number,
medium,
reference_plane="bottom",
sidewall_angle=0,
axis=2,
):
# parameters
# ------------------------------------------------------------
# x0: x coordinate of center of the grating (um)
# y0: y coordinate of center of the grating (um)
# z0: z coordinate of center of the grating (um)
# tooth_width: width of each grating tooth (um)
# tooth_height: height of each tooth (um)
# spacing: spacing between teeth (um)
# base_height: height of underlying base (um)
# thickness: width of underlying base (um)
# tooth_number: number of teeth in grating
# medium: medium of the grating
# reference_plane
# sidewall_angle: angle of slant
# axis
x_length, z_length = (
tooth_width + spacing
) * tooth_number - spacing, tooth_height + base_height
start_x, start_z = x0 - x_length / 2, z0 + z_length / 2
axisArray = [0,1,2]
# create list of points as vertices for polyslab
points = [(start_x, start_z), (start_x + tooth_width, start_z)]
prevPoint = points[-1]
# adding points for teeth
for i in range(0, tooth_number - 1):
points.append((prevPoint[0], prevPoint[1] - tooth_height))
points.append((prevPoint[0] + spacing, prevPoint[1] - tooth_height))
points.append((prevPoint[0] + spacing, prevPoint[1]))
prevPoint = (prevPoint[0] + spacing + tooth_width, prevPoint[1])
points.append(prevPoint)
points.append((prevPoint[0], prevPoint[1] - z_length))
points.append((prevPoint[0] - x_length, prevPoint[1] - z_length))
grating = td.PolySlab(
vertices=points,
axis=axisArray[axis-1],
slab_bounds=(-thickness / 2, thickness / 2),
sidewall_angle=sidewall_angle,
reference_plane=reference_plane,
)
structure = td.Structure(geometry=grating, medium=medium)
return structure

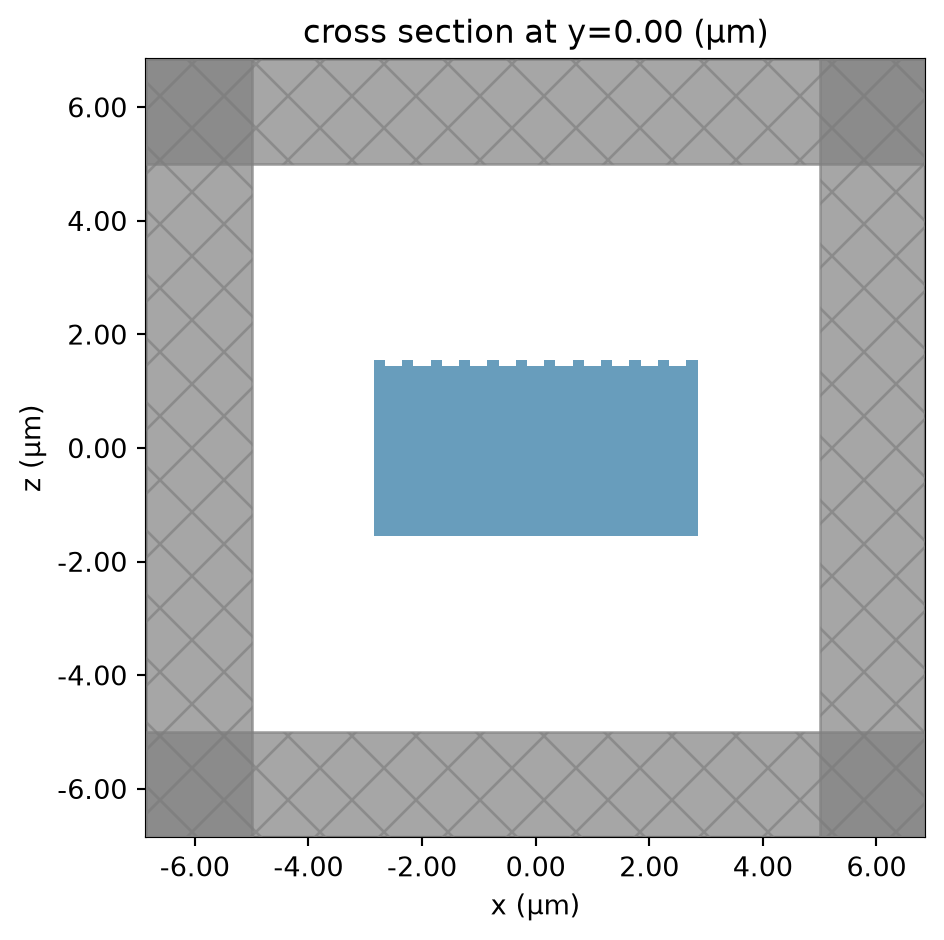

s = grating(0, 0, 0, 0.2, 0.1, 0.3, 3, 4, 12, td.Medium(permittivity=3.48**2))

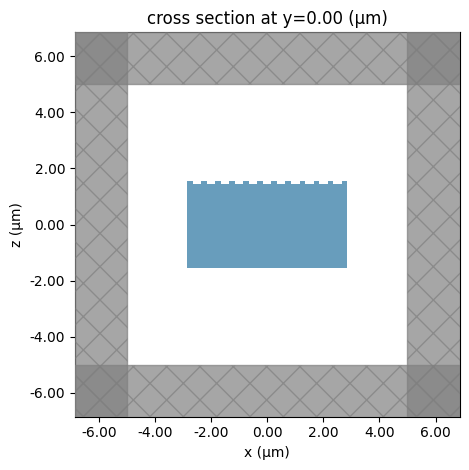

sim = td.Simulation(
size=[10, 10, 10], grid_spec=td.GridSpec.auto(wavelength=1.55), structures=[s], run_time=1
)
sim.plot_3d()

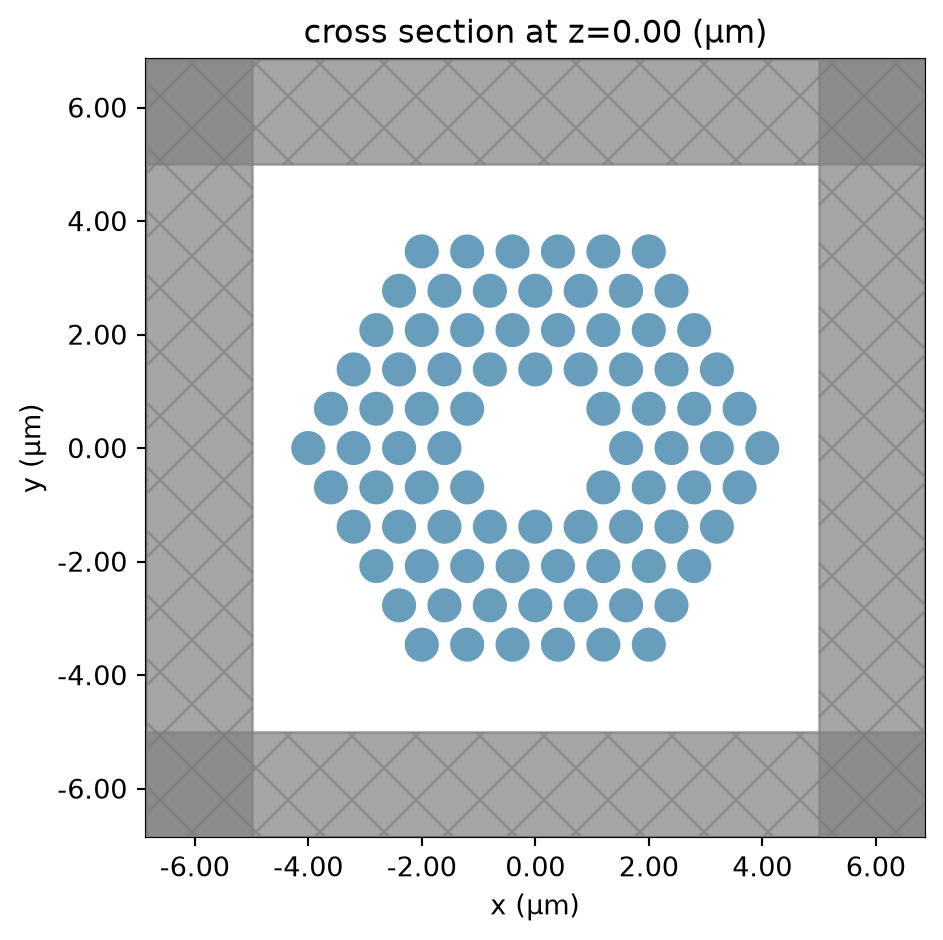

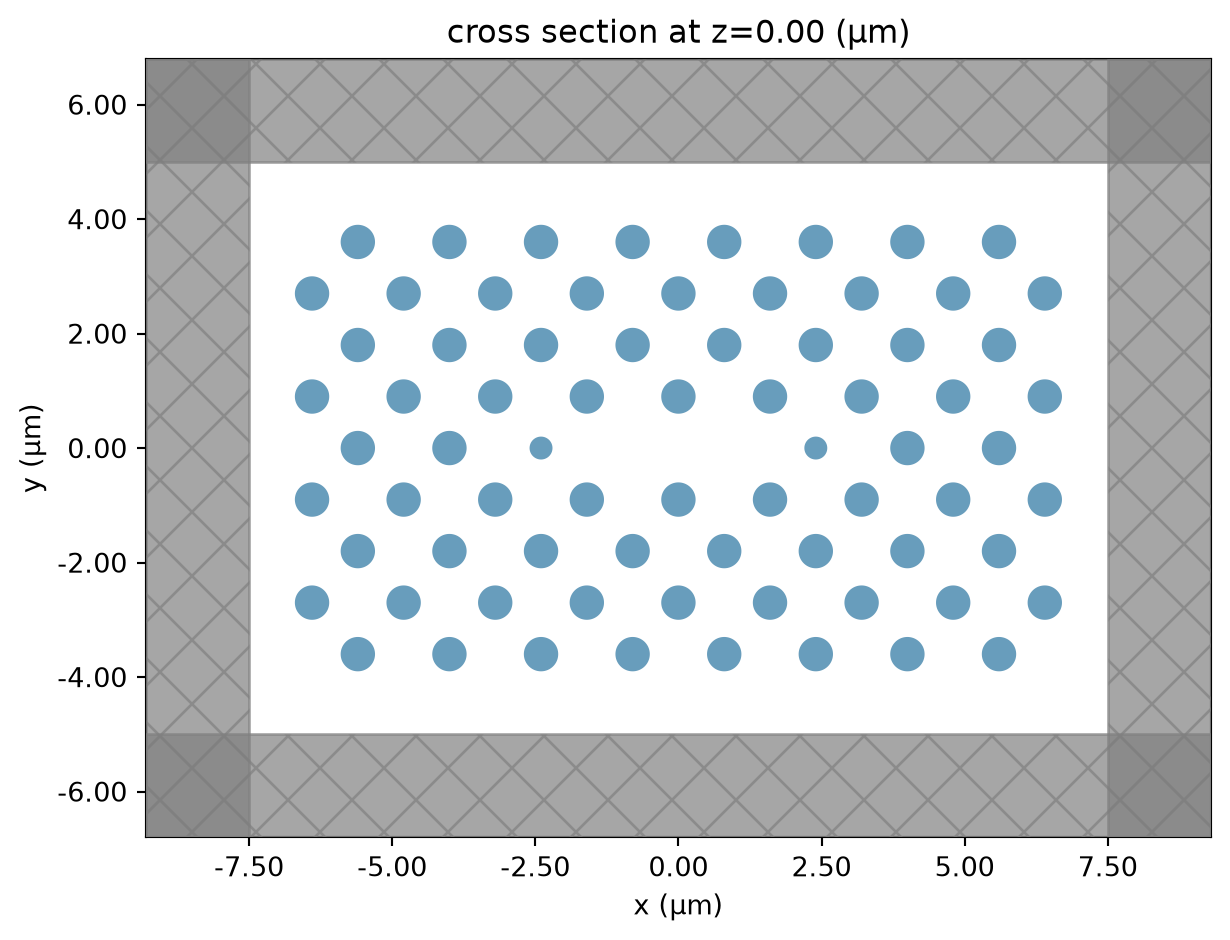

L Cavity¶
The function hex_l_cavity
returns a hexagonal array of cylinders with an L cavity. It has tunable cylinder radius, cylinder spacing, height, cavity size, and separately tunable radii of cavity-bordering cylinders.
def hex_l_cavity(
x0,
y0,
z0,
R,
side_R,
spacing_x,
spacing_y,
n_x,
n_y,
l_number,
height,
medium,
reference_plane="bottom",
sidewall_angle=0,
axis=2,
):
# parameters
# ------------------------------------------------------------
# x0: x coordinate of center of the array (um)
# y0: y coordinate of center of the array (um)
# z0: z coordinate of center of the array (um)
# R: radius of the cylinders (um)
# side_R: radii of the two ends of the L-cavity (um)
# hole_spacing_x: distance between centers of cylinders in x direction (um)
# hole_spacing_y: distance between centers of cylinders in y direction (um)
# n_x: number of cylinders in x direction
# n_y: number of cylinders in y direction
# l_number: number of cylinders removed from center (along x direction)
# height: height of cylinders
# medium: medium of the cylinders
# reference_plane
# sidewall_angle: angle slant of cylinders
# axis
cylinders = []
if n_y % 2 == 0:
n_y -= 1 # only odd numbers for n_y work for symmetry
n_middle = n_x - n_x % 2 + l_number % 2
for i in range(-(n_y // 2), n_y // 2 + 1): # go up columns
n_row = (
n_middle + (i % 2) * (-1) ** l_number
) # calculates number of cylinders in current row
for j in range(-n_row + 1, n_row + 1, 2): # go along rows
if i != 0 or abs(j) > l_number: # don't populate cavity with cylinders
var_radius = R
if i == 0 and (abs(j) == l_number + 1): # checks if cylinder is on side of cavity
var_radius = side_R
c = td.Cylinder(
axis=axis,
sidewall_angle=sidewall_angle,
reference_plane=reference_plane,
radius=var_radius,
center=(x0 + j * spacing_x, y0 + i * spacing_y, z0),
length=height,
)
cylinders.append(c)
structure = td.Structure(geometry=td.GeometryGroup(geometries=cylinders), medium=medium)
return structure
s = hex_l_cavity(0, 0, 0, 0.3, 0.2, 0.8, 0.9, 8, 10, 2, 1, td.Medium(permittivity=3.48**2))
sim = td.Simulation(
size=[15, 10, 3], grid_spec=td.GridSpec.auto(wavelength=1.55), structures=[s], run_time=1
)
sim.plot_3d()
H Cavity¶
The function hex_h_cavity
returns a hexagon-shaped hexagonal array of cylinders with a hexagon-shaped cavity in the middle. Tunable cylinder radius, spacing, height, length in cylinders, and cavity size.
def hex_h_cavity(
x0,
y0,
z0,
R,
n_side,
h_number,
spacing,
height,
medium,
reference_plane="bottom",
sidewall_angle=0,
axis=2,
):
# parameters
# ------------------------------------------------------------
# x0: x coordinate of center of the array (um)
# y0: y coordinate of center of the array (um)
# z0: z coordinate of center of the array (um)
# R: radius of the cylinders (um)
# n_side: maximum number of cylinders on hexagon side
# h_number: maximum side number of hexagons that are removed
# spacing: spacing between centers of cylinders
# height: height of cylinders
# medium: medium of the cylinders
# reference_plane
# sidewall_angle: angle slant of cylinders
# axis
cylinders = []
for i in range(h_number + 1, n_side + 1): # hexagon side length
center_x, center_y = x0 + (i - 1) * spacing, y0
for j in range(0, 6 - 5 * (i == 1)): # iterate through hexagon sides
for k in range(0, i - 1 + (i == 1)): # iterate along each hexagon side
center_x += spacing * np.cos(np.pi * 2 / 3 + j * np.pi / 3) * (i > 1)
center_y += spacing * np.sin(np.pi * 2 / 3 + j * np.pi / 3) * (i > 1)
c = td.Cylinder(
axis=axis,
sidewall_angle=sidewall_angle,
reference_plane=reference_plane,
radius=R,
center=(center_x, center_y, z0),
length=height,
)
cylinders.append(c)
structure = td.Structure(geometry=td.GeometryGroup(geometries=cylinders), medium=medium)
return structure
s = hex_h_cavity(0, 0, 0, 0.3, 6, 2, 0.8, 1, td.Medium(permittivity=3.48**2))
sim = td.Simulation(
size=[10, 10, 3],
grid_spec=td.GridSpec.auto(wavelength=1.55),
structures=[s],
run_time=2,
)
sim.plot_3d()
Wood Pile¶
The function wood_pile
returns the popular 'wood pile' structure with tunable width of the blocks comprising the pile, width and height of the entire pile, number of blocks in each row, and number of rows of blocks.
def wood_pile(
x0,
y0,
z0,
block_width,
side_width,
pile_height,
n_rows,
n_floors,
medium,
reference_plane="bottom",
axis=2,
):
# parameters
# ------------------------------------------------------------
# x0: x coordinate of center of the array (um)
# y0: y coordinate of center of the array (um)
# z0: z coordinate of center of the array (um)
# block_width: width of the blocks being stacked (um)
# side_width: width of the wood pile (um)
# pile_height: height of the wood pile (um)
# n_rows: number of blocks on each floor
# n_floors: number of stackings in the wood pile
# medium: medium of the blocks
# reference_plane
# axis
boxes = []
spacing = 0.5 * side_width / n_rows
for i in range(0, n_floors):
for j in range(0, n_rows):
b = td.Box(
center=(
x0 + (0.5 - n_rows + 2 * j + (i % 4 == 2)) * spacing * ((i + 1) % 2),
y0 + (0.5 - n_rows + 2 * j + (i % 4 == 3)) * spacing * (i % 2),
z0 + pile_height * (-0.5 + 1 / n_floors / 2 + i / n_floors),
),
size=(
block_width * ((i + 1) % 2) + side_width * (i % 2),
block_width * (i % 2) + side_width * ((i + 1) % 2),
pile_height / n_floors,
),
)
boxes.append(b)
structure = td.Structure(geometry=td.GeometryGroup(geometries=boxes), medium=medium)
return structure
s = wood_pile(0, 0, 0, 0.2, 1.2, 1.4, 4, 6, td.Medium(permittivity=3.48**2))
sim = td.Simulation(
size=[3, 3, 3],
grid_spec=td.GridSpec.auto(wavelength=1.55),
structures=[s],
run_time=1,
)
sim.plot_3d()
FCC Sphere Array¶
The function fcc_pc
returns an FCC PC crystal of spheres, with tunable sphere radius, spacing, and number of spheres in each dimension.
def fcc_pc(x0, y0, z0, spacing, R, n_x, n_y, n_z, medium):
# parameters
# ------------------------------------------------------------
# x0: x coordinate of center of the array (um)
# y0: y coordinate of center of the array (um)
# z0: z coordinate of center of the array (um)
# spacing: spacing between the centers of the spheres (um)
# R: radius of the spheres
# n_x: number of spheres in x direction
# n_y: number of spheres in y direction
# n_z: number of spheres in z direction
# medium: medium of the spheres
spheres = []
center_x, center_y, center_z = (
x0 - (n_x - 1) * spacing,
y0 - (n_y - 1) * spacing,
z0 - (n_z - 1) * spacing,
)
for i in range(0, n_x):
for j in range(0, n_y):
for k in range(0, n_z):
for l in range(0, 4): # single crystal unit
s = td.Sphere(
center=(
center_x + (2 * i + (l % 3 == 0) * (-1) ** (l < 1)) * spacing,
center_y + (2 * j + 0.5 * (-1) ** (l % 2)) * spacing,
center_z + (2 * k + 0.5 * (-1) ** (l > 1)) * spacing,
),
radius=R,
)
spheres.append(s)
structure = td.Structure(geometry=td.GeometryGroup(geometries=spheres), medium=medium)
return structure
s = fcc_pc(0, 0, 0, 0.5, 0.2, 4, 6, 5, td.Medium(permittivity=3.48**2))
sim = td.Simulation(
size=[10, 10, 10],
grid_spec=td.GridSpec.auto(wavelength=1.55),
structures=[s],
run_time=1,
)
sim.plot_3d()
